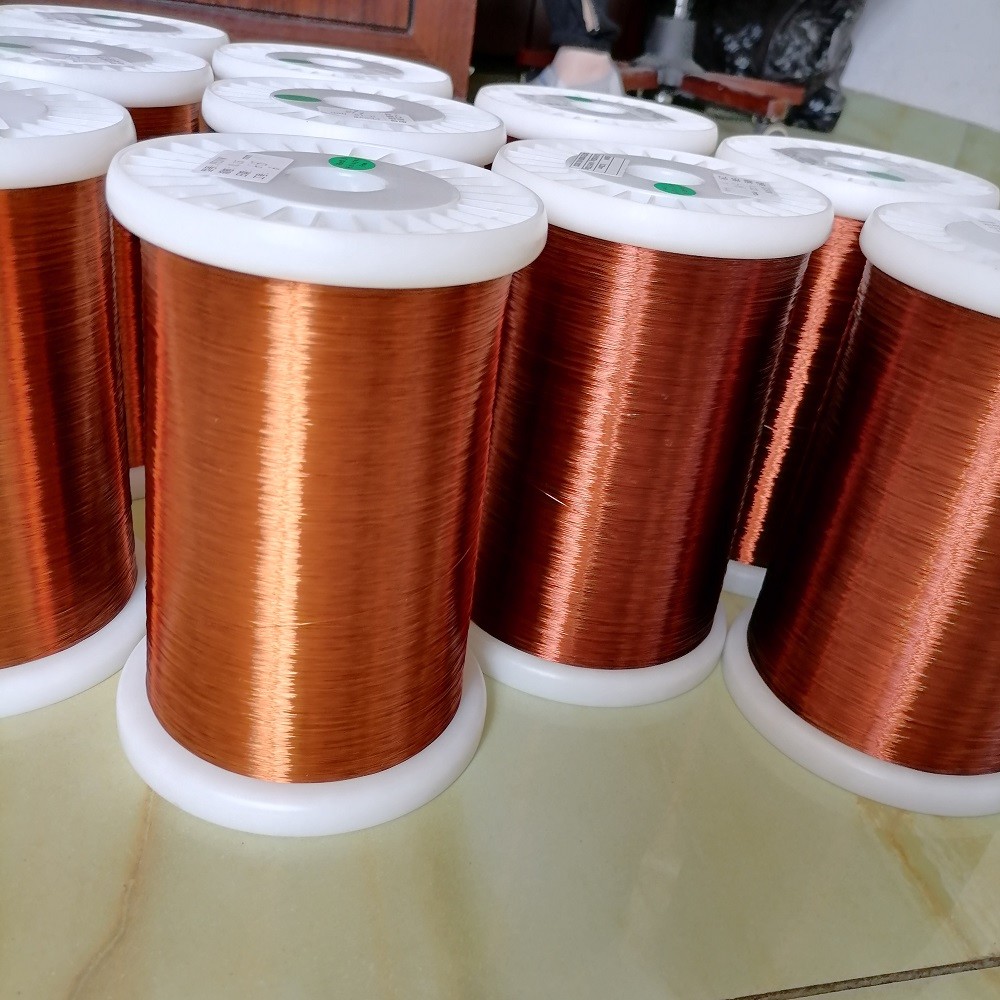

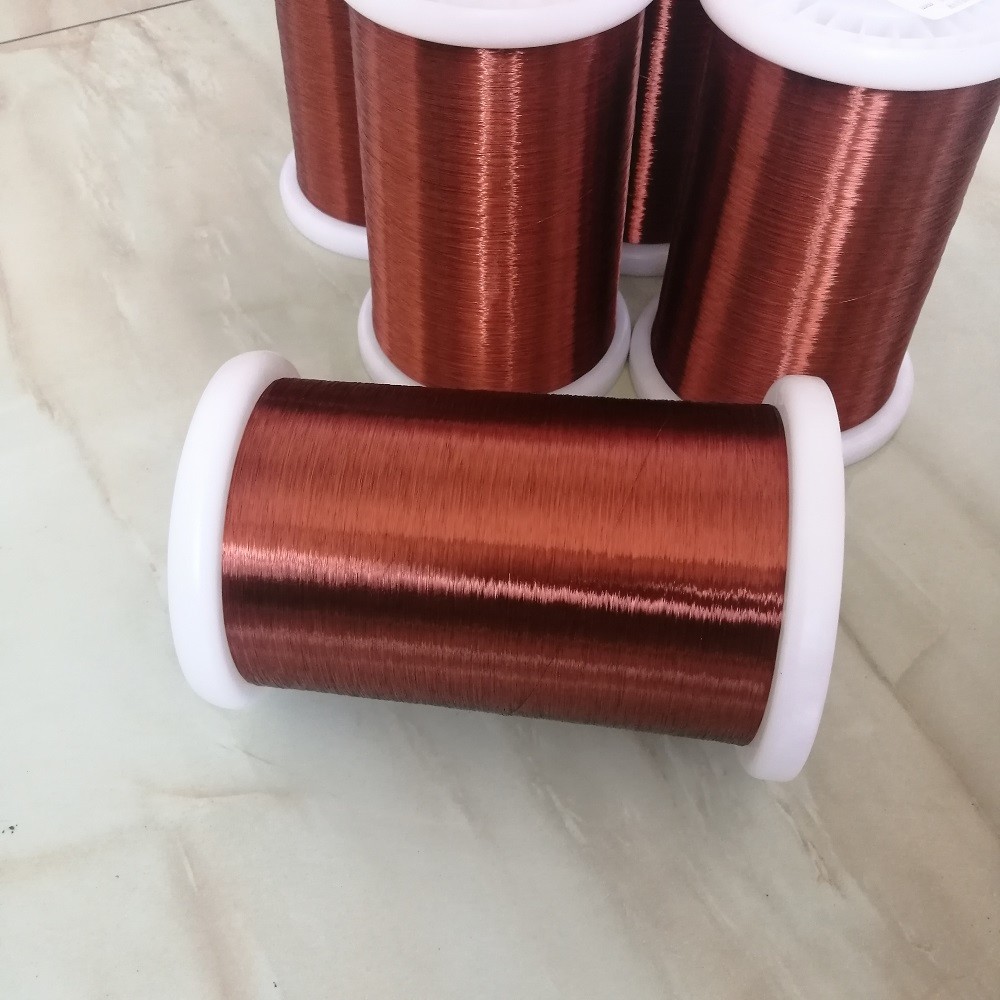

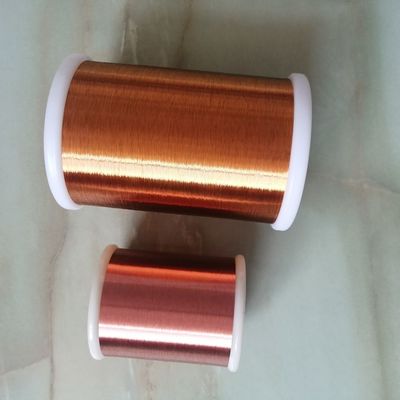

0.07mm Polyurethane Enameled Copper Wire Self Bonding Highly Heat Resistant
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUSHWY3-1B/180-0.07 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 16.35/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011380070 | Product Name | Induction Coil |
|---|---|---|---|
| Coating | UEW | Color | Red |
| Application | Relays / Transformer / Solenoids Coil / Motor Winding | ||
| High Light | 0.07mm Polyurethane Enameled Copper Wire,class 180 high temperature magnet wire,Red Polyurethane Enameled Copper Wire |
||
Product Description
Polyurethane Enameled Copper Wire 0.07mm Self Bonding Solderable Copper Wire Highly Heat Resistant
Characteristic :
High resistance to heat shock, high temperature and good performace at softening breakdown, suitable for highspeed automated routing, able to be direct weld, with no pinhole, resistive to high frequency, wearing, refrigerants
and electronics corona, high breakdown voltage
Our Advantage:
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification(0.045-0.080mm):
| Conductor Diameter (mm) |
Tolerance±(mm) | Min. Increase of Diameter(mm) | Min Increase of Diameter With Bonding Film(mm) | Overall diameter(mm) | ||
| Grade1B | Grade2B | Grade1B | Grade2B | |||
| 0.045 | 0.003 | 0.005 | 0.009 | 0.004 | 0.062 | 0.068 |
| 0.050 | 0.003 | 0.005 | 0.010 | 0.005 | 0.068 | 0.074 |
| 0.056 | 0.003 | 0.006 | 0.011 | 0.005 | 0.075 | 0.082 |
| 0.063 | 0.003 | 0.006 | 0.012 | 0.005 | 0.085 | 0.092 |
| 0.071 | 0.003 | 0.007 | 0.012 | 0.006 | 0.094 | 0.101 |
| 0.080 | 0.003 | 0.007 | 0.014 | 0.007 | 0.105 | 0.112 |
FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
