Enameled Self Adhesive Copper Winding Wire Polyurethane Insulation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011370075 | Product Name | 0.075mm Solderable Enameled Round Copper Wires |
|---|---|---|---|
| Diameter | 0.075mm | Thermal Class | 180 |
| Bonding Way | Solvent | Application | Small Motor |
| Color | Red Or Customization | Feature | High Temperature Resistance |
| High Light | Enameled Copper Winding Wire,Self Adhesive Copper Winding Wire,Polyurethane Insulation Copper Winding Wire |
||
Product Description

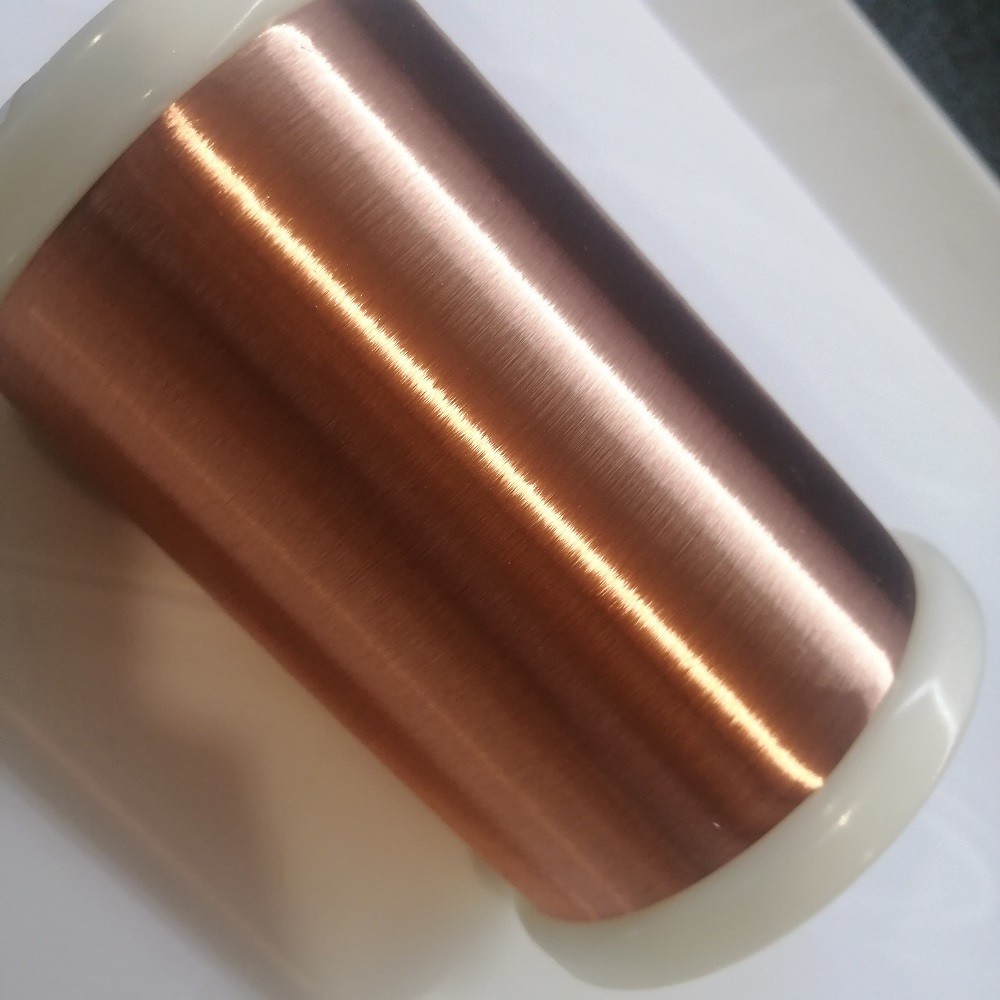

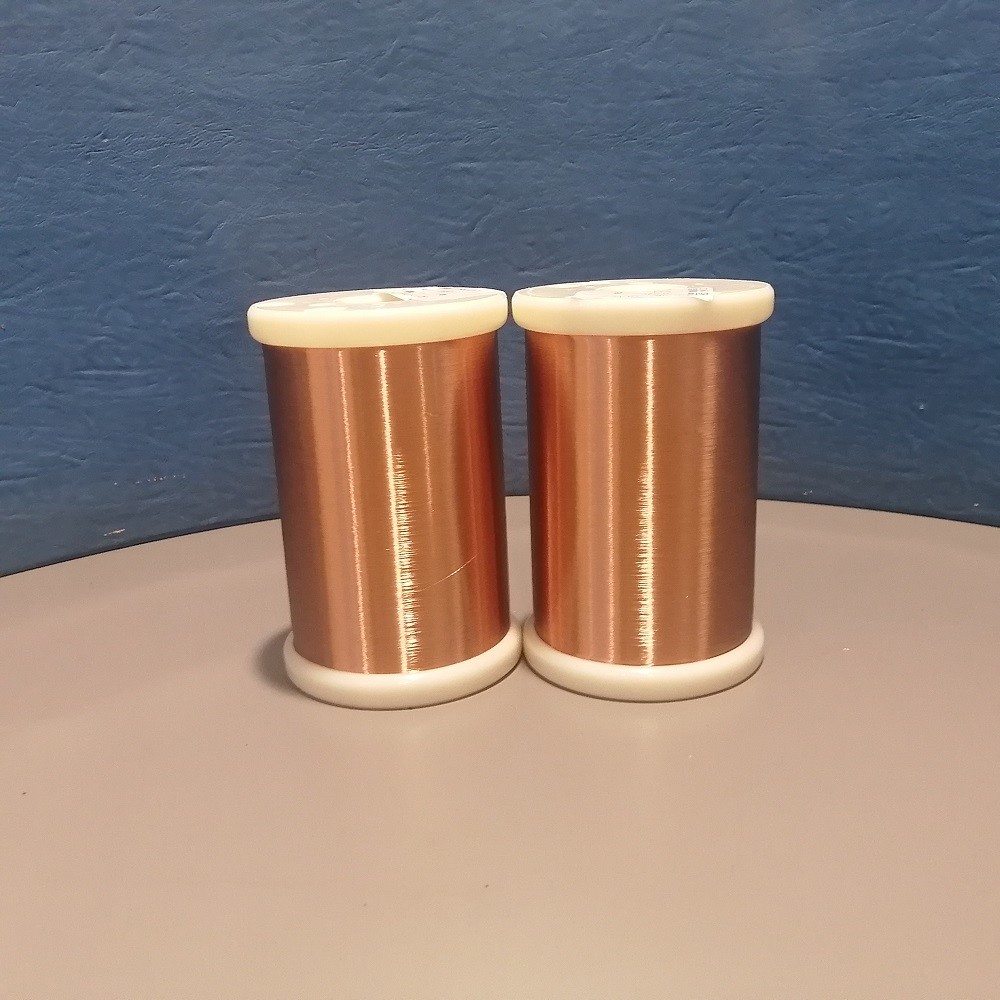

Self Adhesive Enameled Copper Winding Wire Polyurethane Insulation
Section roundness:
The difference between the maximum and minimum measured values of the same section diameter of the finger wire. Unqualified roundness will cause enameled wire color hair.
Maximum outside diameter and minimum paint film thickness:
The maximum outside diameter is out of tolerance, which will increase the size of the coil. Paint film is too thin, can produce pinhole, withstand voltage, withstand blow, withstand chemical performance, withstand aging and other properties drop or cause waste.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| solderable polyurethane enameled copper wires | |
| *Brand | CHINGCUNG |
| *Color | Red Or Customization |
| *Product Diameter | 0.075mm |
| *Material Type | Pure Copper |
| *Insulation | Polyurethane (PU) |
| *Film Grade | 1B |
| *Thermal Class | 180 |
| *Bonding Method | solvent |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
