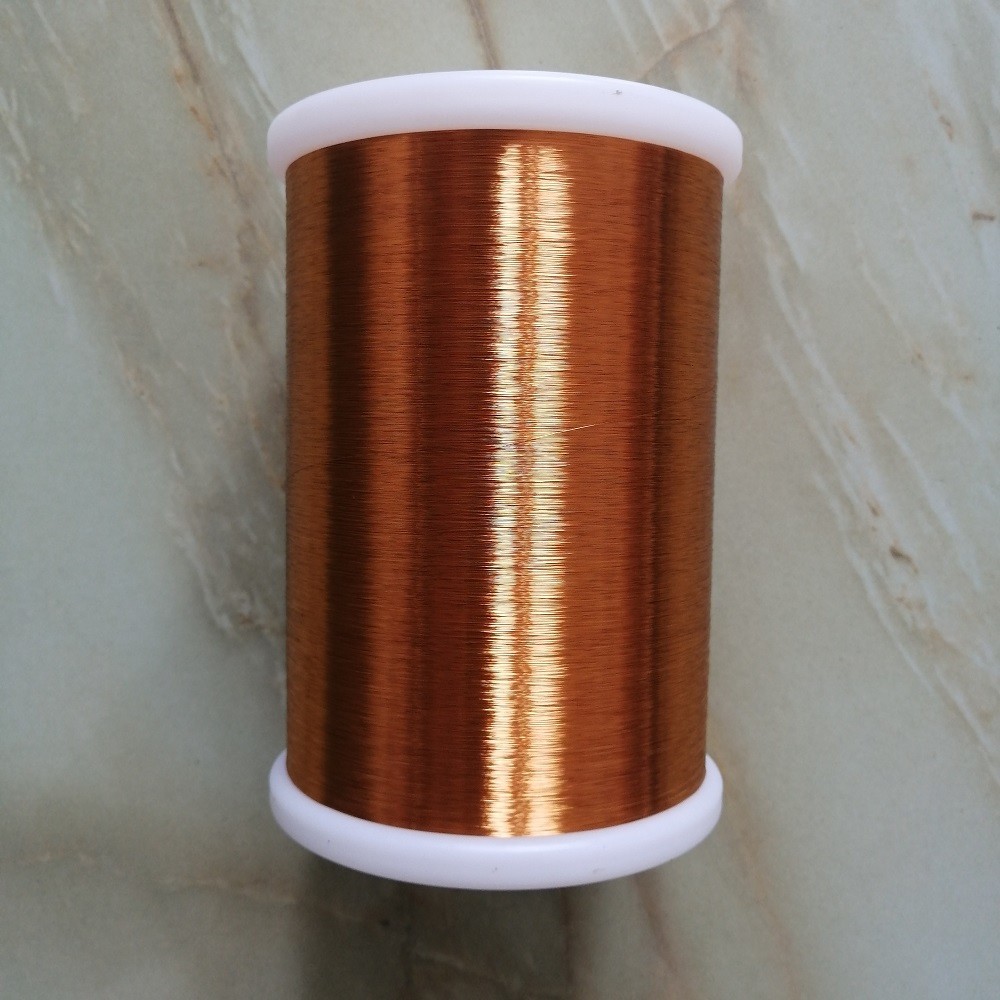

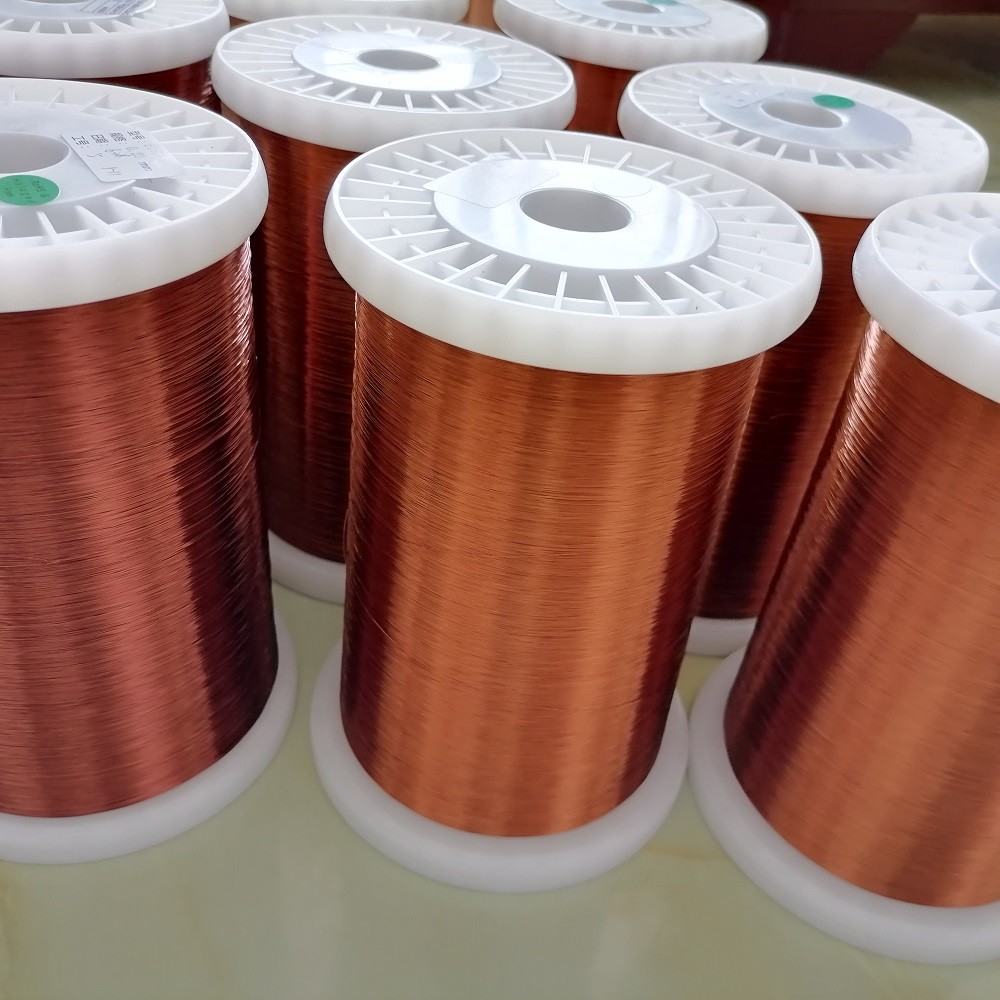

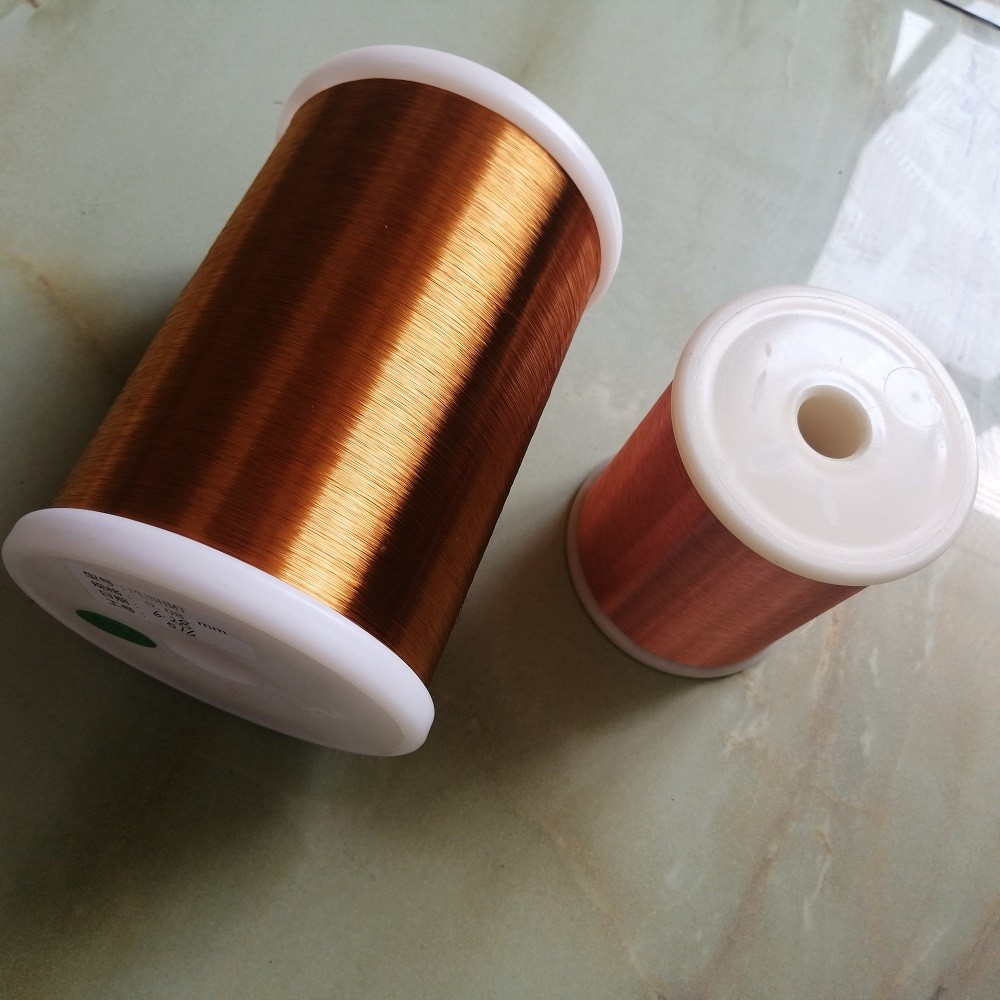

Self Adhesive 0.08mm Polyurethane Enameled Copper Wire Copper Winding Wire Class 180

  • Self Adhesive 0.08mm Polyurethane Enameled Copper Wire Copper Winding Wire Class 180
  • Self Adhesive 0.08mm Polyurethane Enameled Copper Wire Copper Winding Wire Class 180
  • Self Adhesive 0.08mm Polyurethane Enameled Copper Wire Copper Winding Wire Class 180
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PUSHWY3-1B/180-0.08
Minimum Order Quantity 30 Kg
Price USD 15.90/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011380080 Bonding Method Solderable
Coating Polyurethane Standard GB/T5013.3/IEC60245-3:1994
Diameter Of Single Wire 0.08mm Class 180
High Light

0.08mm Polyurethane Enameled Copper Wire

,

copper winding wire Class 180

,

GB Polyurethane Enameled Copper Wire
Leave a Message
Product Description

Polyurethane Self Adhesive Copper Winding Wire 0.08mm Customized Enameled Copper Wire Class 155/180





Products Main Features:
This product provides high cut through, excellent heat shock and high heat resistance characteristics.



High Frequency Signal Transmission :
1. Choice conductor material for : cable TV coaxial cable
2. 50Ω Radio frequency (RF) cable
3.High Frequency Signal Transmission

:

Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.



Specification(0.224-0.450):

Conductor
Diameter
(mm)		 Tolerance±(mm) Min. Increase of Diameter(mm) Min Increase of Diameter With Bonding Film(mm) Overall diameter(mm)
Grade1B Grade2B Grade1B Grade2B
0.224 0.003 0.015 0.029 0.012 0.270 0.284
0.250 0.004 0.017 0.032 0.013 0.300 0.316
0.280 0.004 0.018 0.033 0.013 0.331 0.348
0.315 0.004 0.019 0.035 0.014 0.369 0.387
0.355 0.004 0.020 0.038 0.015 0.413 0.432
0.400 0.005 0.021 0.040 0.016 0.461 0.481
0.450 0.005 0.022 0.042 0.016 0.514 0.536



FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.



Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese



Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.



Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.



Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.









Tags:

0.085mm Self Adhesive Copper Wire

39 AWG Polyurethane Enameled Copper Wire

Solderable winding copper wire
