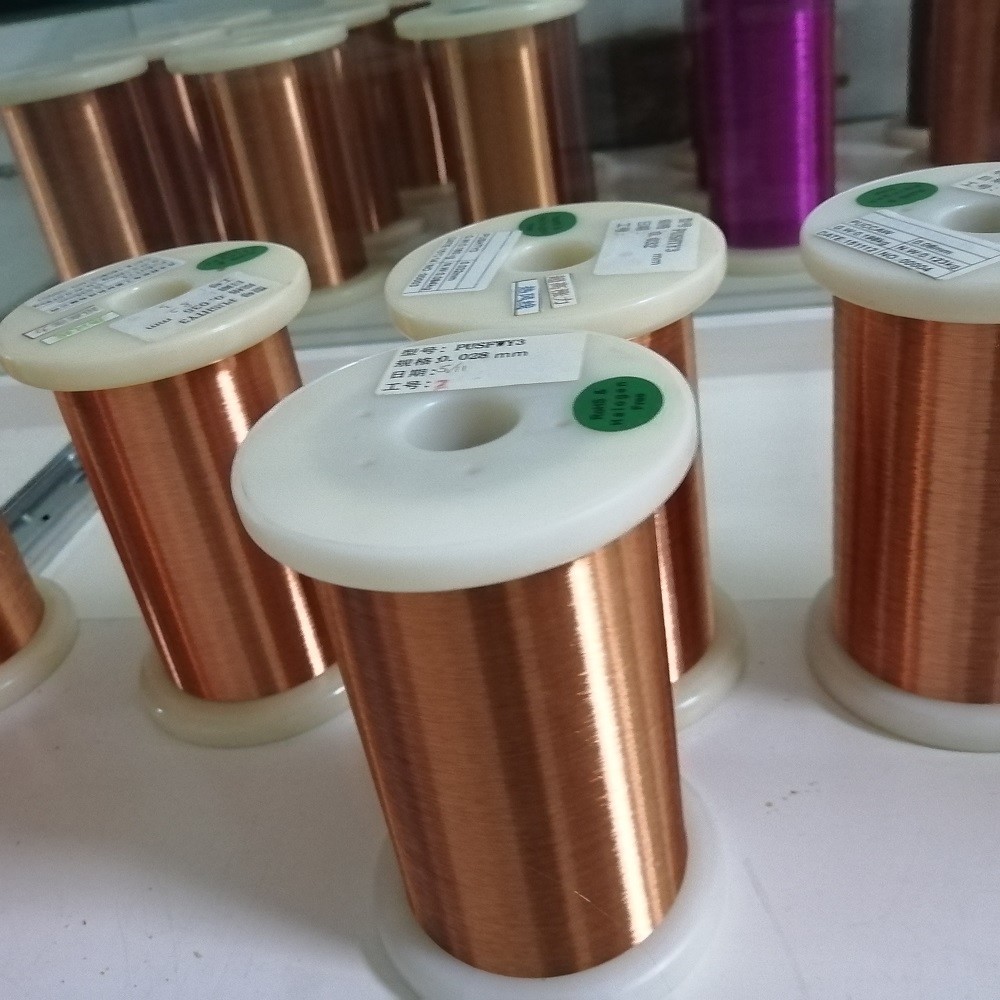

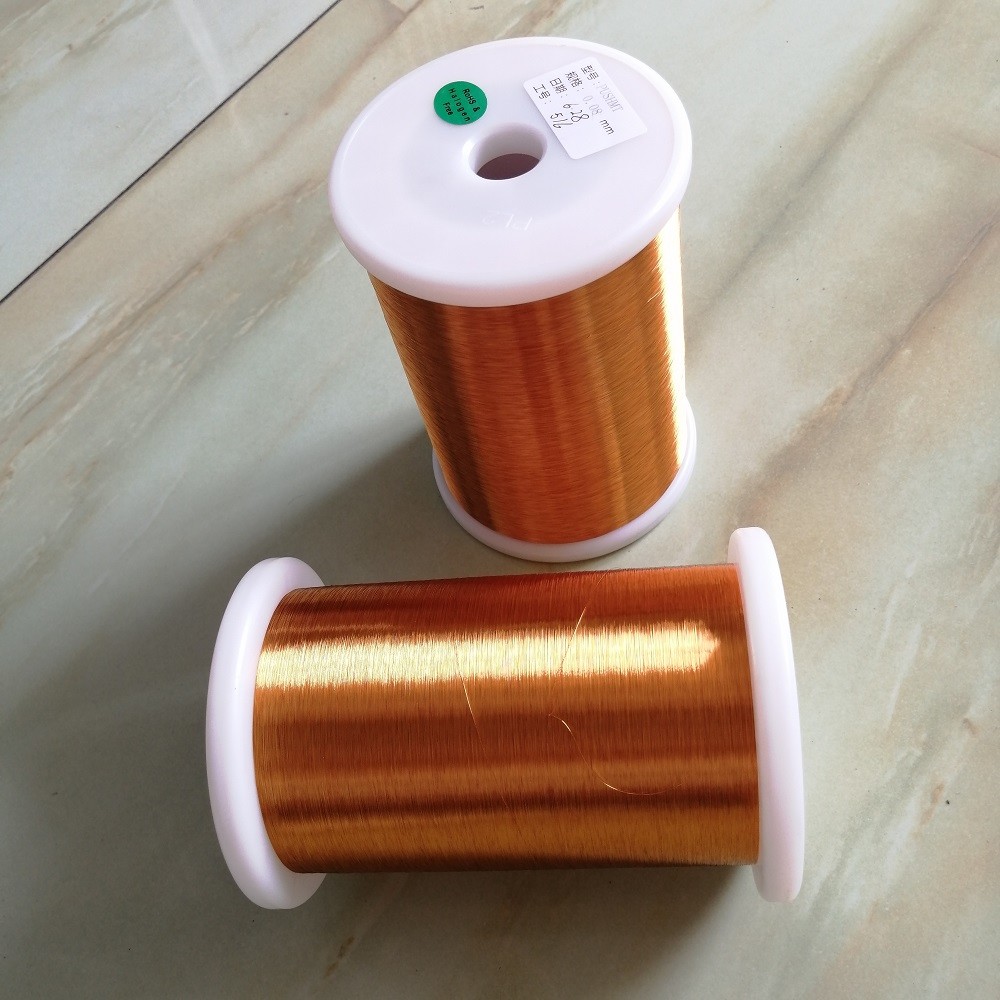

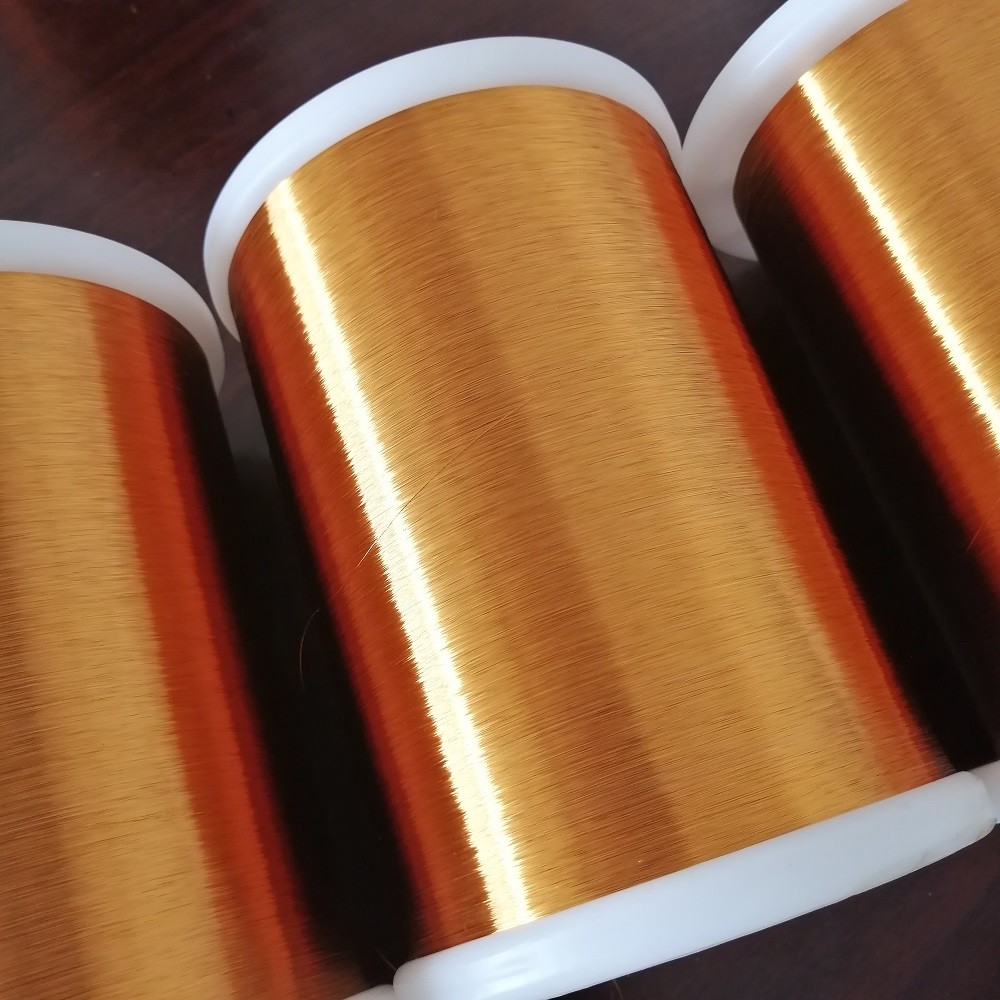

0.8mm Self Bonding Wire Solderable Polyurethane Enameled Round Copper Wires

  • 0.8mm Self Bonding Wire Solderable Polyurethane Enameled Round Copper Wires
  • 0.8mm Self Bonding Wire Solderable Polyurethane Enameled Round Copper Wires
  • 0.8mm Self Bonding Wire Solderable Polyurethane Enameled Round Copper Wires
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PUCCAW-GB/155-0.12
Minimum Order Quantity 30 Kg
Price USD 206.67/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30021492120 Diameter 0.012 - 0.8mm
Thermal Rating 130/155/180 Self Adhesive Layer Alcohol
Film Grade GB Advantage High Breakdown Voltage
High Light

Alcohol 0.8mm Self Bonding Wire

,

CHINGCUNG enameled round copper wire

,

Class 2B Self Bonding Wire
Leave a Message
Product Description

Self Bonding Wire Solderable Polyurethane Enameled Round Copper Clad Aluminum Wires



FEATURE:
Bonding method: Alcohol/hot aire.
Thermal class:155/ 180/220
Feature: Dirctly solderable; excellent bonding strength; suitable for different bonding strength requirements application; easily dyable, various coloring potions, natural, red, green, blue and black.



Packaging Details
1. Standarad export pallet packing for colored winding wire.
2. As per customer's requirement.
UEW Ultra Thin Copper Wire Enameled Copper Wire Self Bonding Wire



Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.



Specification:

Conductor Diameter(mm) Minimum breakdown voltage at room temperature/V
Class 1B Class 2B
0.018 110 225
0.020 120 250
0.022 130 275
0.025 150 300
0.028 170 325
0.032 190 375
0.036 225 425
0.040 250 475
0.045 275 550
0.050 300 600
0.056 325 650
0.063 375 700
0.071 425 700
0.080 425 850
0.090 500 900
0.100 500 950



FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.



Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.



Q3:What's the main market of your company?
A:We have customers all over the world.



Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.



Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
