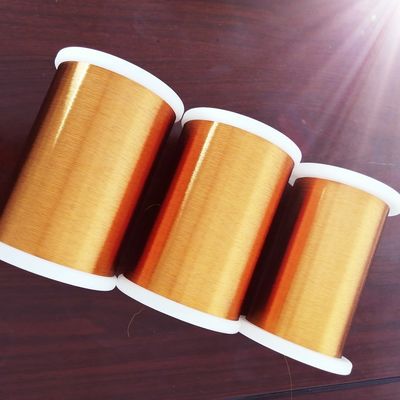

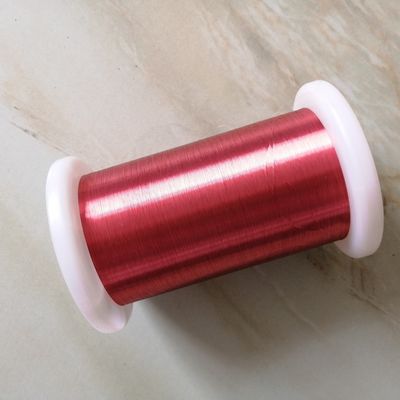

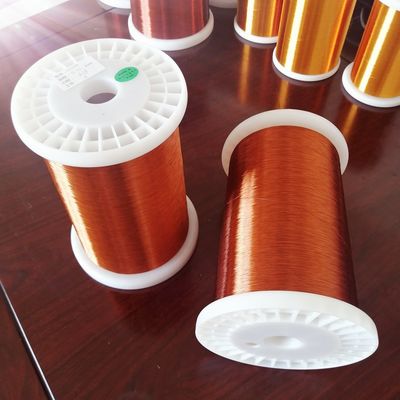

0.1mm Class 200 Voice Coil Wire Self Bonding Polyesterimide Wires With Solid Conductor
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.1 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 117.78/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430100 | Overall Diameter | 0.04-0.90mm |
|---|---|---|---|
| Conductor | Copper And Aluminum | Brand | CHINGCUNG |
| Color | Nature/Red/Pink | Solderability | No |
| Name | CCA Self Adhesive Enamelled Copper Wires | Self Adhesive Layer | Alcohol Soluble |
| High Light | Self Bonding Voice Coil Wire,1B enamel coated copper wire,0.1mm Voice Coil Wire |
||
Product Description
Self Bonding Polyesterimide Wires With Solid Conductor 0.1mm Class 200 Voice Coil Wire
Advantage:
a) Able to be direct weld, with no pinhole.
b) Resistive to high frequency, wearing, refrigerants and electronics corona.
c) High breakdown voltage, small dielectric loss angle.
d) Environment-friendly
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Type | Polyester | Modified Polyester | Polyurethane | Polyesterimide | Polyamide-imide | Polyamide |
| Code | PEW, QZ | PEW, QZ | UEW, QA | EIW, QZY | EI/AIW, QZY/XY | AIW, QXY |
| Thermal Class | Class B, 130℃ | Class F, 155℃ | Class F, 155℃ | Class H, 180℃ | Class H, 200℃ | Class L, 220℃ |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
