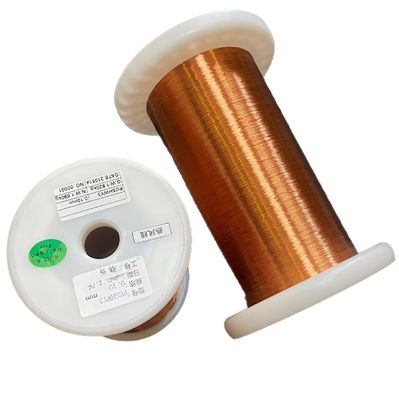

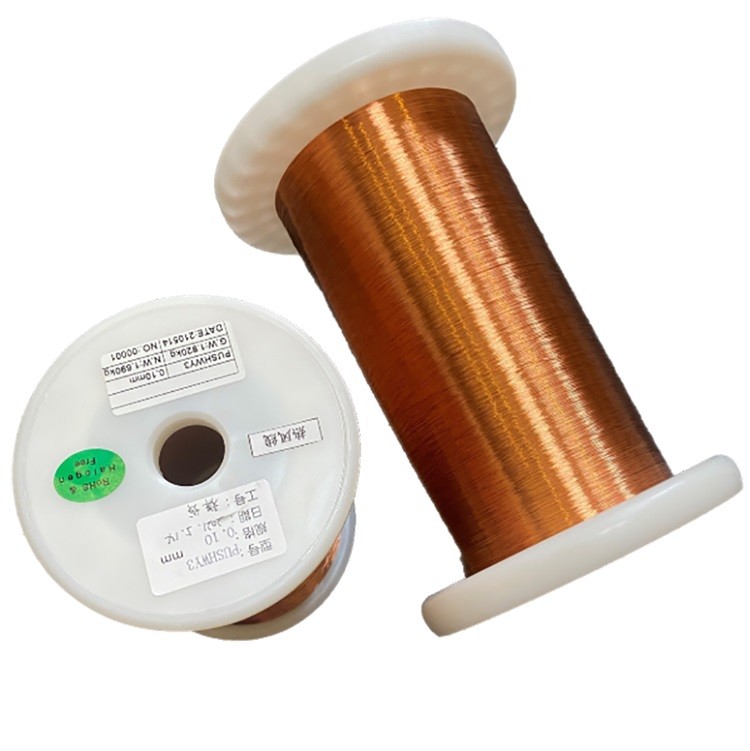

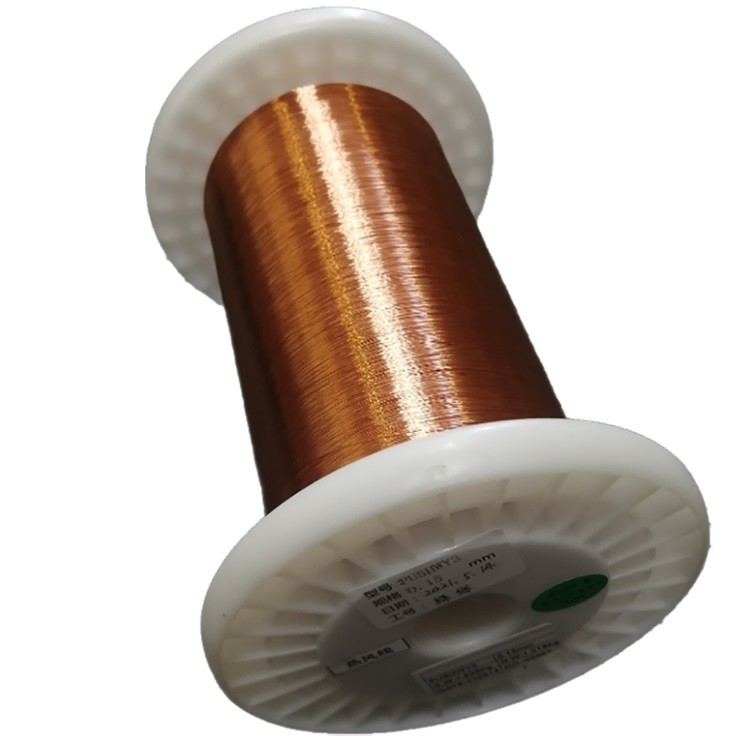

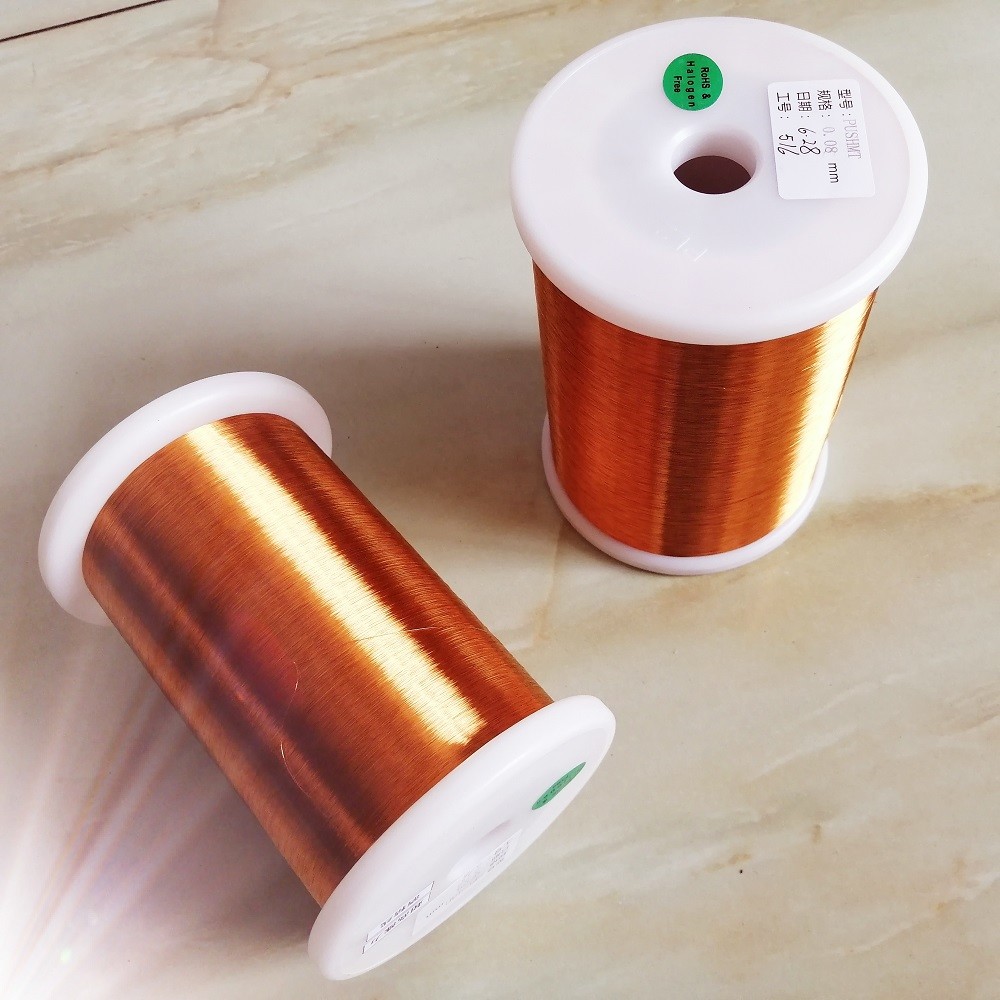

0.19mm Voice Coil Wire Alcohol Soluble Self Bonding Polyesterimide
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.19 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 47.78/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430190 | Product | Class 200 CCA Self Adhesive Enamelled Wires |
|---|---|---|---|
| Material | Copper/cca | Type | Magnet Copper Wire |
| Bonding Method | Alcohol Soluble/Hot Air | Color | Original Or According To Customers |
| Feature | High Breakdown Voltage | Application | Motor,dry Transformer,generator,relays |
| High Light | 0.19mm Voice Coil Wire,Class 200 CCA enameled copper clad aluminum wire,Polyesterimide Voice Coil Wire |
||
Product Description
0.19mm Alcohol Soluble Self Bonding Polyesterimide Enameled Copper Clad Aluminum Wires
Alcohol soluble enameled wire:
Alcohol self-adhesive wire is often used for voice coil and deflection coil and other non-skeleton coil, low temperature grade, coil need to move and weight sensitive occasions is very advantageous.Enameled wire is soaked with alcohol solvent (usually ethanol) before winding to the model, the melting layer is melted, the winding made of natural air drying or drying after shaping.
High temperature self-adhesive enameled wire, the use of hot air or electricity on the conductor to generate heat to achieve secondary fusion, the most widely used in the stator windings of power tools.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| 0.19mm Self bonding CCA wire | |
| *Brand | CHINGCUNG |
| *Color | Red |
| *Size | 0.19mm |
| *Material Type | CCA |
| *Insulation | EIW |
| *Thermal Rating | 200 |
| *Package | PT-15,PT-10.PT-4,PL-2,PC-1 |
| *Application | Relays / Solenoids Coil / Motor Winding |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:How does your factory do regarding quality control?
A:We have a special QC department, Quality inspection team including incoming material, process and finished product inspection.
