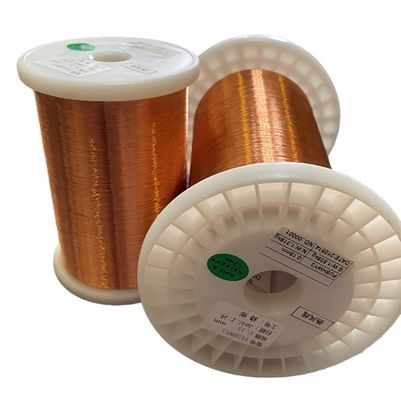

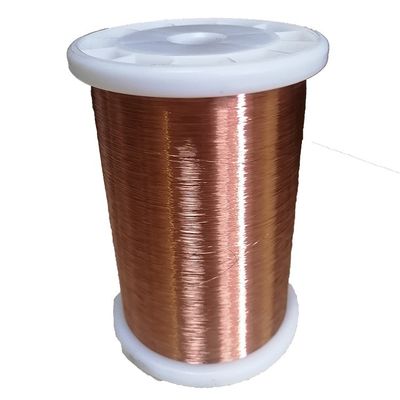

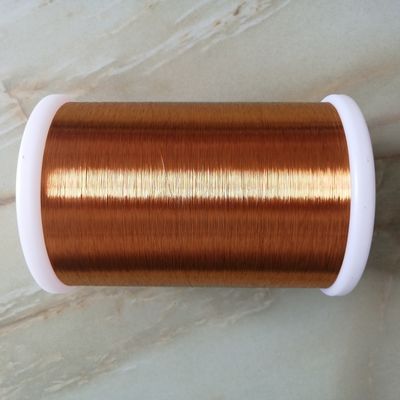

0.21mm Self Bonding Copper Wire For Making Voice Coil Enameled Electric Rewind Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.21 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 45.56/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430210 | Product | Class 180 Copper Clad Aluminum Wires |
|---|---|---|---|
| Insulation Material | EIW/Polyesterimide | Type | Alcohol Soluble/Hot Air |
| Diameter | 0.21mm | Film Grade | Grade 1B |
| Feature | High Tension Strength | Application | Motor,dry Transformer,generator,relays |
| High Light | 0.21mm Self Bonding Copper Wire,Class 180 varnished copper wire,1B Self Bonding Copper Wire |
||
Product Description
0.04-0.9mm Self Bonding Copper Wire For Making Voice Coil Enameled Electric Rewind Wire
Product Description:
In the process of winding, enameled wire insulation is subject to a large scratch force, insulation may be damaged, the rigid structure of the insulation layer, easy to lead to insulation damage from outside to inside, resulting in inter-turn failure risk.The slippability of nylon helps to reduce winding damage. Even in the case of damage, the ductility of nylon can reduce the impact of external force and reduce the damage of insulation layer, ensuring the reliability of insulation.
Therefore, in consideration of the process damage, using self-adhesive wire to make the stator of power tools, in addition to the outstanding contribution to environmental protection, compared with the use of ordinary wire winding reliability has also been greatly improved.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| Property | Copper Volume Percentage (%) | Density (kg/dm3) | Conductivity (IAACS)(%) | Conductivity (S*m/mm2) |
| Cu | 100 | 8.9 | 100 | 58.5 |
| HCCA 15% | 15 | 3.63 | 68 | 39.15 |
| KCCA 15% | 15 | 3.63 | 62 | 36 |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:How does your factory do regarding quality control?
A:We have a special QC department, Quality inspection team including incoming material, process and finished product inspection.
