Heat Bondable Enamelled Copper Magnet Wire Wire 0.06mm Self Bonding Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011530060 | Self Adhesive Layer | Polyesterimide |
|---|---|---|---|
| Solderable | Yes | Bonding Way | Hot Air |
| Color | Natural Or As Your Requirements | Packing | Plastic Spool |
| Product Name | Solderable Polyesterimide Enameled Copper Wires | Type | Ultra Fine Self Bonding Copper Wire |
| High Light | Heat Bondable enamelled copper magnet wire,0.06mm Self Bonding Wire,CHINGCUNG class 180 enamelled copper magnet wire |
||
Product Description

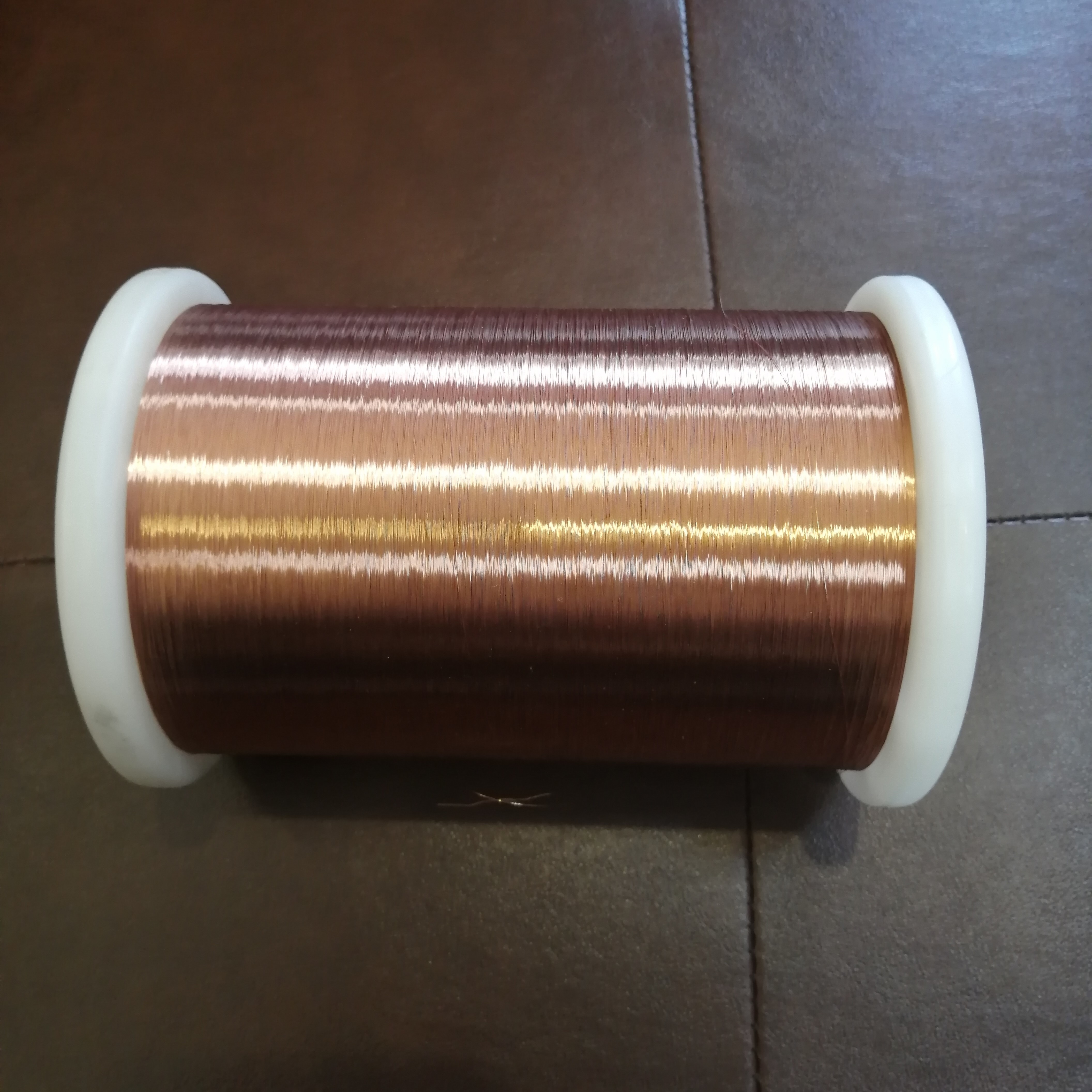

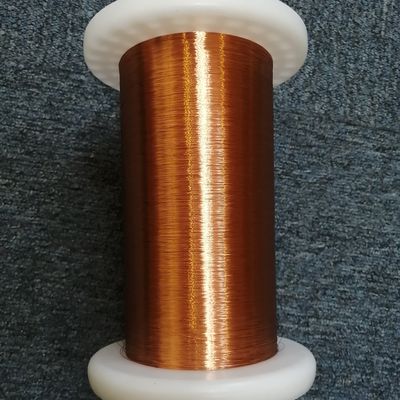

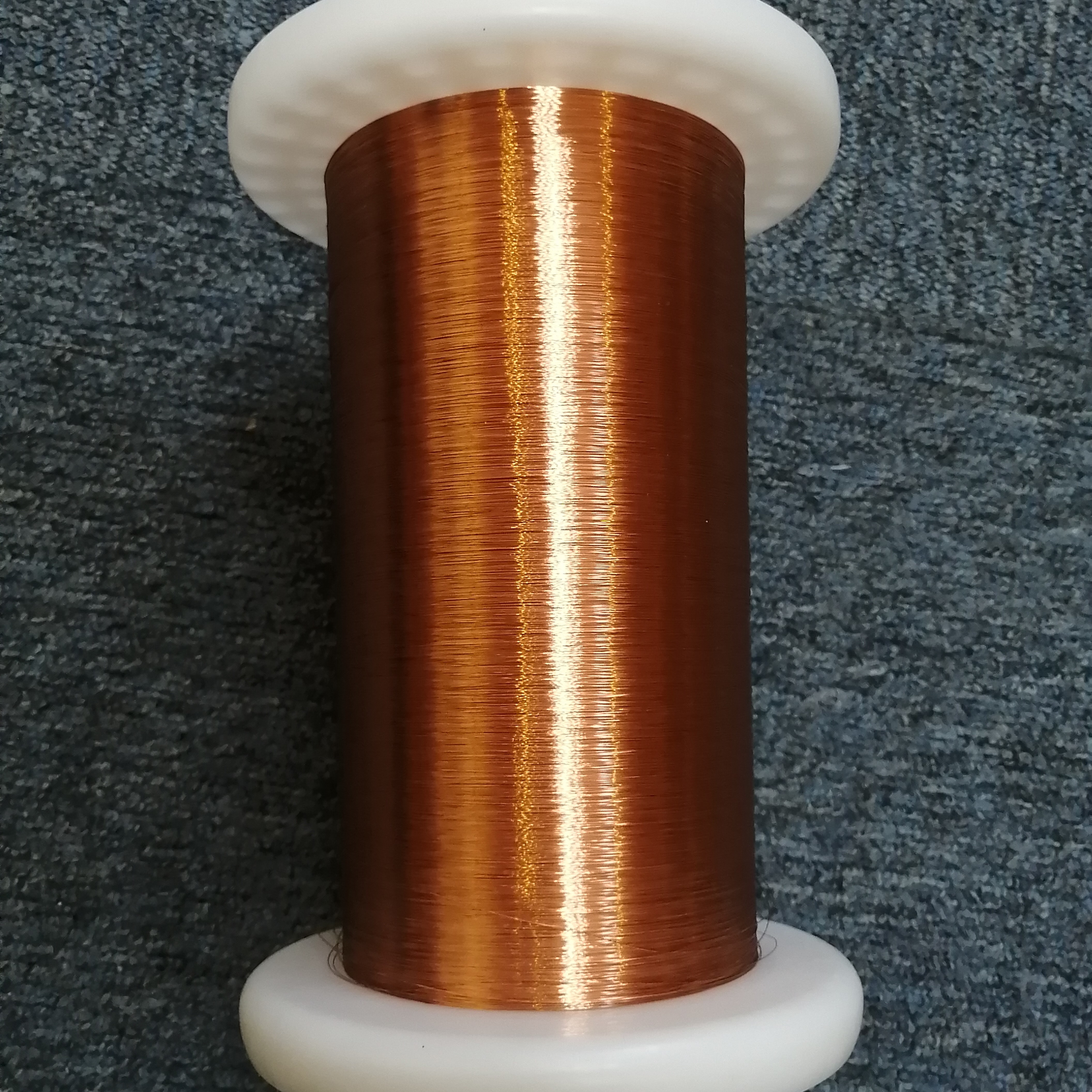

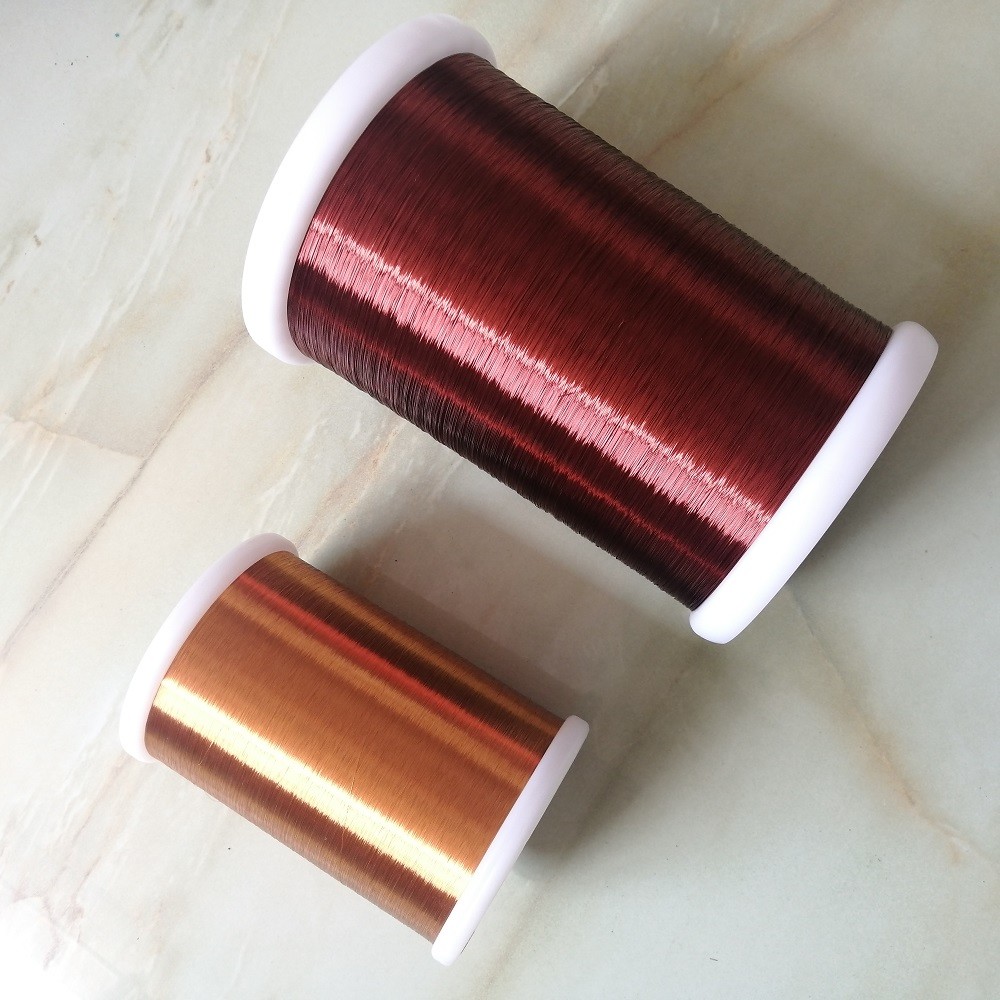

Heat Bondable Enamel Copper Magnet Wire 0.06mm Self Bonding Wire For Making Voice Coil
Characteristic :
Alcohol Self bonding Enamel coating process:
The enameled wire consists of bottom coating and surface coaing. Processing procedure under two enamel coating oven. The bottom coating provide the insulation performance. The surface coating can be bonded under alcohol and thermal.
Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| Model Number | PESHW-1B/180 | PESHW-2B/180 | PESHW-GB/180 | PESHWY3-1B/180 | PESHWY3-2B/180 | PESHWY3-GB/180 |
| Conductor Material | Cu | Cu | Cu | Cu | Cu | Cu |
| Conductor Diameter(mm) | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 |
| Bonding Method | Alcohol Soluble | Alcohol Soluble | Alcohol Soluble | Hot Air | Hot Air | Hot Air |
| Insulation Material | polyesterimide | polyesterimide | polyesterimide | polyesterimide | polyesterimide | polyesterimide |
| Film Grade | 1B | 2B | GB | 1B | 2B | GB |
| Brand Name | CHINGCUNG | CHINGCUNG | CHINGCUNG | CHINGCUNG | CHINGCUNG | CHINGCUNG |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
