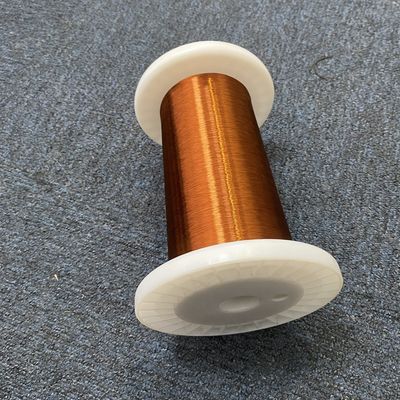

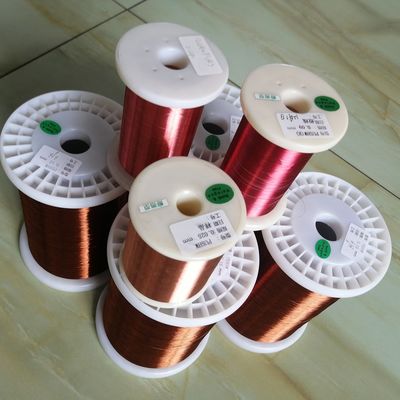

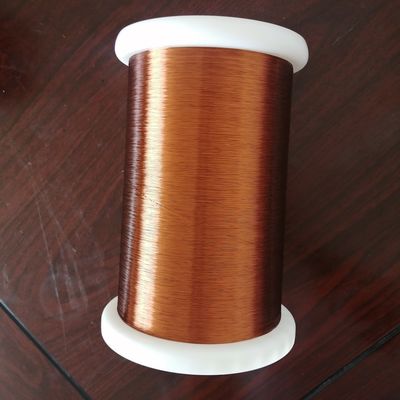

EIW Class 180 Soldering Enameled Wire Copper Wire 0.08mm For Magnetic Induction Coils

Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PESHW-1B/180-0.08
Minimum Order Quantity 30 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011530080 Product Name Ultra Fine Self Bonding Copper Wire
Diameter 0.08mm Insualtion Type Solderable Polyesterimide
Film Grade Grade 1B Bonding Method Hot Air/Alcohol Soluble
Application Relays / Transformer / Solenoids Coil / Motor Winding Feature Excellent Thermal Stability
High Light

Soldering Enameled Wire 0.08mm

,

ISO self bonding copper wire

,

EIW Class 180 Soldering Enameled Wire

Leave a Message
Product Description

EIW Class 180/200 Self Bonding Wires Copper Wire For Magnetic Induction Coils





Product Description:
Ordinary enameled wire (QZ) does not have direct welding, welding, need to use sandpaper or other tools to remove the paint layer clean, especially when the transformer coil leads more (there are dozens of solder spots), quite time-consuming;And when enameled wire wire diameter is very fine, to the paint layer easy to make the line core injury.Self-adhesive polyurethane enameled wire (QAN) has direct solderability, which improves the efficiency of transformer end treatment.



Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.



Specification:

Brand name CHINGCUNG Specification Met IEC
Material type copper wire Film Grade 1B/2B/3B
Bare copper dia. 0.04-0.90mm/AWG 19-46 Insulation solderable polyesterimide
Thermal class 180 Shape Round
Bond method Alcohol Soluble/Hot Air Color Customization
Spool PT-15,PT-10.PT-4,PL-2,PC-1 Standard JIS,NEMA,IEC ,GB


FAQ:

Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.



Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.



Q3:What's the main market of your company?
A:We have customers all over the world.



Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.



Q5:How does your factory do regarding quality control?
A:We have a special QC department, Quality inspection team including incoming material, process and finished product inspection.
