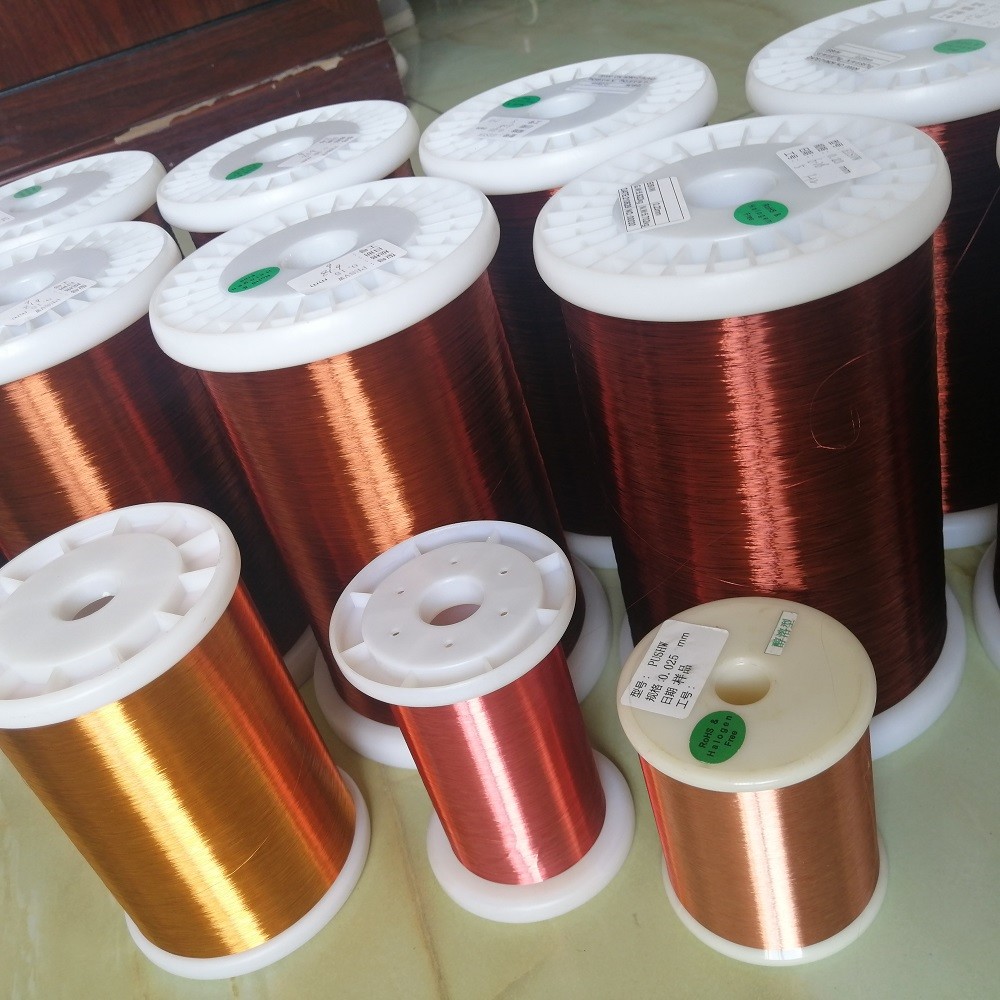

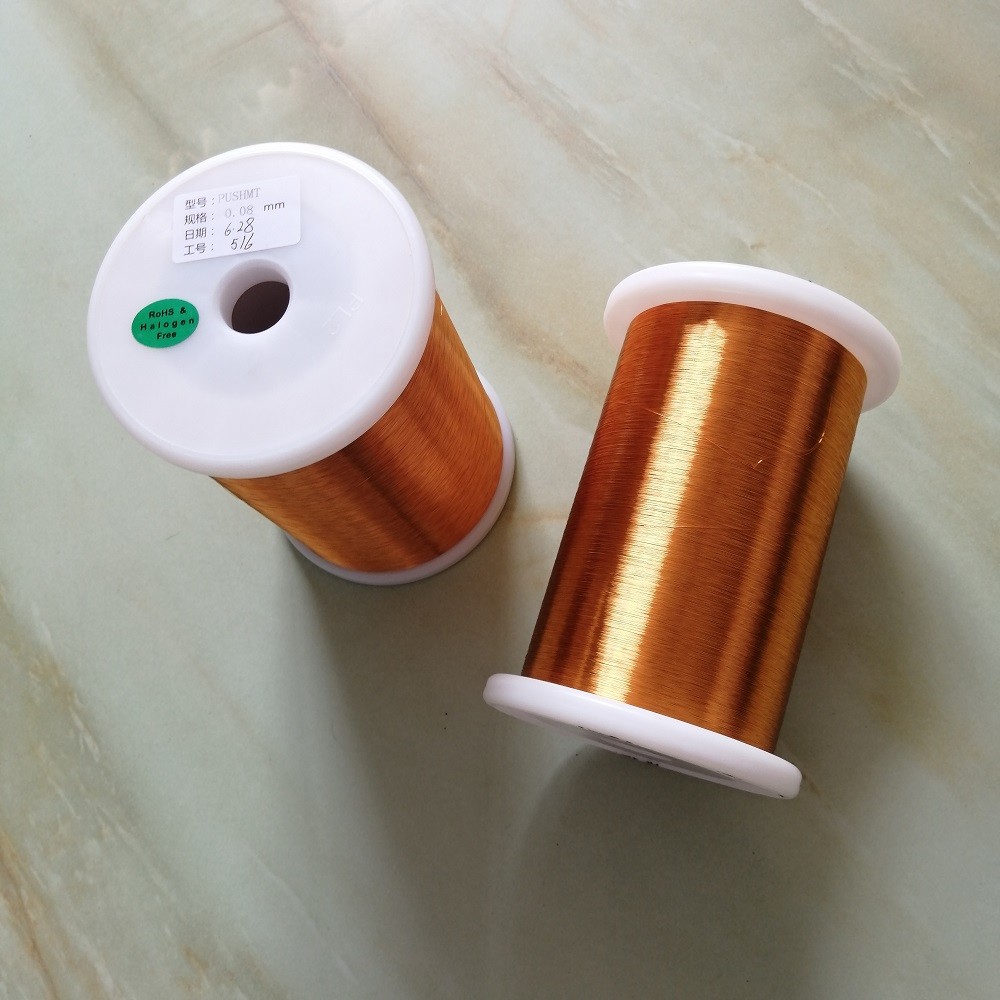

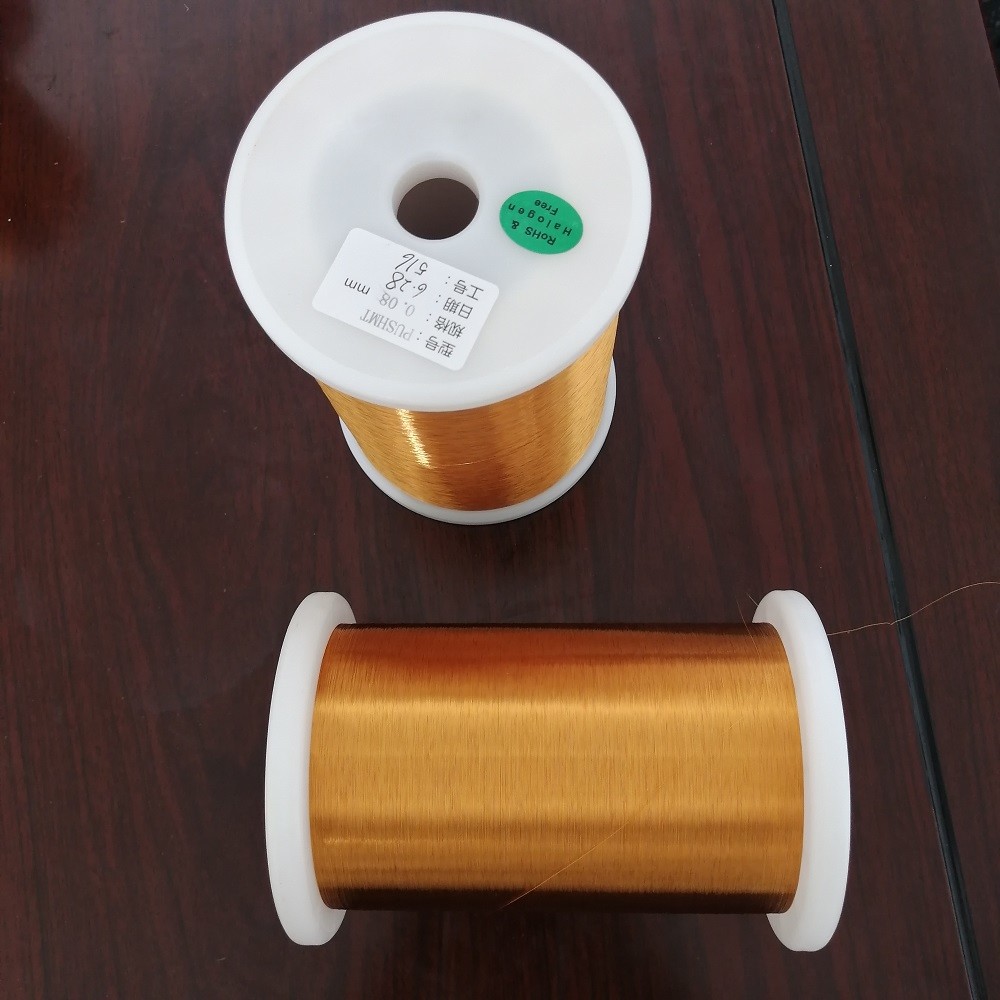

0.15mm Soldering Enameled Wire Enamelled Copper Wire For Making Voice Coils
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011530150 | Product Name | Polyesterimide Self Bonding Wires |
|---|---|---|---|
| Bonding Way | Hot Air/Alcohol Soluble | Insualtion | EIW |
| Class | 180 | Material | High Purity Copper |
| Application | Speaker Voice Coil | Advantage | Good Solderability Flexibility |
| High Light | 0.15mm Soldering Enameled Wire,CHINGCUNG 1B Enamelled Copper Wire,EIW Soldering Enameled Wire |
||
Product Description
0.15mm 180-200℃ Self Adhesive Solderable Enamelled Copper Wire For Making Voice Coils
The thickness of self-adhesive paint film:
after the composition of self-adhesive paint and coating process is determined, the thickness of self-adhesive paint film of enameled wire is the main factor to determine the adhesive strength of enameled wire.Within a certain limit of self-adhesive film thickness, the adhesive strength of enameled wire increases with the increase of self-adhesive film thickness
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| Performance | Constantan | New Constantan | Manganin | Manganin | Manganin | |
| 6J40 | 6J11 | 6J12 | 6J8 | 6J13 | ||
| Main Chemical Elements % | Mn | 1~2 | 10.5~12.5 | 11~13 | 8~10 | 11~13 |
| Ni | 39~41 | - | 2~3 | - | 2~5 | |
| Cu | REST | REST | REST | REST | REST | |
| AI2.5~4.5Fe1.0-1.6 | Si1~2 | |||||
| Temperature Range for Components | 5~500 | 5~500 | 5~45 | 10~80 | 10~80 | |
| Density | 8.88 | 8 | 8.44 | 8.7 | 8.4 | |
| g/cm3 | ||||||
| Resistivity | 0.48 | 0.49 | 0.47 | 0.35 | 0.44 | |
| uΩ.m,20 | ±0.03 | ±0.03 | ±0.03 | ±0.05 | ±0.04 | |
| Extensibility | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
| %Φ0.5 | ||||||
| Resistance | -40~+40 | -80~+80 | -3~+20 | -5~+10 | 0~+40 | |
| Temperature | ||||||
| Quotiety | ||||||
| ɑ.10-6/ | ||||||
| Thermoelectromotive | 45 | 2 | 1 | 2 | 2 | |
| force to Copper | ||||||
| uv/(0-100) | ||||||
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:How does your factory do regarding quality control?
A:We have a special QC department, Quality inspection team including incoming material, process and finished product inspection.
