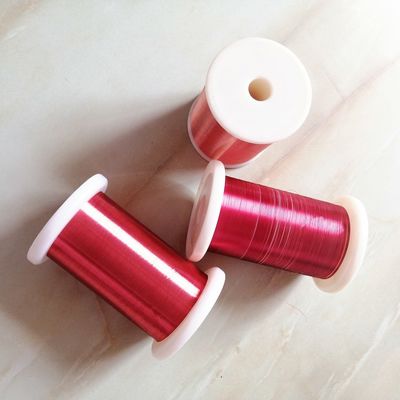

0.036mm Class 240 Aromatic Polyimide Enamel Coated Magnet Wire For Ignition Coils

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number QY(F)-1/240-0.036
Minimum Order Quantity 20 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 31011490036 Product Name 240℃ Aromatic Polyimide Round Copper Enameled Wires
Product Type High Temperature Enameled Wire Insualtion Type PI
Conductor Diameter 0.036mm Advantage High Breakdown Voltage
Usage Relays / Solenoids Coil / Motor Winding Enamel Thickness Grade1
High Light

0.036mm enamel coated magnet wire


0.036mm Class 240 transformer winding wire


47 AWG enamel coated magnet wire

Leave a Message
Product Description

0.036mm Class 240 Aromatic Polyimide Enamel Coated Magnet Wire For Ignition Coils


Paint stripping method of enamelled wire:
1, Scraping method: the paint can be scraped off one by one with a knife or a broken saw blade. When scraping, do not only scrape the two sides, but carefully scrape along the circumference of the circle. Do not scratch the conductor. This method takes too much time and manpower. If there are few enamelled wires, it can be done.
2, Concentrated sulfuric acid paint removal, process: soak in industrial concentrated sulfuric acid, process: rinse the black film in chromic acid solution. After rinsing with chromic acid solution, it is washed with two courses of water. This method requires concentrated sulfuric acid, which is OK, but it is dangerous to operate.
3, With paint remover, the paint can be removed quickly and save raw materials and labor. Organic paint that can drop all metal surfaces in a few minutes. Just soak all the enameled wires that need to be removed in the paint remover for 0.5-5 minutes. The old paint film will swell strongly and bulge, and then all of them can fall. After taking them out, knock off the remaining paint chips on the workpiece surface with high-pressure water and wash them with clean water.


Our company has carried out business with more than 100 overseas customers in more than 20 countries and regions such as Germany, Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East, Africa and so on.
Enameled wire production base is located in Jiaxing city, Zhejiang Province, the main production of various grades of heat self-adhesive wire, specializing in high temperature self-adhesive wire.The annual output of the company is about 15000 tons of enamel copper wire, according to IEC, NEMA, JIS, GB standard production, wire diameter range 0.04-0.90mm.The Chinese government's new policy of "One Belt, One Road" provides a new opportunity for industrial and production capacity cooperation with overseas countries and regions.Shanghai Husu Husu Electromechanical Technology Co., Ltd. sincerely hopes to establish and develop long-term and mutually beneficial cooperative relationship with you in the future.




Model Number QY(F)-1/240-0.036
Conductor Material copper
Conductor Diameter(mm) 0.036
Thermal Class 240
Film Grade 1
Insulation Material Aromatic Polyimide



Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.


Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.


Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.


Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.


Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
