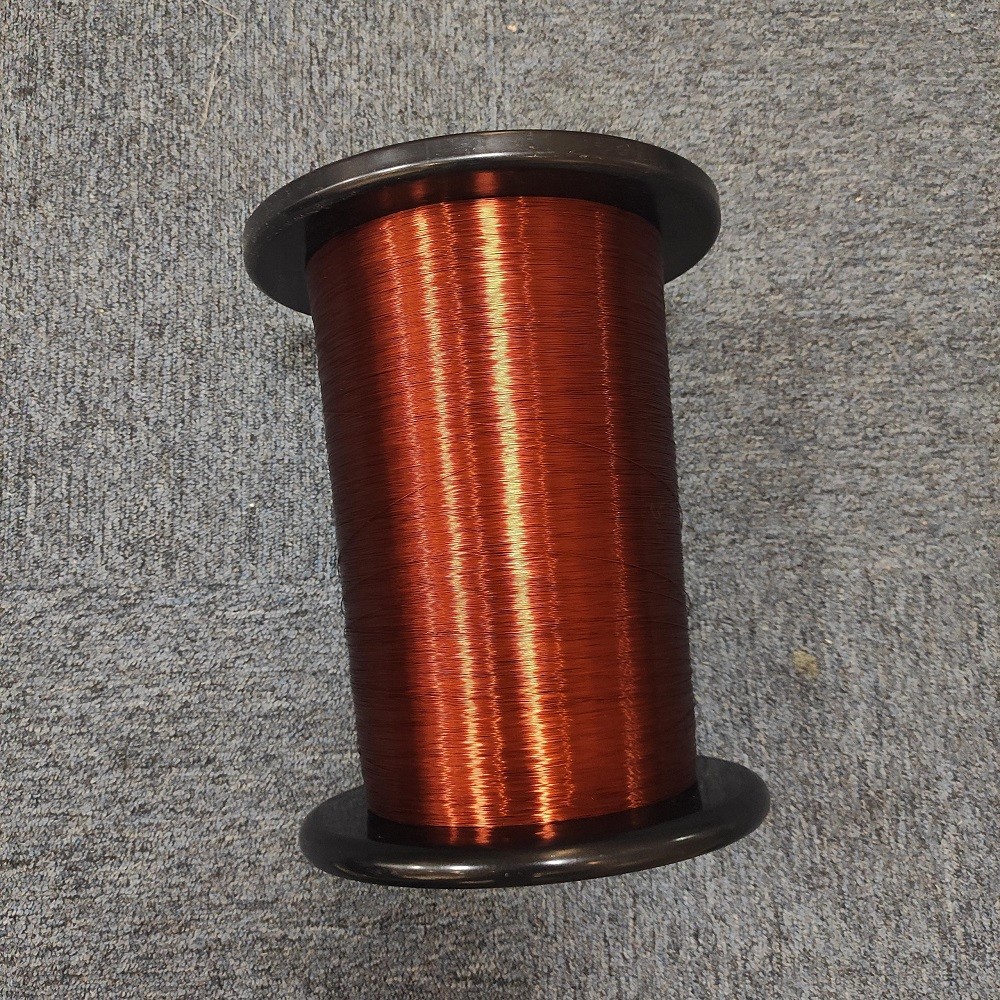

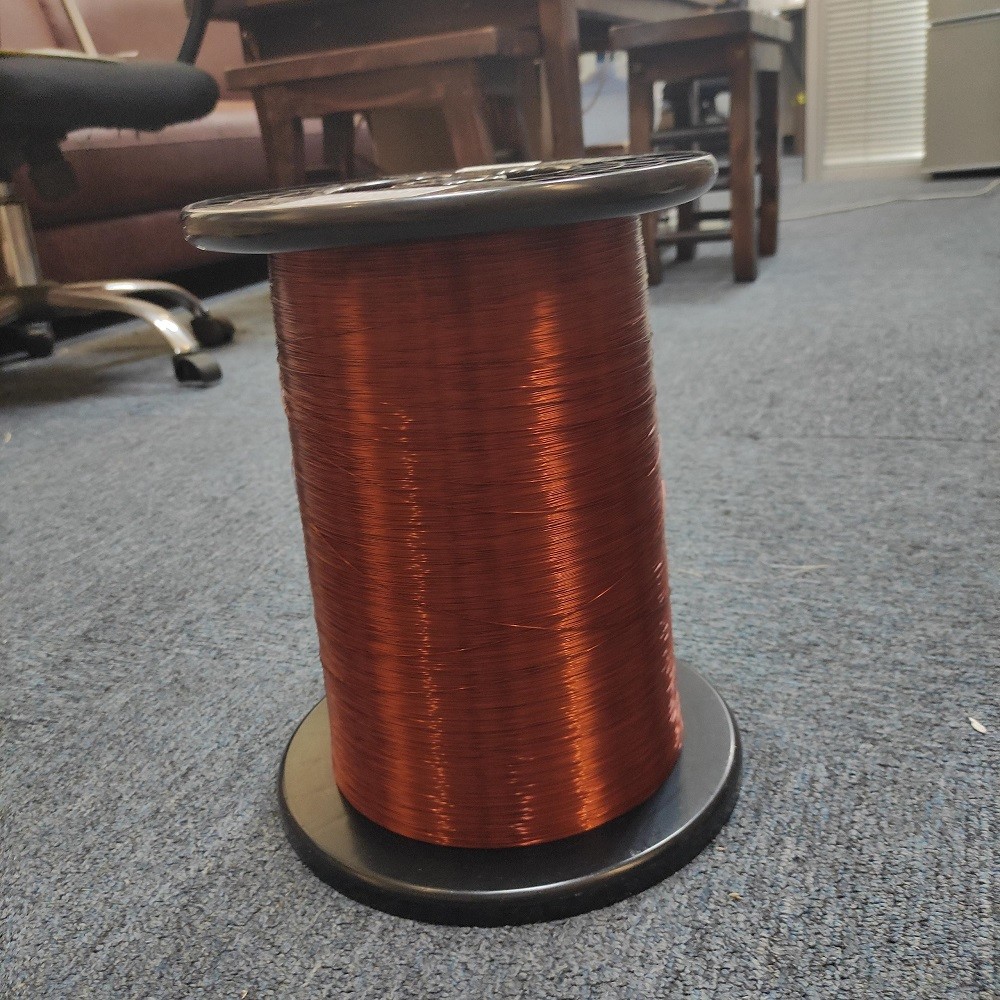

0.05mm Self Bonding Coated Magnet Wire For Voice Coils Magnet Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-GB/200-0.05 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011221050 | Product Name | PE/AIW Self Bonding Enameled Round Copper Wires |
|---|---|---|---|
| Bonding Layer | Hot Air | Class | H(200) |
| Insulation Material | Polyamideimide Composite Polyester/polyesterimide | Color | Pink/Blue/Red |
| Pin Hole | 0 | Usage | Speaker Voice Coil |
| High Light | 0.05mm Coated Magnet Wire,GB Enameled Copper Round Wire,Voice Coils Coated Magnet Wire |
||
Product Description
0.05mm Self Bonding Enameled Copper Round Wire For Voice Coils Magnet Wire
Self adhesive enameled wire, directly wound into the type, divided into hot bonding: high temperature bonding (bonding temperature 17O ℃ above, common method, direct electricity bonding, such as color TV, display deflection coil >, low temperature bonding (bonding temperature 170, hot air bonding, such as non-contact card (attendance card), inductance coil).Solvent bonding: common alcoholysis, common microphone, speaker, pickup and so on.
Our company has carried out business with more than 100 overseas customers in more than 20 countries and regions such as Germany, Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East, Africa and so on.
Enameled wire production base is located in Jiaxing city, Zhejiang Province, the main production of various grades of heat self-adhesive wire, specializing in high temperature self-adhesive wire.The annual output of the company is about 15000 tons of enamel copper wire, according to IEC, NEMA, JIS, GB standard production, wire diameter range 0.04-0.90mm.The Chinese government's new policy of "One Belt, One Road" provides a new opportunity for industrial and production capacity cooperation with overseas countries and regions.Shanghai Husu Husu Electromechanical Technology Co., Ltd. sincerely hopes to establish and develop long-term and mutually beneficial cooperative relationship with you in the future.
Specification:
| Model Number | AISVWY3-GB/200-0.05 |
| Conductor Material | Copper |
| Conductor Diameter | 0.05mm |
| Bonding Method | Hot Air |
| Thermal Class | 200 |
| Film Grade | GB |
| Product Type | Ultra-fine |
FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
