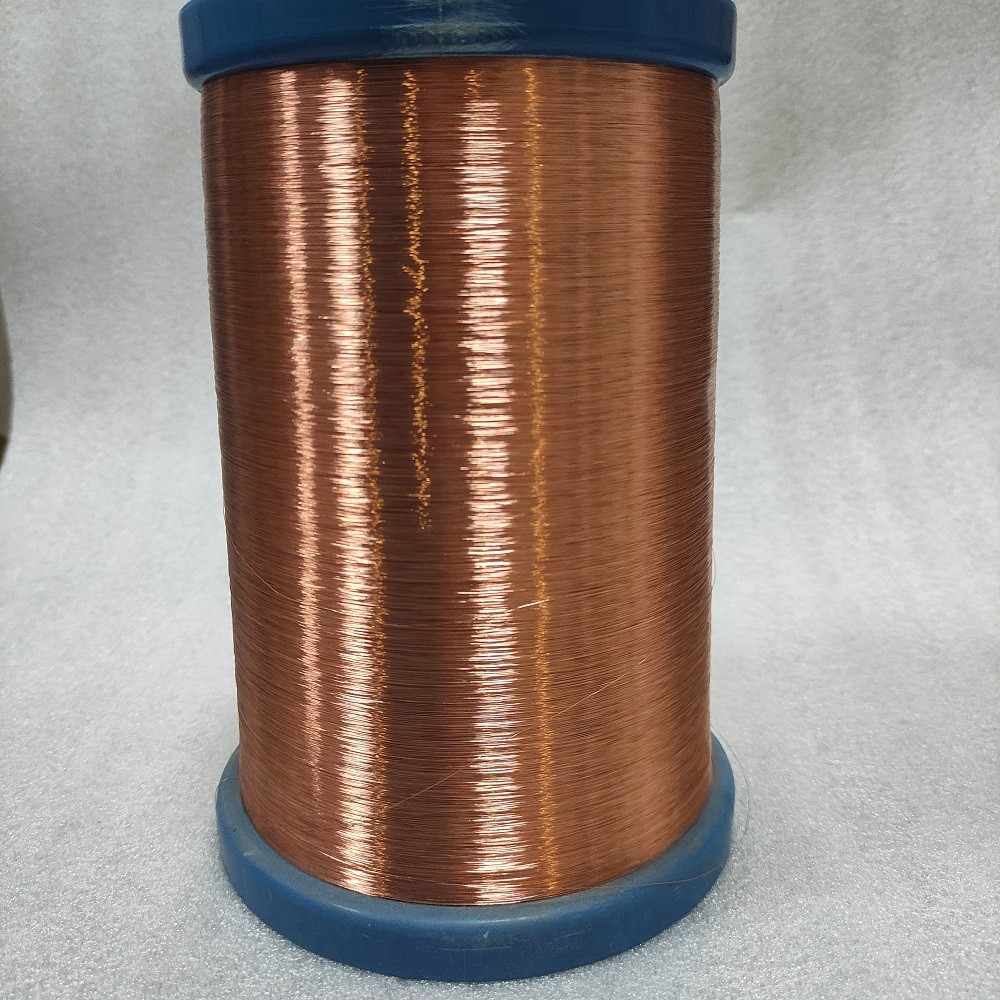

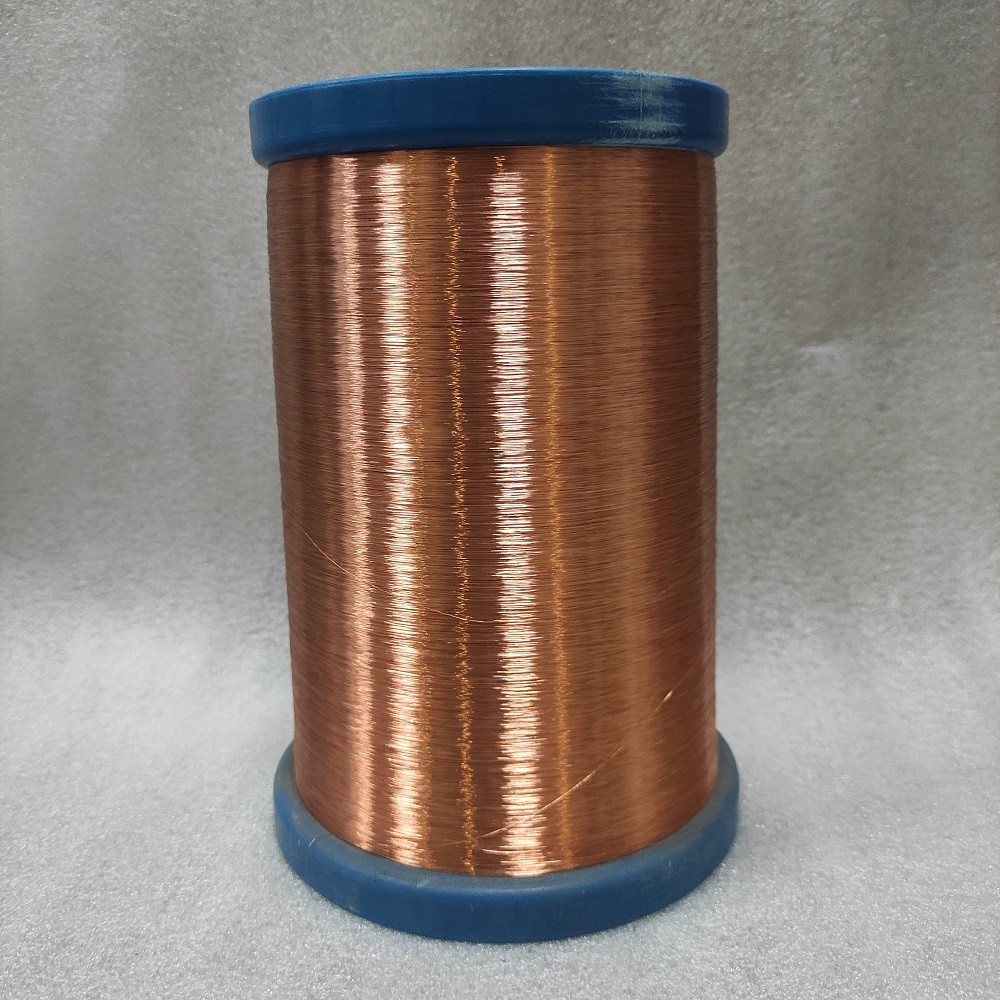

0.17mm Copper Round Coated Magnet Wire For Micro Transformer
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/220-0.17 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |

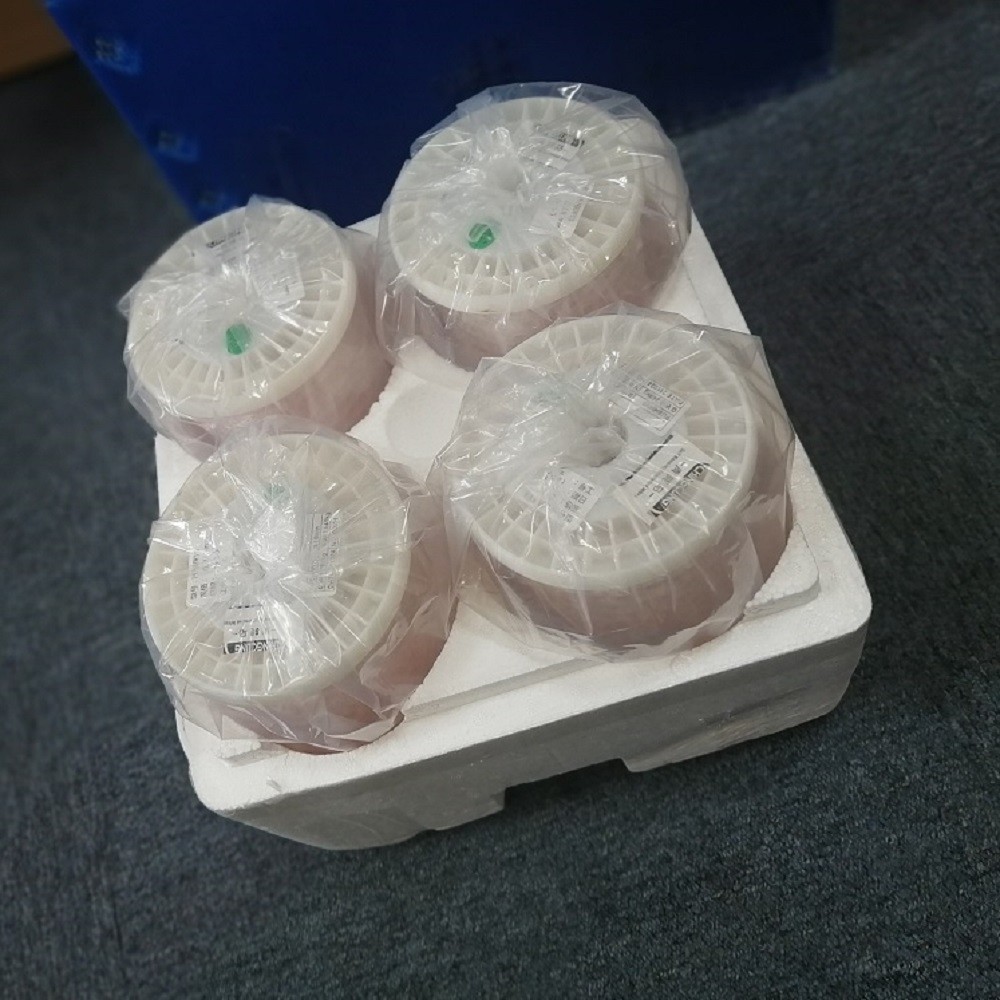

| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011240170 | Product Name | Ultra-fine 0.17mm Class 220 Polyamideimide Composite Polyester Or Polyesterimid Round Copper Self Bonding Enameled Wires |
|---|---|---|---|
| Film Grade | 1B | Size | 0.17mm |
| Insualtion Type | AIW | Bonding Way | Hot Wind |
| Advantage | High Quality | Color | Different Colors |
| High Light | Round Coated Magnet Wire,Micro Transformer Copper Coated Magnet Wire,0.17mm Copper Magnet Wire |
||
Product Description
0.17mm Self Bonding Coated Copper Round Wire Variety Class 220℃ Of Color For Micro Transformer
Extruded wire: Extruded wire is the electromagnetic wire formed by extruding one or more layers of insulating bushing on the surface of lacquered stranded wire.
Features:
1, excellent bending resistance.
2, high tensile strength.
3, insulation stripping force: 2 ~ 8N.
4, soft.
5, according to customer requirements (wire diameter, structure, etc.) customized production.
6, resistance: 0.20 ~ 10 ω /m,20℃.
Application: Heating system for car seat, steering wheel and cabin.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification:
| Model Number | AISVWY3-1B/220-0.17 | Brand Name | CHINGCUNG |
| Product Name | Special Magnet Wires | Place of Origin | Zhejiang,China |
| Conductor diameter | 0.17mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot-Air | Packing | Plastic Spool/carton |
| Thermal Class | 220 | OEM | Yes |
| Conductor Material | 1B | Feature | High tension strength |
| Insulation Material | Red Copper | Application | Motor Winding Wire |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
