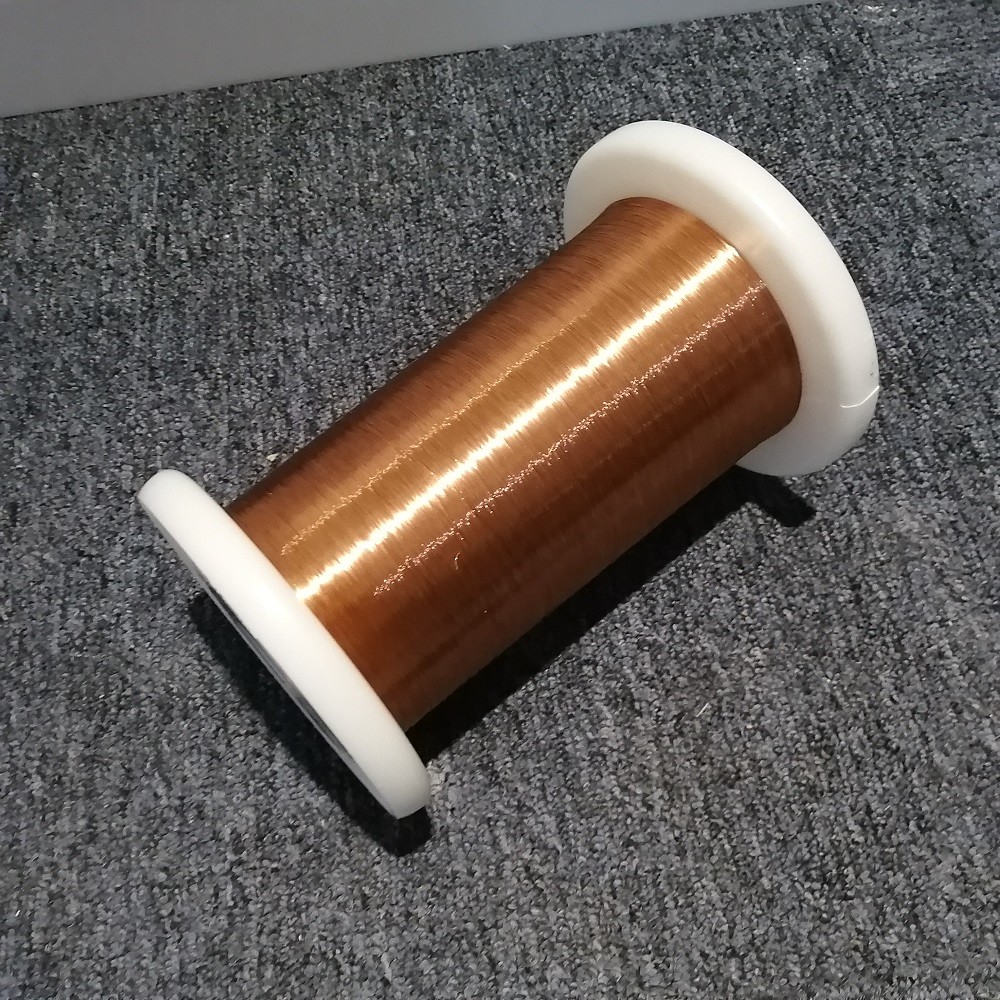

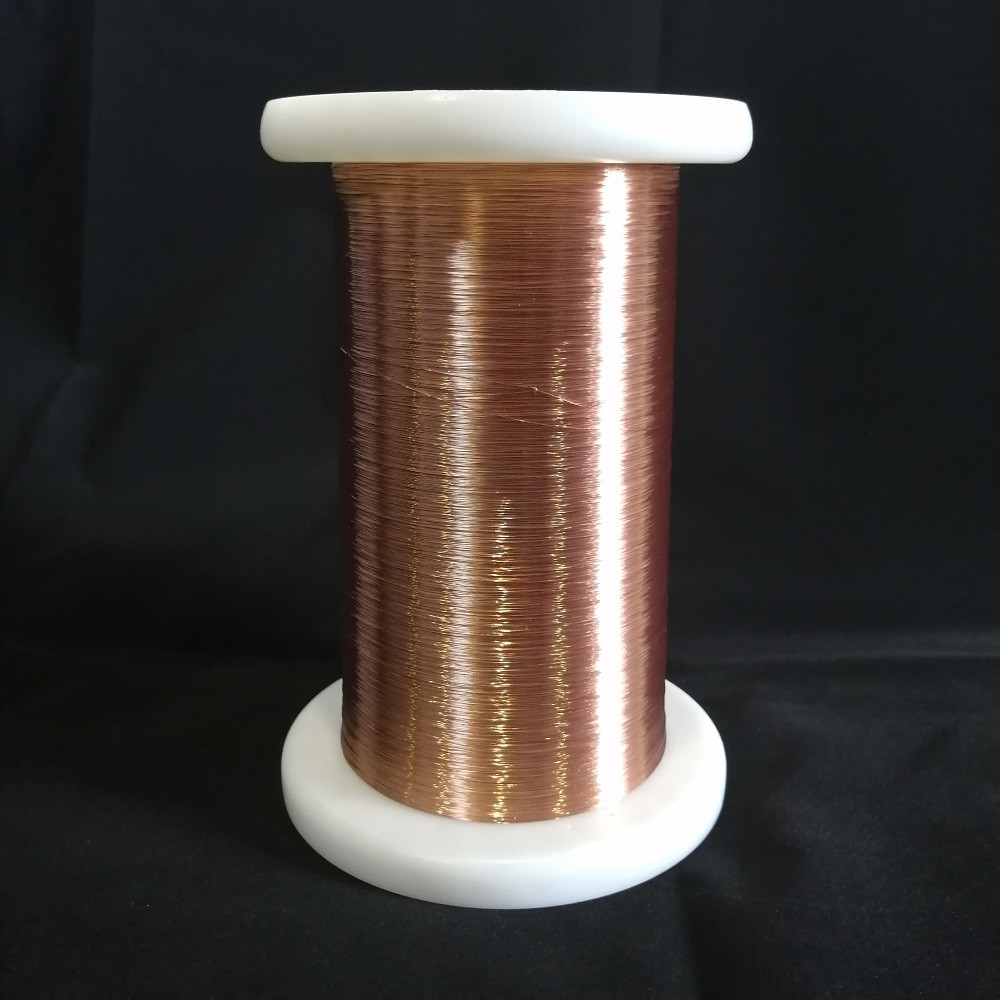

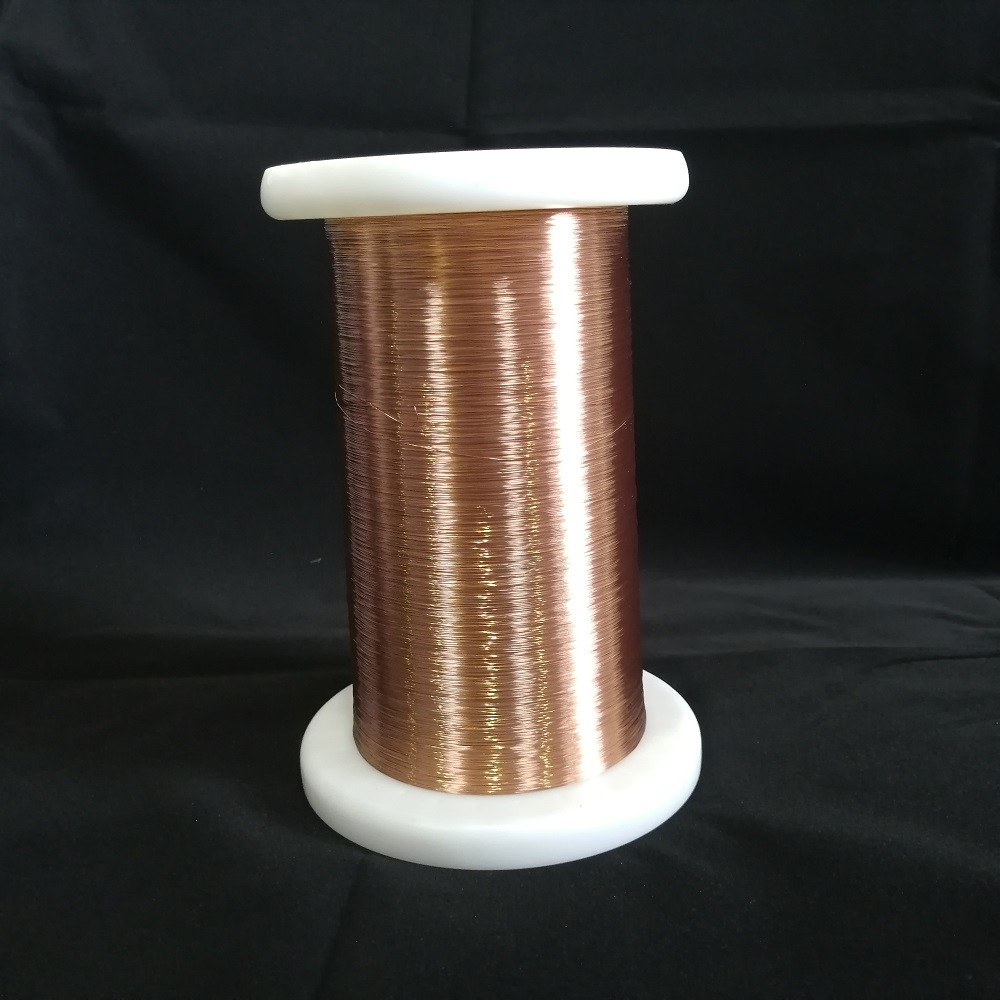

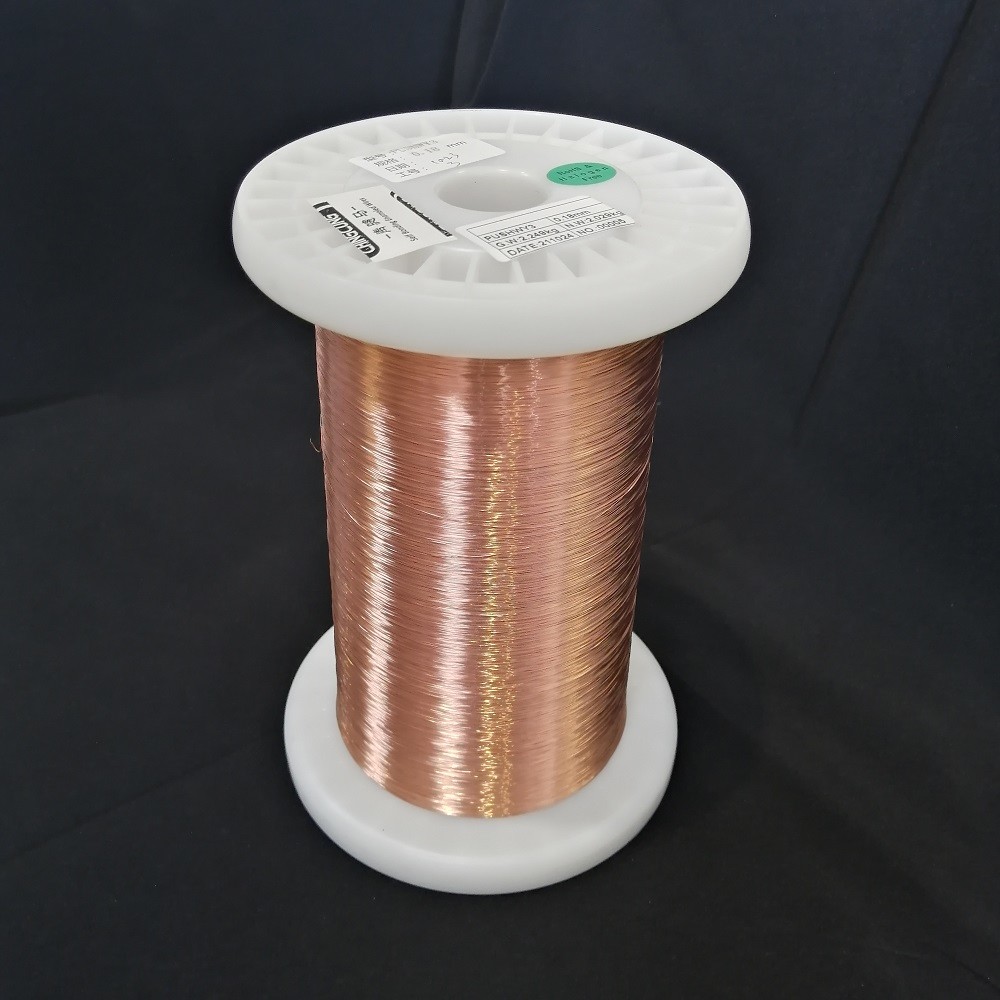

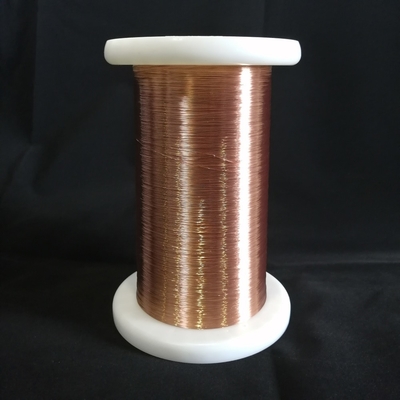

180℃ Self Bonding Copper Enameled Wires Electrical Motor Winding Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EISVWY3-2B/180-0.09 |
| Minimum Order Quantity | 30 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011281090 | Product Name | Hot Air Type Self - Adhesive Enamelled Round Copper Wire |
|---|---|---|---|
| Type | Hot Air | Conductor Diameter | 0.09mm |
| Enamel Thickness | 2B | Color | Normal/Pink/Blue/Red |
| Conductor Material | Copper | Application | Hollow Motor |
| High Light | Copper Enameled Wires 0.09mm,Electrical Motor Copper Enameled Wires,2B Thick Copper Enameled Wires |
||
Product Description
180℃ Self Bonding Enameled Wires Electrical Motor Winding Wire
Enameled wire is the main type of winding wire and usually consists of a conductor and an insulating layer. After annealing and softening, the bare wire is painted and baked several times. However, it is not easy to produce products that meet both standards and customer requirements. It can be affected by factors such as raw material quality, process parameters, production equipment and environment, so the quality characteristics of all kinds of enameled wire are different, but they have four major properties: mechanical properties, chemical properties, electrical properties and thermal properties.
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Model Number | EISVWY3-2B/180-0.09 | Place of Origin | Zhejiang,China |
| Conductor Diameter | 0.09mm | Brand Name | CHINGCUNG |
| Type | Self-adhesive | Feature | Pin Hole 0 |
| Bonding Method | Hot Wind | Delivery Time | 3-10 work days |
| Thermal Rating | 180℃ | Application | For making voice coils |
| Insulation Material | polyesterimide | Certification | ISO9001/ISO14001/UL/SGS |
| Color | Pink/Blue/Black/Yellow··· | Standard | GB,IEC |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
