Pure Self Adhesive Copper Enameled Wire 200℃ Polyesterimide Round Winding Wire

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number EISVW-GB/200-0.06
Minimum Order Quantity 30 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30011662060 Conductor Diameter 0.06mm
Bonding Way Solvent Thermal Class 200℃
Insulation Polyesterimide Type High Temperature Wire
Enamel Thickness Customization Color Black, Red, Blue, Natural
High Light

Self Adhesive Enamelled Winding Wire


Pure Copper Winding Wire


Enamelled Copper Winding Wire Round

Leave a Message
Product Description

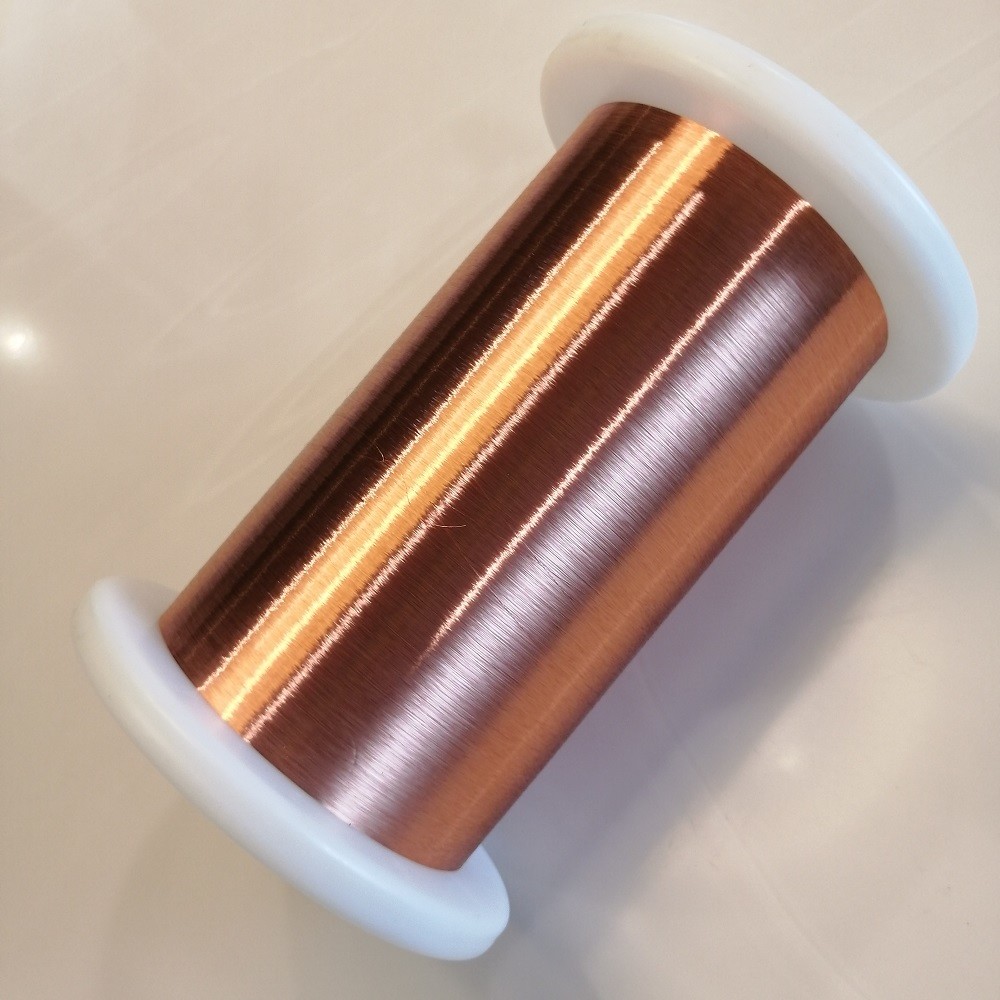

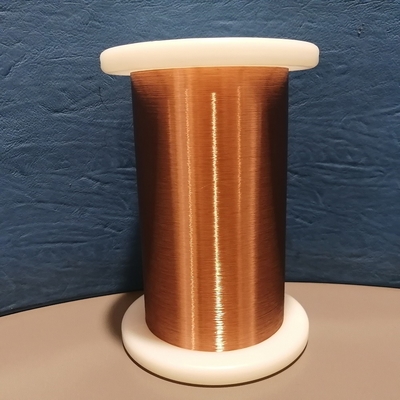

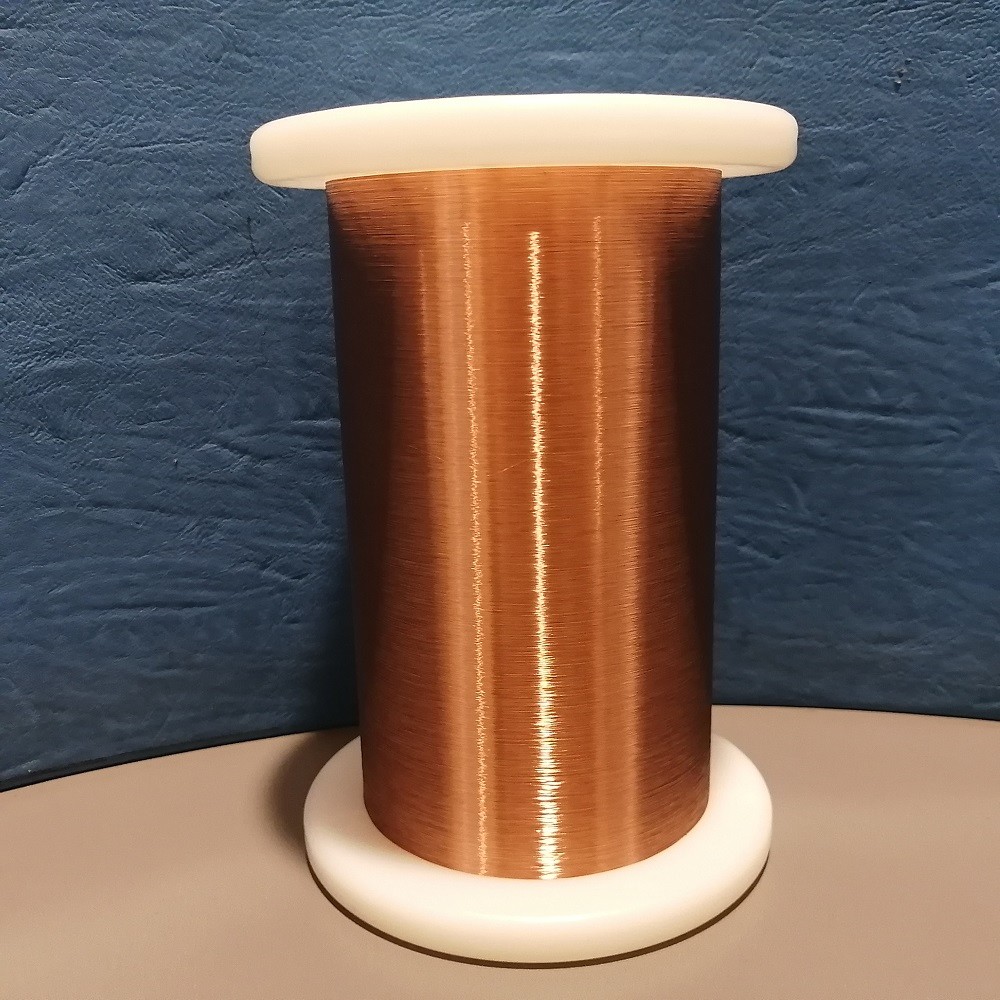

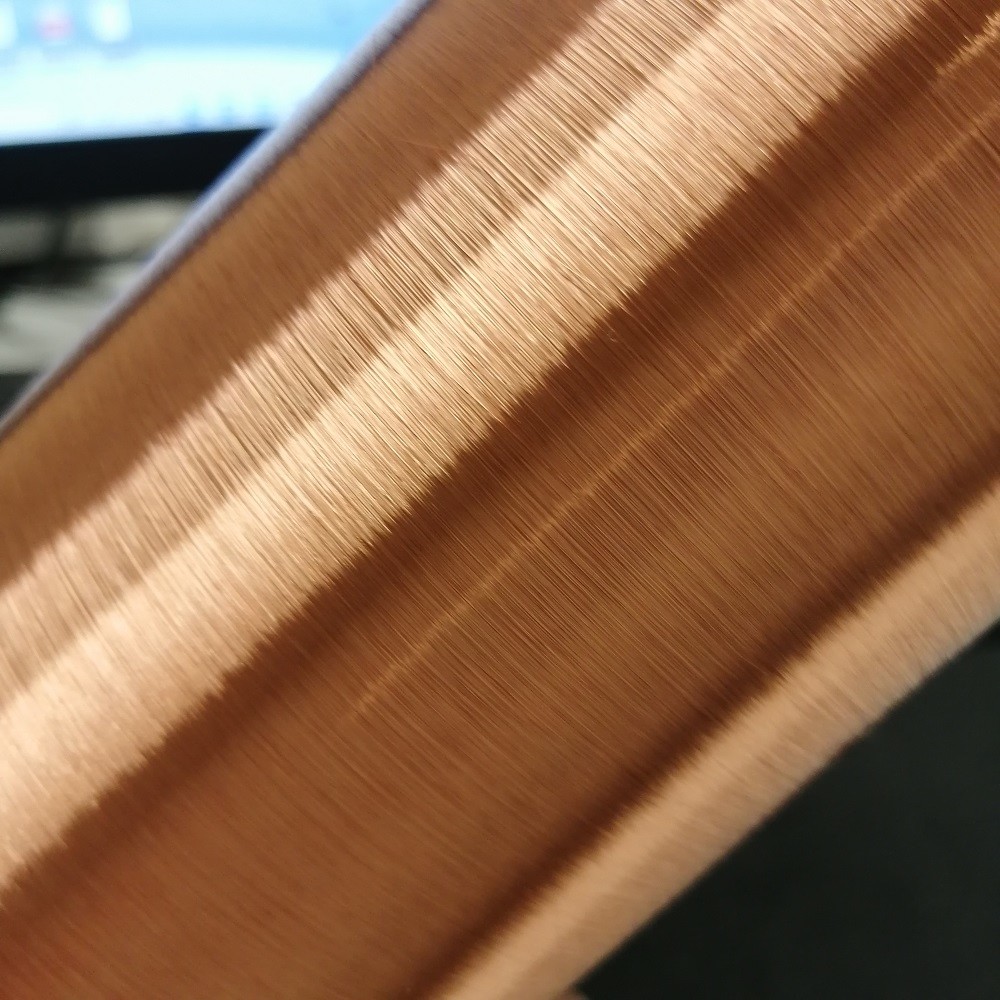

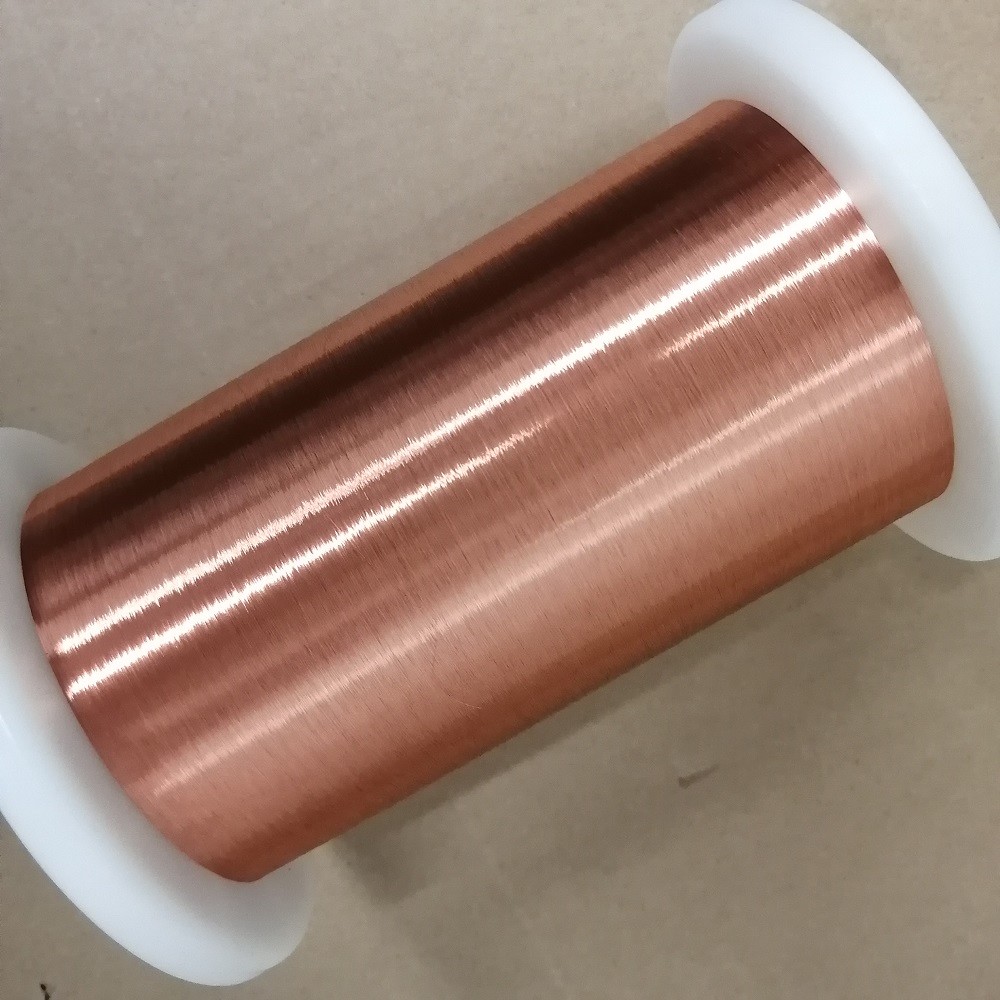

Pure Copper Self-Adhesive Enameled Wire 200℃ Polyesterimide Enamelled Round Copper Winding Wire


1. Electronic computer , Mobile communication equipment ,Coils or windings of aerospace and military instruments
2.Inner conductor of special cables for automobiles and locomotives ;Conductor materials such as bus bar ;Conductor material of power cable.
3.The preferred inner conductor material for limited TV coaxial cable;Inner conductor material of flexible RF coaxial cable;Inner conductor material of computer cable and other data cable ;Inner conductor material of micro coaxial cable.


We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.



Model Number EISVW-GB/200-0.06 Brand Name CHINGCUNG
Conductor Material Red copper Place of Origin Zhejiang,China
Conductor Diameter 0.06mm Delivery Time 3-10 work days
Bonding Method Ethyl alcohol Packing Plastic Spool
Thermal Class H OEM Support
Film Grade 1,2 Feature Pin Hole:0
Insulation Polyesterimide Application Earphone


Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.

Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.

Q3:What's the main market of your company?
A:We have customers all over the world.

Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.

Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
