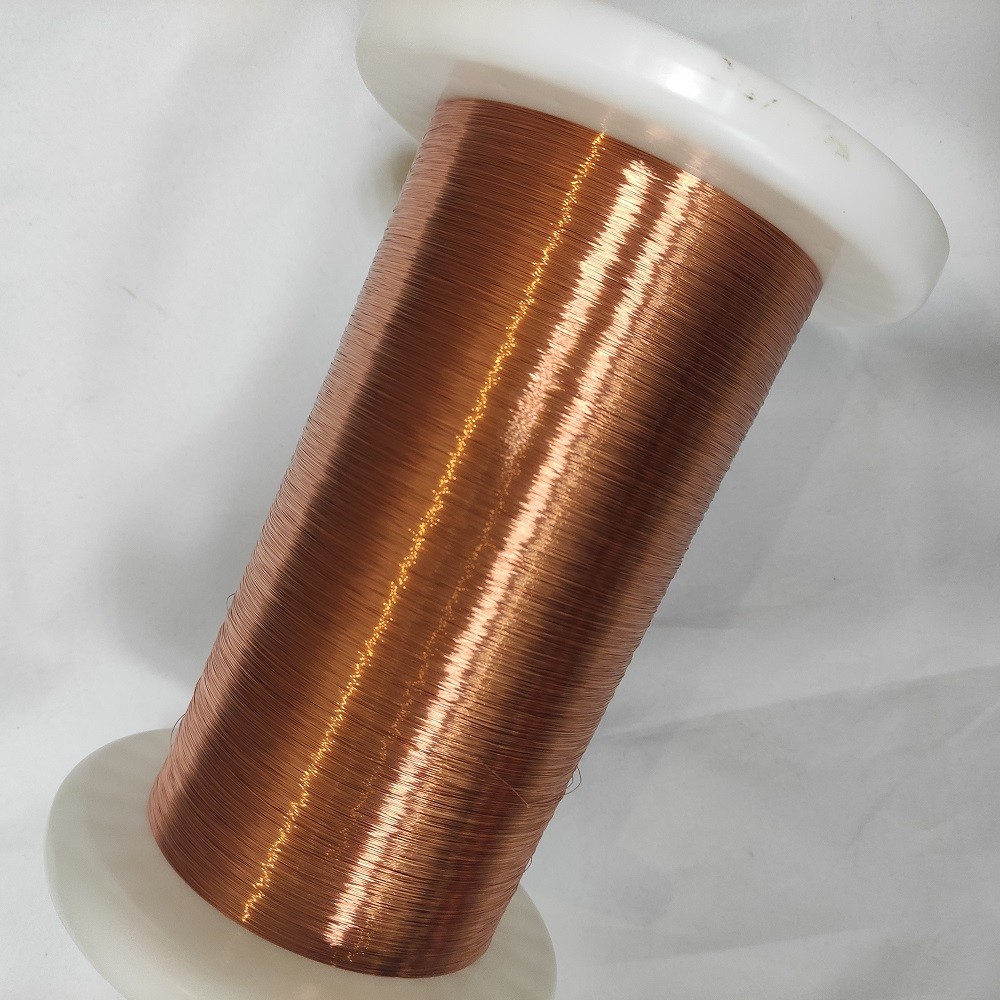

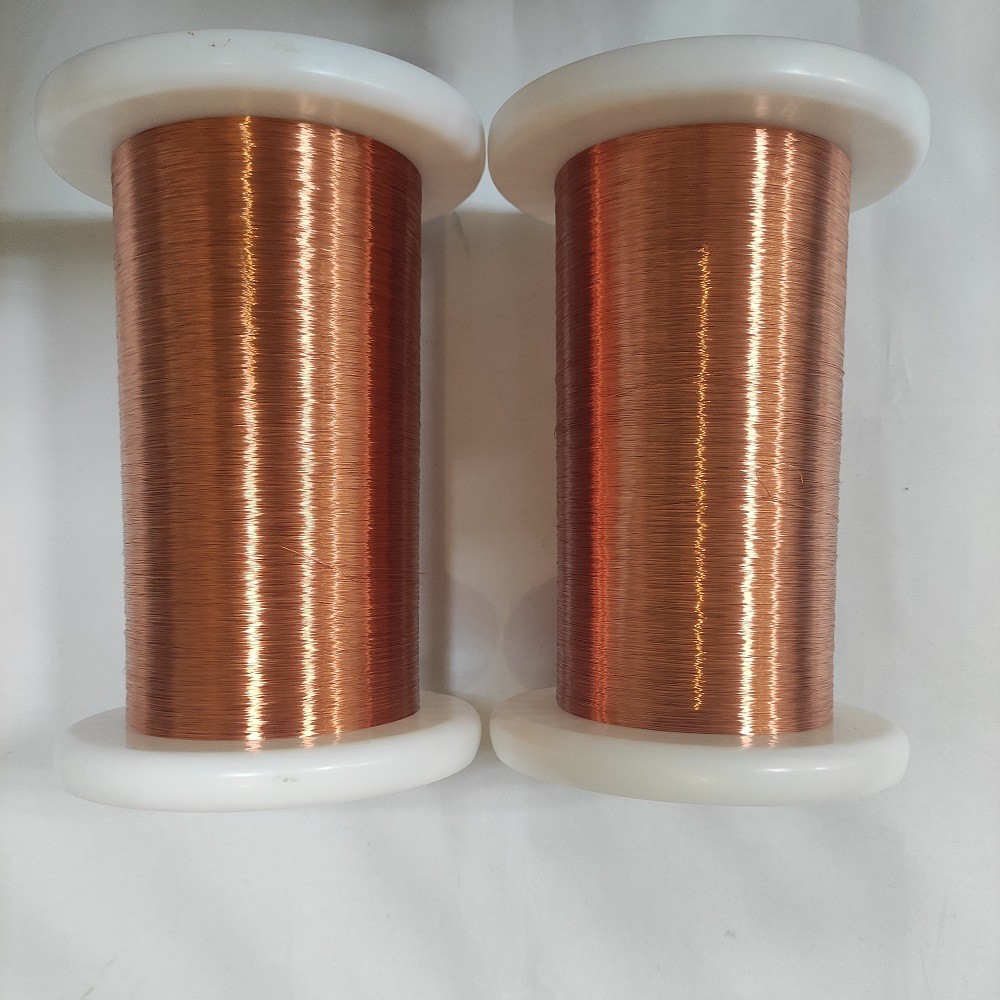

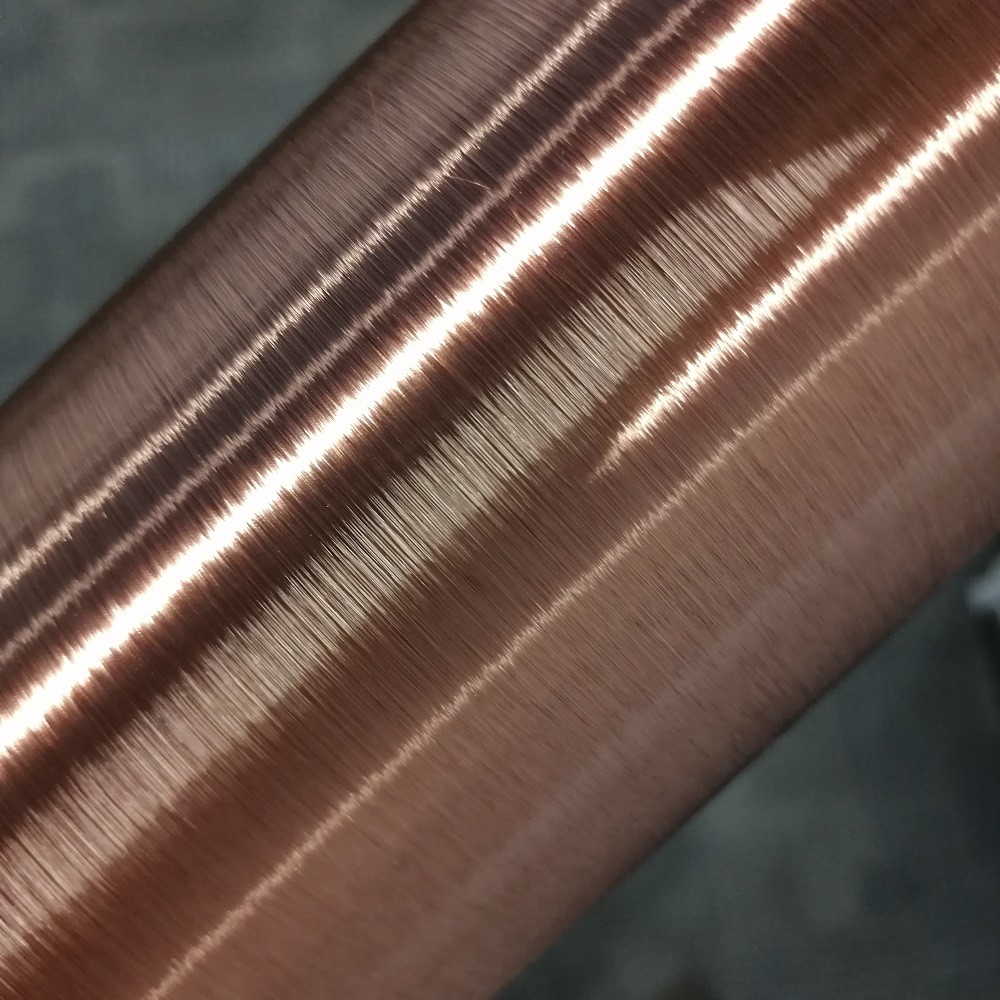

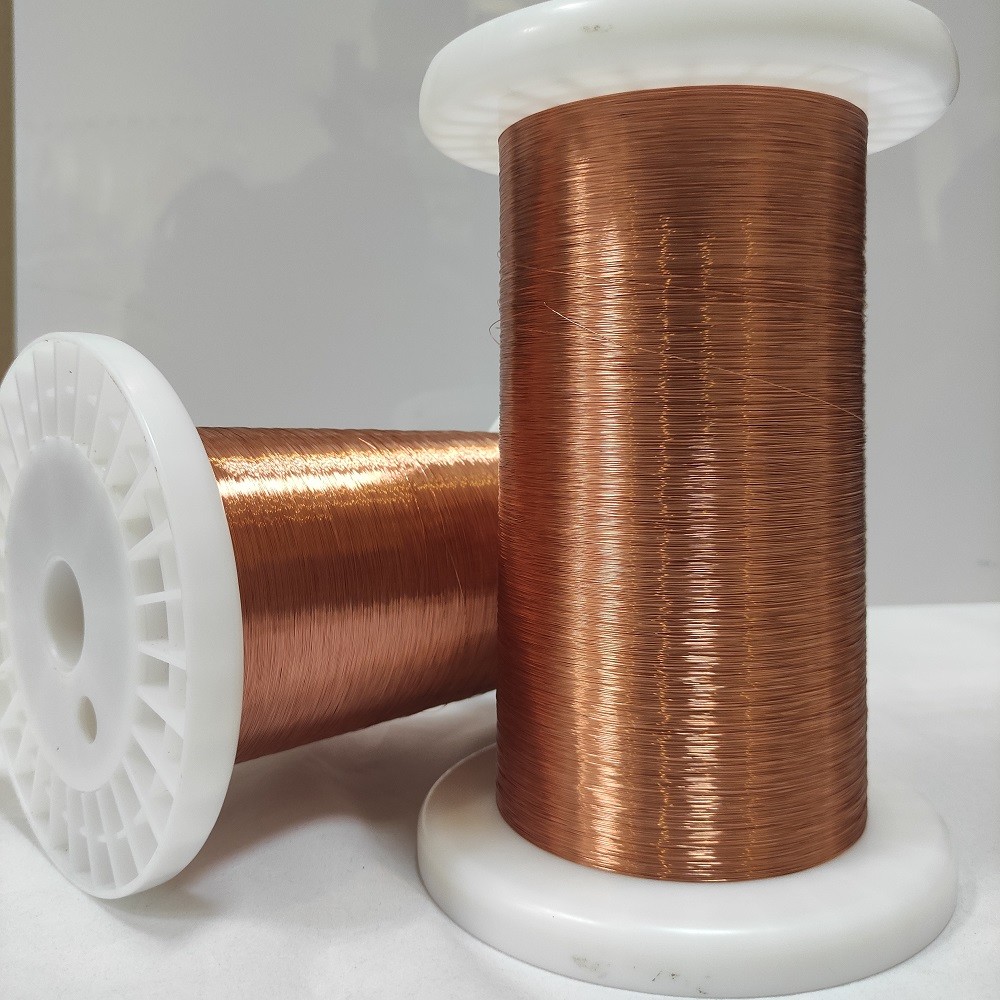

0.085mm Hot Air Round Copper Enameled For Motor Welding Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011662085 | Product Name | Polyesterimide Enamelled Round Copper |
|---|---|---|---|
| Conductor Diameter | 0.085mm | Thermal Class | 200 |
| Conductor Material | Copper | Type | Air Coil |
| Enamel Thickness | 1B、2B | Color | Natural And More |
| High Light | Round Copper Enamelled Wire,Hot Air Enameled Wire,Motor Welding Enameled Magnet Wire |
||
Product Description
0.085mm Hot Air Enamelled Wire Self Bonding Coated Copper Round Wire For Motor Welding Wire
Main Applications:
1.Special motors,household electrical appliances, electrical and electronics components
2.Inductor, watch coil, coin machine coil, buzzer,magnetic head, IC card.
3.Speaker coil,microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.
4.High-temperature voice coils,such as car audio, home theater, high-power speakers, etc.
5.High-sensitivity voice coils, such as headphone speakers,high-temperature-resistant voice coils,micro vibration motor.
The application of self-adhesive enameled wire in motor windings shows that the motor windings made by self-adhesive enameled wire can meet the technical requirements of the corresponding motor and have reliable performance.Self-adhesive enameled wire can be used to manufacture motor windings, which can omit the process of soaking, save energy, eliminate pollution and reduce labor intensity. It has good technical and economic effect and is worthy of popularization and application.
Specification:
| Model Number | EISVW-GB/200-0.085 | Brand Name | CHINGCUNG |
| Product Name | EIW self adhesive enamelled copper wires | Place of Origin | Zhejiang,China |
| Size | 0.085mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot-Air | Packing | PT-15,PT-10.PT-4,PL-2,PC-1 |
| Thermal Class | 200 | OEM | Yes |
| Conductor Material | 1B 2B | Feature | Good Solderability Flexibility |
| Insulation Material | Copper | Application | Frameless coil |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
