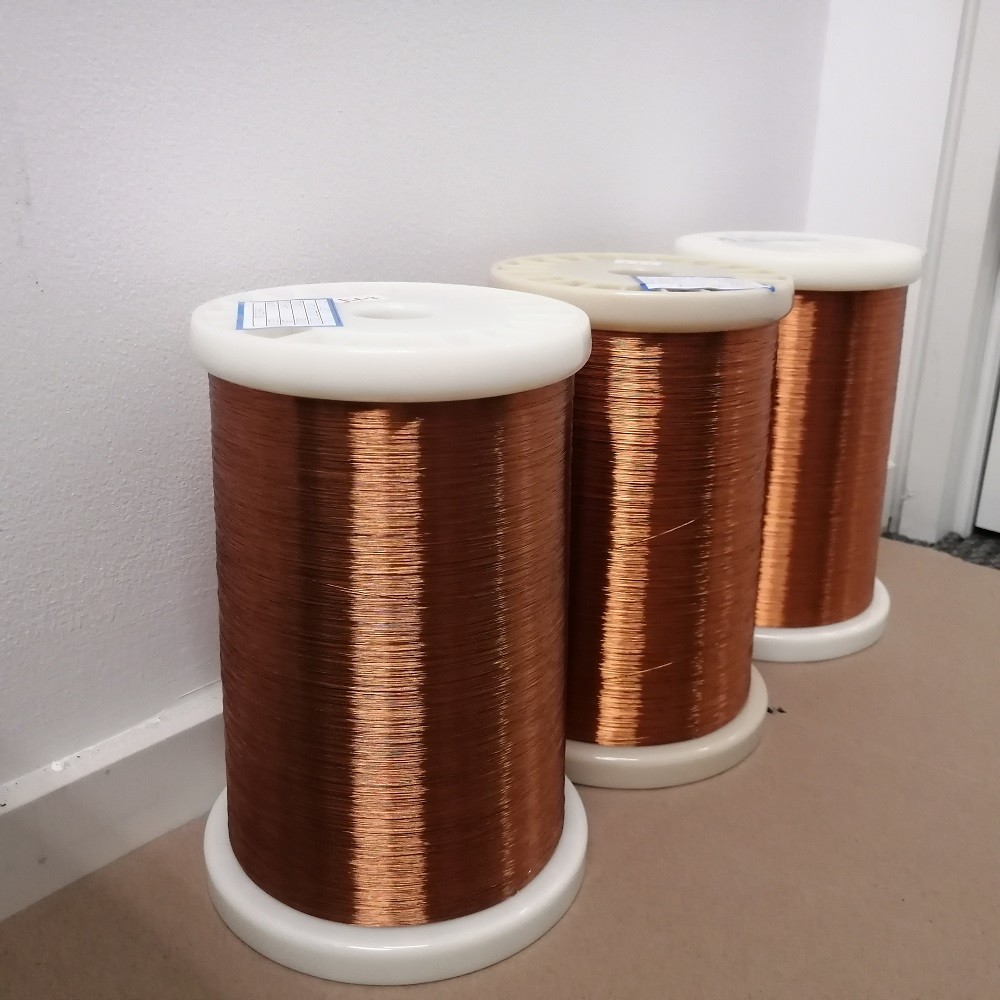

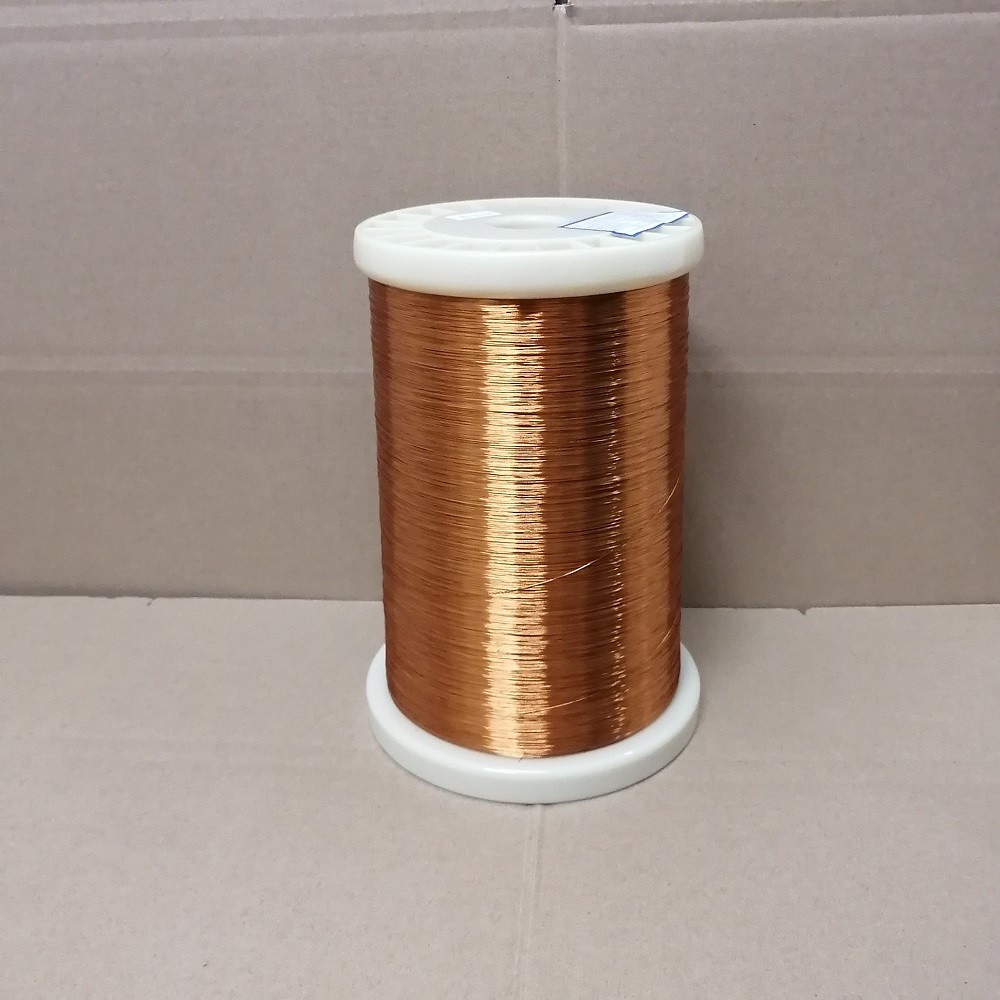

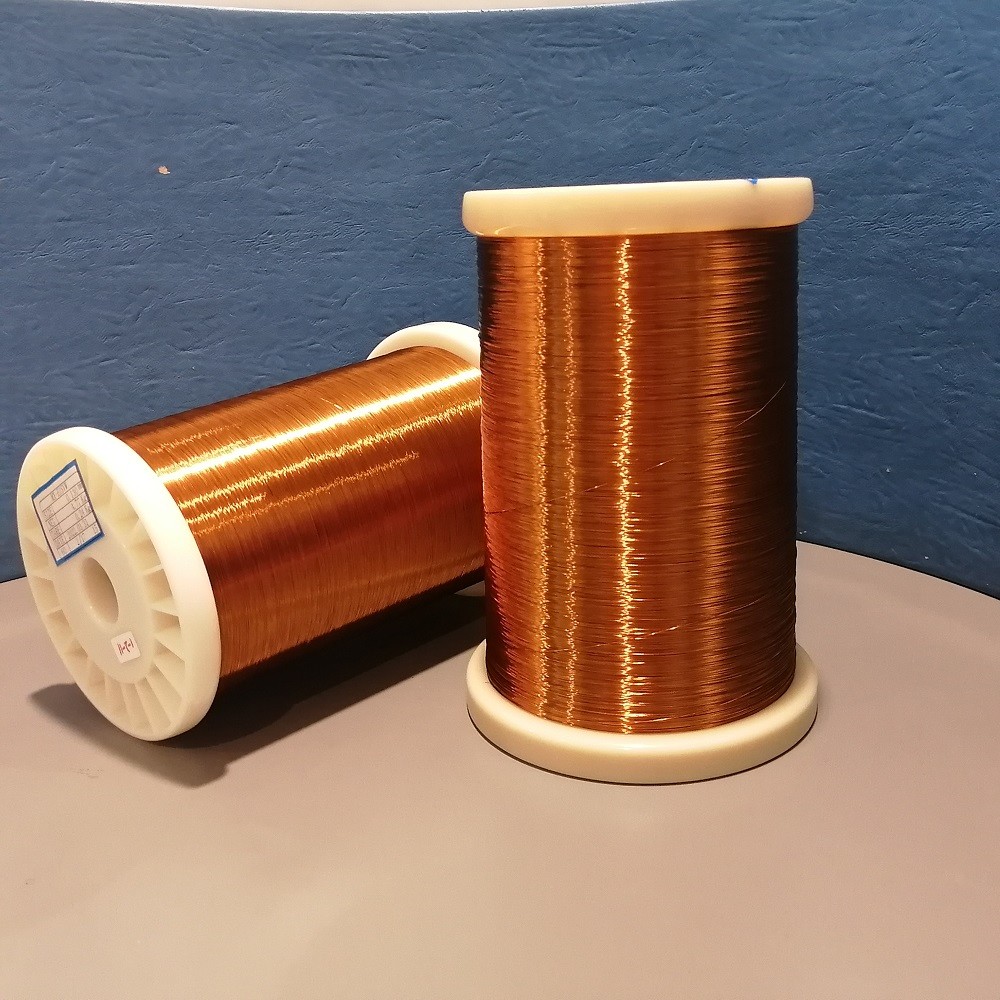

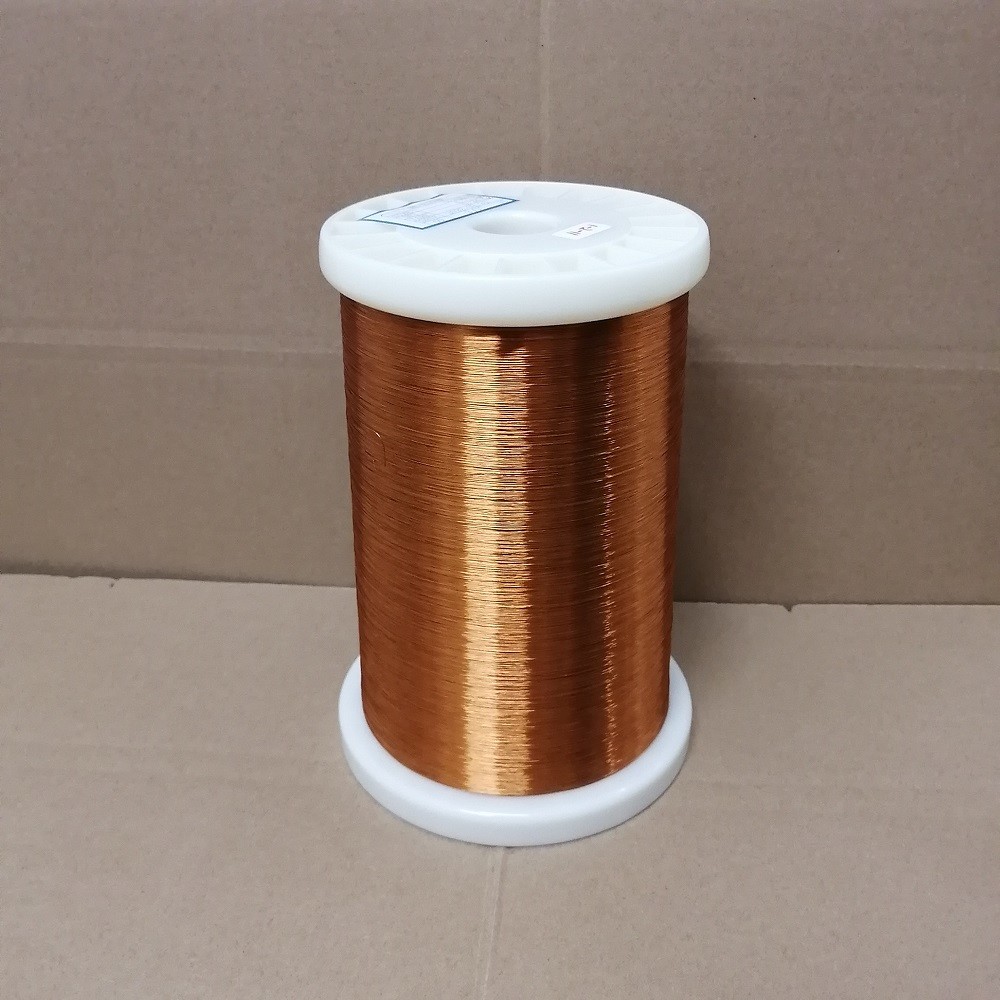

Self Adhesive Copper Enameled Wire Electromagnetic Magnet Wires For Lighting Fixtures
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011662130 | Product Name | Self Bonding Enameled Round Copper Wire |
|---|---|---|---|
| Conductor Diameter | 0.13mm | Thermal | Class 200 |
| Conductor Material | Pure Copper | Type | Hot Air |
| Enamel Thickness | 1B | Color | Black/Red/Nature |
| High Light | Enameled Electromagnetic Copper Wire,Self Adhesive Electromagnetic Wire,Enameled Copper Round Wire Lighting Fixtures |
||
Product Description
Self Adhesive Enameled Copper Wire Electromagnetic Wire Special Magnet Wires For Lighting Fixtures
Type of enameled wire:
1.Polyester(Class 155,PEW)
2.Polyurethane((Class 180,UEW)
3.Polyester imide(Class 180,EIW)
4.Polyamide-imide(Class 200,AIW)
5.Polyimide(Class 220,240,PIW)
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Model Number | EISVW-GB/200-0.13 | Brand Name | CHINGCUNG |
| Conductor Material | Copper | Place of Origin | Zhejiang,China |
| Size | 0.13mm | Delivery Time | 3-10 work days |
| Bonding Method | Solvent/Hot-Air | Packing | Spool |
| Thermal Class | 200 | OEM | Yes |
| Film Grade | 1B/2B/GB | Feature | High stability |
| Insulation Material | Polyesterimide(EIW) | Application | Motor Winding |
FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
