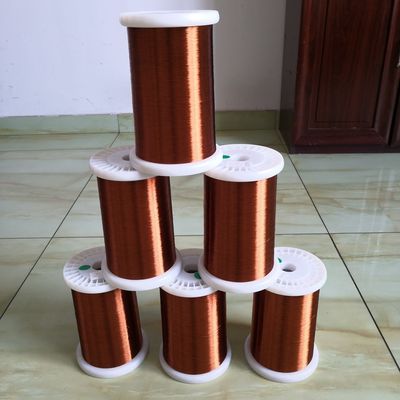

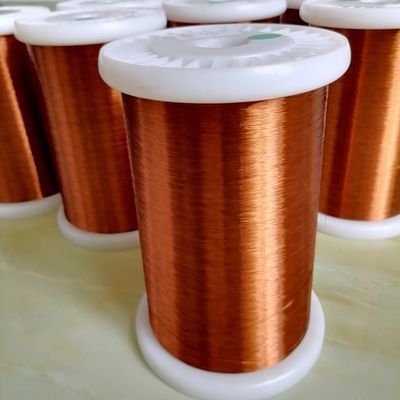

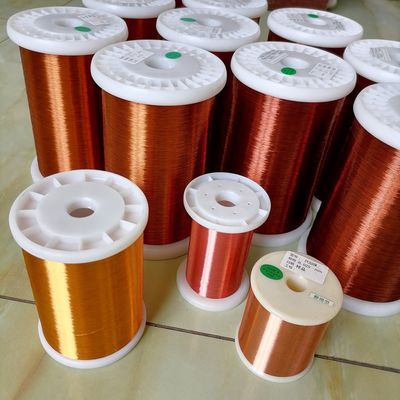

0.085mm Enamel Insulated Copper Wire With Polyester Coating Insulation Class 130/155/180

  • 0.085mm Enamel Insulated Copper Wire With Polyester Coating Insulation Class 130/155/180
  • 0.085mm Enamel Insulated Copper Wire With Polyester Coating Insulation Class 130/155/180
  • 0.085mm Enamel Insulated Copper Wire With Polyester Coating Insulation Class 130/155/180
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PESVW-GB/155-0.085
Minimum Order Quantity 30 Kg
Price USD 14/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011252085 Product Name 0.085mm Enameled Copper Wire
Insualtion Polyester Diameter 0.085mm
Application Motors Stock Available
Thermal Class 180,200,155 Conductor Copper/cca/tinned Copper/ccs/ccc
High Light

0.085mm enamel insulated copper wire

,

Class 130 bondable magnet wire

,

0.085mm enamel insulated copper wire Class 130
Leave a Message
Product Description

0.085mm Self bonding Enameled Wire With Polyester Coating Insulation Class 130/155/180





Applications of enamelled copper wire for Home Appliance:
1. White household appliances
2. Intelligent electric meter
3 Hair dryer
4. Charger





Our Advantage:

We offers not only enamelled cooper wire but proved by market with AWG 20-56 different sizes.
Under the respective standard (customized to the region where appropriate), the typical technical values are given for the different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimid etc





Specification:

Conductor Overall diameter(mm)
Diameter Grade 2
  Upper limit Lower limit
0,012 0,017 0,018
0,014 0,019 0,020
0,016 0,021 0,022
0,018 0,023 0,024
0,019 0,024 0,026
0,020 0,025 0,027
0,025 0,032 0,034
0,028 0,035 0,038
0,030 0,038 0,041
0,040 0,050 0,054
0,045 0,056 0,061
0,050 0,061 0,066
0,060 0,073 0,079
0,063 0,077 0,083
0,070 0,084 0,090
0,071 0,085 0,091
0,080 0,095 0,101
