Polyester Solvent Self Bonding Enameled Wire Electrical Motor Winding Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011252210 | Product Name | Self Adhesive Polyester Enamelled Round Copper Wires |
|---|---|---|---|
| Conductor Diameter | 0.21mm | Color | Self-colored |
| Class | 155℃ | Applications | Transformers / Motors / Relays / Winding |
| Insulation Material | PEW | Certification | ISO9001/ISO14001 |
| High Light | Self Bonding Enameled Wire 0.21mm,Electrical Motor Enamelled Copper Winding Wire,OEM Polyester Enamelled Copper Wire |
||
Product Description

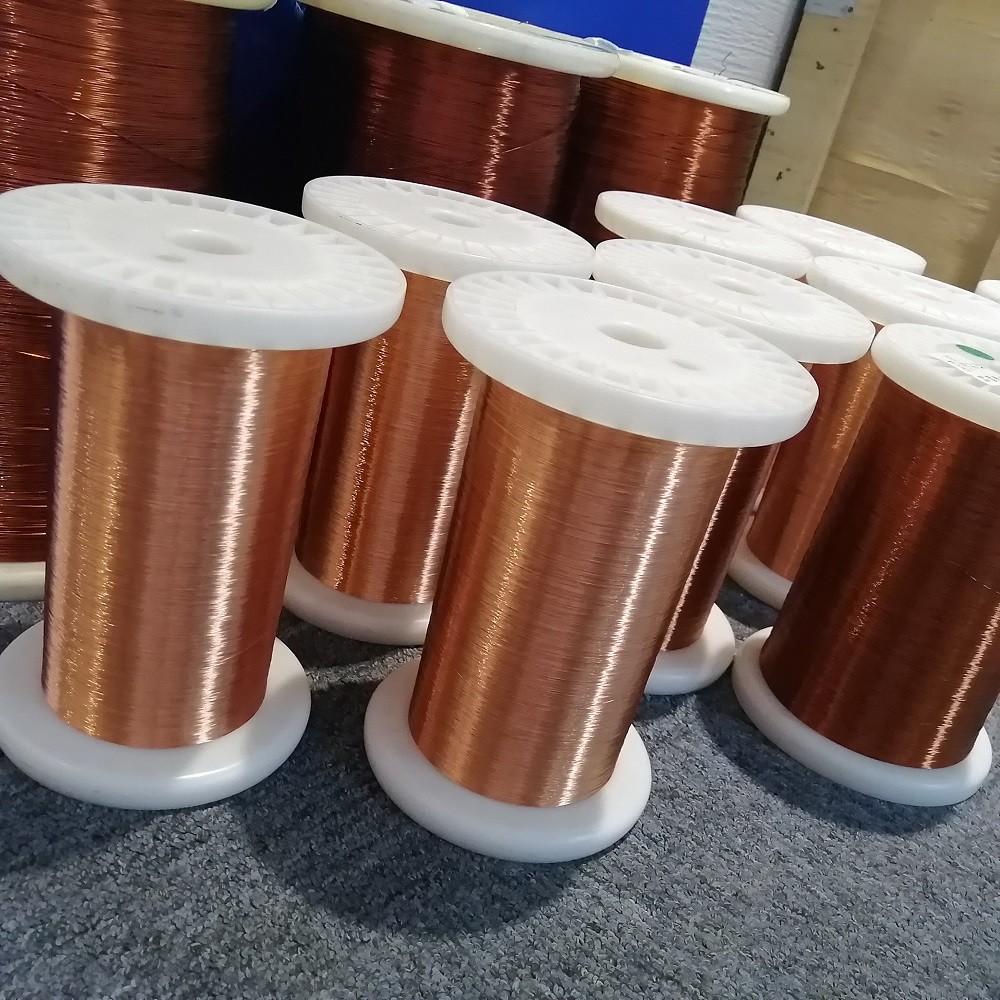

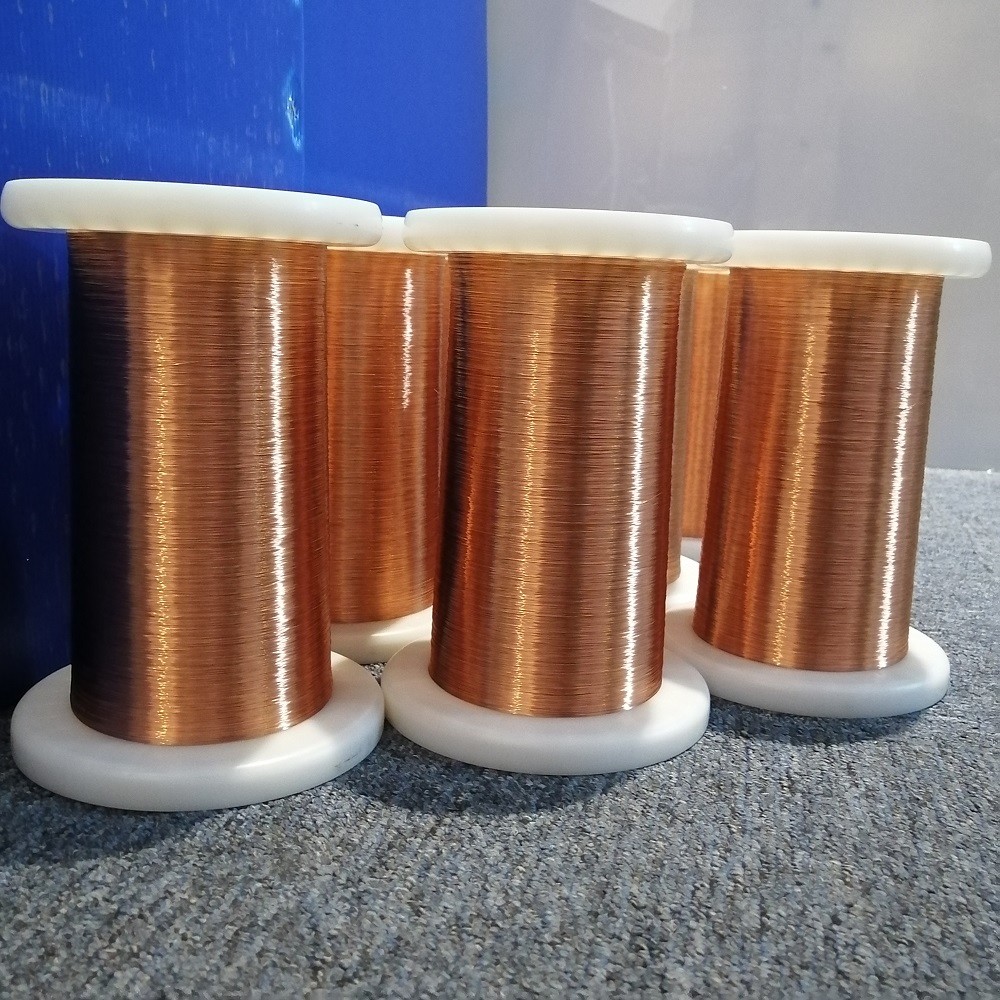

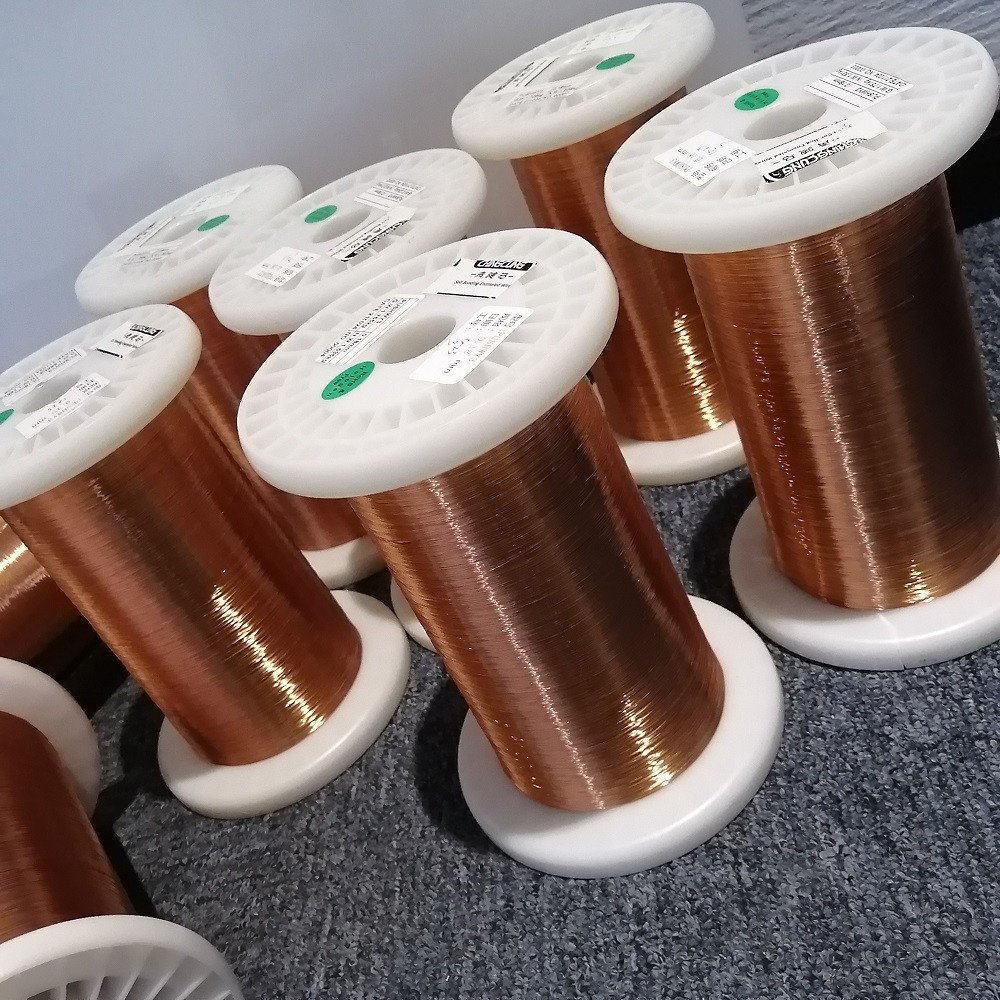

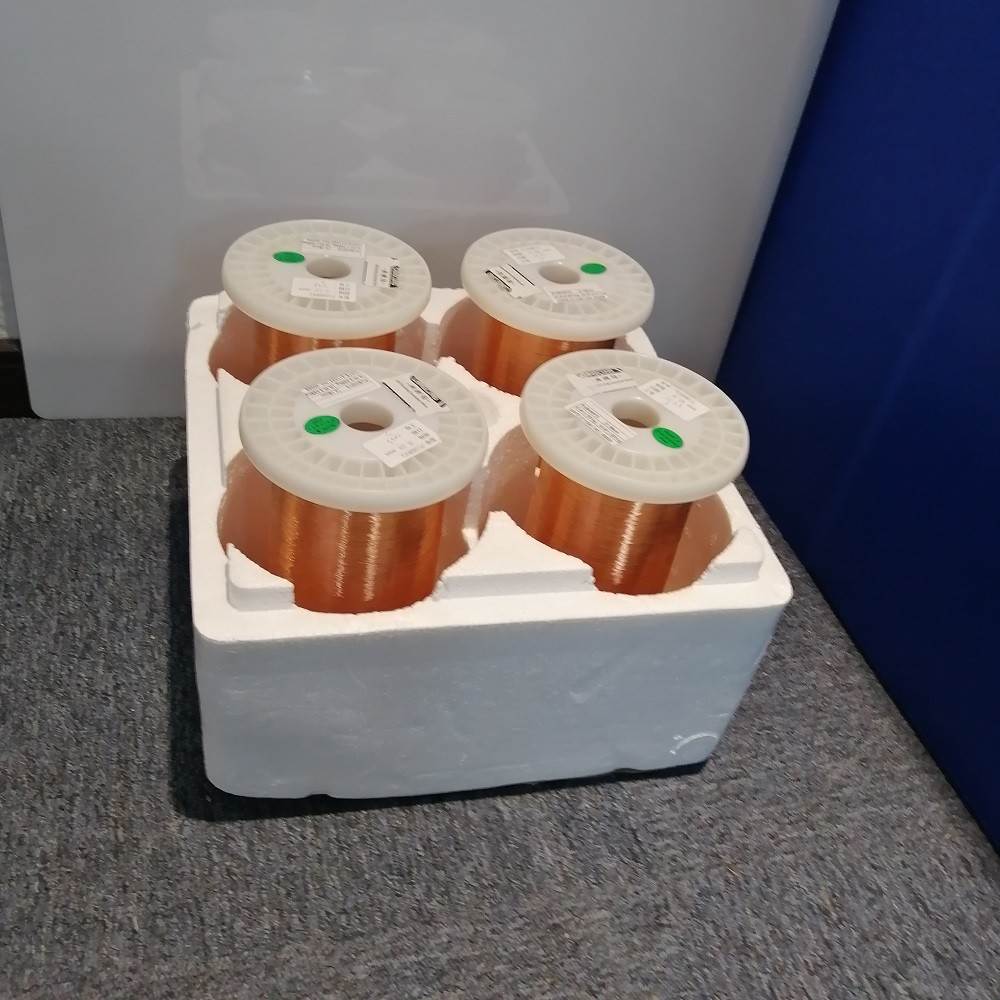

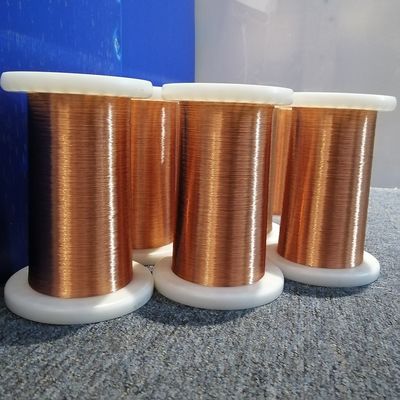

Polyester Solvent Self Bonding Enameled Wire Electrical Motor Winding Wire
Hot air from the glue line is in the process of winding blow hot air through the product the coil form so as to achieve the effect of self-adhesive, hot air temperature according to different factors such as film, winding speed, wire diameter size, the required temperature differences, such as general need $two hundred to the film about baidu, special enameled wire may require a temperature of seven hundred to eight hundred. We should fully consider the related parameters of enameled wire when configuring the hot air gun and setting the temperature.
The application of self-adhesive enameled wire in motor windings shows that the motor windings made by self-adhesive enameled wire can meet the technical requirements of the corresponding motor and have reliable performance.Self-adhesive enameled wire can be used to manufacture motor windings, which can omit the process of soaking, save energy, eliminate pollution and reduce labor intensity. It has good technical and economic effect and is worthy of popularization and application.
Specification:
| Model Number | PESVW-GB/155-0.21 | Place of Origin | Zhejiang,China |
| Conductor Material | Copper | Brand Name | CHINGCUNG |
| Conductor Diameter | 0.21mm | Feature | Excellent Film Adhesion |
| Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
| Thermal Class | 155 | Application | Motor Winding Wire |
| Film Grade | GB | Packing | Plastic Spool |
| Insulation | Polyester | OEM | Support |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
