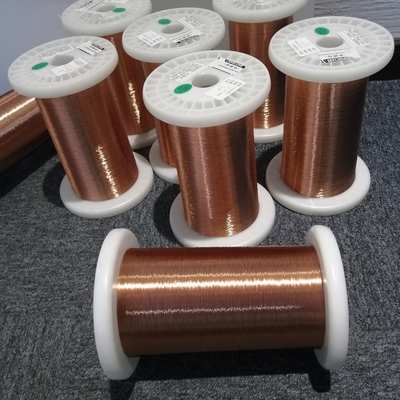

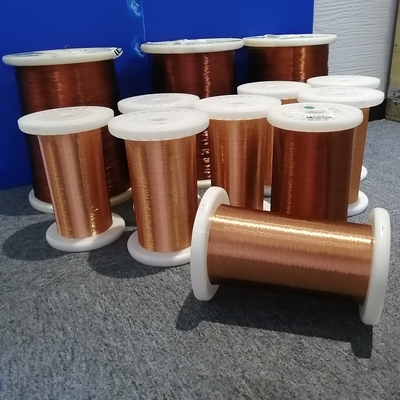

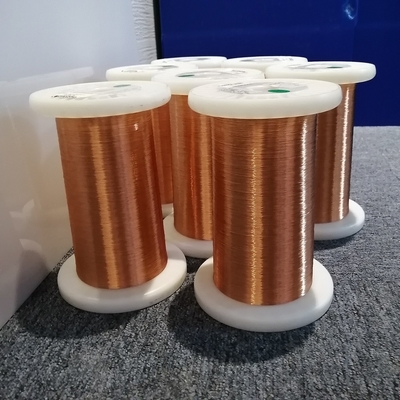

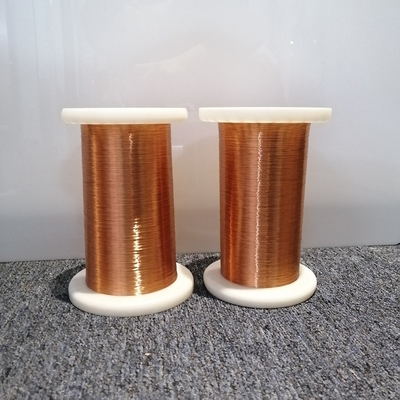

Thermal Class F 0.23mm Motor Enameled Copper Winding Wire Custom Colors

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PESVW-GB/155-0.23
Minimum Order Quantity 30 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30011252230 Product Name Self Bonding Enameled Round Copper Wires
Conductor Diameter 0.23mm Bonding Method Alcohol Soluble
Class 155℃ Applications Motor Winding Wire
Insulation Material PEW Certification ISO9001/ISO14001
High Light

Enameled Copper Winding Wire 0.23mm


PEW Motor Copper Winding Wire


Thermal Class F Copper Winding Wire

Leave a Message
Product Description

Thermal Class F 0.23mm Motor Winding Wire Custom Colors


Self-adhesive enameled wire has a composite structure, that is, in general enameled wire (baseline), coated with a layer of adhesive paint. At present, the development of composite insulated enameled wire has been attached great importance at home and abroad. As a result of compound layer enameled wire by 2 to 3 different material of paint coating and become, compare with the wire of onefold layer, compatible with the characteristic of a variety of different paint, solved onefold material does not satisfy the characteristic of production demand. In the structure of composite layer self-adhesive enameled wire, the insulating paint is mainly to ensure the insulation performance of the line, and the two outermost adhesive paint is mainly to meet the needs of the coil forming process, play the role of adhesion and protection and enhancement of the baseline.
In the process of speaker production, the adhesive layer of enameled wire of voice coil mainly adopts two self-adhesive ways: quick dissolution and heating. This is also widely used in the industry self-adhesive enameled wire, its molding process is simple, low cost and obtain the favor of manufacturers.


The application of self-adhesive enameled wire in motor windings shows that the motor windings made by self-adhesive enameled wire can meet the technical requirements of the corresponding motor and have reliable performance.Self-adhesive enameled wire can be used to manufacture motor windings, which can omit the process of soaking, save energy, eliminate pollution and reduce labor intensity. It has good technical and economic effect and is worthy of popularization and application.



Model Number PESVW-GB/155-0.23 Place of Origin Zhejiang,China
Conductor Material Pure cupper Brand Name CHINGCUNG
Conductor Diameter 0.23mm Feature Excellent Film Adhesion
Bonding Method Alcohol Soluble Delivery Time 3-10 work days
Thermal Class 155 Application Motor Winding Wire
Film Grade GB Packing Plastic Spool
Insulation Polyester OEM Support


Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.


Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.


Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.


Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.


Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
