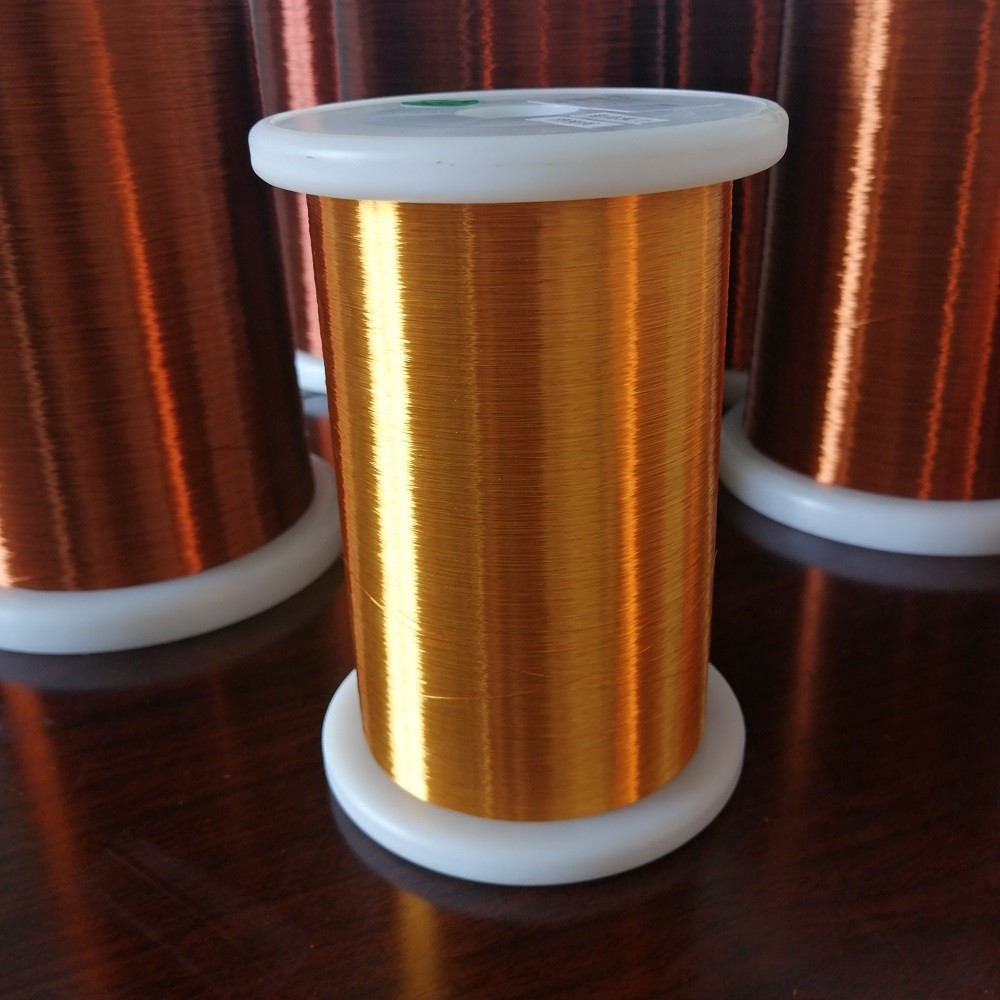

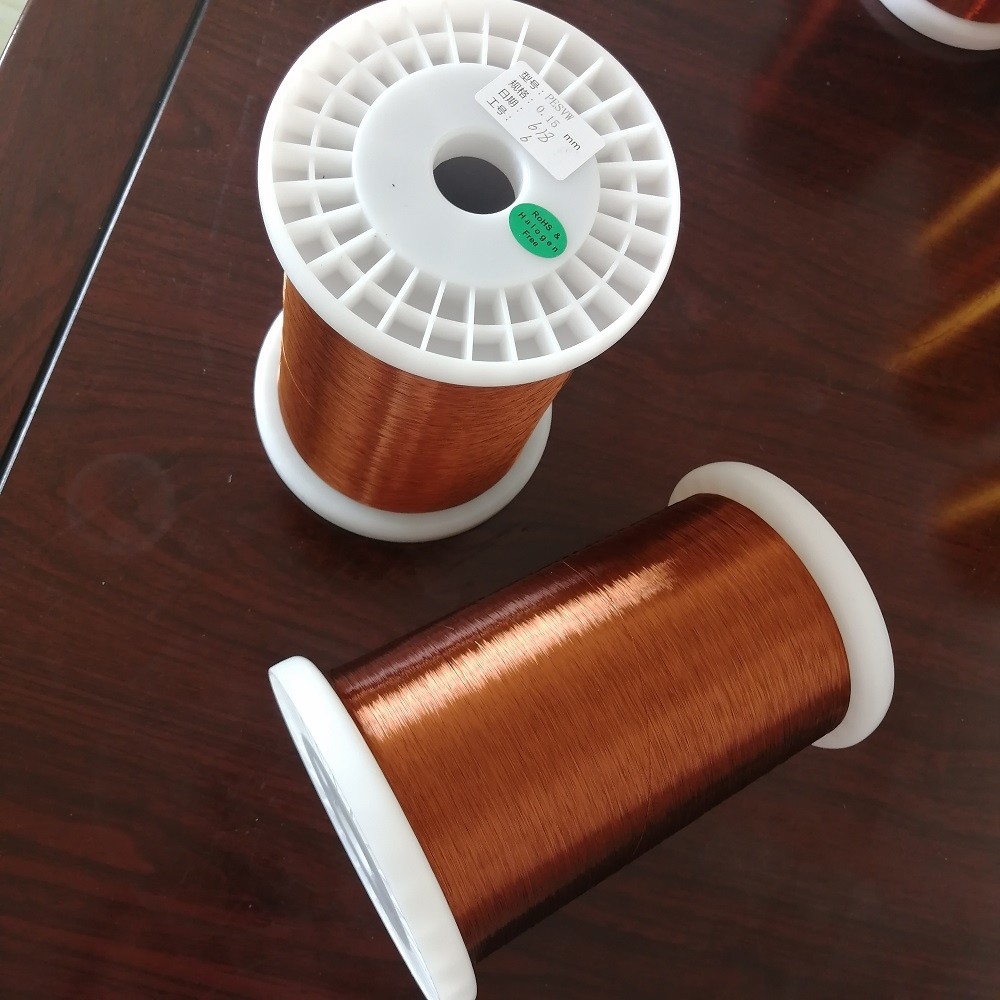

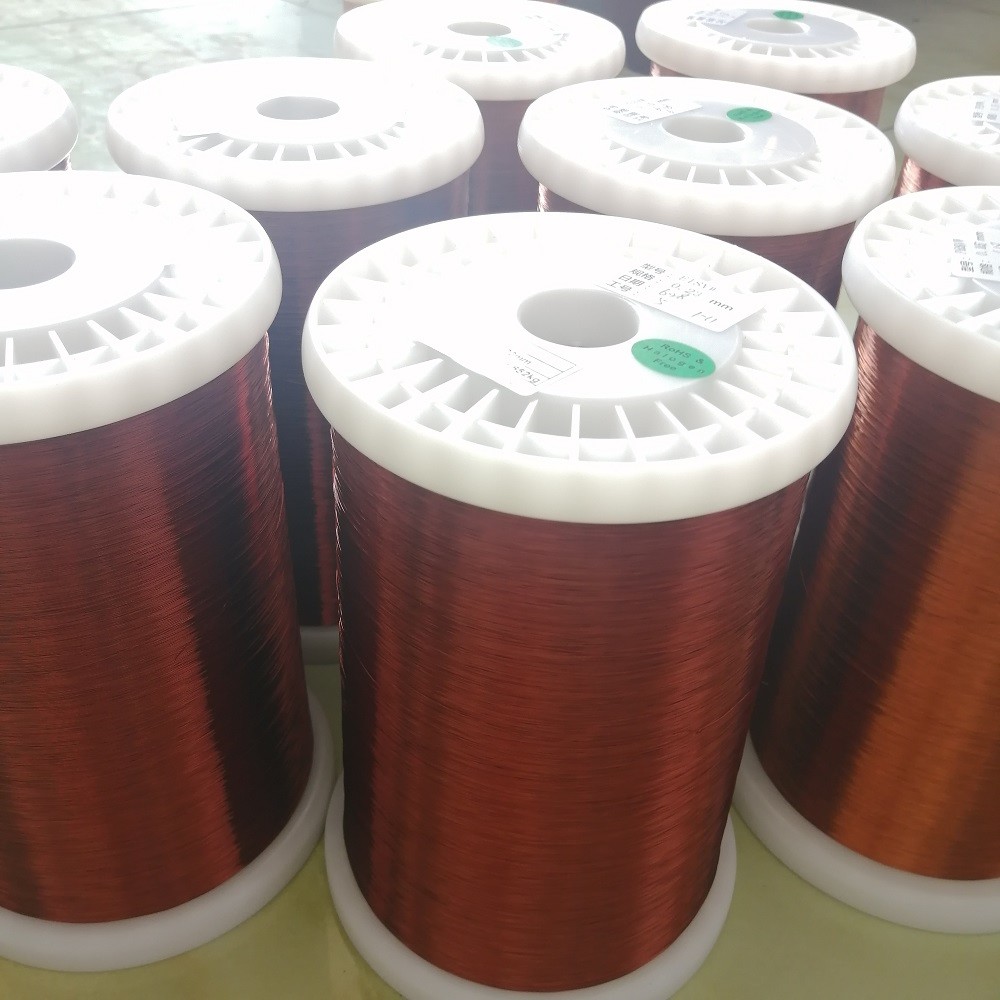

0.075mm Polyurethane Enameled Copper Wire Self Bonding Varnished Copper Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUSHWY3-1B/180-0.075 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 14.35/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011380075 | Class | 180 |
|---|---|---|---|
| Name | Self Bonding Solderable Polyurethane Enamele Copper Wires | Thermal Grade | 155 / 180 |
| Solderability | Solderable Coating | Bond Coat | UEW |
| High Light | 0.075mm Polyurethane Enameled Copper Wire,Self bonding varnished copper wire,1B Polyurethane Enameled Copper Wire |
||
Product Description
Polyurethane Enameled Copper Wire Self Bonding Enameled Wire 0.075mm Varnished Copper Wire
Applications:
1, can be used to make ordinary motors, transformers, apparatus, instrument, and coils of electronic component.
2, 2an be used to make H motor, transformer, apparatus, instrument, coils of electronic component.
Characteristic :
The product has excellent properties of mechanical strength,film adhesion, heat resistant to erosion and light weight. It is widely used in transformers, inductance coil,ballasts, motors ,reactors and household appliances,etc.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification(0.090-0.200mm):
| Conductor Diameter (mm) |
Tolerance±(mm) | Min. Increase of Diameter(mm) | Min Increase of Diameter With Bonding Film(mm) | Overall diameter(mm) | ||
| Grade1B | Grade2B | Grade1B | Grade2B | |||
| 0.090 | 0.003 | 0.008 | 0.015 | 0.007 | 0.117 | 0.125 |
| 0.100 | 0.003 | 0.008 | 0.016 | 0.007 | 0.129 | 0.137 |
| 0.112 | 0.003 | 0.009 | 0.017 | 0.008 | 0.143 | 0.152 |
| 0.125 | 0.003 | 0.010 | 0.019 | 0.009 | 0.158 | 0.168 |
| 0.140 | 0.003 | 0.011 | 0.021 | 0.010 | 0.175 | 0.186 |
| 0.160 | 0.003 | 0.012 | 0.023 | 0.010 | 0.197 | 0.209 |
| 0.180 | 0.003 | 0.013 | 0.025 | 0.010 | 0.220 | 0.233 |
| 0.200 | 0.003 | 0.014 | 0.027 | 0.011 | 0.243 | 0.256 |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
