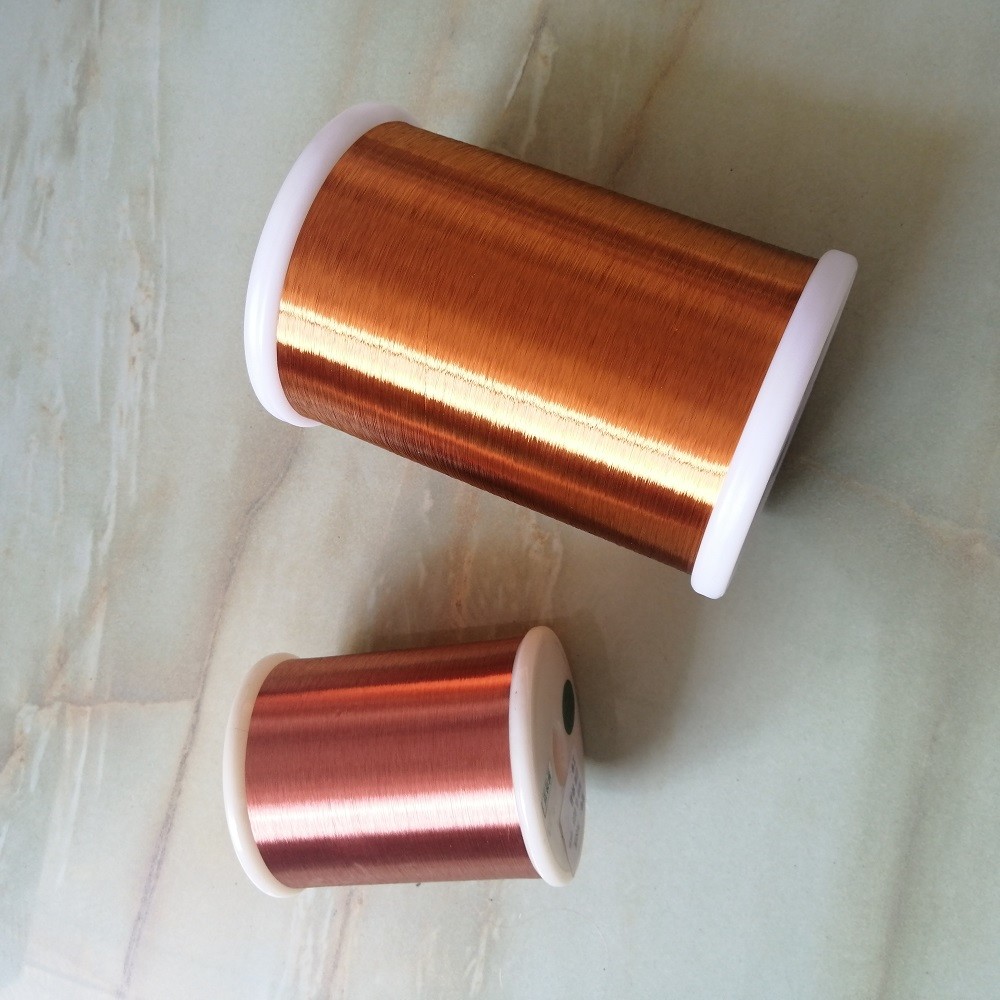

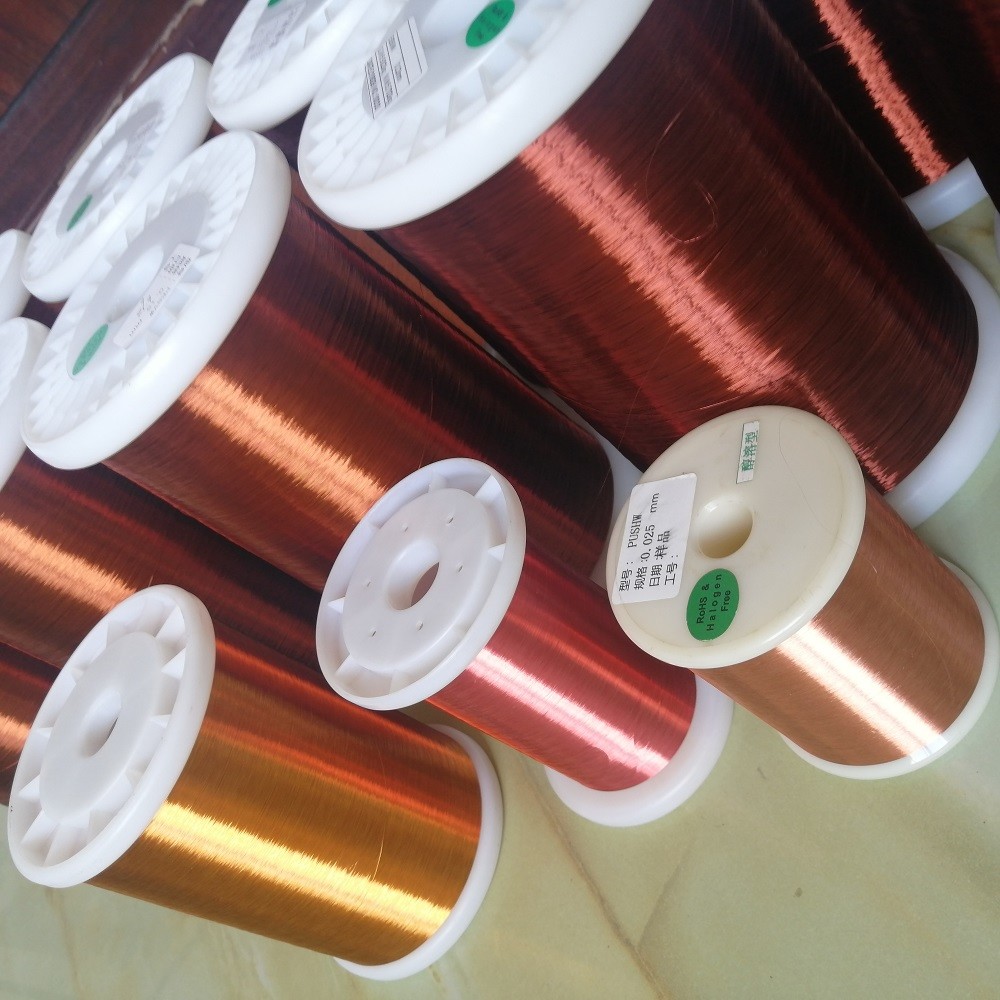

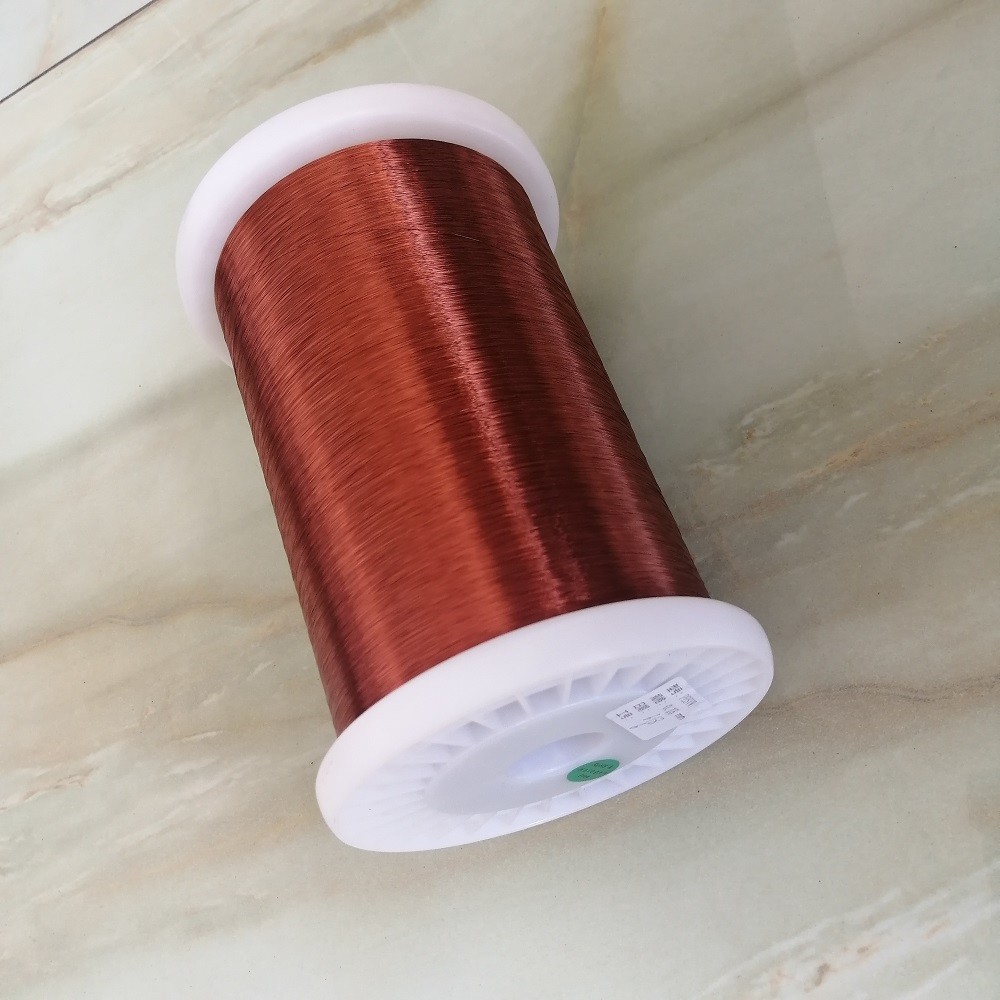

0.09mm Polyurethane Enameled Copper Wire Solderability Self Bonding Wire
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUSHWY3-1B/180-0.09 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 14.13/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011380090 | Conductor Thickness | 0.09mm |
|---|---|---|---|
| Temperature | 180° | Model Number | UEW/EIW |
| AWG SIZE | 19-46 | Conductor | High Purity Copper |
| High Light | 0.09mm Polyurethane Enameled Copper Wire,42 SWG insulation copper wire,39 AWG Polyurethane Enameled Copper Wire |
||
Product Description
0.09mm Polyurethane Insulation Enamelled Copper Wire Solderability Self Bonding Wire
Features and benefits:
This product provides excellent flexibility, adhesion and anti-scrape resistance, low coefficient of friction
This product provides good heat resistance,solderablity, dyeing, excellent pinhole resistance, high-frequency resistance, etc.
High Frequency Signal Transmission :
1. Flexible RF coaxial cable inner conductor material
2. Superfine coaxial cable inner conductor material
The company mainly produces various types of 0.04-0.90mm specifications and special enameled wire, its products meet the applicable standards of the industry (IEC60317, GB6109.JlS C3202, NEMA MW1000), and on this basis, according to different product needs and winding characteristics,Develop special enameled wire standards suitable for electromagnetic relay, micro special motor, transformer for smart meter, clock coil, solenoid valve, high voltage package and so on.The types of self-adhesive enameled wire are polyester line, polyurethane line, polyamide imide line, polyester imide line and so on.
Our company has carried out business with more than 100 overseas customers in more than 20 countries and regions such as Germany, Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East, Africa and so on.
Enameled wire production base is located in Jiaxing city, Zhejiang Province, the main production of various grades of heat self-adhesive wire, specializing in high temperature self-adhesive wire.The annual output of the company is about 15000 tons of enamel wire.The Chinese government's new policy of "One Belt, One Road" provides a new opportunity for industrial and production capacity cooperation with overseas countries and regions.Shanghai Husu Husu Electromechanical Technology Co., Ltd. sincerely hopes to establish and develop long-term and mutually beneficial cooperative relationship with you in the future.
Specification(0.500-1.000mm):
| Conductor Diameter (mm) |
Tolerance±(mm) | Min. Increase of Diameter(mm) | Min Increase of Diameter With Bonding Film(mm) | Overall diameter(mm) | ||
| Grade1B | Grade2B | Grade1B | Grade2B | |||
| 0.500 | 0.005 | 0.024 | 0.045 | 0.017 | 0.568 | 0.590 |
| 0.560 | 0.006 | 0.025 | 0.047 | 0.017 | 0.630 | 0.654 |
| 0.630 | 0.006 | 0.027 | 0.050 | 0.018 | 0.704 | 0.729 |
| 0.710 | 0.007 | 0.028 | 0.053 | 0.019 | 0.788 | 0.815 |
| 0.800 | 0.008 | 0.030 | 0.056 | 0.020 | 0.882 | 0.911 |
| 0.900 | 0.009 | 0.032 | 0.060 | 0.020 | 0.987 | 1.017 |
| 1.000 | 0.010 | 0.034 | 0.063 | 0.021 | 1.091 | 1.123 |
FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
