0.11mm Polyurethane Self Bonding Enameled Copper Round Wire Class 180

  • 0.11mm Polyurethane Self Bonding Enameled Copper Round Wire Class 180
  • 0.11mm Polyurethane Self Bonding Enameled Copper Round Wire Class 180
  • 0.11mm Polyurethane Self Bonding Enameled Copper Round Wire Class 180
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PUSHWA-1B/180-0.11
Minimum Order Quantity 30 Kg
Price USD 13.02/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011380110 Thermal Class 155/180
Size Range 0.04mm-0.12mm Stock Yes
Color Original Or Customization Applications Transformers / Motors / Relays / Winding
High Light

0.11mm Enameled Copper Round Wire

,

Grade1B self bonding copper wire

,

Enameled Copper Round Wire Class 180
Leave a Message
Product Description

0.11mm Diameter Polyurethane Self Bonding Enameled Copper Round Wire Class 180

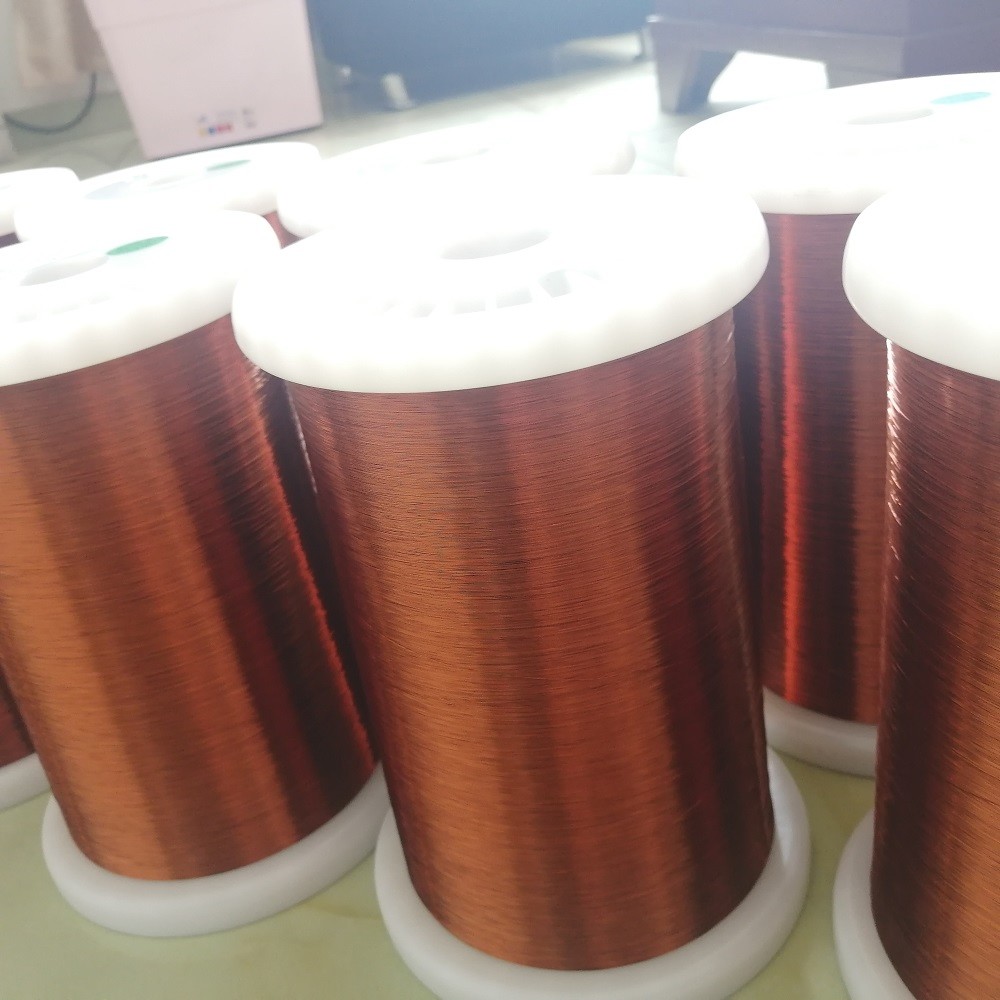

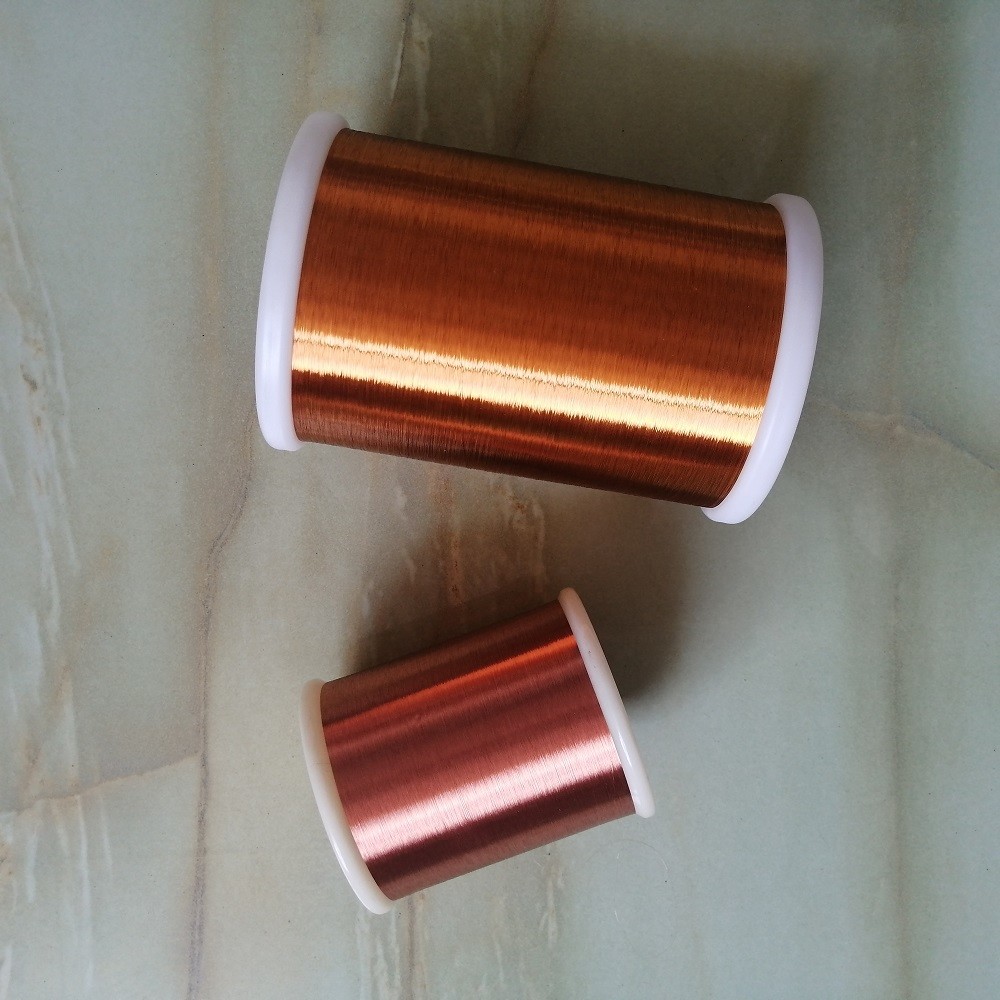

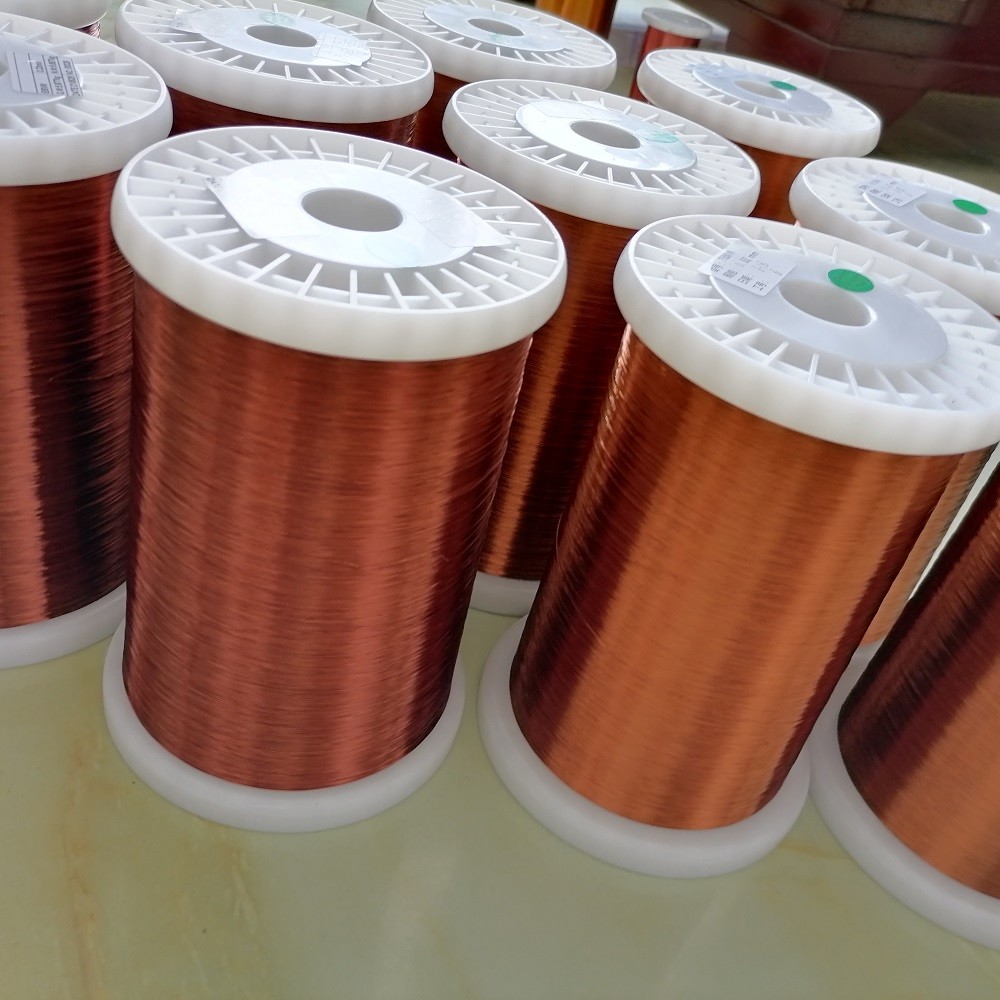

Product Display:
Aspecial type of enamelled wire is selfbonding wire or bondable wire. Selfbonding wire is an enamelled wire as described under Enamelled Wire Types, with an additional adhesive enamel overcoat.



Features and benefits:
Easy to be dyed to different colors for identifying purpose when soldered.
Meets NEMA MW 80 standards for copper magnet wire and complies with RoHS regulations



Specification(0.020-0.160mm):

Conductor
Diameter
(mm)		 Tolerance±(mm) Min. Increase of Diameter(mm)
Grade1B Grade2B
0.020 0.003 0.002 0.004
0.022 0.003 0.002 0.004
0.025 0.003 0.003 0.005
0.028 0.003 0.003 0.006
0.032 0.003 0.003 0.006
0.036 0.003 0.004 0.007
0.040 0.003 0.004 0.008
0.045 0.003 0.005 0.009
0.050 0.003 0.005 0.010
0.056 0.003 0.006 0.011
0.063 0.003 0.006 0.012
0.071 0.003 0.007 0.012
0.080 0.003 0.007 0.014
0.090 0.003 0.008 0.015
0.100 0.003 0.008 0.016
0.112 0.003 0.009 0.017
0.125 0.003 0.010 0.019
0.140 0.003 0.011 0.021
0.160 0.003 0.012 0.023



FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.



Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.



Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!



Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.



Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
