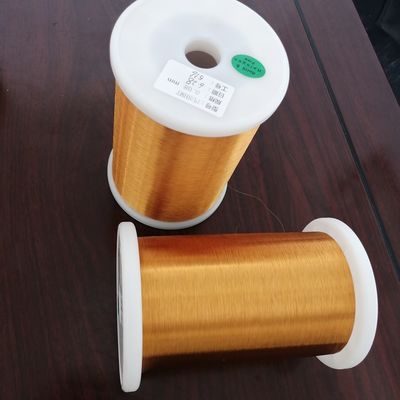

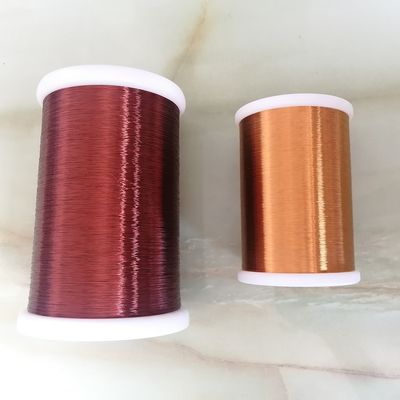

Self Bonding Modified Polyester Enameled Copper Clad Aluminum Wire 0.11mm Class155
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PECCAW-GB/155-0.11 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 88.89/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021452110 | Application | Motor |
|---|---|---|---|
| Film Grade | GB | Bonding Method | Hot Air/Solvent |
| Advantage | Excellent Film Adhesion | Color | Red/Green/Yellow |
| Product Name | PEW CCA Self Adhesive Enamelled Wires | Customized | Support |
| High Light | Enameled Copper Clad Aluminum Wire 0.11mm,GB self bonding magnet wire,Enameled Copper Clad Aluminum Wire Class155 |
||
Product Description
Self Bonding Modified Polyester Enameled Copper Clad Aluminum Wire 0.11mm Class155
Features:
Because of its light specific gravity, its length is about 7% more than that of pure copper wire under the condition of equal wire diameter and weight. As a result, the product cost can be reduced, which is equivalent to the purchase of 1 ton of pure copper wire. Our products only need 920 kg, that is, 70 kg of material cost can be saved.
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Product Name | CCA Wire |
| Product features | Under the condition of the same weight and diameter, the length of copper-clad aluminum wire is 2.6-3.2 times of that of pure copper wire, which greatly reduces the production cost of cable. Purchasing 1 ton of copper-clad aluminum is equivalent to purchasing 2.6-3.2 tons of pure copper wire, which can greatly reduce the cost of raw materials. |
| Application fields | Copper clad aluminum wire can be widely used in limited TV signal transmission, large capacity communication network signal transmission, control signal cable, welding cable, etc. High frequency signal transmission: 1: The preferred inner conductor material for limited TV coaxial cable 2:50 Ω RF cable 3: Inner conductor material of flexible RF coaxial cable 4: Inner conductor material of computer cable and other data cable 5: Inner conductor material of micro coaxial cable |
| Conventional packaging | Disc tools DIN 130mm, din250mm, din400mm |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
