0.17mm Modified Polyester Self Bonding CCA Wire 155℃ For Speaker Voice Coils

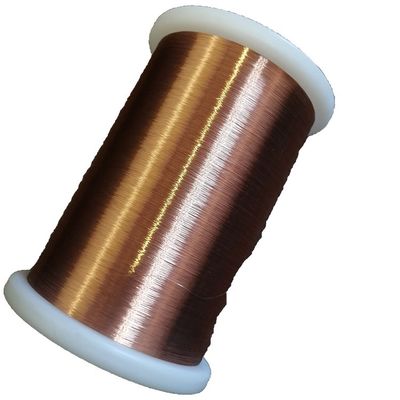

  • 0.17mm Modified Polyester Self Bonding CCA Wire 155℃ For Speaker Voice Coils

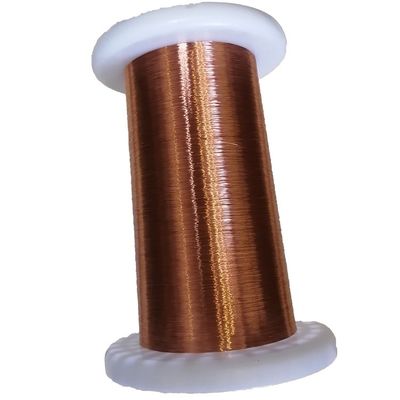

  • 0.17mm Modified Polyester Self Bonding CCA Wire 155℃ For Speaker Voice Coils

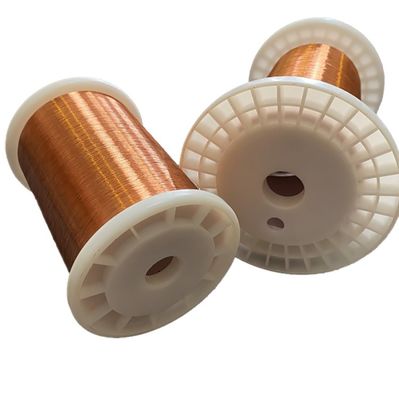

  • 0.17mm Modified Polyester Self Bonding CCA Wire 155℃ For Speaker Voice Coils
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PECCAW-GB/155-0.17
Minimum Order Quantity 30 Kg
Price USD 55.56/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30021452170 Product Name PEW Self Adhesive Enamelled Wires
Conductor Material Copper Clad Aluminum Wires Type Hot Air Or Alcohol Soluble
Thermal Class 155(F Class) Film Grade Grade 1B、2B、GB
Application Heating,Transformer,motor,windings Color Pink/Blue//Yellow And More
High Light

Self Bonding CCA Wire

,

GB self bonding magnet wire

,

0.17mm CCA Wire
Leave a Message
Product Description

0.17mm Modified polyester Self Bonding CCA Wire 155℃ For Speaker Voice Coils



Copper clad aluminum enameled wire:
Enamelled copper composite aluminum has made from copper cover aluminum or aluminum alloy surface composite conductors, aluminum that is light in weight, it also has the direct welding and corrosion resistance of copper, copper clad aluminum wire helps to reduce the weight of the coil, the other with enamelled copper wire of the same insulating film and adhesive film properties, copper composite proportion can choose in 15%, 20%, or other numerical,Speakers with aluminum voice coils are very good for high and low tones!(such as 0.040mm aluminum wire with 0.006mm copper diaphragm 7.4×0.04×32×1.74)!Specification range (0.04-0.90mm).



Features:
1.Low density allows coil weight reduction. only 50% weight of copper at the same length
2.Easy soldering due to copper cladding
3.Higher conductivity compared to aluminum



Specification:

Copper Clad aluminum wire (CCA)
Dia Tolerance (mm) Resistance/Ω/m20℃ Elongation% G2 Max OD Min.Insulation(mm) Min Adhesive (g)
(mm) (mm)
  SKHT KHT SKHT KHT   Insulation Bonding layer
0.025 0.025±0.001 52.42±5% 56.18±5% 3 3 0.032 0.002 0.001 2
0.03 0.030±0.001 36.40±7% 39.03±7% 4 4 0.04 0.002 0.001 2
0.035 0.035±0.001 26.75±7% 28.67±7% 5 5 0.045 0.002 0.001 3
0.04 0.040±0.001 20.48±7% 21.95±7% 6 6 0.052 0.002 0.001 3
0.045 0.045±0.001 16.18±7% 17.34±7% 7 7 0.057 0.002 0.001 3
0.05 0.050±0.002 13.11±7% 14.05±7% 5 8 0.064 0.003 0.0015 5
0.055 0.055±0.002 10.83±7% 11.61±7% 8 8 0.069 0.003 0.0015 5
0.06 0.060±0.002 9.10±7% 9.76±7% 9 9 0.075 0.003 0.0015 5
0.065 0.065±0.002 7.75±7% 8.25±7% 11 11 0.08 0.003 0.0015 5
0.07 0.070±0.002 6.69±7% 7.11±7% 12 12 0.085 0.003 0.0015 5
0.075 0.075±0.002 5.82±7% 6.19±7% 12 12 0.09 0.003 0.0015 8
0.08 0.080±0.002 5.12±7% 5.36±7% 14 14





FAQ:

Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.



Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.



Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.



Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.



Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
