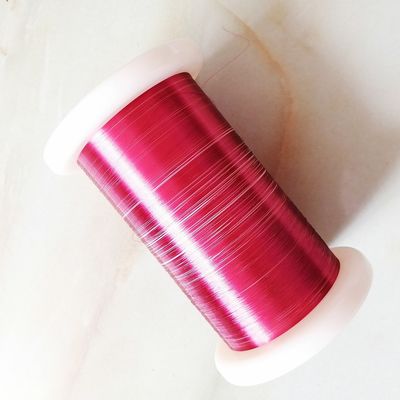

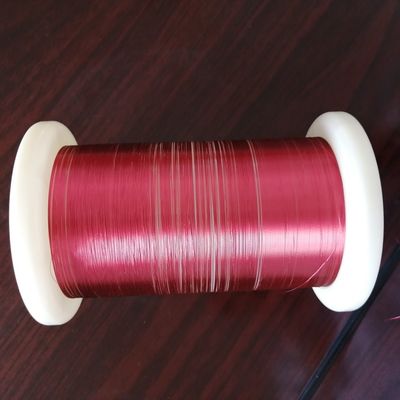

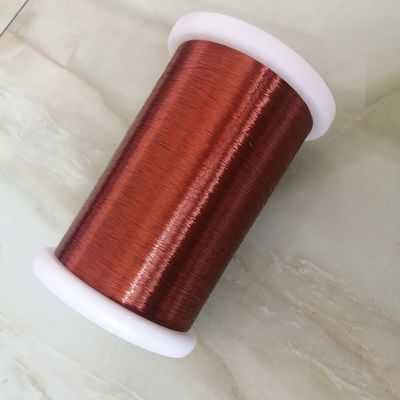

Class 155 Modified 0.19mm Enameled Copper Clad Aluminum Wire CCA For Voice Coil

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PECCAW-GB/155-0.19
Minimum Order Quantity 30 Kg
Price USD 46.67/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30021452190 Product 0.19mm Copper Clad Aluminum Wires
Insulation Material PEW Bonding Way Alcohol Soluble
Color Nature/Pink/Red/Green Film Grade 1B、2B、GB
Application Voice Coil Wire Advantage Factory Supplies
High Light

0.19mm Enameled Copper Clad Aluminum Wire


CCA bondable magnet wire


2B Enameled Copper Clad Aluminum Wire

Leave a Message
Product Description

Class 155 Modified PolyesterCCA Self Adhesive Enamelled Wires For Voice Coil


Copper clad aluminum:
1, Good electrical conductivity: copper aluminum volume ratio of 15% or 20% copper clad aluminum wire electrical performance, compared with copper wire its AC load is 85% of pure copper.
2. Light weight: the density of copper-clad aluminum wire is only 37-40% of pure copper wire, and the length of the same weight is 2-2.5 times of pure copper wire.
3, Good mechanical properties: good tensile strength, flexibility and elongation.
4, strong copper and aluminum combination: two different metal materials in a variety of environmental temperatures to achieve permanent atomic crystal combination, and the copper layer is evenly distributed, there is no physical defects.
5, Good ductility and reliability: after special heat treatment process, plasticity, is conducive to punching, shearing, bending processing products do not crack, do not separate.In order to improve corrosion resistance, tin plating and zinc plating can be carried out on the surface of the copper layer.
6, Better selectivity: save copper, reduce production costs, no pollution.


1.Low density allows coil weight reduction. only 50% weight of copper at the same length
2.Easy soldering due to copper cladding
3.Higher conductivity compared to aluminum



Class155 Self bonding CCA wires
*Color Natural
*Size Range 0.04-0.90mm
*Material Type CCA
*Insulation modified polyester
*Spool Size PT-10
*Package size 31*21*15cm
*Standard JIS,NEMA,IEC ,GB



Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.


Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.


Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.


Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.


Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
