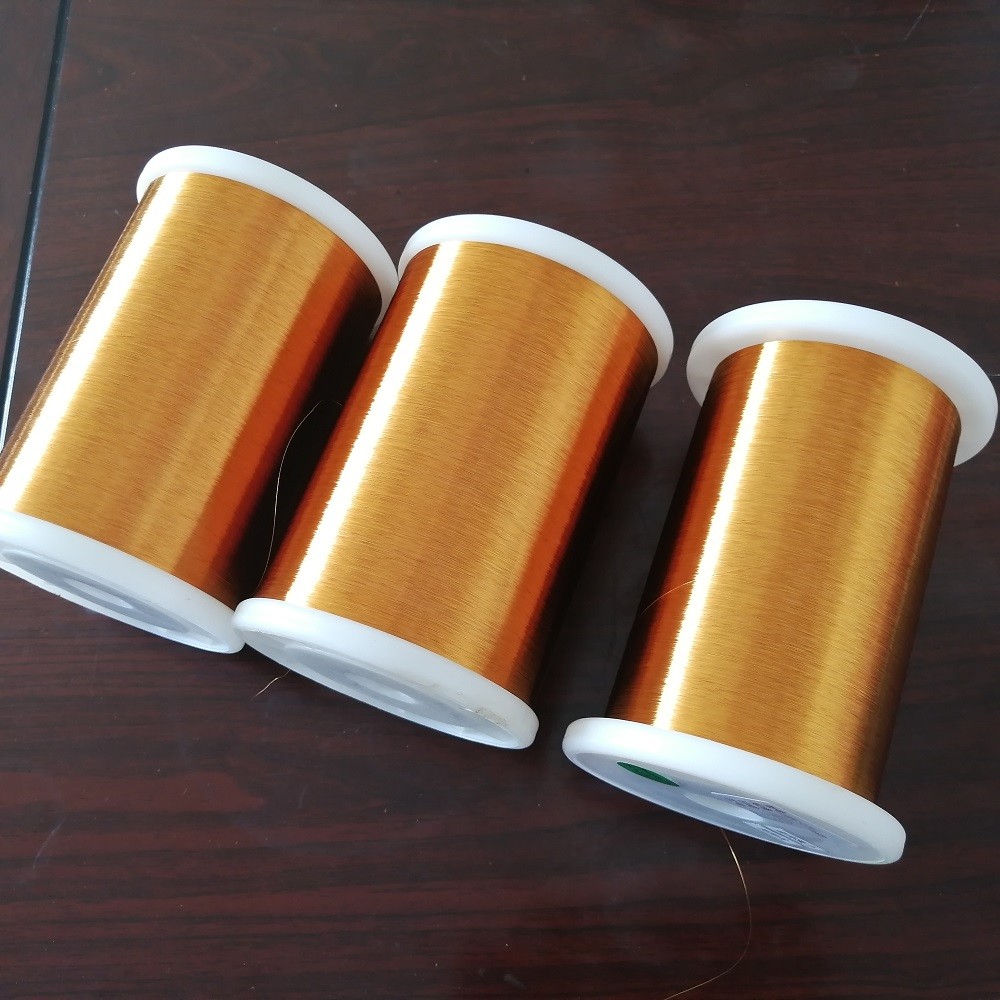

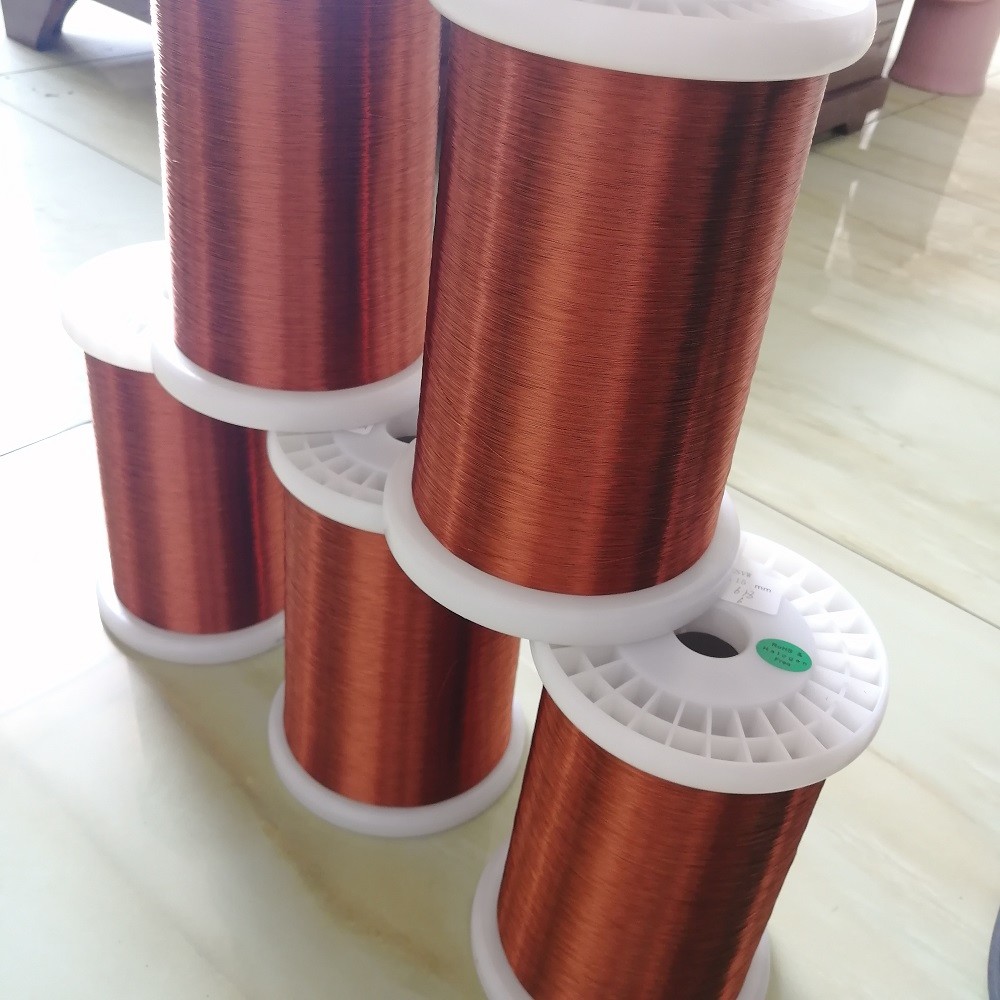

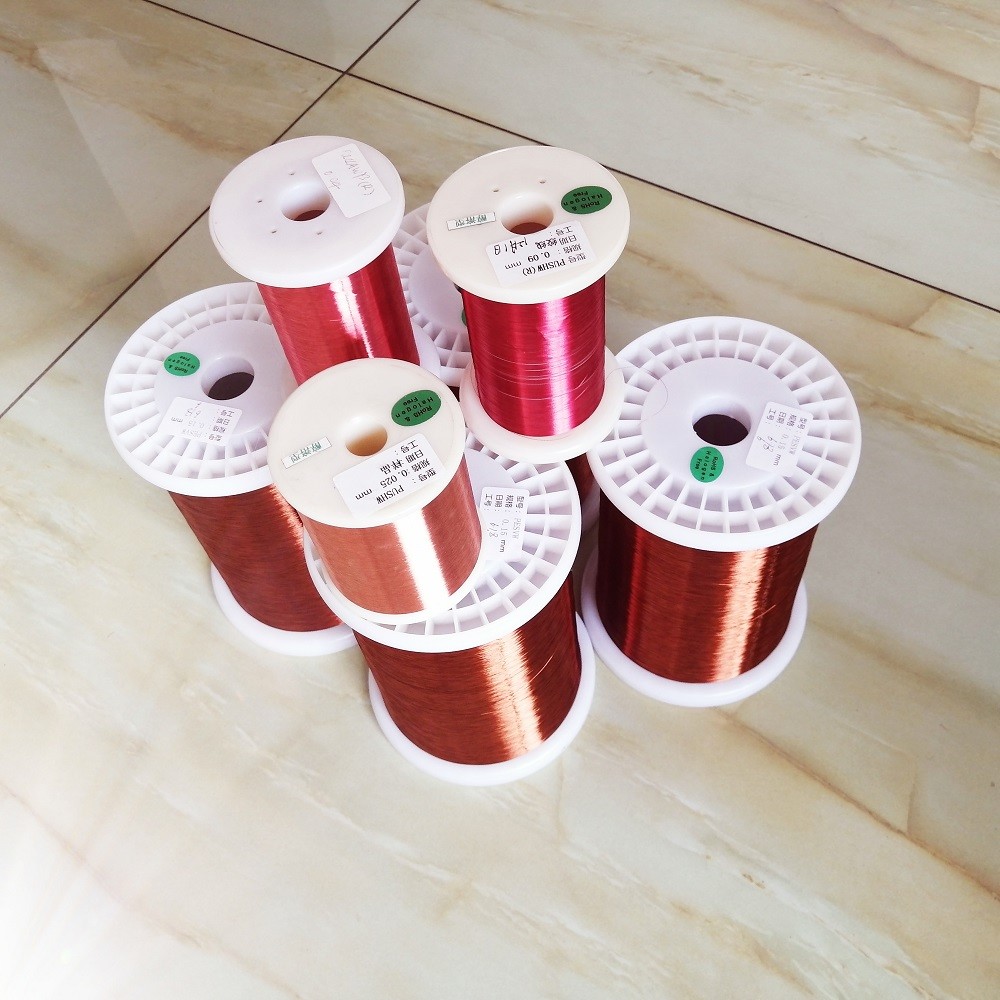

Voice Coil Use Self Bonding Magnet Wire 0.11mm Class 130/155

  • Voice Coil Use Self Bonding Magnet Wire 0.11mm Class 130/155
  • Voice Coil Use Self Bonding Magnet Wire 0.11mm Class 130/155
  • Voice Coil Use Self Bonding Magnet Wire 0.11mm Class 130/155
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PESVW-2B/155-0.11
Minimum Order Quantity 30 Kg
Price USD 11.90/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No 30011251110 Product PEW Self Adhesive Enamelled Copper Wires
Type Special Magnet Wires Diameter As Your Requirements
Standard IEC、NEMA、JIS、GB Thermal Class 130/155
Bonding Way Hot Wind/Solvent Application Coils, Windings, Voice Coils
High Light

CHINGCUNG self bonding magnet wire

,

Class 130 copper wire for coil winding 0.11mm

,

self bonding magnet wire 0.11mm
Leave a Message
Product Description

Voice Coil Use Self Bonding Polyester Enameled Copper Magnet Wire 0.11mm Class 130/155



Product Description:
As a special type of enameled wire, self-adhesive enameled wire is easy to manufacture because of its special processing performance.The winding coil can be bonded after heating or solvent treatment, so it is popular and widely used in the manufacture of electromagnetic coils with complex shapes or no skeleton.The application of self-adhesive enameled wire also brings remarkable social and economic benefits, which can simplify the coil forming process, improve the efficiency, save energy, improve environmental pollution, and is conducive to industrial production.



Widely used:
Motors
Transformers
Inductors
Contactors
Small appliance
Instruments
Electric coils etc.



Specification:

Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage Elongation Pin Hole Electrical Resistance
mm ≥ V ≥% ≤Default/5m Ω/km (20℃)
        Mandrel Method Twisted Method     Min. Max.
0.012 ---- 0.013 0.015 50 ---- 5 10 142.64 157.65
0.013 ---- 0.015 0.017 70 ---- 5 10 118.41 133.98
0.014 ---- 0.016 0.018 70 ---- 5 10 102.64 120.45
0.015 ---- 0.017 0.02 80 ---- 5 10 89.83 104.41
0.016 ---- 0.018 0.021 90 ---- 5 8 74.67 97.56
0.017 ---- 0.019 0.022 90 ---- 5 8 66.6 85.75
0.018 ---- 0.02 0.023 100 ---- 5 8 59.77 75.95
0.019 ---- 0.021 0.024 100 ---- 5 8 53.95 67.75
0.02 0.002 0.022 0.024 100 ---- 5 8





FAQ:

Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.



Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese



Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.



Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.



Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
