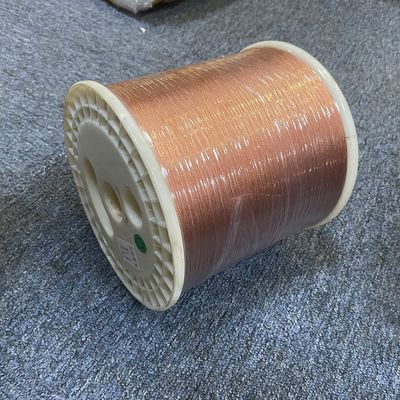

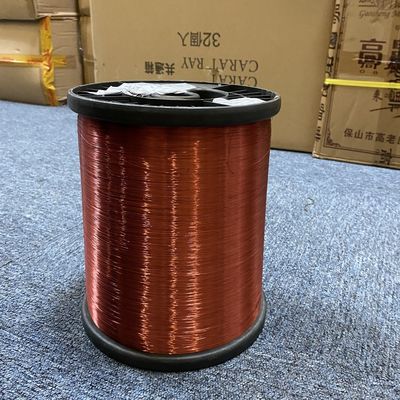

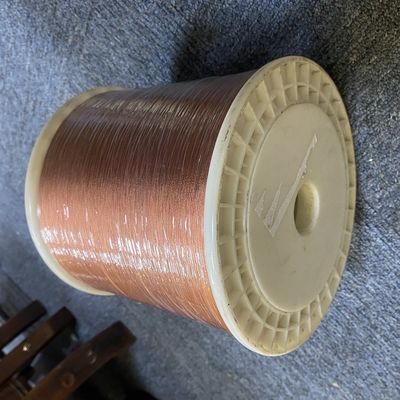

EIW Self Adhesive Enameled Copper Winding Wire 0.17mm For Speaker Voice Coil
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550170 | Product Name | Polyesterimide Enamelled Round Copper Wires |
|---|---|---|---|
| Standard | IEC、NEMA、GB | Conductor | Round Copper |
| Bonding Method | Hot Air/Alcohol Soluble | Feature | High Breakdown Voltage |
| Color | Natural Or According To Customers | Minimum Quantity | 3kg |
| High Light | EIW Enameled Copper Winding Wire,CHINGCUNG Polyesterimide coated magnet wire,Self Adhesive Enameled Copper Winding Wire |
||
Product Description
Class180/200 EIW Self Adhesive Enameled Copper Winding Wire 0.17mm For speaker voice coil
Enamelled wire:
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires,self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Specification:
| Name | Self bonding polyesterimide enameled round copper wires |
| Type | QZYN-1B/2B/GB,QZYNY3-1B/2B/GB |
| Size | 0.04-0.9mm |
| Thermal class | H 180 ºC, 200 ºC |
| Standard | NEMA, JIS,GB, IEC |
| Application | 1.Applicable to the production of higher temperature motor. 2.Electrical winding coil. Can be used for relays, micro-motor, small transformers, ignition coil, water valve, communication equipment with the coil. 2. Due to direct welding property,widely applied to electrical and communications equipment which with more welding hear operating and complex circuit . The enameled wire of the special thick film can be used for vertical and low voltage coils in color TV. Applicable to relays, micro-motors, small transformers and communications equipment. |
| Bonding Way | Hot Air/Alcohol Soluble |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
