0.13mm Polyurethane Enameled Round Copper Wire Self Bonding Solderable

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PUSHWY3-1B/180-0.13
Minimum Order Quantity 30 Kg
Price USD 12.35/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30011380130 Name Class 155/180 Self Adhesive Enamelled Round Copper Wires
Diameter Of Single Wire 0.13mm Style High Purity Copper
Bonding Wacartony Hot Air Insualtion UEW
Enamel Thickness Grade 1B/2B/GB Color Red
High Light

0.13mm enameled round copper wire


class 180 soldering copper wire


1B enameled round copper wire

Leave a Message
Product Description

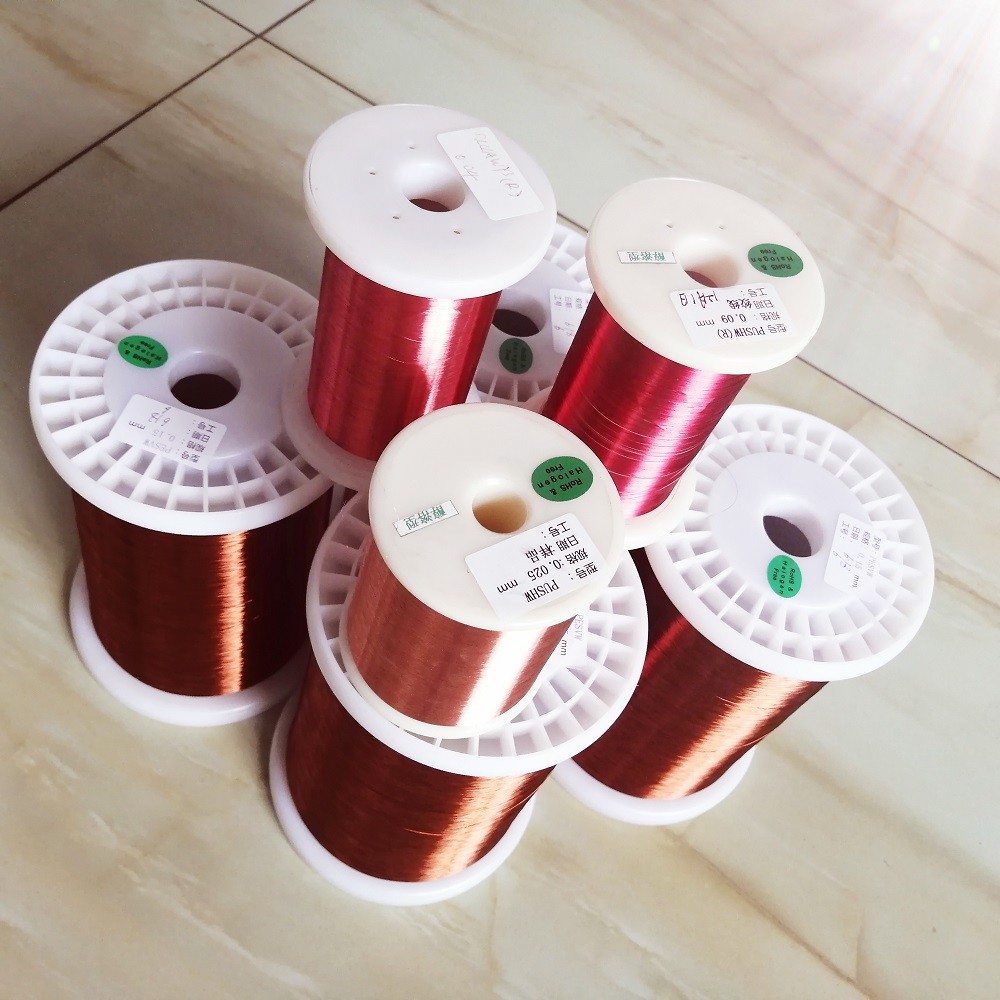

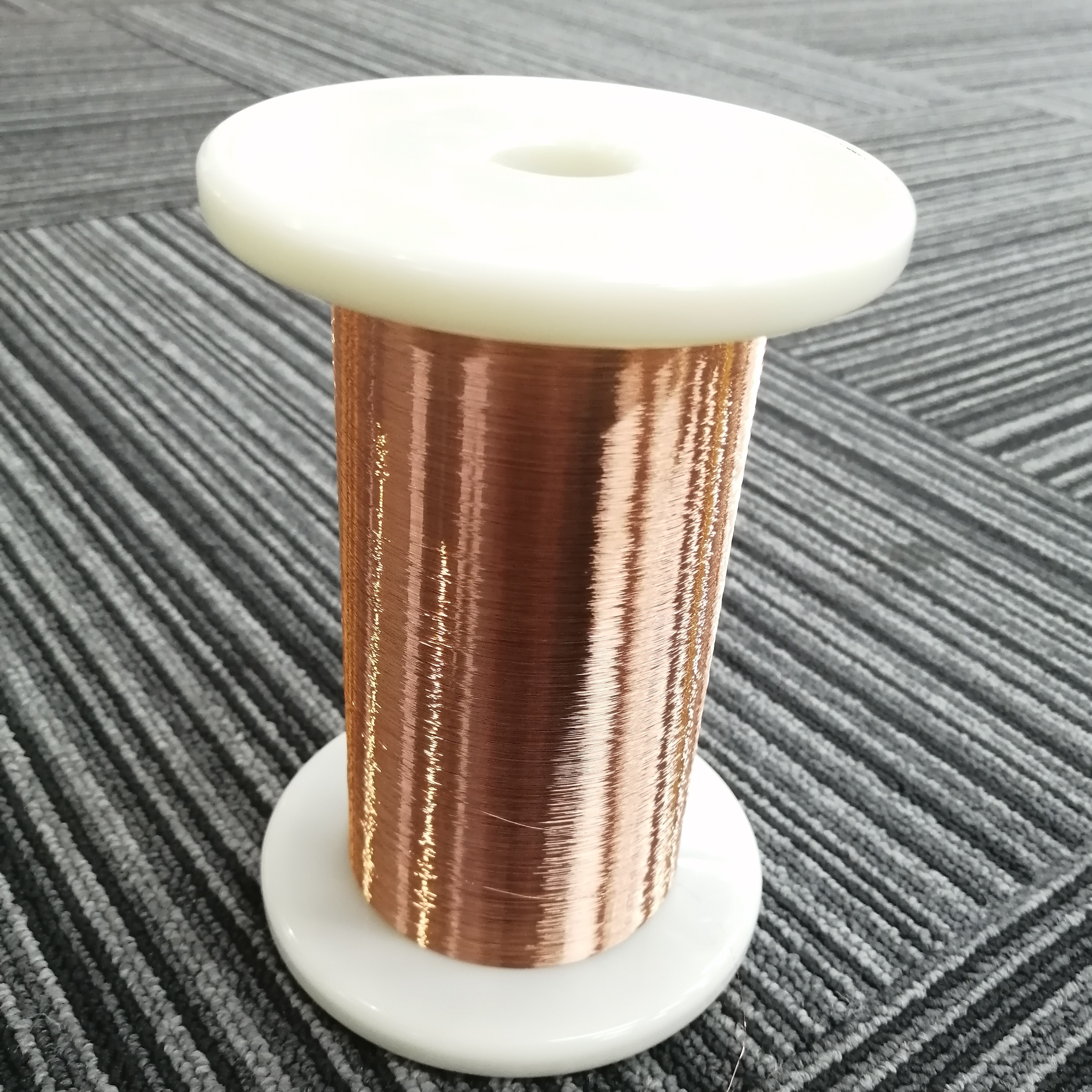

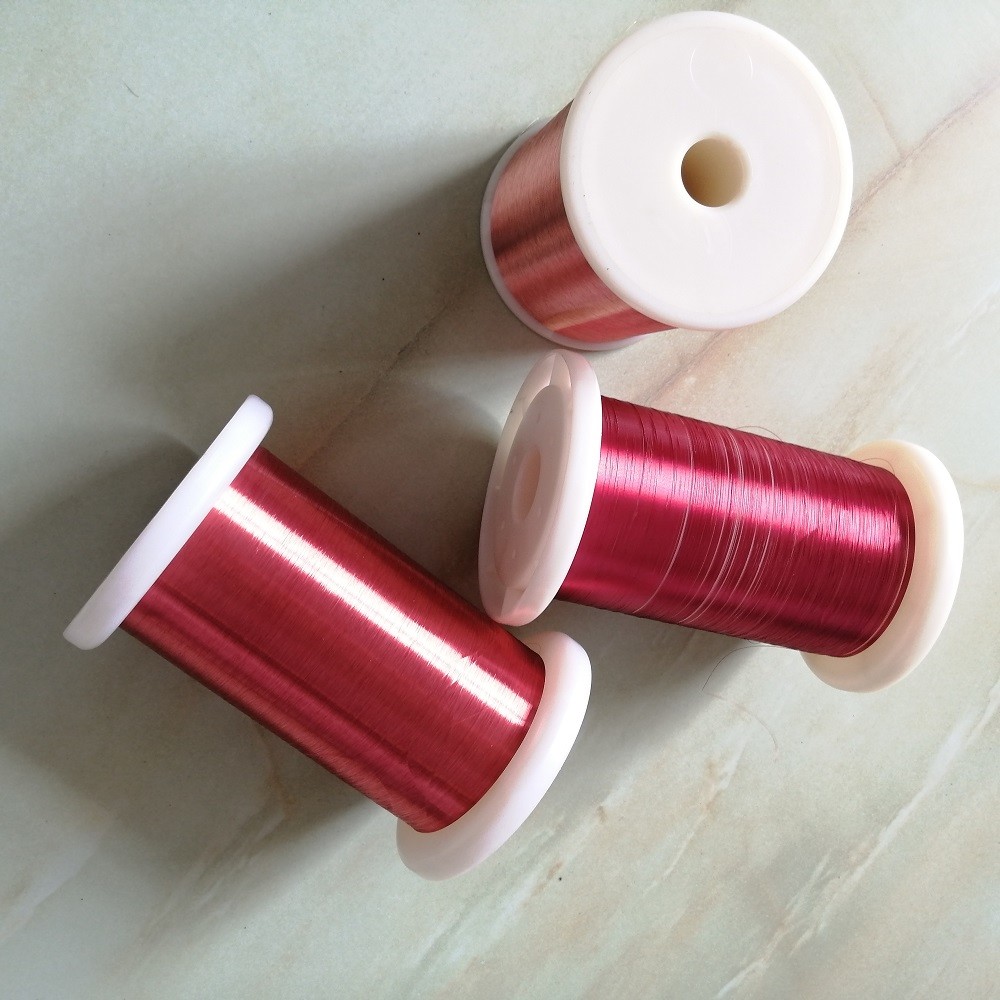

0.13mm Self Bonding Solderable Polyurethane Enameled Round Copper Wires


Product Description:
Self-adhesive polyurethane enameled wire is enameled wire based on polyurethane. Polyurethane paint has the following characteristics :(1) good direct weldability. Because polyurethane paint film will decompose at high temperature and can play the role of flux, it can be directly lined tin welding without removing the paint film in advance.(2) High frequency performance, at high frequency conditions of medium loss Angle tangent is relatively small.The coating on the surface of self-adhesive polyurethane enameled wire is self-adhesive direct welding paint, which has both self-adhesive and direct welding property.With its winding coil can not only accompany the method of baking in a short time to self-bonding molding, but also in the welding head need not remove the paint film in advance, can be directly lined tin, welding.Therefore, the process is greatly simplified and the production efficiency is improved.


International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification.



Model Number Conductor Material Conductor Diameter(mm) Bonding Method Thermal Class Film Grade Brand Name
PUSHW-1B/155 Copper 0.04-0.90 Alcohol Soluble 155 1B CHINGCUNG
PUSHW-2B/155 Copper 0.04-0.90 Alcohol Soluble 155 2B CHINGCUNG
PUSHW-GB/155 Copper 0.04-0.90 Alcohol Soluble 155 GB CHINGCUNG
PUSHW-1B/180 Copper 0.04-0.90 Alcohol Soluble 180 1B CHINGCUNG
PUSHW-2B/180 Copper 0.04-0.90 Alcohol Soluble 180 2B CHINGCUNG
PUSHW-GB/180 Copper 0.04-0.90 Alcohol Soluble 180 GB CHINGCUNG
PUSHWY3-1B/155 Copper 0.04-0.90 Hot Air 155 1B CHINGCUNG
PUSHWY3-2B/155 Copper 0.04-0.90 Hot Air 155 2B CHINGCUNG
PUSHWY3-GB/155 Copper 0.04-0.90 Hot Air 155 GB CHINGCUNG
PUSHWY3-1B/180 Copper 0.04-0.90 Hot Air 180 1B CHINGCUNG
PUSHWY3-2B/180 Copper 0.04-0.90 Hot Air 180 2B CHINGCUNG
PUSHWY3-GB/180 Copper 0.04-0.90 Hot Air 180 GB CHINGCUNG



Q1:What's diameters available of the products?

A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.


Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.


Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!


Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.


Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
