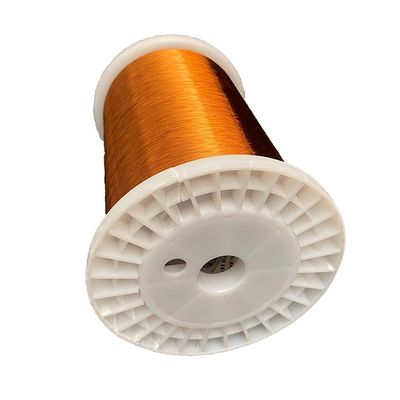

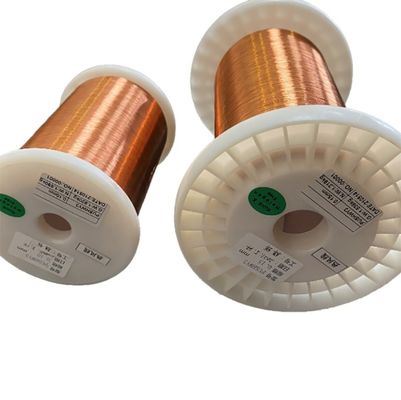

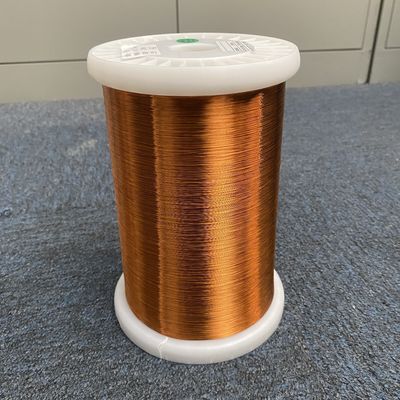

Hot Air Direct Weldable Enameled Copper Wires 0.17mm For Magnetic Induction Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUSHWY3-1B/180-0.17 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 11.68/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011380170 | Product Name | UEW Self Adhesive Enamelled Round Copper Wires |
|---|---|---|---|
| Diameter Of Single Wire | 0.17mm | Style | Special Magnet Wires |
| Conductor MaterialAir Wacartony | Round Copper | Insualtion | Polyurethane(UEW) |
| Enamel Thickness | Grade 1B | Feature | Good Solderability Flexibility |
| High Light | enameled copper wires 0.17mm,Grade 1B enamel coated magnet wire,class 180 enameled copper wires |
||
Product Description
Hot Air Direct Weldable Enameled Copper Wires 0.17mm For Magnetic Induction Coils
Alcohol soluble:
Alcohol-soluble self-adhesive is alcohol self-adhesive enameled wire, in the process of winding the coil by adding appropriate alcohol to the product so as to achieve winding coil natural bonding together, direct molding;According to the nature of enameled wire, water can be properly added to dilute the use of different products, the use of technology is not the same, such as the sound coil with self-sticking line after winding, need to put into the oven baking can.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Name | UEW Ultra Thin Copper Wire Enameled Copper Wire Self Bonding Wire |
| Type | Copper Wire |
| Diameter | ф0.018mm--ф2.500mm |
| ф0.040mm--0.450mm | |
| ф0.018mm--ф1.500mm | |
| ф0.020mm--ф1.000mm | |
| Thermal class | B 130 ºC, F 155 ºC, H 180 ºC |
| Standard | GB/T6109.1-2008 GB/T6109.10-2008 GB/T6109.2-2008 IEC6031-20, NEMA, JIS C3202 available. |
| Application | 1.Applicable to the production of higher temperature motor. 2.Electrical winding coil. Can be used for relays, micro-motor, small transformers, ignition coil, water valve, communication equipment with the coil. 2. Due to direct welding property,widely applied to electrical and communications equipment which with more welding hear operating and complex circuit . The enameled wire of the special thick film can be used for vertical and low voltage coils in color TV. Applicable to relays, micro-motors, small transformers and communications equipment. |
| Feature | 1.Has good flexibility |
| 2.Excellent insulation properties | |
| 3.Direct welding performance | |
| 4.High frequency performance, good moisture resistance. |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
