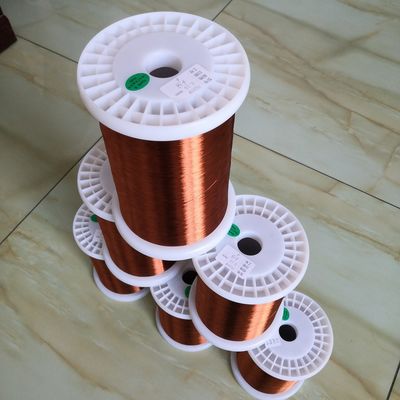

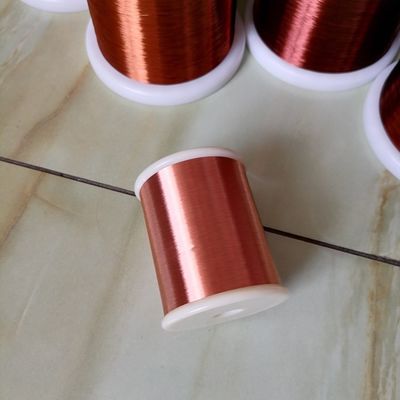

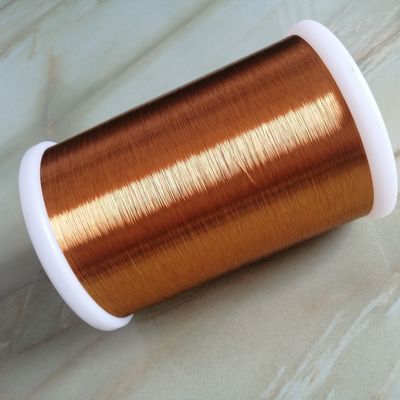

UL UEW 0.18mm Enameled Self Bonding Copper Wire For Magnetic Induction Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUSHWY3-1B/180-0.18 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 11.46/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011380180 | Product Name | Class 155/180 Self Adhesive Enamelled Round Copper Wires |
|---|---|---|---|
| Diameter Of Single Wire | 0.18mm | Style | Round Copper |
| Bonding Way | Hot Air/Alcohol Soluble | Insulation Material | Polyurethane(UEW) |
| Enamel Thickness | Grade 1B | Feature | Good Solderability Flexibility |
| High Light | 0.18mm self bonding copper wire,bondable magnet wire AWG 33,UL self bonding copper wire |
||
Product Description
UL Certificated UEW 0.18mm Self Bonding Enameled Copper Wire For Magnetic Induction Coils
Hot air :
Hot air self-bonding is to achieve the effect of self-bonding by blowing hot air in the coil part of the product in the process of winding the coil. The temperature of hot air varies according to different paint film, winding speed, wire diameter and other factors
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Name | UEW Copper Wire Enameled Copper Wire Self Bonding Wire |
| Type | Round Copper Wire |
| Diameter | ф0.018mm--ф2.500mm |
| ф0.040mm--0.90mm | |
| ф0.018mm--ф1.500mm | |
| ф0.020mm--ф1.000mm | |
| Thermal class | 130 ºC, 155 ºC, 180 ºC,200°C,220℃,240℃ |
| Standard | GB/T6109.1-2008 GB/T6109.10-2008 GB/T6109.2-2008 IEC6031-20, NEMA, JIS C3202 available. |
| Application | 1.Applicable to the production of higher temperature motor. 2.Electrical winding coil. Can be used for relays, micro-motor, small transformers, ignition coil, water valve, communication equipment with the coil. 2. Due to direct welding property,widely applied to electrical and communications equipment which with more welding hear operating and complex circuit . The enameled wire of the special thick film can be used for vertical and low voltage coils in color TV. Applicable to relays, micro-motors, small transformers and communications equipment. |
| Feature | 1.Has good flexibility |
| 2.Excellent insulation properties | |
| 3.Direct welding performance | |
| 4.High frequency performance, good moisture resistance. |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
