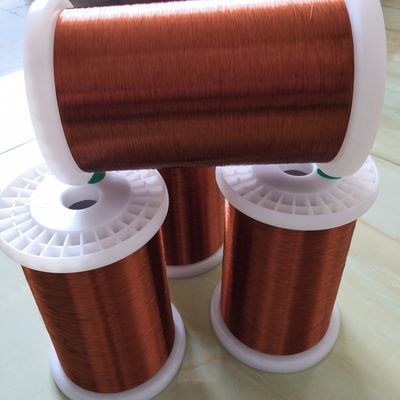

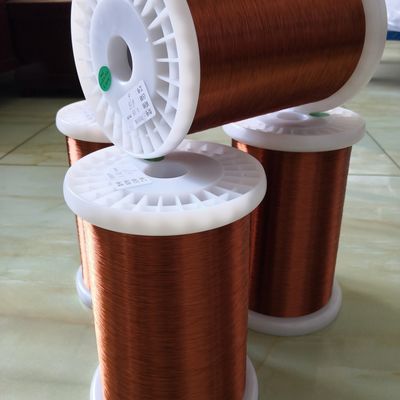

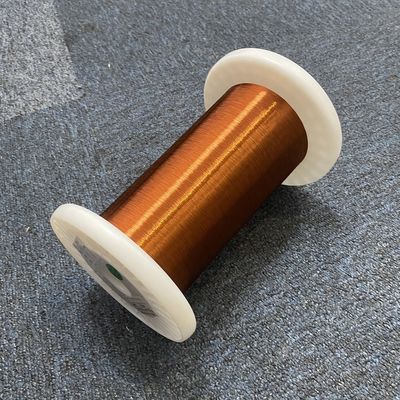

0.2mm Class 155/180 Self Adhesive Enamelled Round Copper Wires Small Motor Use
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PUSHWY3-1B/180-0.2 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 10.79/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011380200 | Product | Factory Supplies Self Adhesive Enamelled Round Copper Wires |
|---|---|---|---|
| Diameter Of Single Wire | 0.20mm | Style | Self Bonding Wire |
| Bonding Way | Hot Air/Alcohol Soluble | Insulation Material | Polyurethane(UEW) |
| Shape | Round | Feature | High Breakdown Voltage |
| High Light | Class 180 Enamelled Round Copper Wire,Class 155 motor copper wire,0.2mm Enamelled Round Copper Wire |
||
Product Description
0.2mm Small Motor Use Class 155/180 Self Adhesive Enamelled Round Copper Wires
Triple insulated wire:
Triple insulated wire, is a kind of high-performance insulated wire newly developed in recent years. It has afeature of high temperature, high voltage endurance and flexibility. the breakdown voltage is above 15KV, itcan be welded directly when outer layer is not peeled. when it is used in transformer, the transformer noneed to use insulation tape , the transformer can take smaller size, lower material cost, but higher coil perfor--mance. the triple insulation wire is now wildly used in the transformers, mobile chargers, adapters and etc.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Characteristics | Technical requests | Test Results | |||
| Min. | Ave. | Max. | |||
| Conductor Diameter | 0.120± | 0.002 | 0.12 | 0.12 | 0.12 |
| 0.002 | |||||
| (Basecoat dimensions) | Max. 0.146 mm | 0.144 | 0.144 | 0.145 | |
| Insulation Film Thickness | Min. 0.011 mm | 0.013 | 0.013 | 0.013 | |
| Bonding Film Thickness | Min. 0.010 mm | 0.011 | 0.011 | 0.012 | |
| Continulty of covering | Max.60 pcs | Max. 0 | |||
| Flexibility | / | / | |||
| Adherence | no crack | Good | |||
| Breakdown Voltage | Min.3000 V | Min. 4865 | |||
| Resistance to Softening(Cut through) | Continue 2 times pass | 200℃/Good | |||
| Solder test(390±5℃) | Max.2s | Max.1.5s | |||
| Bonding Strength | Min.20g | 35g | |||
| Electrical Resistance(20℃) | Max.1550Ω/km | 1508 | 1508 | 1509 | |
| Elongation | Min.26% | 29% | 30% | 30% | |
| Breaking Load | Min. | / | / | / | |
| Surface appearance | Smooth | Good | |||
| Test Result | OK | Conclusion | Approved | ||
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
