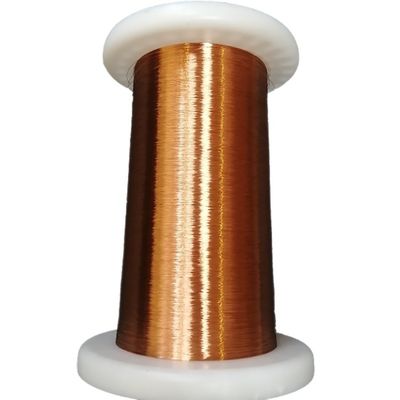

0.21mm Class 155/180 UEW Enamelled Round Copper Wire Self Bonding Wire

  • 0.21mm Class 155/180 UEW Enamelled Round Copper Wire Self Bonding Wire
  • 0.21mm Class 155/180 UEW Enamelled Round Copper Wire Self Bonding Wire
  • 0.21mm Class 155/180 UEW Enamelled Round Copper Wire Self Bonding Wire
Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PUSHWY3-1B/180-0.21
Minimum Order Quantity 30 Kg
Price USD 10.35/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30011380210 Product Polyurethane Self Adhesive Enamelled Copper Wires
Diameter Customized Style Winding Wire
Bonding Way Hot Air/Alcohol Soluble Application Transformers / Motors / Relays / Winding
Color Red/Green/Blue Or According To Customers Feature High Breakdown Voltage
High Light

Class 155 enamelled round copper wire

,

Alcohol Soluble Self Bonding Wire

,

0.21mm enamelled round copper wire
Leave a Message
Product Description

0.21mm Class 155/180 UEW Enamelled Round Copper Wire Self Bonding Wire




Triple insulated wire:
Triple insulated wire, is a kind of high-performance insulated wire newly developed in recent years. It has afeature of high temperature, high voltage endurance and flexibility. the breakdown voltage is above 15KV, itcan be welded directly when outer layer is not peeled. when it is used in transformer, the transformer noneed to use insulation tape , the transformer can take smaller size, lower material cost, but higher coil perfor--mance. the triple insulation wire is now wildly used in the transformers, mobile chargers, adapters and etc.

We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.

Specification:

Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage   Elongation Pin Hole Electrical Resistance
  mm     ≥ V   ≥% ≤Default/5m Ω/km (20℃)
        Mandrel Method Twisted Method     Min. Max.
0.012 ---- 0.013 0.015 50 ---- 5 10 142.64 157.65
0.013 ---- 0.015 0.017 70 ---- 5 10 118.41 133.98
0.014 ---- 0.016 0.018 70 ---- 5 10 102.64 120.45
0.015 ---- 0.017 0.02 80 ---- 5 10 89.83 104.41
0.016 ---- 0.018 0.021 90 ---- 5 8 74.67 97.56
0.017 ---- 0.019 0.022 90 ---- 5 8 66.6 85.75
0.018 ---- 0.02 0.023 100 ---- 5 8 59.77 75.95
0.019 ---- 0.021 0.024 100 ---- 5 8 53.95 67.75
0.02 0.001 0.022 0.024 100 ---- 8 8 51.83 60.81
0.05 ±0.002 0.007 0.062 400 1200 12 5 7981 9528
0.055 ±0.002 0.007 0.068 400 1200 12 5 6642 7815
0.06 ±0.002 0.007 0.073 500 1200 14 5 5614 6526
0.065 ±0.002 0.007 0.078 500 1200 14 5 4807 5531
0.07 ±0.002 0.007 0.083 500 1200 15 5 4163 4747
0.075 ±0.002 0.007 0.088 550 1200 15 5 3640 4119
0.08 ±0.002 0.008 0.094 550 1200 16 5 3209 3608
0.085 ±0.002 0.008 0.099 550 1200 16 5 2851 3187
0.09 ±0.002 0.01 0.106 650 1200 16 5 2550 2835
0.095 ±0.002 0.01 0.111 650 1200 17 5 2294 2538
0.1 ±0.002 0.011 0.118 650 1200 17 5 2074 2286
0.11 ±0.002 0.011 0.129 ---- 1300 17 5 1720 1882
0.12 ±0.002 0.011 0.139 ---- 1500 17 5 1450 1577
0.13 ±0.002 0.011 0.149 ---- 1500 18 5 1239 1340
0.14 ±0.002 0.011 0.159 ---- 1600 19 5 1070 1153
0.15 ±0.002 0.011 0.169 ---- 1700 20 5 934.1 1002
0.16 ±0.002 0.012 0.18 ---- 1700 21 5 822.3 879.4
0.17 ±0.003 0.013 0.192 ---- 2000 22 5 721.1 787.1
0.18 ±0.003 0.014 0.204 ---- 2000 22 5 644.4 700.7
0.19 ±0.003 0.014 0.214 ---- 2000 23 5 579.4 627.8
0.2 ±0.003 0.014 0.224 ---- 2000 23 5 523.7 565.7
0.21 ±0.003 0.014 0.234 ---- 2000 23 5 475.7 512.3
0.22 ±0.003 0.014 0.245 ---- 2200 23 5 434 466.2
0.23 ±0.003 0.016 0.257 ---- 2200 24 5 397.5 426
0.24 ±0.003 0.016 0.267 ---- 2200 24 5 365.5 390.8
0.25 ±0.003 0.016 0.277 ---- 2300 24 5 337.1 359.8
0.26 ±0.004 0.018 0.287 ---- 2300 25 5 309.6 335
0.27 ±0.004 0.018 0.297 ---- 2300 25 5 287.4 310.3
0.355 ±0.004 0.023 0.39 ---- 2700 26 5 167.4 178.2


FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.

Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.

Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!

Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.

Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
