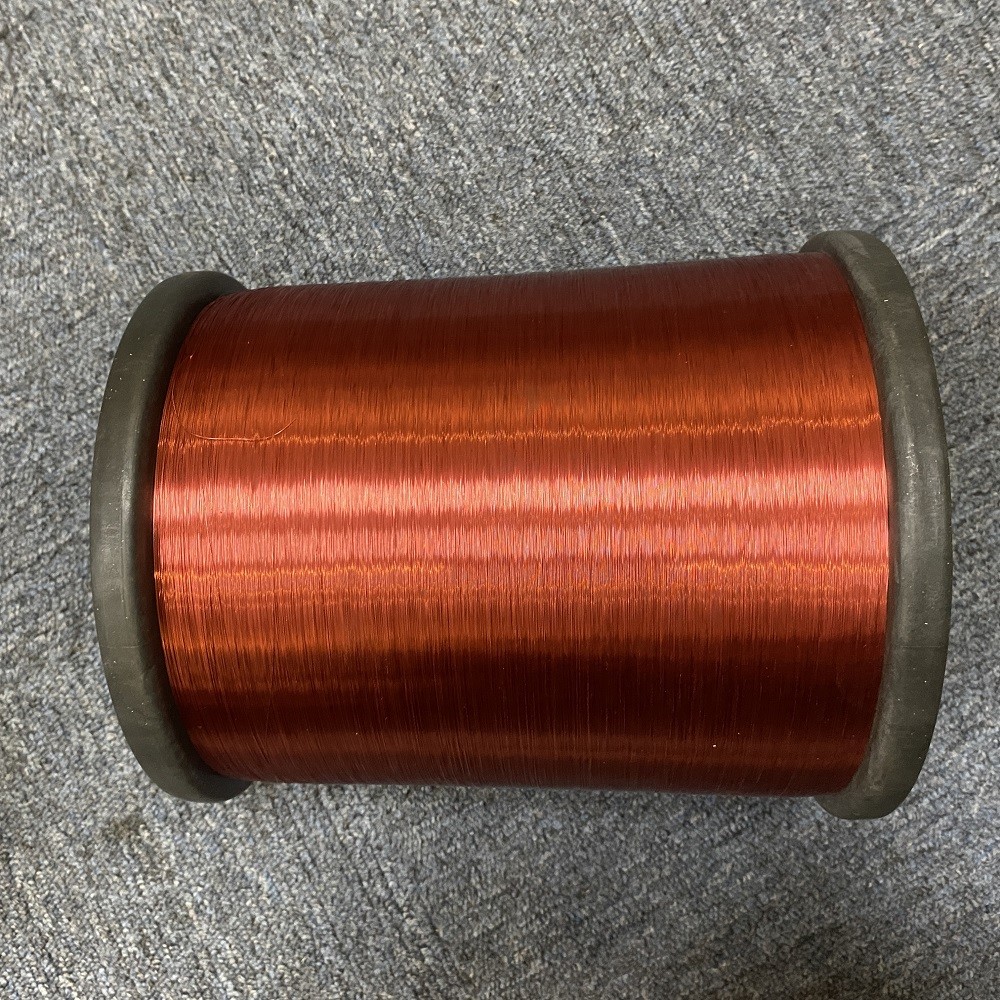

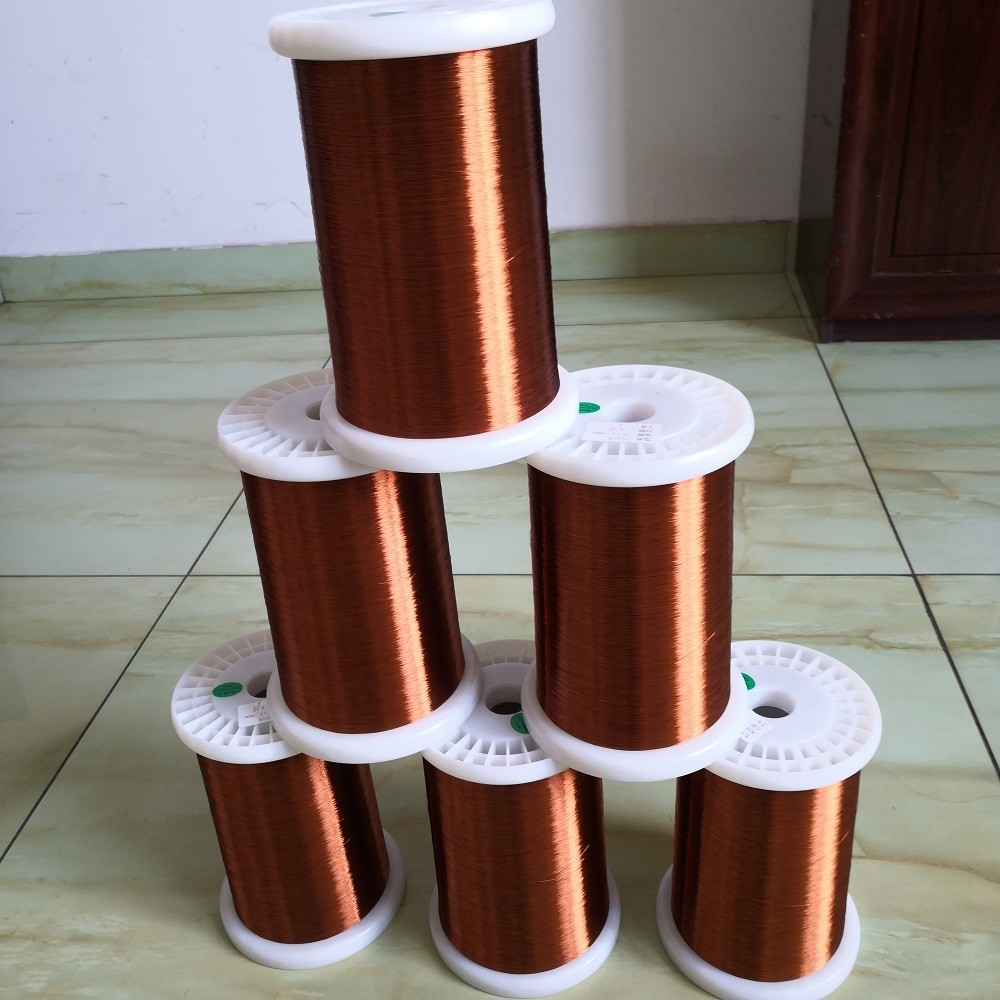

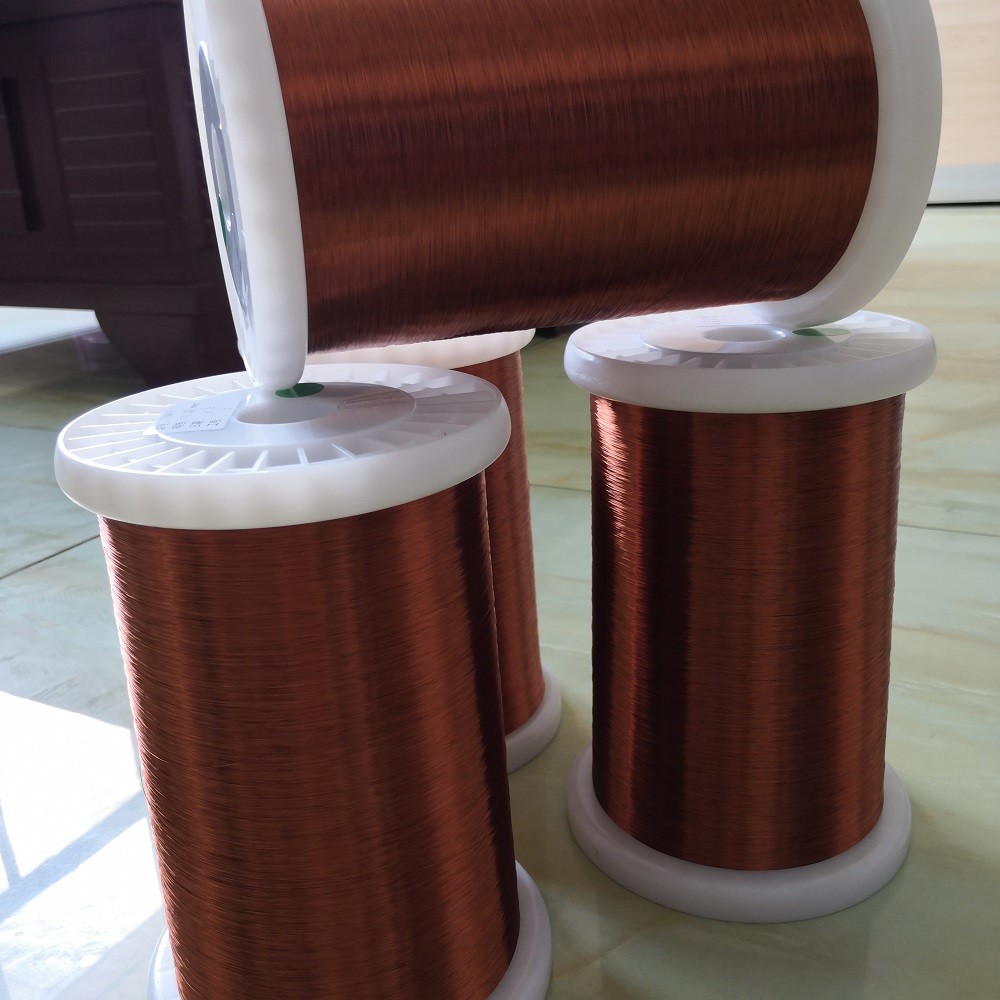

0.15mm Polyamideimide Composite Enamelled Round Copper Wire For Winding Coil
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011210150 | Product Name | Class 200/220 Self Bonding Wires |
|---|---|---|---|
| Conductor Type | High Purity Copper | Minimum Quantity | 3kg And Above |
| Standard | JIS IEC NEMA GB | Type | Alcohol Soluble |
| Feature | Factory Supplies | Application | Voice Coils,Speaker Voice Coils,Inductance Coils |
| High Light | 0.15mm Enamelled Round Copper Wire,1B Special Magnet Wires,Class 220 Enamelled Round Copper Wire |
||
Product Description
0.15mm Polyamideimide Composite Polyester or Polyesterimide Enameled Round For Winding Coil Special Magnet Wires
Characteristics of motor made of self-adhesive enameled wire:
a motor made of heat-resistant composite coating self-adhesive enameled wire as winding, typical electrical parameters see table.The data show that the motor can fully meet the design requirements
Features:
Compared with the traditional armature winding, this enameled wire has a significant feature that greatly simplifies the manufacturing process of the coil winding, in many occasions, omits the binding, impregnation, cleaning and other complex processes, equipment, electricity and labor and other aspects of saving, conducive to the realization of production automation, improve product quality.
Product details:
| item | value | ||
| Place of Origin | Zhejiang,China | ||
| Brand Name | CHINGCUNG | ||
| Certification | ISO9001/ISO14001/UL/SGS | ||
| Type | Self bonding enameled copper wires | ||
| Usage | Voice coils,Speaker Voice Coils,Inductance coils | ||
| Conductor Material | Cu | ||
| Conductor Type | Solid | ||
| Insulation Material | Polyamideimide composite polyester | ||
| Bonding Way | Hot Wind/Solvent | ||
| Temperature | 200/220 | ||
| Conductor Diameter | 0.04-0.09 | ||
| Enamel thickness | 1B/2B/GB | ||
| Color | Customization | ||
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
