0.19mm Class200/220 Self Bonding Enamelled Round Copper Wire For Ignition Coils
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011210190 | Product Name | Polyamideimide Composite Polyester Or Polyesterimide Enameled Copper Wires |
|---|---|---|---|
| Type | Self Adhesive Enamelled Wires | Insualtion | AIW Polyamideimide Composite Polyester Or Polyesterimide |
| Film Grade | 1B/2B/GB | Feature | High Quality |
| Application | Relays / Solenoids Coil / Motor Winding | Standard | IEC/NEMA/JIS |
| High Light | 0.19mm Enamelled Round Copper Wire,2B self bonding wire,Ignition Coils Enamelled Round Copper Wire |
||
Product Description

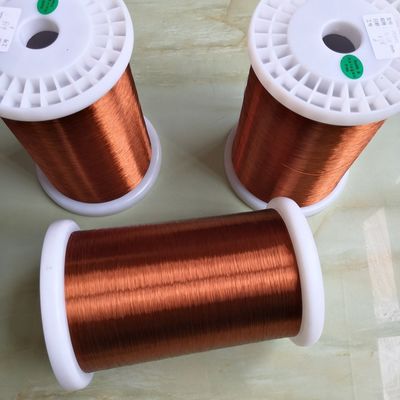

0.19mm Class200/220 Self Bonding Enameled Round Copper Wire For Ignition Coils
Product Description:
Polyester imide/polyamide imide enamelled wire si composite layer at present at home and abroad, the use of more heat resistant enameled wire, thermal level 200, high heat resistance, the product also has a refrigerant resistance, cold resistance, radiation resistance and other properties, high mechanical strength, electrical performance stability, good chemical resistance and freeze resistance performance, overload ability.Used in refrigerator compressor, air conditioner compressor, electric tools, explosion-proof motor and high temperature, high cold, radiation resistance, overload and other conditions of the motor, electrical appliances.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product details:
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.020±0.001 | 0.02 | 0.02 |
| Overall Diameter | 0.022-0.024 | 0.023 | 0.023 |
| Conductor Resistance | ≤60.810Ω/m | 56.812 | 56.403 |
| Elongation | ≥8% | 10% | 10% |
| Breakdown Voltage | ≥130V | 212 | 247 |
| Pinhole Test | ≤ 8 holes/5m | 1 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2mins no breakdown | OK | |
| Heat Shock | 180±5℃/30min no crack | OK | |
| Solder Ability | 390± 5℃ 2 Sec Smooth | OK | |
| Solvent Resistance | No blister, no expansion, no shed | OK | |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
