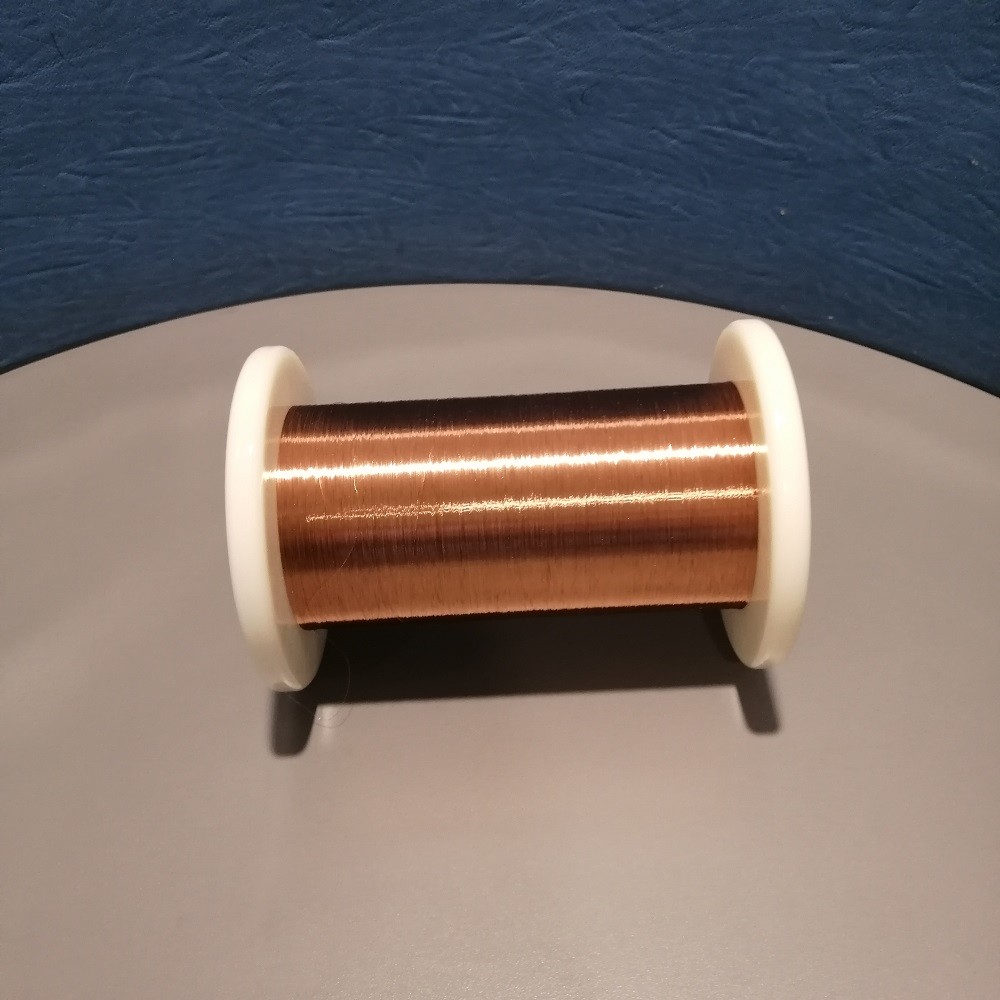

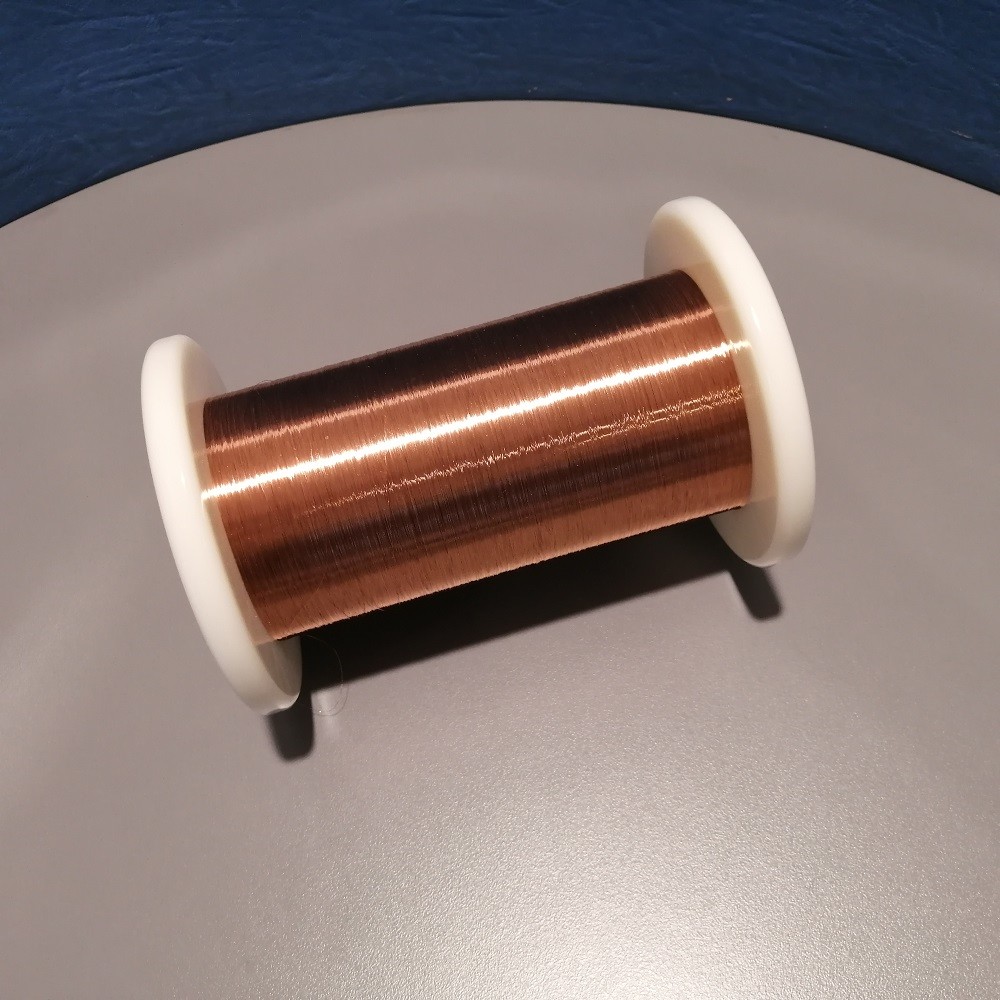

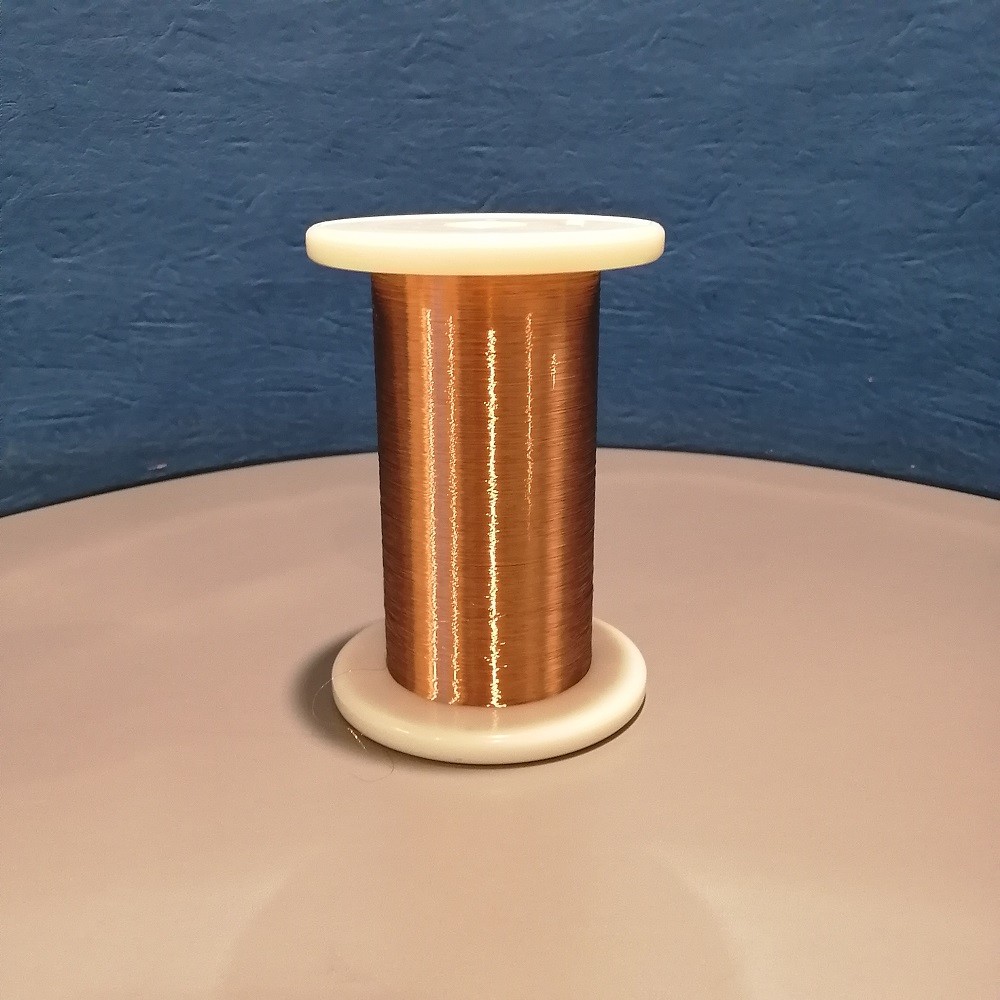

AWG 46 Ultra Fine Enamelled Copper Winding Wire PE/AIW
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-2B/200-0.04 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011221040 | Product Name | High Temperature Resistant Enameled Magnet Wire |
|---|---|---|---|
| Insualtion Material | Polyamideimide Composite Polyester/polyesterimide | Class | 200（H⁺） |
| Film Grade | 2B | Product Conductor | Round Copper |
| Size | 0.04mm | Advantage | Excellent Film Adhesion |
| High Light | AWG 46 enamelled copper winding wire,0.04mm enameled copper wire home depot,Ultra fine enamelled copper winding wire |
||
Product Description
AWG 46 Ultra Fine Self Bonding Wire PE/AIW Enamelled Copper Winding Wire
Product Description:
Polyamide-imide composite polyester enamered wire (PE/AIW) refers to the composite coating enamered wire with THEIC modified polyester as the bottom coating and polyamide-imide as the surface coating of about 20% of the total coating thickness. Its performance meets the requirements of IEC 317-13 and NEMA MW35 and MW73, and the heat resistance class is 200.This type of enameled wire (EIW-220) is coated with a specific bottom and top coat for higher heat resistance and is approved by UL for class 220 of the NEMA MW84 standard.Polyamide-imide composite polyester wire and 200-grade polyamide-imide composite polyester imide enamel-coated wire (EIW-200) also meet the requirements of IEC 317-13, NEMA MW35 and MW73 standards have similar characteristics.With today's electronic, mechanical properties, chemical properties, thermal properties and other comprehensive performance, high heat resistance of the enameled wire best varieties, including refrigeration compressor motor is widely used as all kinds of motor, transformer, all kinds of transformer including microwave oven and long-term working in high temperature or sealed environment of winding line of electrical appliances, electronic products.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification
| 0.04mm Self bonding polyamideimide composite polyester or polyesterimide enameled round copper wires | |
| Brand Name | CHINGCUNG |
| *Model Number | AISVWY3-2B/200-0.04 |
| Conductor Diameter | 0.04mm |
| *Conductor | Copper |
| *Insulation | polyamideimide composite polyester or polyesterimide |
| Thermal Class | 200 |
| *Feature | High Temperature Resistant |
| *Delivery Time | 3-10 work days |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
