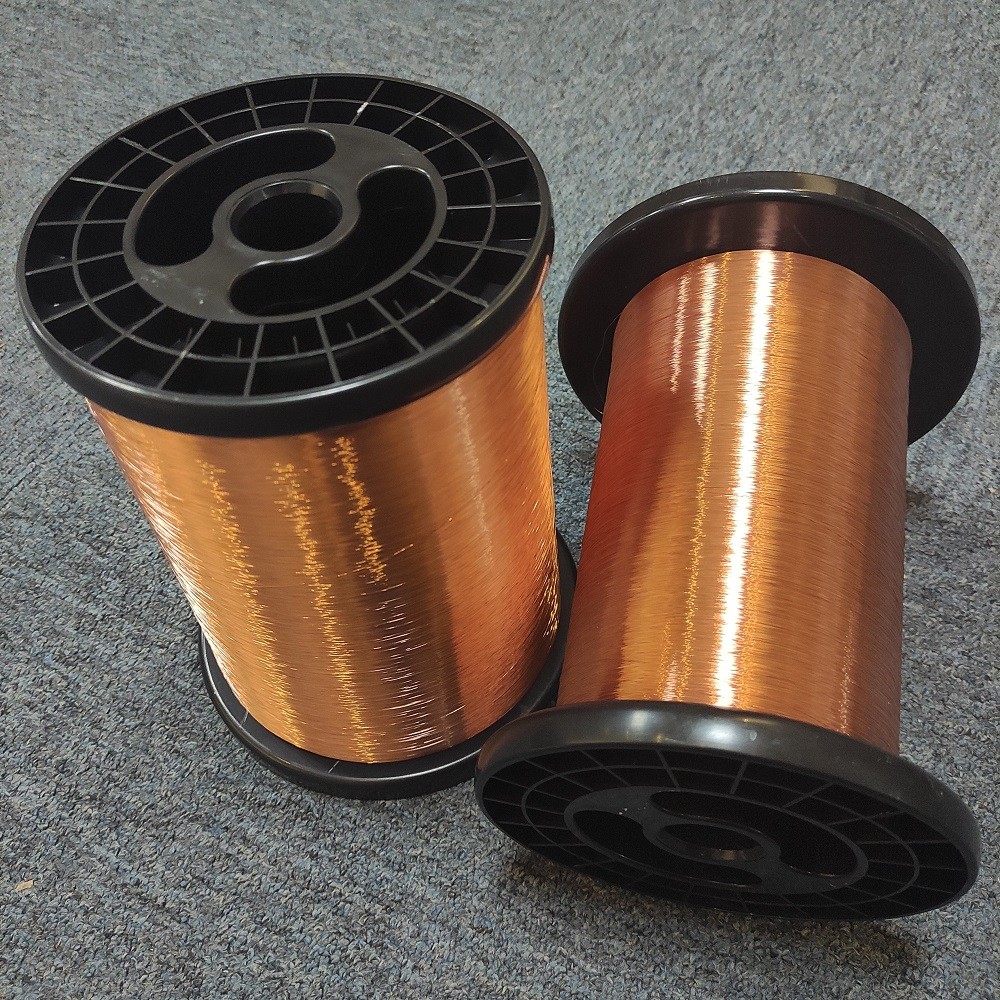

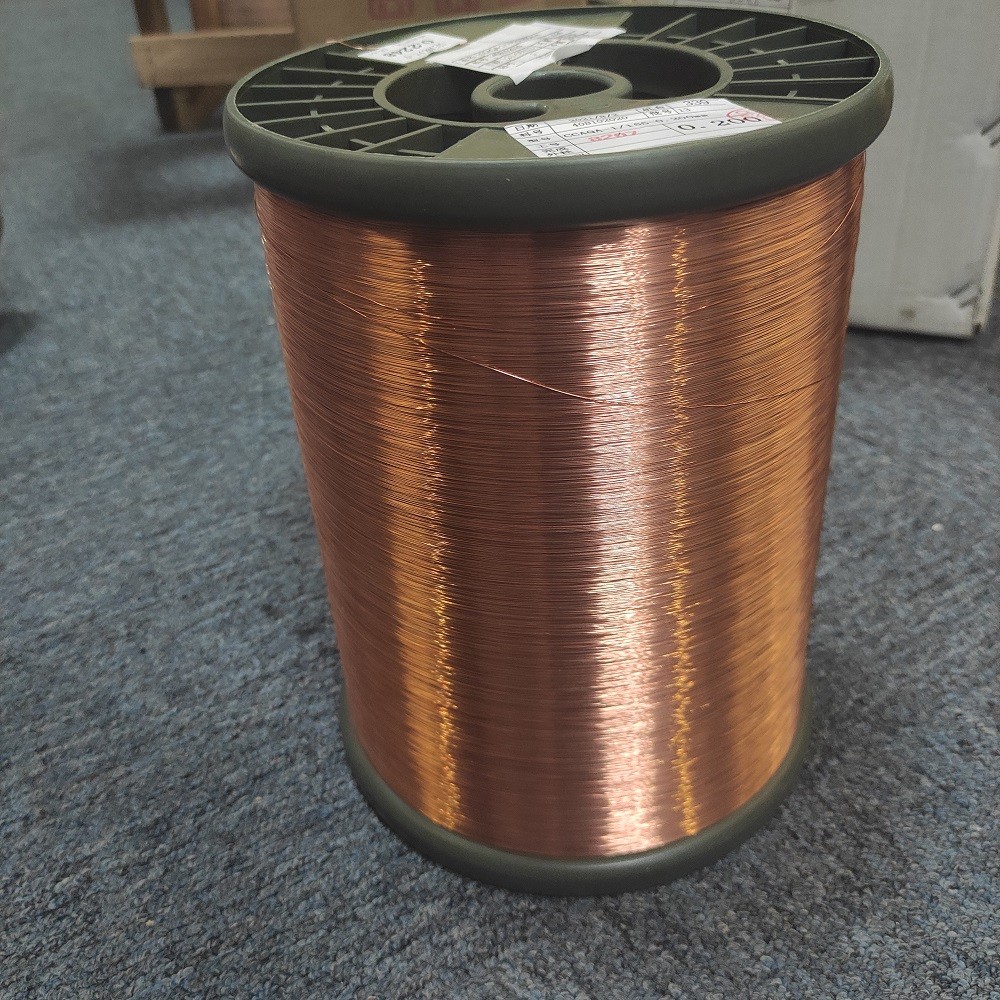

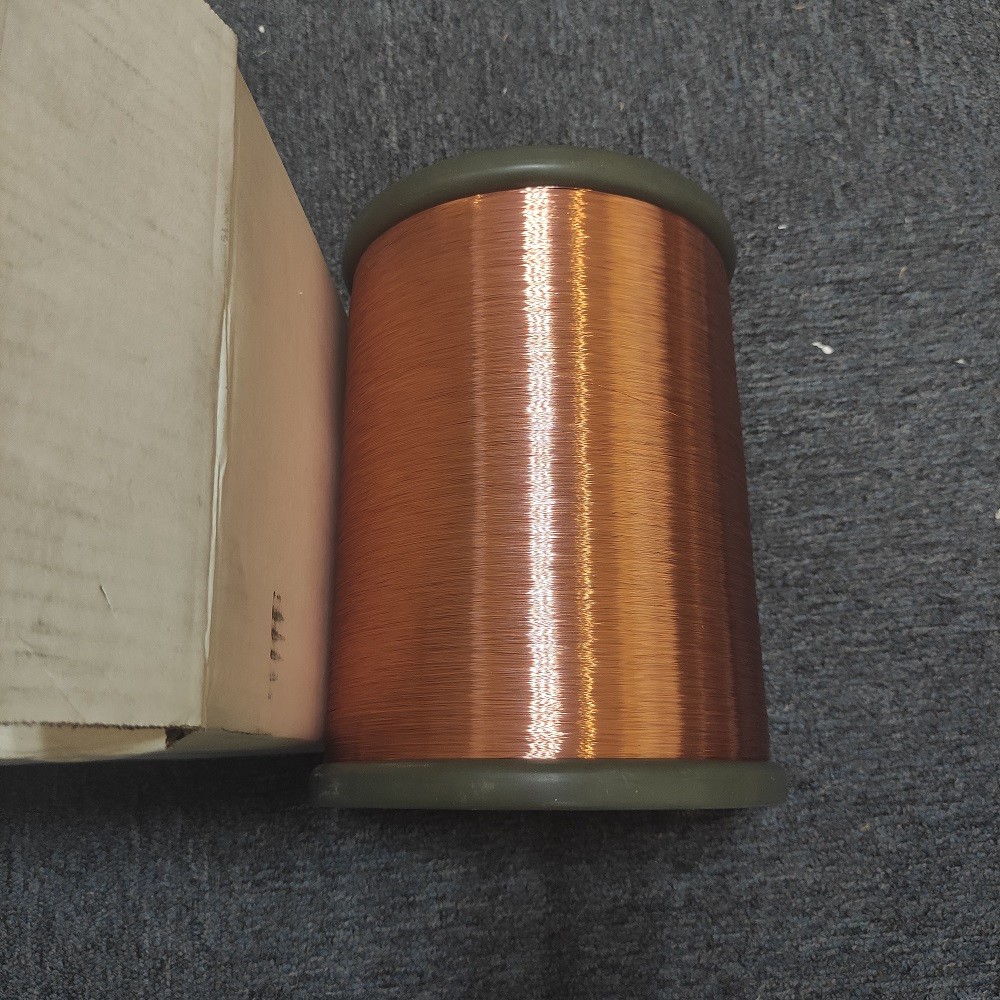

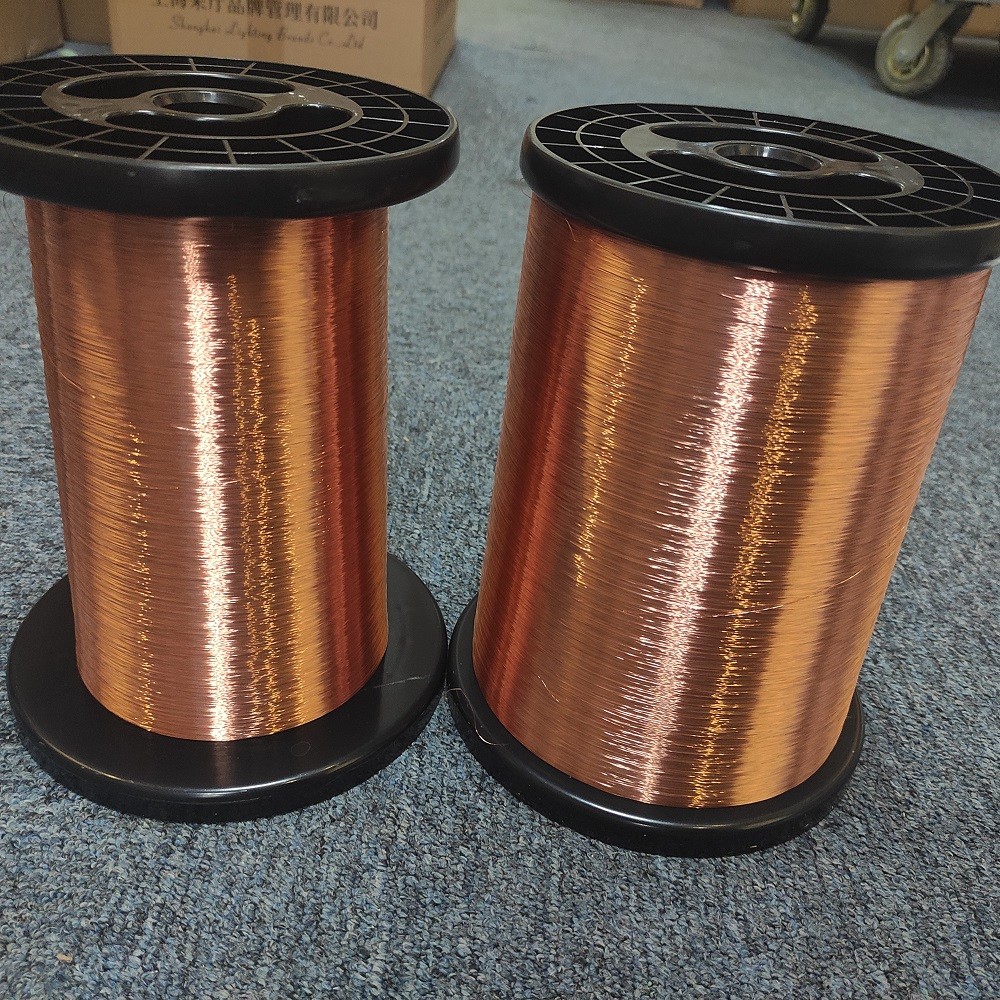

0.1mm Self Bonding Coated Copper Wire For Magnetic Induction Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-GB/200-0.10 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011222100 | Product Name | Class 200 Copper Enameled Wire |
|---|---|---|---|
| Bonding Layer | Hot Air | Conductor Diameter | 0.1mm |
| Insulation Material | Polyamideimide Composite Polyester Or Polyesterimide | Thermal Class | 200 |
| Advantage | Excellent Film Adhesion | Color | Original Or Customization |
| High Light | Self Bonding Coated Copper Wire,0.1mm Coated Copper Wire,Induction Coils Coated Copper Wire |
||
Product Description
0.1mm Self bonding Coated Copper Round Wire For Magnetic Induction Coils
The alcohol-soluble self-adhesive line is dissolved by solvent immersion and then dried and solidified to reflect the adhesive property.Hot melt (hot air type) self-adhesive line can be through the appropriate thermal resistance or external heat (hot air) mode of the paint film melting and then cooling reflects the bonding characteristics.Hot air bonding mode through hot air winding machine to automatically complete the production of voice coil, so than alcohol-soluble bonding production voice coil mode more efficient, and no solvent environmental pollution, is now more and more welcome by voice coil manufacturers.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Product Name | Class 200 copper enameled wire |
| Model Number | AISVWY3-GB/200-0.10 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.1mm |
| Bonding Method | Hot Air |
| Thermal Class | 200 |
| Film Grade | GB |
| Application | Motors,Voice coils,Winding Wire,speaker coils |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
