Self Adhesive Enameled Copper Wire Class 200 Hot Air Winding
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-GB/200-0.11 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011222110 | Product Name | PE/AIW Self Bonding Enameled Round Copper Wires |
|---|---|---|---|
| Film Grade | GB | Conductor Diameter | 0.11mm |
| Insulation Material | Polyamideimide Composite Polyester Or Polyesterimide | Thermal Class | 200 |
| Advantage | Factory Supplies | Color | Original Or Customization |
| High Light | Self Adhesive Enameled Copper Wire,Class 200 Enameled Copper Wire,Hot Air Winding Enameled Copper Wire |
||
Product Description

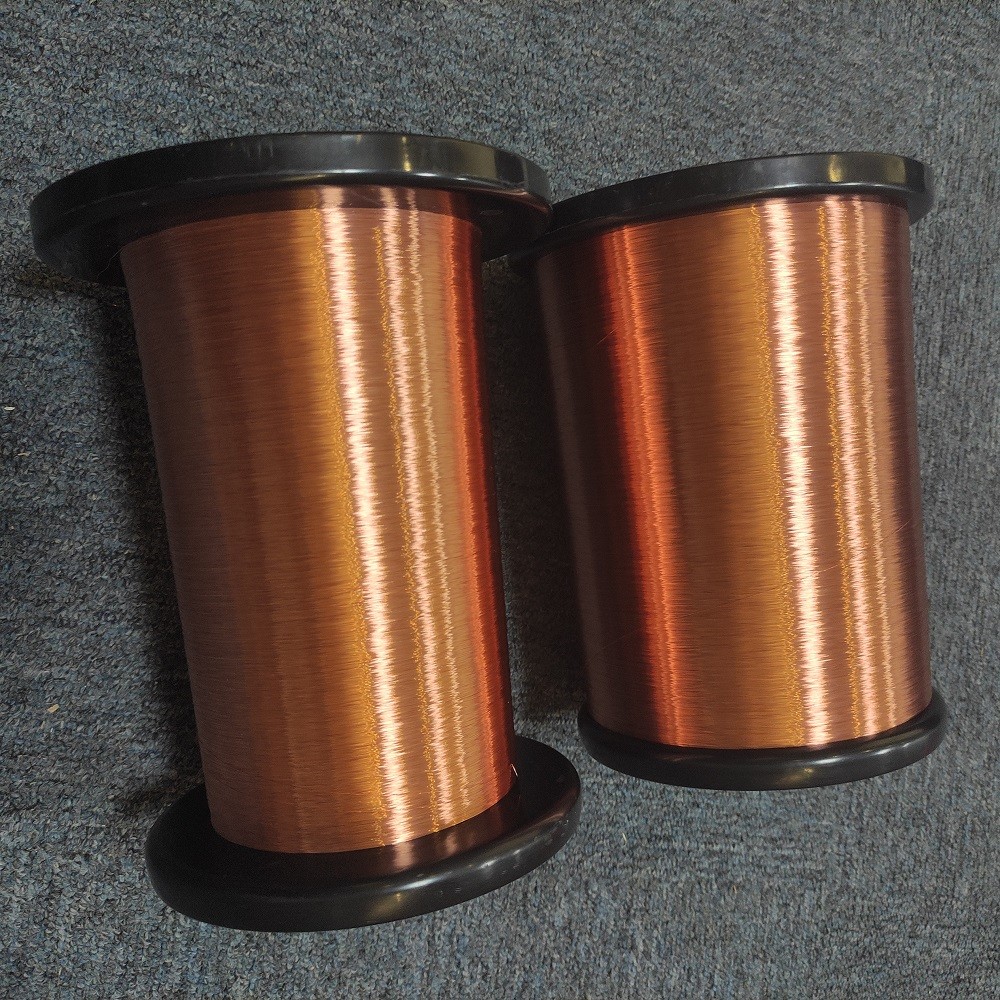

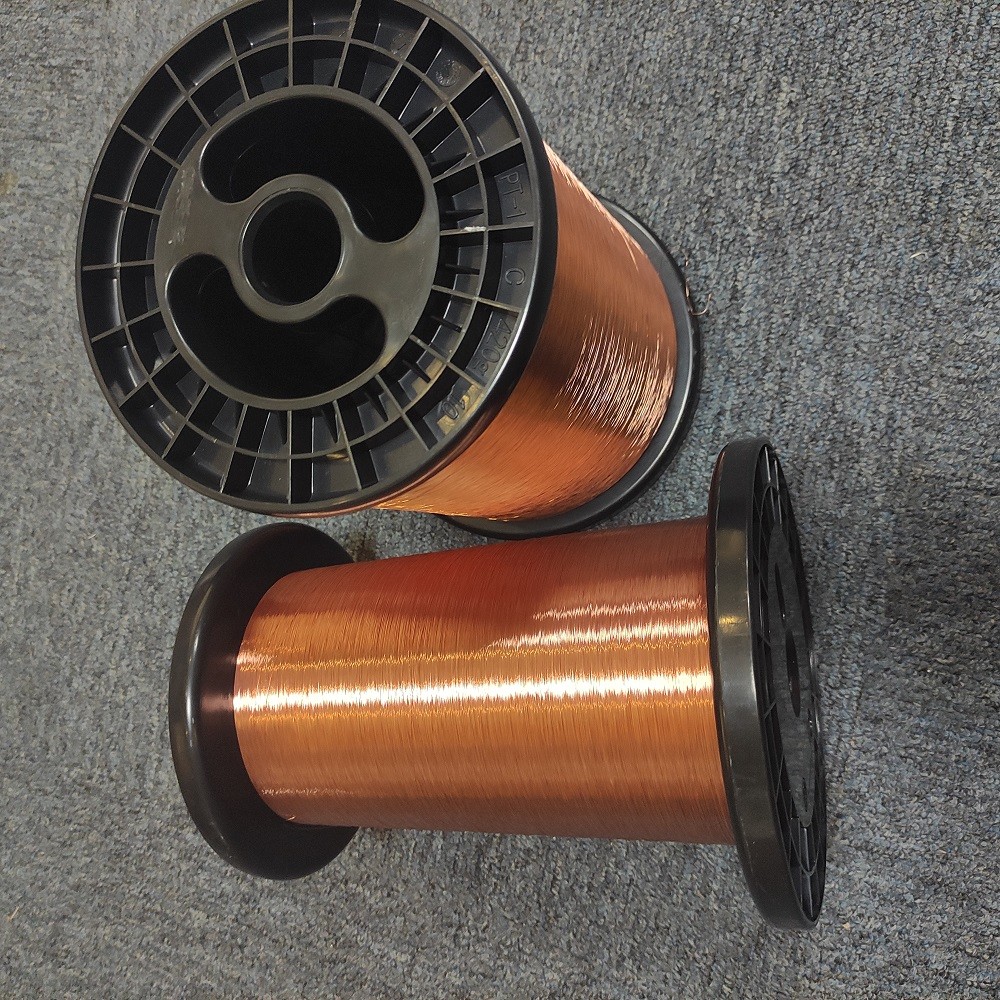

Self Adhesive Enameled Copper Wire Class 200 Hot Air Winding Wire
Self-bonding is a very simple bonding process.The self-adhesive coating is bonded to each other by baking or direct electric heating (or by means of appropriate solvent) through the coil, and can be fixed after cooling.The main characteristic of self-adhesive paint is that it can be formed at a time without pre-drying, dipping, drip-drying and other processes. It can also protect the environment, reduce the release of a large number of organic solvents and save energy while simplifying the process.And some of the more special workpiece structure with ordinary enameled wire coating difficulty is very large, some even can not be coated, so the advantages of self-adhesive enameled wire paint is very obvious.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Product Name | PE/AIW Self bonding enameled round copper wires |
| Model Number | AISVWY3-GB/200-0.11 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.11mm |
| Bonding Method | Hot Air |
| Thermal Class | 200 |
| Film Grade | GB |
| Application | Motors,Voice coils,Winding Wire,speaker coils |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
