Polyamideimide Composite Coated Magnet Wire AIW 0.07mm
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/220-0.07 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011240070 | Product Name | 0.07mm High Temperature Self-adhesive Enameled Wire |
|---|---|---|---|
| Film Grade | 1B | Conductor Diameter | 0.07mm |
| Insulation | Polyamideimide Composite Polyester Or Polyesterimide | Class | 220 |
| Advantage | Pin Hole 0 | Bonding Method | Hot Air |
| High Light | Polyamideimide Composite Coated Magnet Wire,AIW Composite Coated Magnet Wire,0.07mm Coated Magnet Wire |
||
Product Description

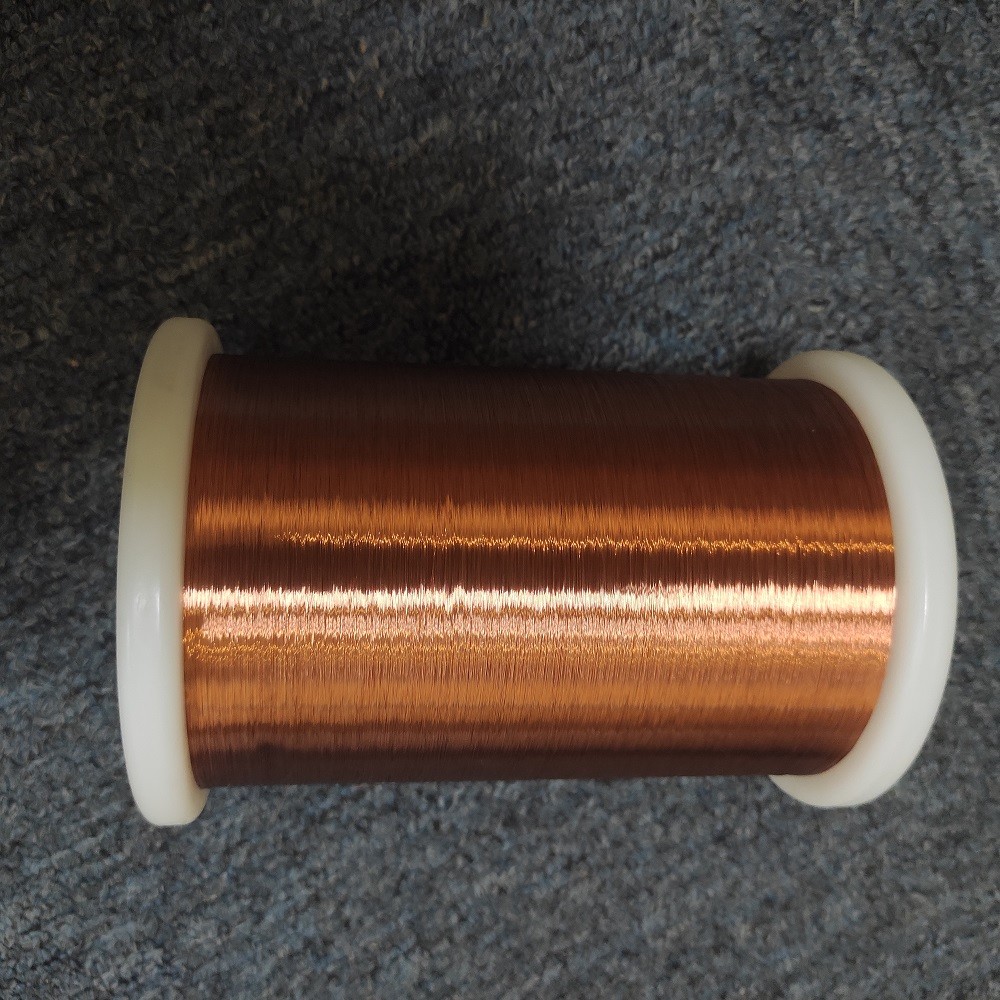

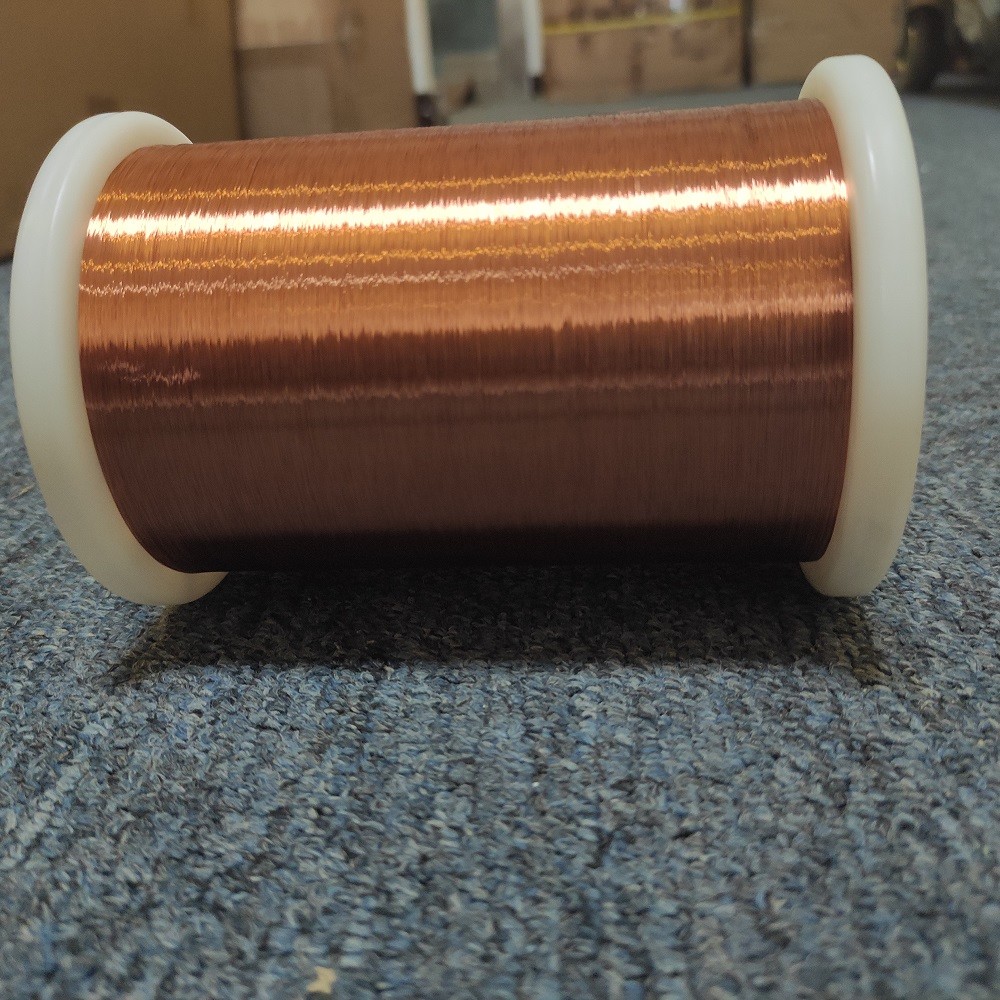

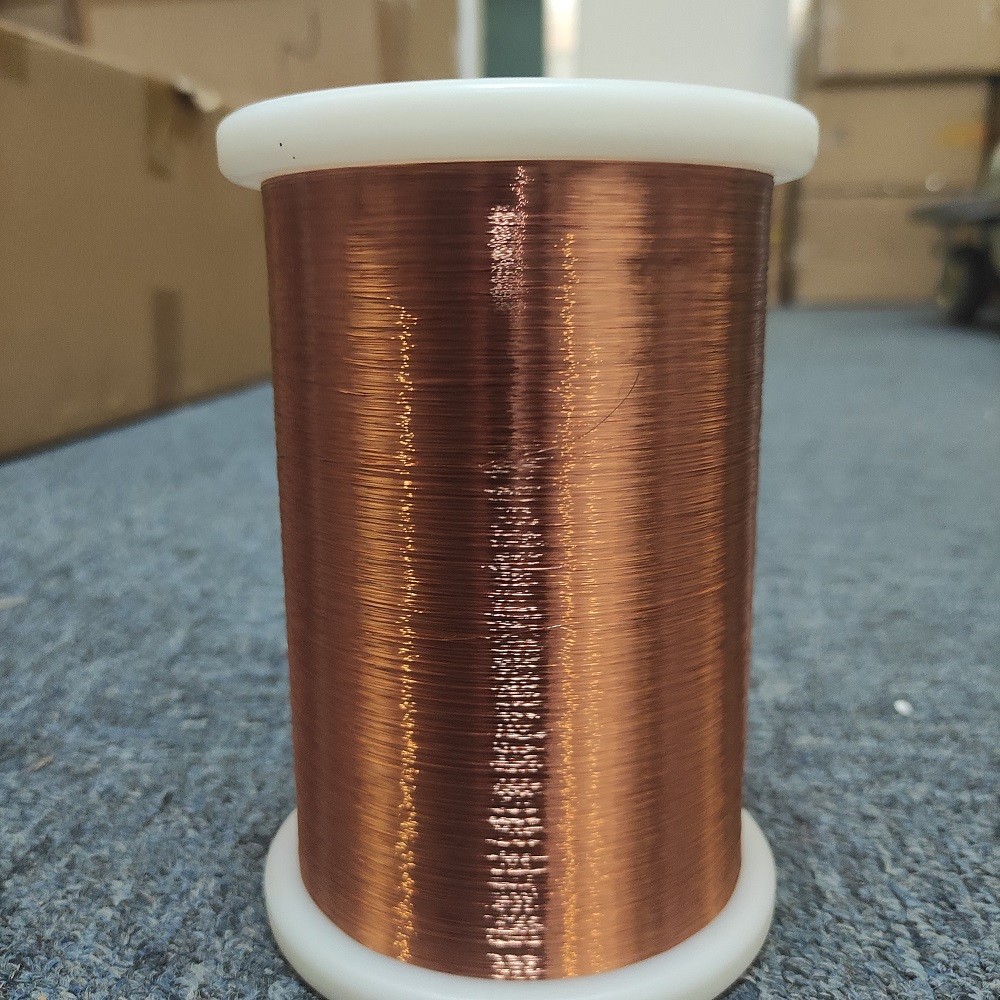

AIW 0.07mm Polyamideimide Composite Coating Self Bonding Enameled Round Copper Wire
Self-adhesive composite enameled wires have long been used for complex shaped coils such as saddle-shaped deflection coils in televisions and monitors, combination coils and audio coils in small motors.More recently, efforts have been made to eliminate or simplify the impregnation of coils for use in automotive electrical devices, general motors, and sealed motor coils.The development of this kind of enameled wire meets the increasing demand and product development in recent years.
Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.
Specification:
| Product Name | 0.07mm high temperature self-adhesive enameled wire |
| Model Number | AISVWY3-1B/220-0.07 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.07mm |
| Bonding Method | Hot Air |
| Thermal Class | 220 |
| Film Grade | 1B |
| Application | Voice coils,Winding Wire,speaker coils |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:How’s the package?
A:Normally are cartons, but also we can pack it according to your requirements.
