Hot Air Self Adhesive Enameled Copper Winding Wire 0.08mm
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/220-0.08 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011240080 | Product | Class 220 Self-adhesive Enameled Wire |
|---|---|---|---|
| Film Grade | 1B | Conductor Diameter | 0.08mm |
| Conductor Material | Copper | Thermal Class | 220 |
| Advantage | Factory Supplies | Color | Natural Or According To Customers |
| High Light | Enameled Copper Winding Wire,Self Adhesive Copper Winding Wire,Copper Winding Wire 0.08mm |
||
Product Description

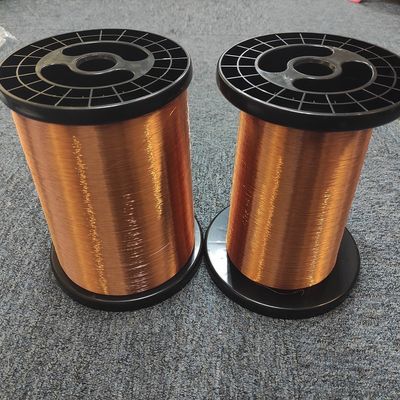

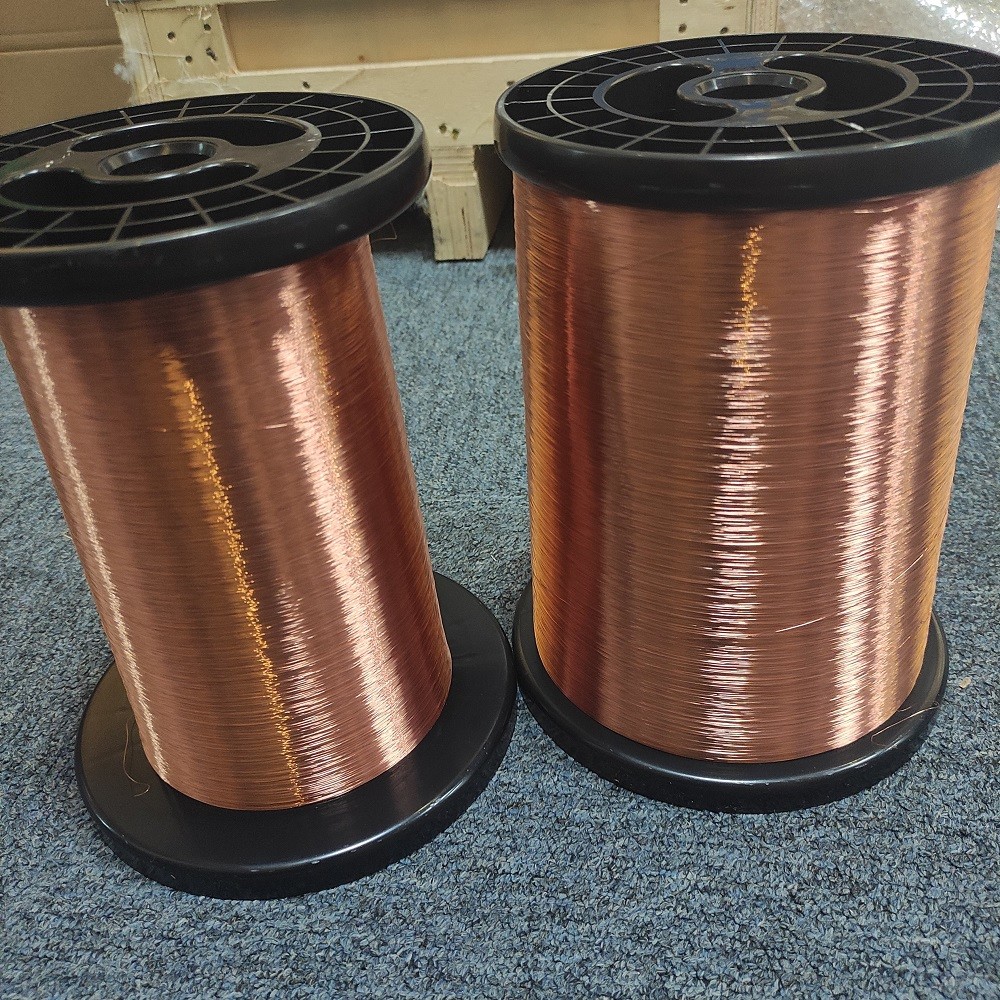

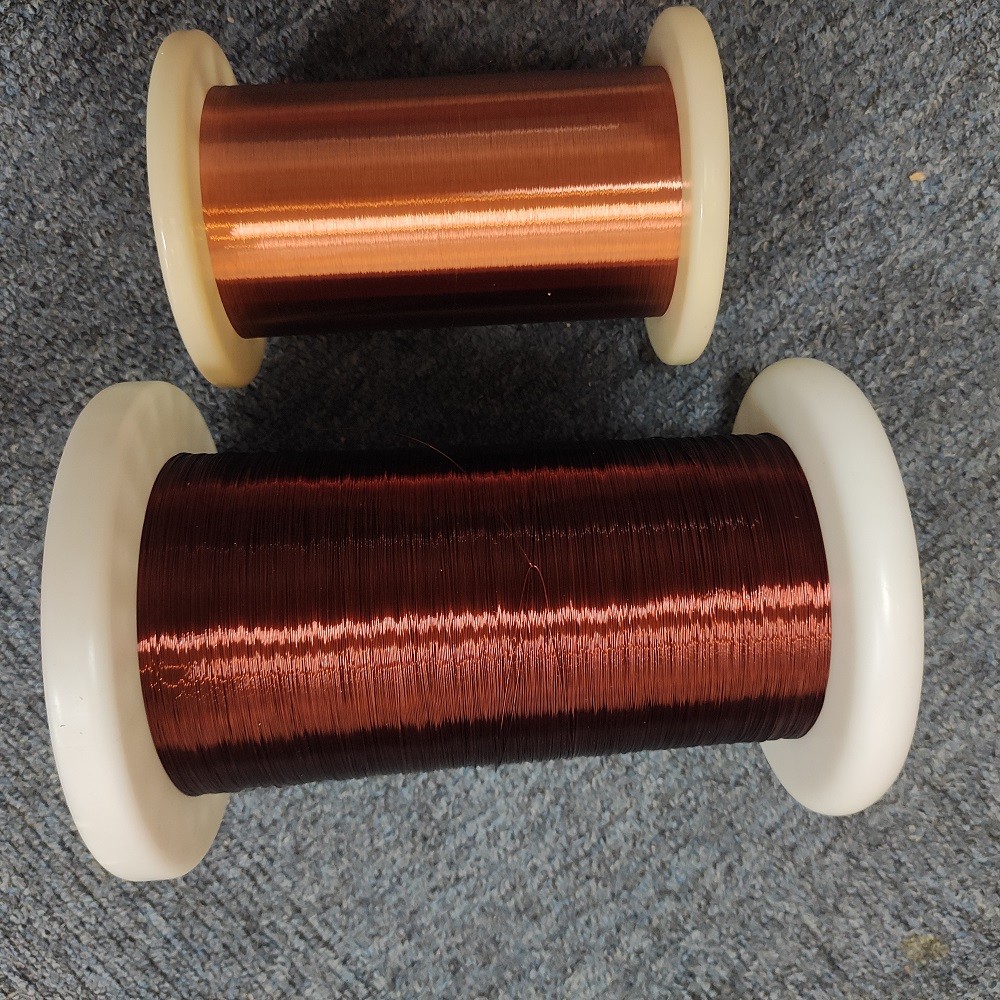

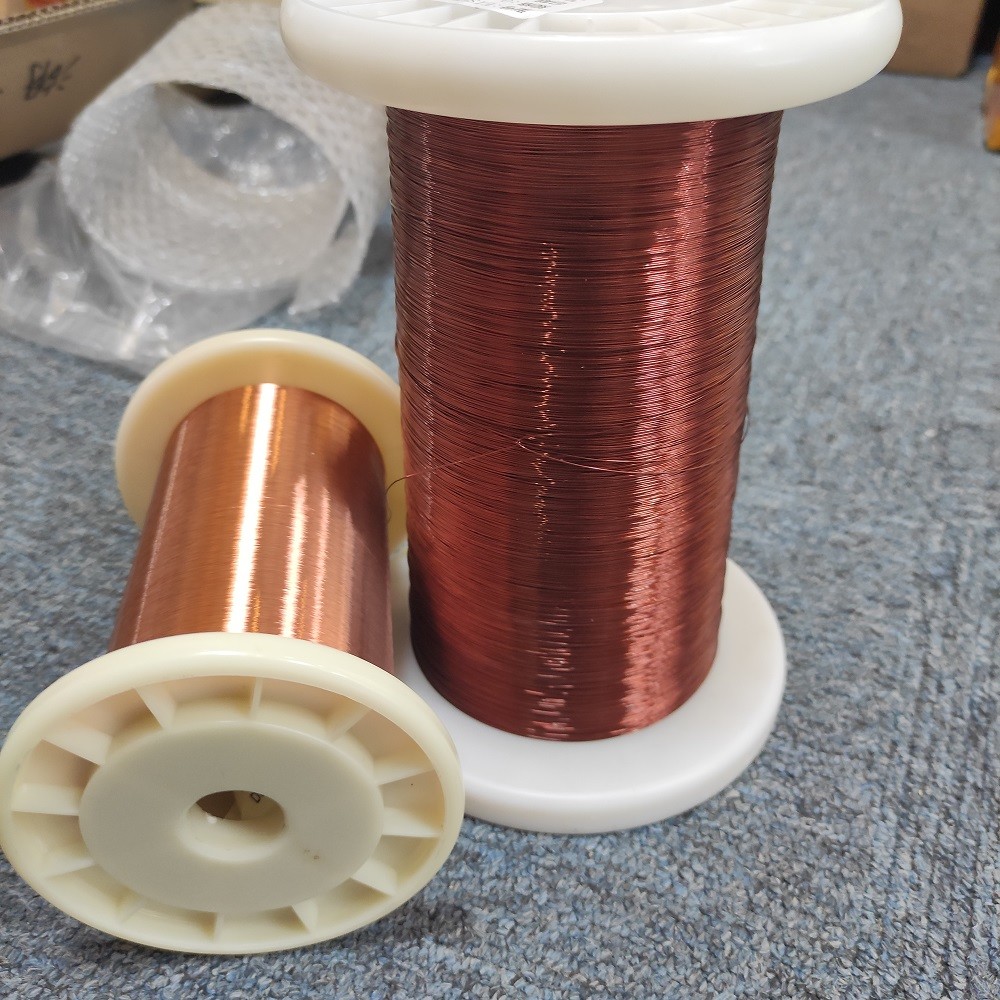

0.08mm Hot Air Self Adhesive Enameled Copper Winding Wire
The product can work continuously in 220° C environment, in addition to high temperature resistance performance inferior to 240 aromatic polyimide, in radiation resistance, cold resistance, refrigerant resistance, chemical resistance has excellent valuable performance.Therefore, it is widely used in atomic reaction, aerospace, coal mine motor, nuclear energy, military and other special fields.
The company mainly produces various types of 0.04-0.90mm specifications and special enameled wire, its products meet the applicable standards of the industry (IEC60317, GB6109.JlS C3202, NEMA MW1000), and on this basis, according to different product needs and winding characteristics,Develop special enameled wire standards suitable for electromagnetic relay, micro special motor, transformer for smart meter, clock coil, solenoid valve, high voltage package and so on.The types of self-adhesive enameled wire are polyester line, polyurethane line, polyamide imide line, polyester imide line and so on.
Our company has carried out business with more than 100 overseas customers in more than 20 countries and regions such as Germany, Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East, Africa and so on.
Enameled wire production base is located in Jiaxing city, Zhejiang Province, the main production of various grades of heat self-adhesive wire, specializing in high temperature self-adhesive wire.The annual output of the company is about 15000 tons of enamel wire.The Chinese government's new policy of "One Belt, One Road" provides a new opportunity for industrial and production capacity cooperation with overseas countries and regions.Shanghai Husu Husu Electromechanical Technology Co., Ltd. sincerely hopes to establish and develop long-term and mutually beneficial cooperative relationship with you in the future.
Specification:
| Product Name | Class 220 high temperature self-adhesive enameled wire |
| Model Number | AISVWY3-1B/220-0.08 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.08mm |
| Bonding Method | Hot Air |
| Thermal Class | 220 |
| Film Grade | 1B |
| Application | Relays / Transformer / Solenoids Coil / Motor Winding |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
