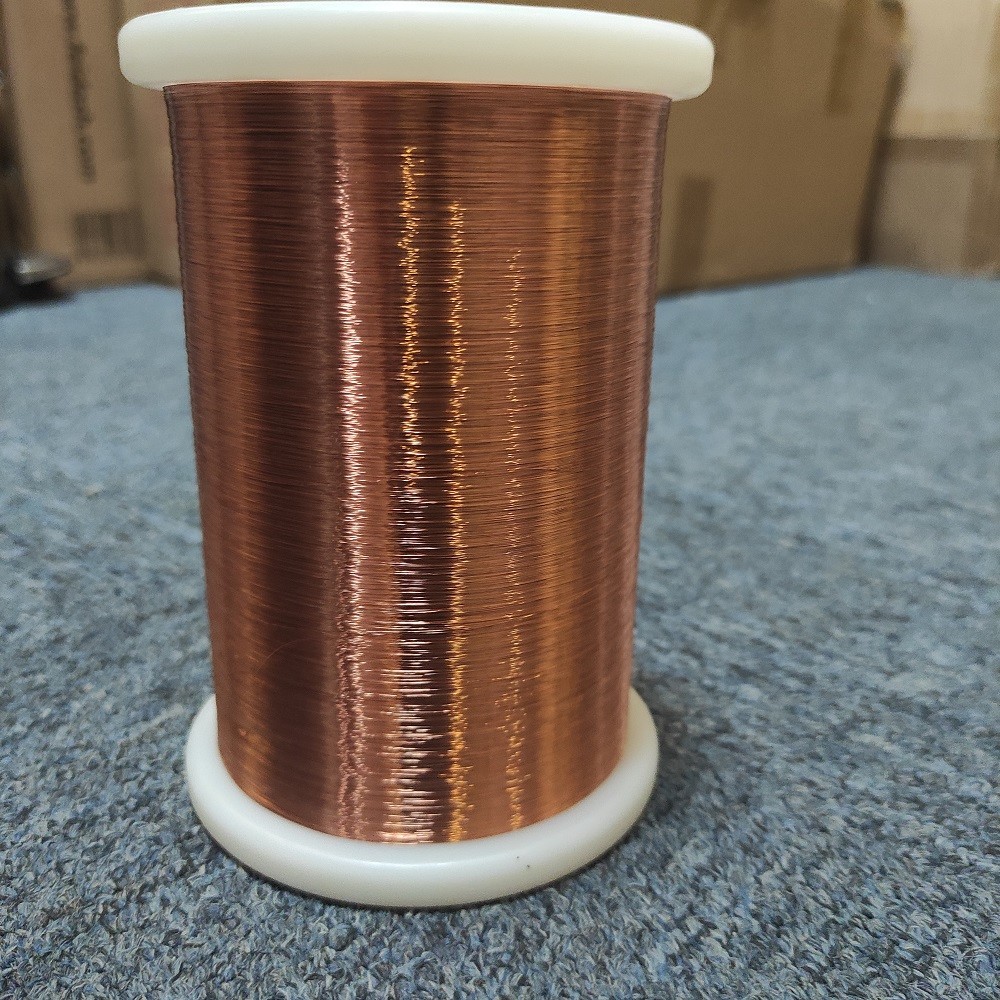

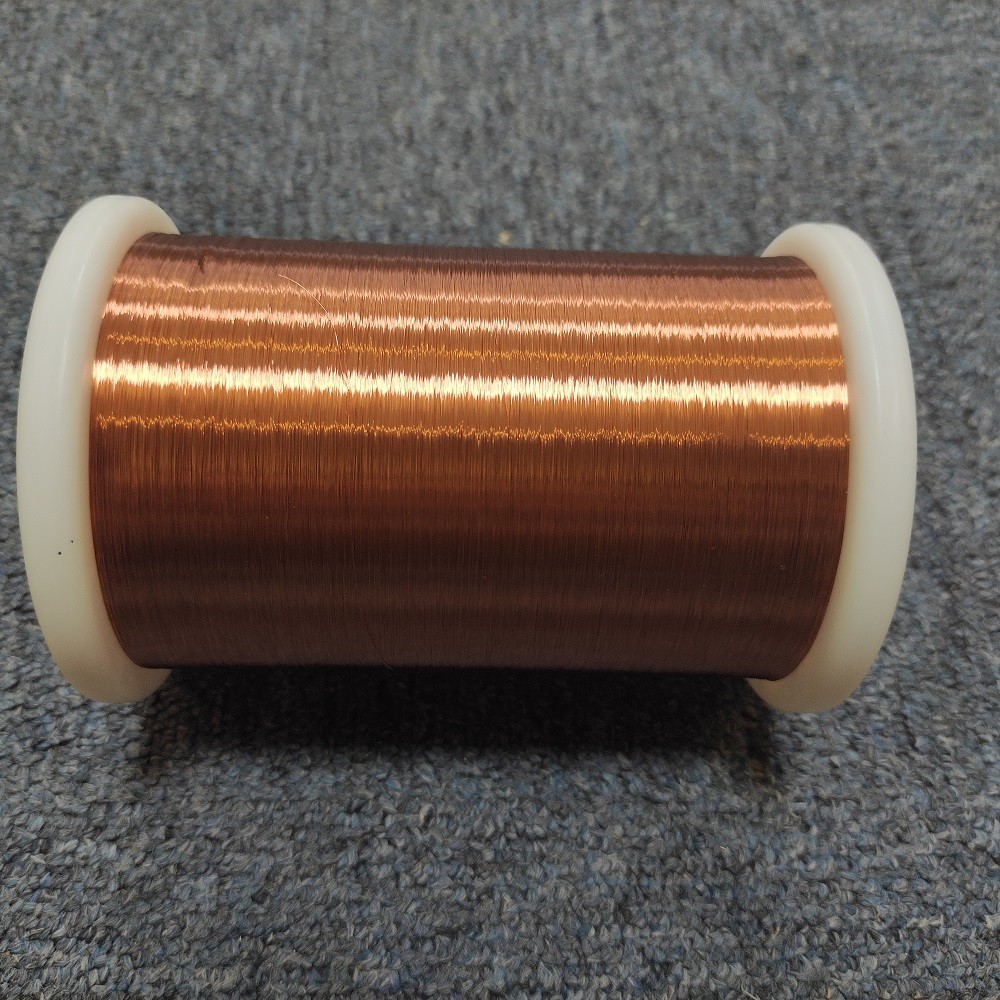

Class C Self Bonding Enamelled Copper Wire AWG 39 For Voice Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/220-0.09 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011240090 | Type | Special Magnet Wires |
|---|---|---|---|
| Film Grade | 1B | Conductor Diameter | 0.09mm |
| Bonding Method | Hot Air | Class | 220 |
| Advantage | High Temperature Resistance | Color | Natural |
| High Light | 1B Film Enamelled Copper Wire,AWG 39 Enamelled Copper Wire,Voice Coils Enamelled Copper Wire |
||
Product Description
Class C Self Bonding Enameled Wire AWG 39 Round Copper Wire For Voice Coils
Self-adhesive enameled wire is used in the manufacturing of electrical products, which can simplify the manufacturing process of electromagnetic coil, save energy, eliminate pollution and reduce labor intensity.According to the conductor material, self-adhesive enameled wire can be divided into: copper wire, aluminum wire, alloy wire;According to the shape of the material, it can be divided into: round line, flat line, hollow line.According to the paint film thickness, can be divided into: 1B, 2B, custom thickness.
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Product Name | Class 220 Special Magnet Wires |
| Model Number | AISVWY3-1B/220-0.09 |
| Insulation Material | Polyamideimide composite polyester or polyesterimide enameled |
| Conductor Diameter | 0.09mm |
| Bonding Method | Hot Air |
| Thermal Class | 220 |
| Film Grade | 1B |
| Application | Transformers/Motors/Relays/Frameless coil |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
