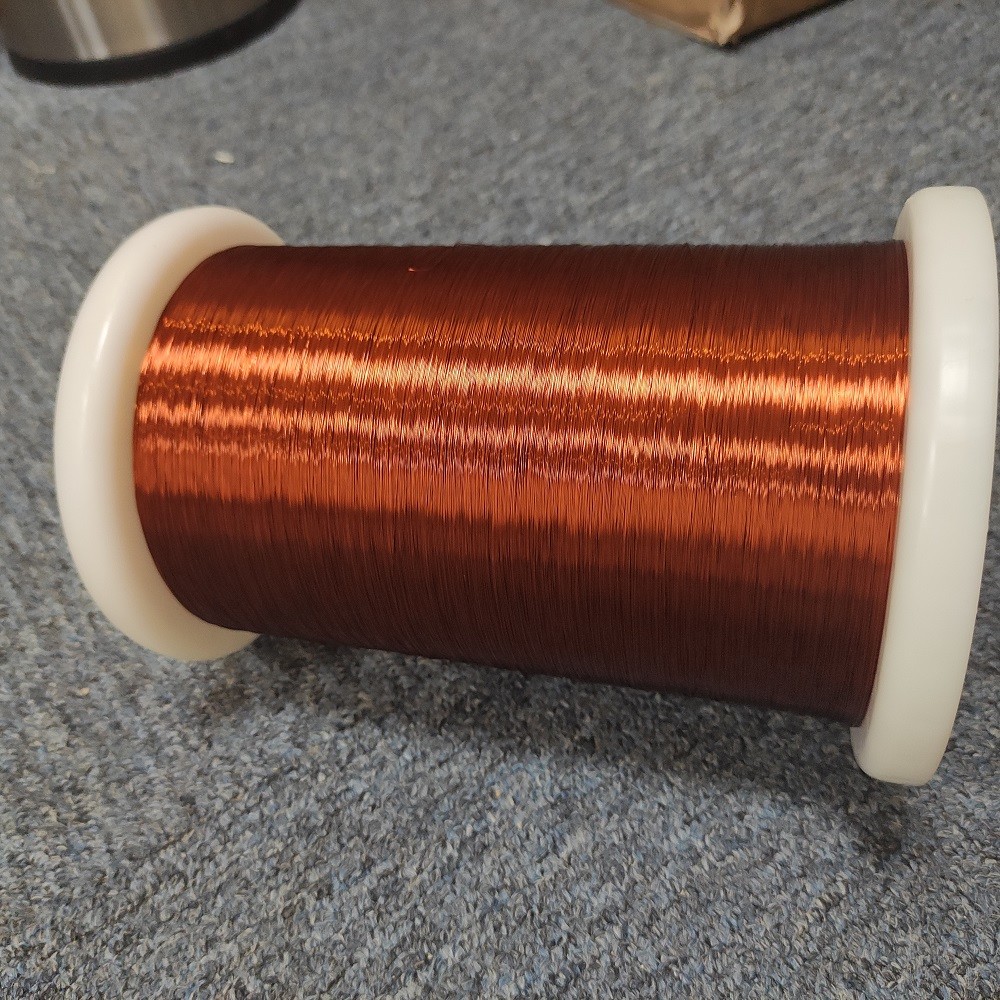

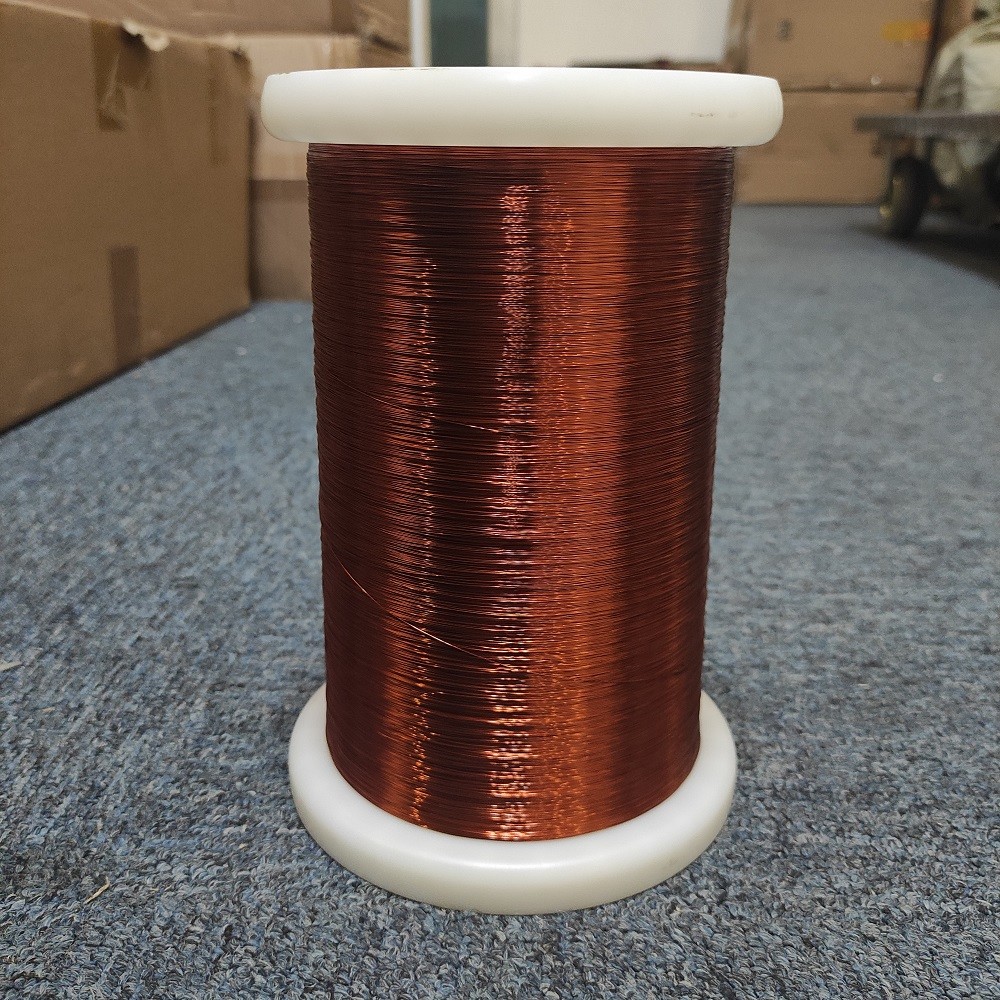

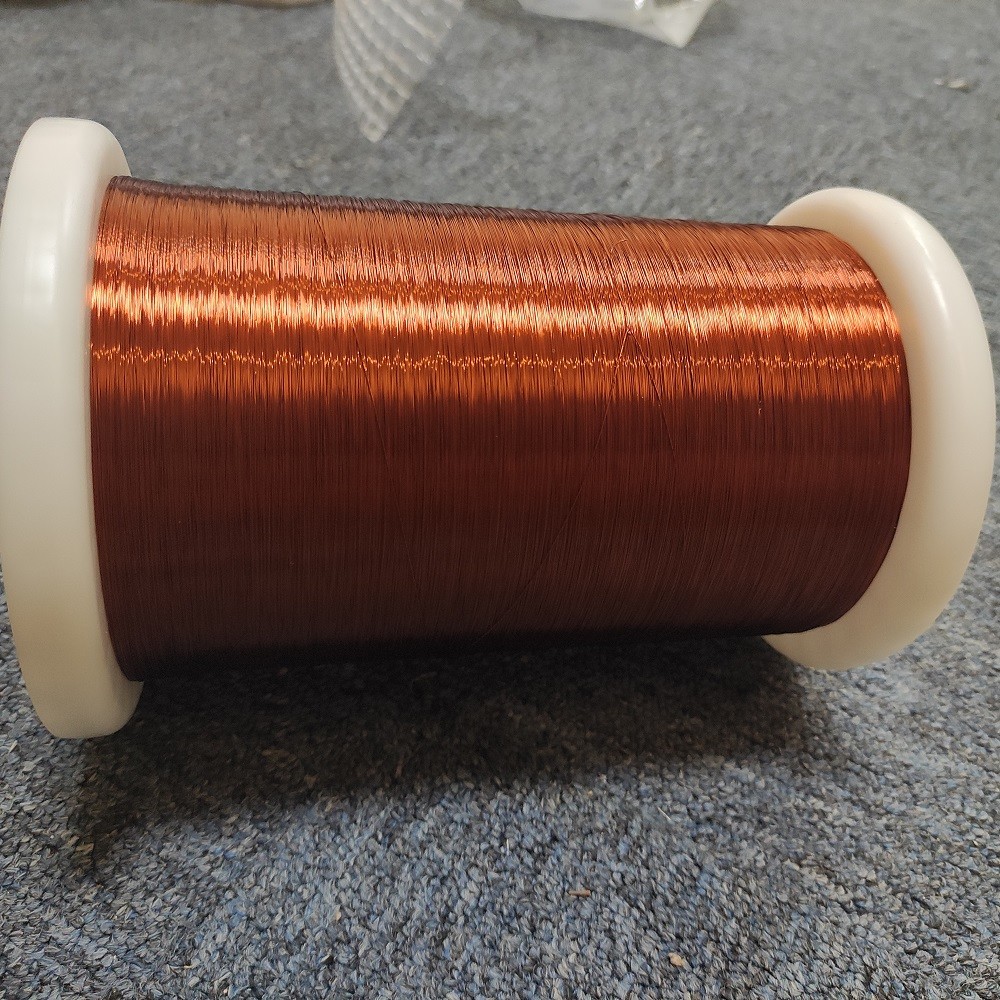

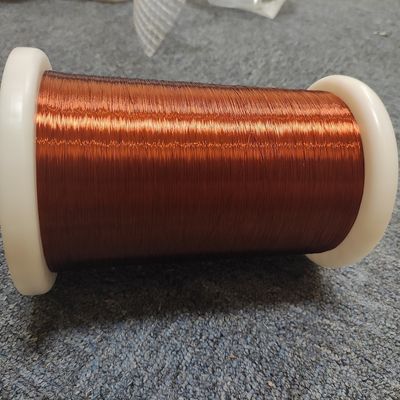

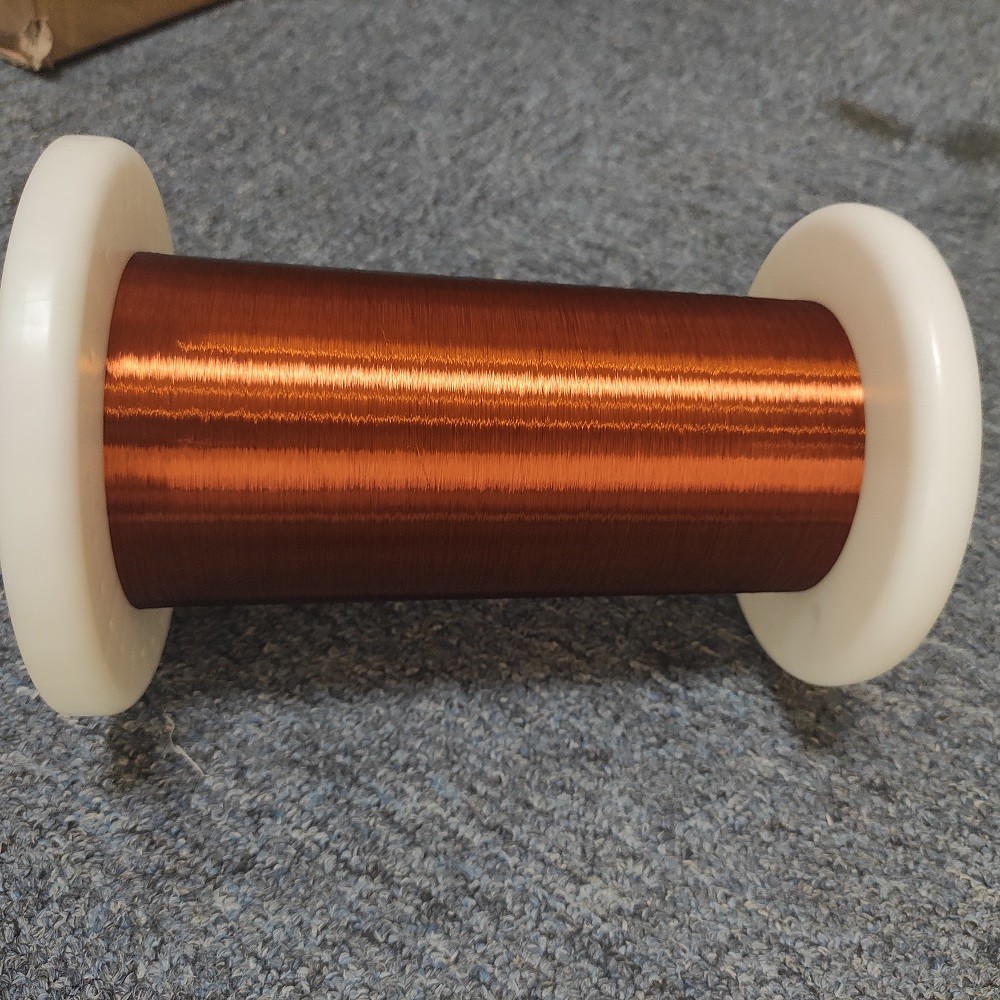

Class 220 Enameled Coated Copper Wire For Transformers

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number AISVWY3-1B/220-0.11
Minimum Order Quantity 20 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No 30011240110 Product Name High Temperature Enameled Wire
Enamel Thickness 1B Conductor Diameter 0.11mm
Bonding Method Hot Air Class 220
Advantage High Breakdown Voltage Color Natural
High Light

Class 220 Coated Copper Wire


Transformers Coated Copper Wire


Heat Resistance Coated Copper Wire

Leave a Message
Product Description

0.1mm Self bonding Enameled Copper Round Wire With AIW Coating For Motor


High heat resistance self adhesive enameled wire self adhesive enameled wire is the general name of enameled wire covered with adhesive coating on insulating coating, it can be in the role of the solvent or in hot air, electricity, baking heating to achieve the adhesion between the line and the line.Self-adhesive wire in the existing single, double coating enameled wire surface coated with butyraldehyde, epoxy, polyamide, polyester and other adhesive resin.The heat resistance grade of self-adhesive enameled wire is determined according to the heat resistance of insulating coating and the bonding strength temperature of adhesive coating.High heat resistance self-adhesive enamels mainly include: 155, 180 grade polyurethane self-adhesive line (UEF/SB, UEH/SB) 155, 180 grade polyester imine or direct welding polyester imine self-adhesive line (EISB or EIEBS) and 180, 200 grade polyamidel.Imine composite polyester or polyester imine self-adhesive line (PE/AISB or EI/AISB) this self-adhesive line of the sticky quick coating is mainly composed of a fatty aromatic polyamide, epoxy resin components.Self-adhesive enameled wire is mainly used in the manufacture of skeleton-free coil, and is widely used in the deflection coil field of TV and monitor.Self-adhesive enameled wire with high heat resistance and high re-softening temperature also began to be used in the manufacture of small motors.


By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.



Product Name High temperature enameled wire
Model Number AISVWY3-1B/220-0.11
Insulation Material Polyamideimide composite polyester or polyesterimide enameled
Conductor Diameter 0.11mm
Bonding Method Hot Air
Thermal Class 220
Film Grade 1B
Application Transformers/Motors/Relays/Frameless coil


Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.


Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.


Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.


Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.


Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
