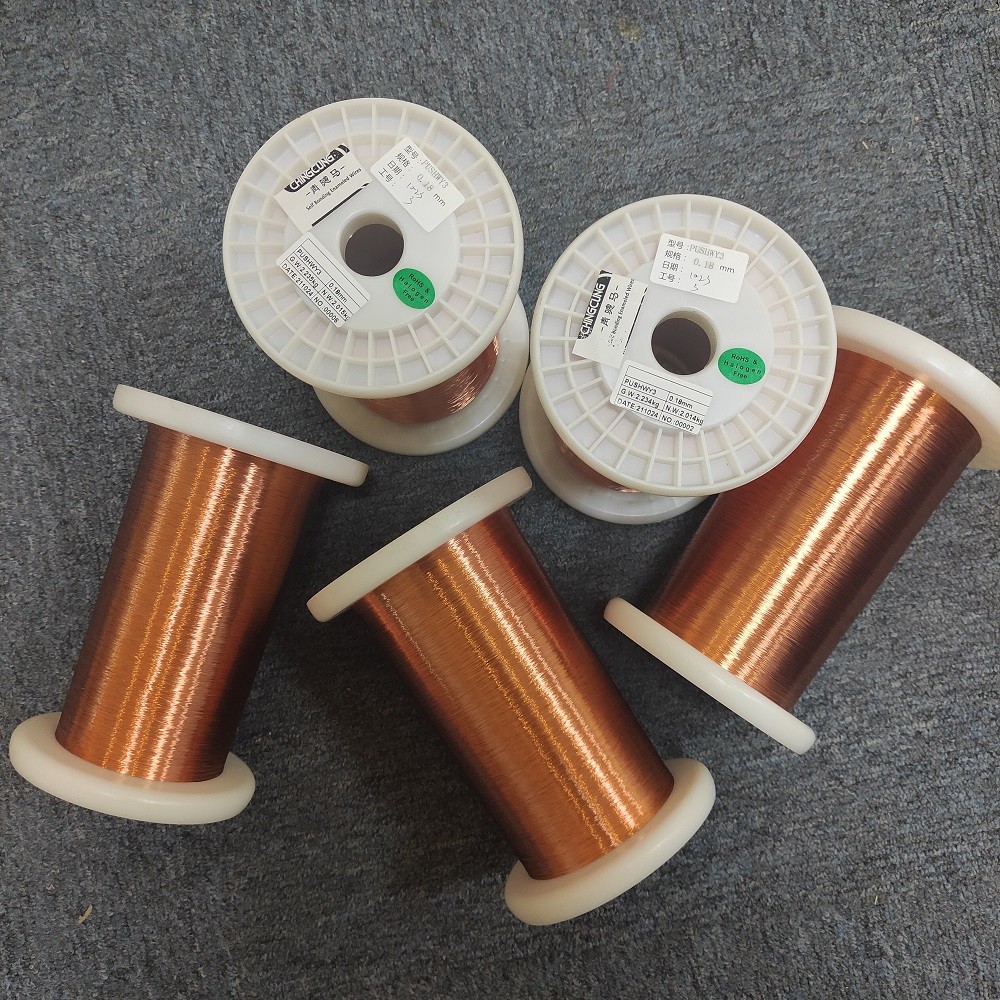

Class C Self Adhesive Coated Magnet Wire 0.06mm Hot Air Bonding

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number AISVWY3-2B/220-0.06
Minimum Order Quantity 20 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No 30011241060 Product Name 0.06mm Ultra Fine Self Bonding Copper Wire
Enamel Thickness 2B Insulation Material Polyamideimide Composite Polyester Or Polyesterimide
Bonding Method Hot Air Thermal Class 220
Advantage High Breakdown Voltage Shape Round
High Light

RoHS Coated Magnet Wire


Coated Magnet Wire 0.06mm


Hot Air Bonding Coated Magnet Wire

Leave a Message
Product Description

Class C Self Adhesive Enameled Wire Enamelled Round Copper Wire For Speaker Voice Coils


Self-adhesive enameled wire and ordinary enameled wire core conductivity is the same, because the self-adhesive enameled wire belongs to the composite coating enameled wire, so the insulation layer has enough stable voltage resistance (breakdown voltage) and insulation resistance, than ordinary enameled wire voltage resistance to some higher.
Mechanical properties:
The selection of winding wire should have proper wear resistance, scratch resistance and bending resistance.When the stress of the coil winding is large, it is better to use composite layer insulated enameled wire.Self-adhesive polyester enameled wire and polyester enameled wire have better abrasion resistance and scratch resistance.
Straight welding:
Ordinary enameled wire does not have direct welding, welding, need to use sandpaper or other tools to remove the paint layer clean, especially when the transformer coil leads more (there are dozens of solder spots), quite time-consuming;And when enameled wire wire diameter is very fine, to the paint layer easy to make the line core injury.Self-adhesive polyurethane enameled wire and polyester enameled wire have direct solderability, which improves the efficiency of transformer end treatment.


By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.



Product Name Special Magnet Wires
Model Number AISVWY3-2B/220-0.06
Insulation Material Polyamideimide composite polyester or polyesterimide enameled
Conductor Diameter 0.06mm
Bonding Method Hot Air
Thermal Class 220
Film Grade 2B
Application Coils, Windings, Voice coils


Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.


Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.


Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!


Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.


Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
