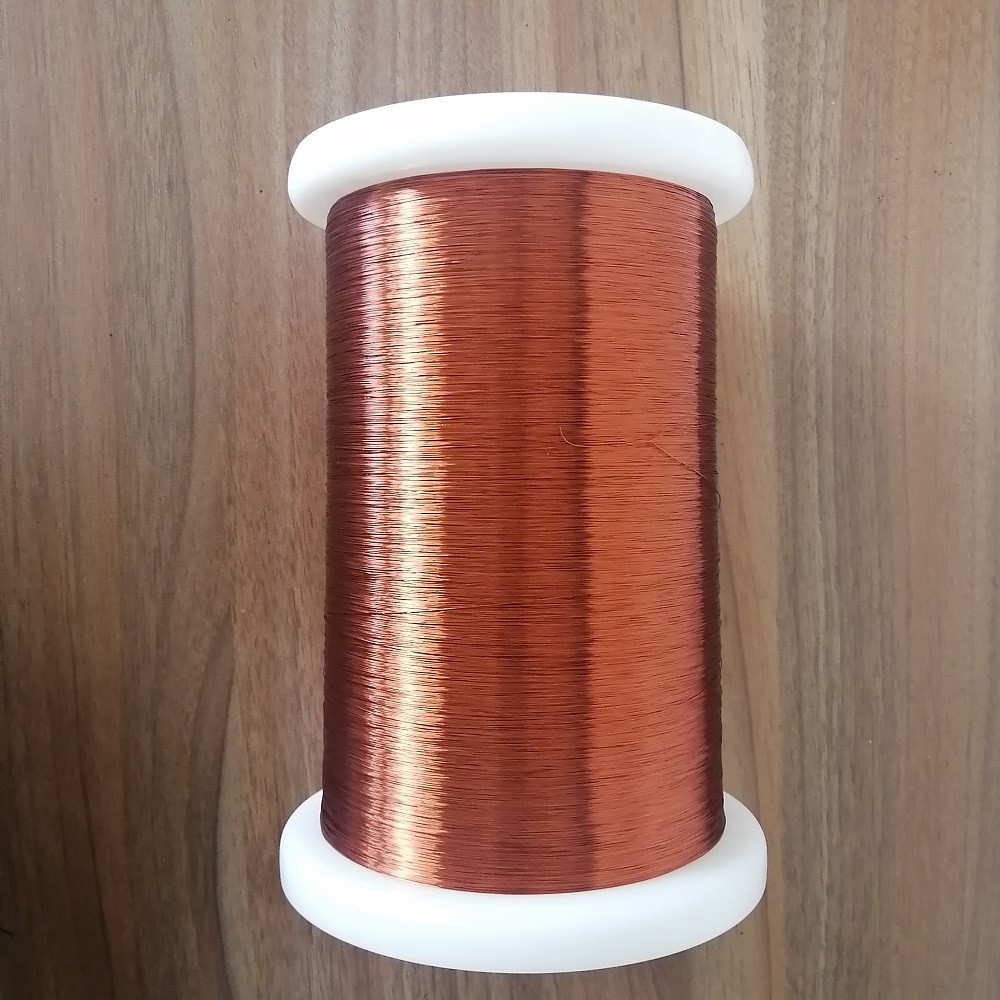

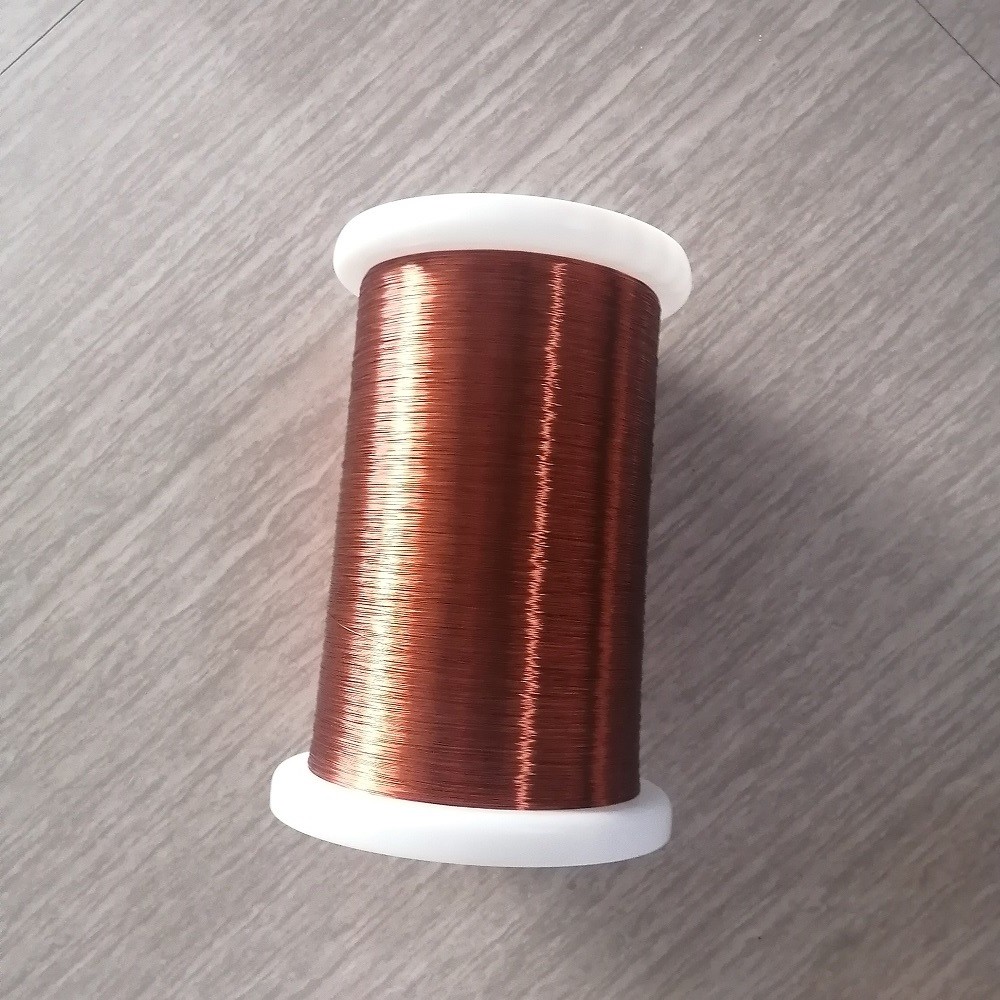

AWG 29 Alcohol Soluble Self Bonding Wire For Magnetic Induction Coils
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550280 | Product Name | Round Copper Enameled Wire |
|---|---|---|---|
| Bonding Method | Alcohol Soluble | Conductor Diameter | 0.28mm |
| Insualtion | Polyesterimide(EIW) | Film Grade | 1B |
| Color | Nature/Red | Usage | Coils, Windings |
| High Light | Alcohol Soluble Self Bonding Wire,AWG 29 Self Bonding Wire,Magnetic Induction Coils Self Bonding Wire |
||
Product Description
AWG 29 Alcohol Soluble Self-Bonding Wire For Magnetic Induction Coils
Self-adhesive enameled wire compared with other single varieties of enameled wire insulation coating, because the surface physical properties of the adhesive layer of paint film, presents the characteristics of low hardness, high film coefficient of friction, surface quality requirements in addition to the need to comply with relevant product standards in the industry is bright and clean, uniform requirements no mechanical impurities, can reduce the film coefficient of friction in order to satisfy the requirement of increasing high speed winding, Seems particularly important.
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Model Number | QZYN-1B/200-0.28 | Place of Origin | Zhejiang,China |
| Conductor Material | Pure Copper | Brand Name | CHINGCUNG |
| Type | Self-adhesive enameled wire | Feature |
High breakdown voltage
|
| Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
| Thermal Class | 200 | Application | Motor Winding Wire |
| Film Grade | 1B | Stock | Available |
| Shape | Round | Standard | GB |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
