Coils Polyesterimide Enameled Copper Wire Class C Self Bonding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550290 | Product Name | EIW Round Copper Enameled Wire |
|---|---|---|---|
| Bonding Method | Alcohol Soluble | Conductor Diameter | 0.29mm |
| Type | Round Copper Wire | Film Grade | 1B |
| Thermal Class | 200 | Usage | Coils, Windings |
| High Light | Coils Polyesterimide Enameled Copper Wire,Class C Polyesterimide Enameled Copper Wire,EIW Polyesterimide Enameled Copper Wire |
||
Product Description

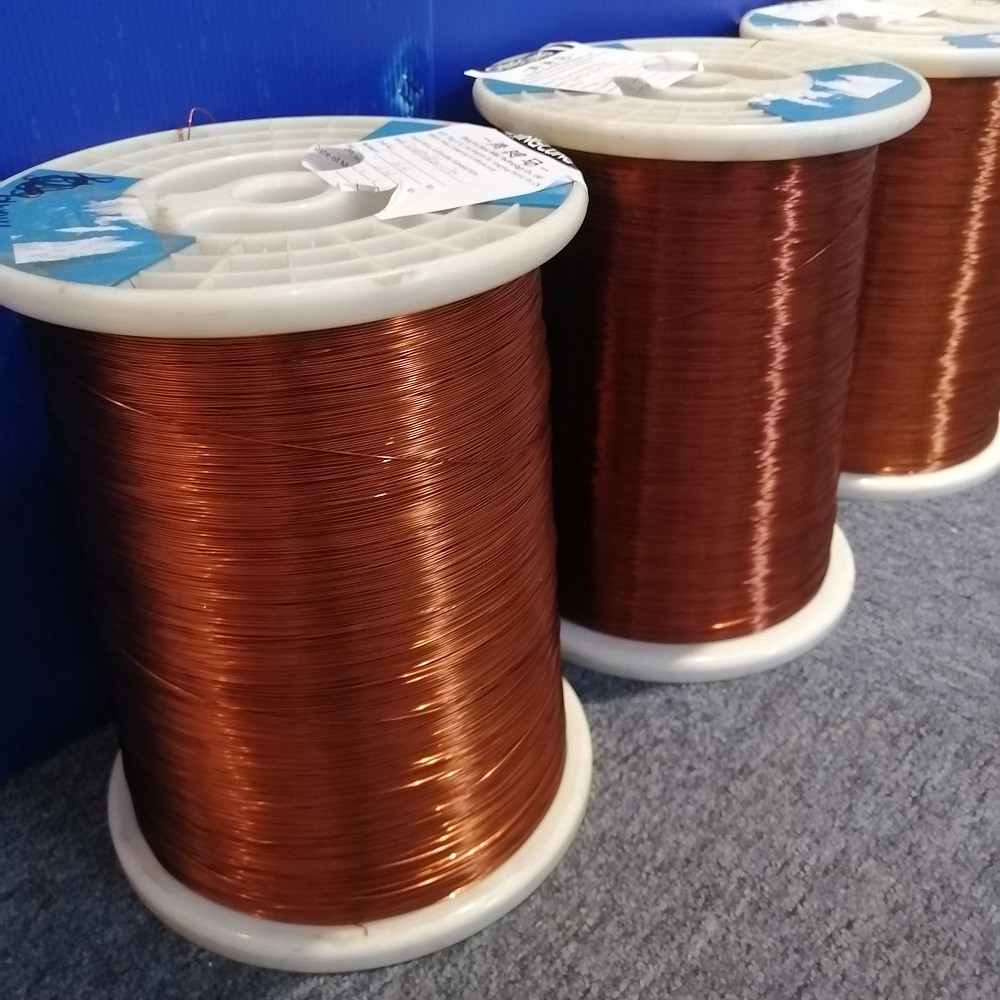

Polyesterimide Enameled Wires Class C Self Bonding Enameled Round Copper Wires
The alcohol-soluble self-adhesive line is dissolved by solvent immersion and then dried and solidified to reflect the adhesive property. Hot melt (hot air type) self-adhesive line can be through the appropriate thermal resistance or external heat (hot air) mode of the paint film melting and then cooling reflects the bonding characteristics. Hot-air bonding mode automatically completes the voice coil production by hot-air winding machine, so it is more efficient than alcohol-soluble bonding mode to produce voice coil, and there is no environmental pollution of solvent, and it is now welcomed by more and more voice coil manufacturers .
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Model Number | QZYN-1B/200-0.29 | Place of Origin | Zhejiang,China |
| Conductor Material | Cu | Brand Name | CHINGCUNG |
| Type | Special type of enameled wire | Feature | High stability |
| Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
| Thermal Class | 200 | Application | Transformers / Lgnition Coils |
| Film Grade | 1B | Certification | ISO9001/ISO14001/UL/SGS |
| Shape | Round | Standard | GB |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
