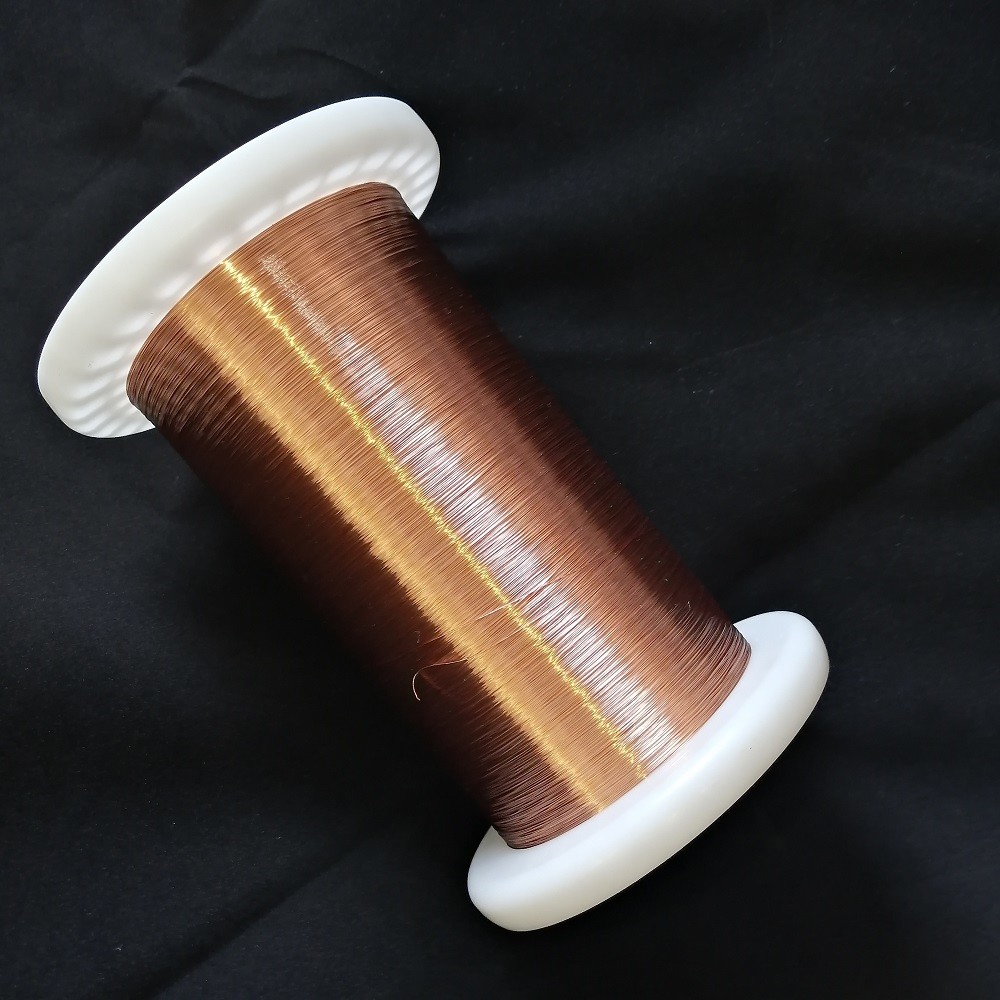

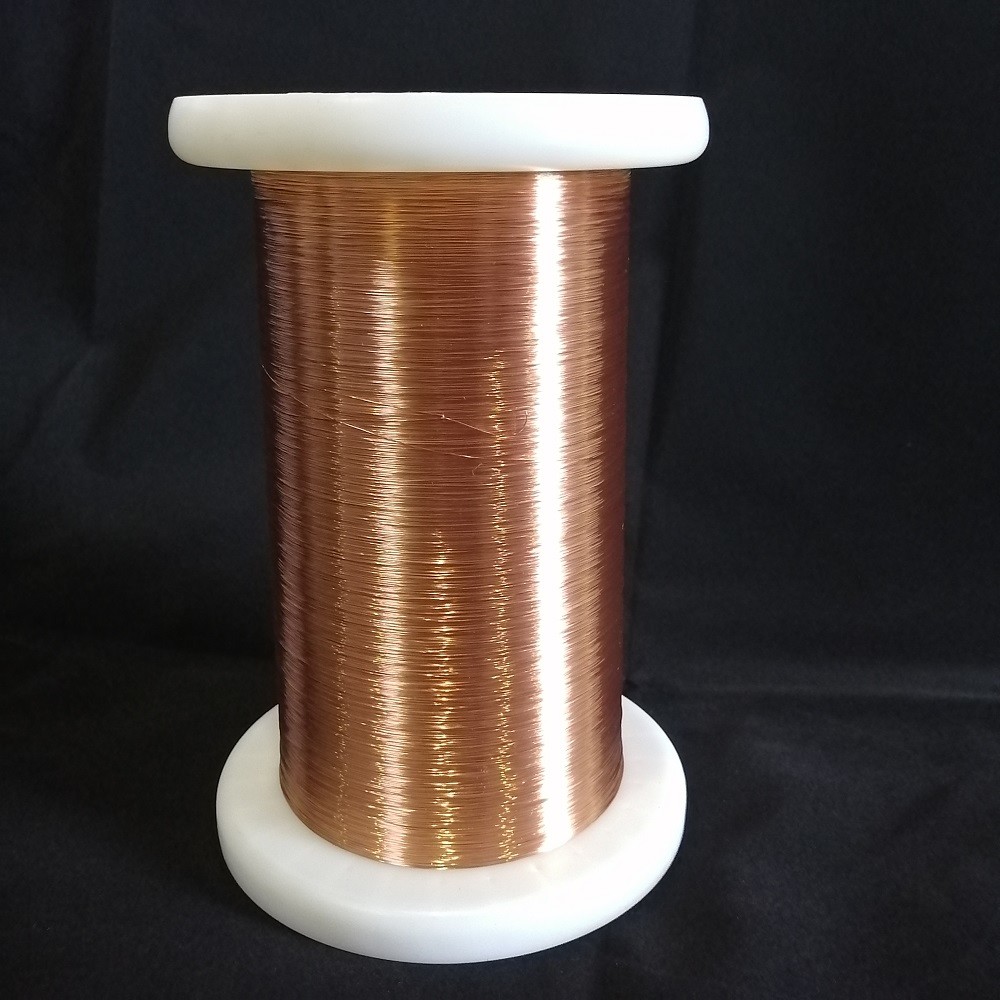

0.31mm Enamel Coated Magnet Wire EIW Insulation Copper Spring Coil

Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number QZYN-1B/200-0.31
Minimum Order Quantity 30 Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30013550310 Product Name Self Bonding Polyesterimide Enameled Round Copper Wires
Insulation Material EIW Conductor Diameter 0.31mm
Conductor Material Pure Copper Film Grade 1B
Thermal Class 200 Usage Motor Winding Wire
High Light

0.31mm Enamel Coated Magnet Wire

,

EIW Insulation Copper Spring Coil

,

Class 200 Copper Spring Coil

Leave a Message
Product Description

0.31mm Enamel Coated Magnet Wire Copper Spring Coil Support Custom



Alcohol soluble alcohol from the glue adhesive enameled wire, in the process of winding coil through add appropriate alcohol on the products so as to achieve natural together around a coil, direct forming, choose high purity industrial alcohol alcohol, according to the enameled wire properties of the adhesive layer can be appropriately used water dilution, using process is different for different products, such as voice coil with the glue line after winding, Bake in the oven for 15-30 minutes.



Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.



Specification:

Model Number QZYN-1B/200-0.31 Place of Origin Zhejiang,China
Conductor Diameter 0.31mm Brand Name CHINGCUNG
Type High temperature wire Feature Pin Hole 0
Bonding Method Alcohol Soluble Delivery Time 3-10 work days
Thermal Rating 200 Application Transformers / Lgnition Coils
Enamel thickness 1B Certification ISO9001/ISO14001/UL/SGS
Color Customized Standard GB





FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.



Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.



Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!



Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.



Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
