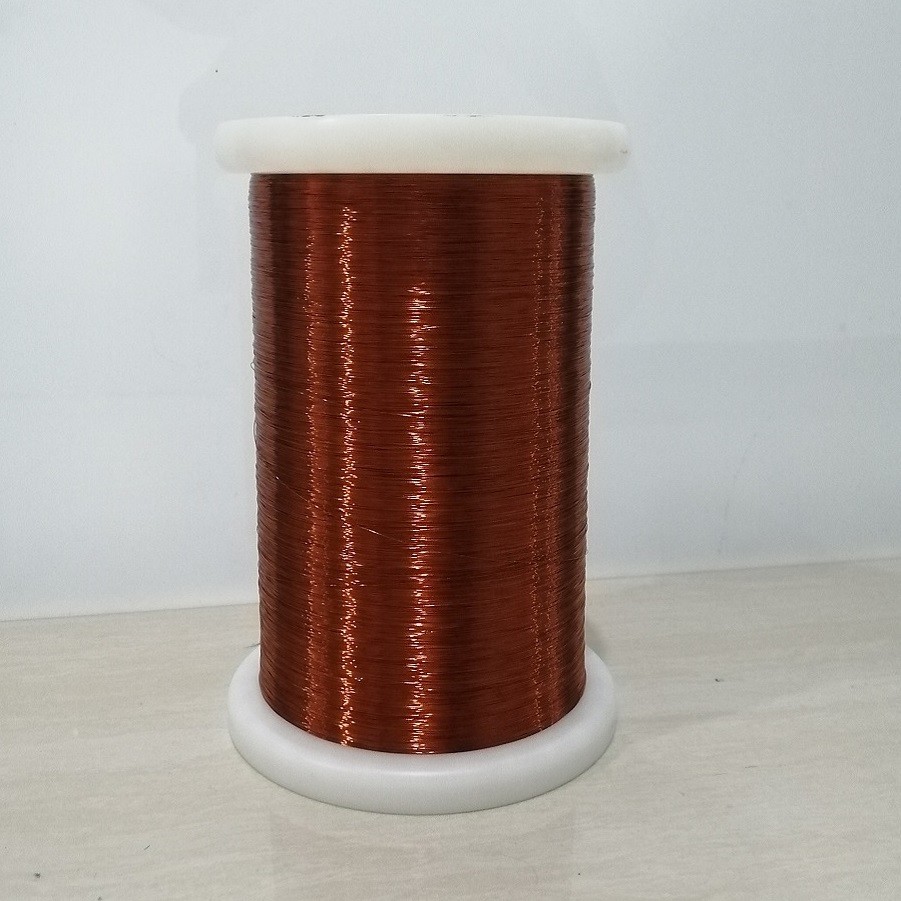

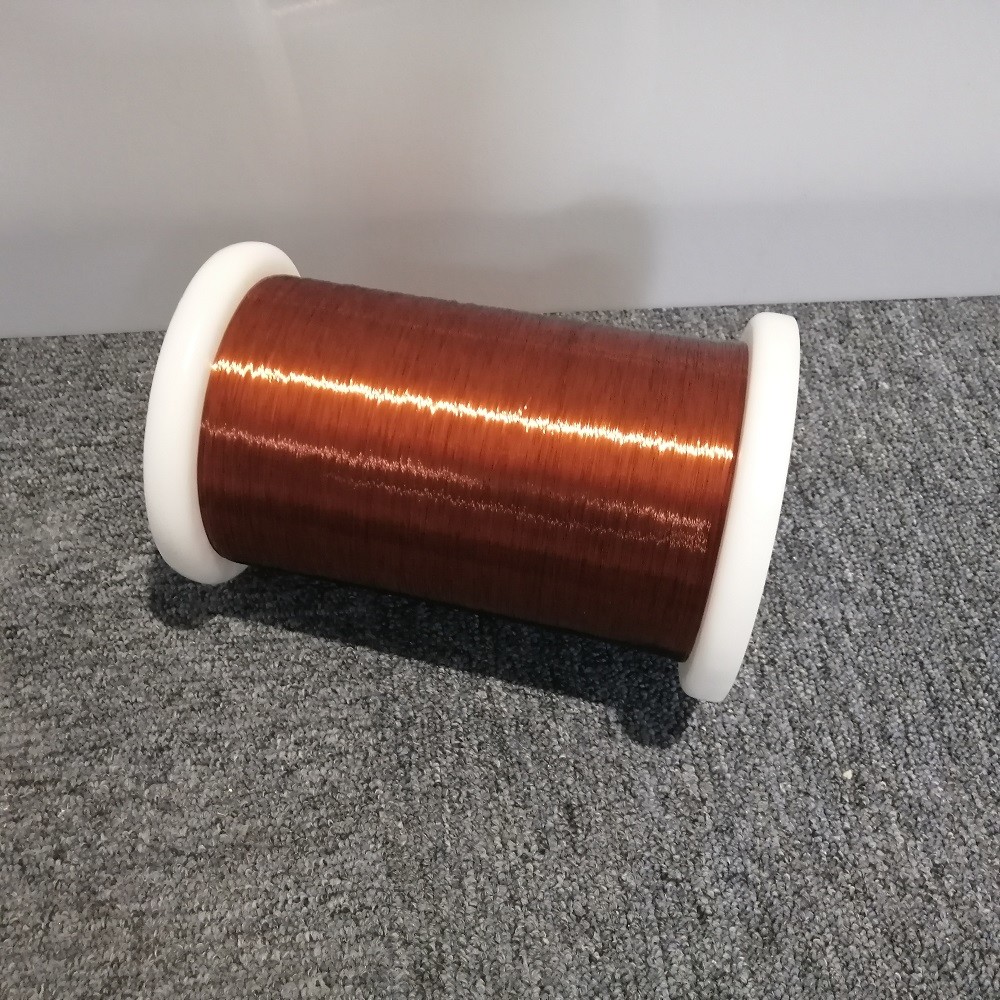

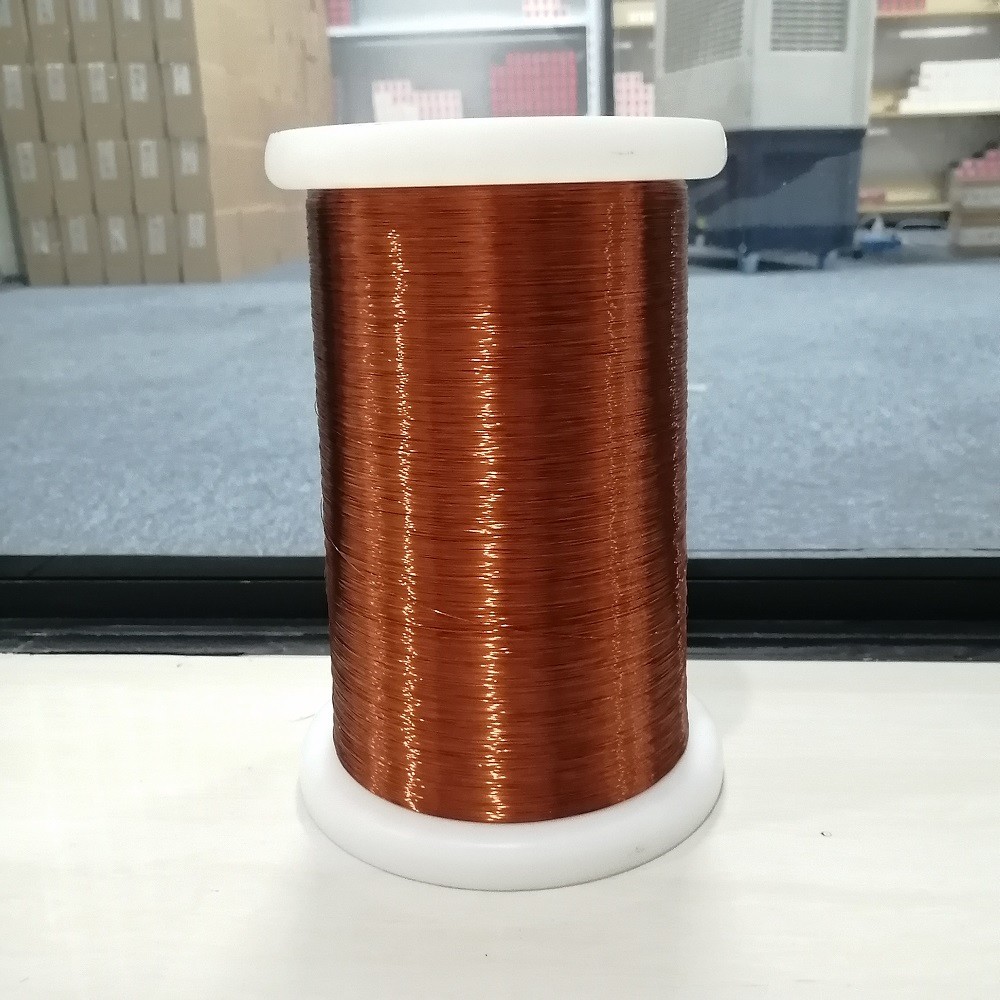

EIW Enameled High Temperature Magnet Wire 0.32mm Self Bonding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30013550320 | Product Name | Class 200 Self Bonding Enameled Wires |
|---|---|---|---|
| Insulation Material | EIW/polyesterimide | Conductor Diameter | 0.32mm |
| Conductor Material | Copper | Bonding Method | Solvent |
| Thermal Class | 200 | Usage | Motor Winding Wire |
| High Light | Enameled High Temperature Magnet Wire,High Temperature Magnet Wire 0.32mm,EIW High Temperature Magnet Wire |
||
Product Description
EIW High Temperature Enameled Wire 0.32mm Self Bonding Enameled Copper Round Wire
Hot air self-adhesive is in the coil winding process by blowing hot air in the coil part of the product to achieve the effect of self-adhesive, hot air temperature according to different film, winding speed, wire diameter and other factors, the required temperature is different, such as general film temperature is 170-200 degrees, special film temperature is 450-550 degrees.
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Model Number | QZYN-1B/200-0.32 | Place of Origin | Zhejiang,China |
| Conductor Diameter | 0.32mm | Brand Name | CHINGCUNG |
| Type | Polyesterimide enameled round copper wires | Feature | Pin Hole 0 |
| Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
| Thermal Rating | 200 | Application | Transformers / Lgnition Coils |
| Enamel thickness | 1B | Certification | ISO9001/ISO14001/UL/SGS |
| Color | Customized | Standard | GB |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
