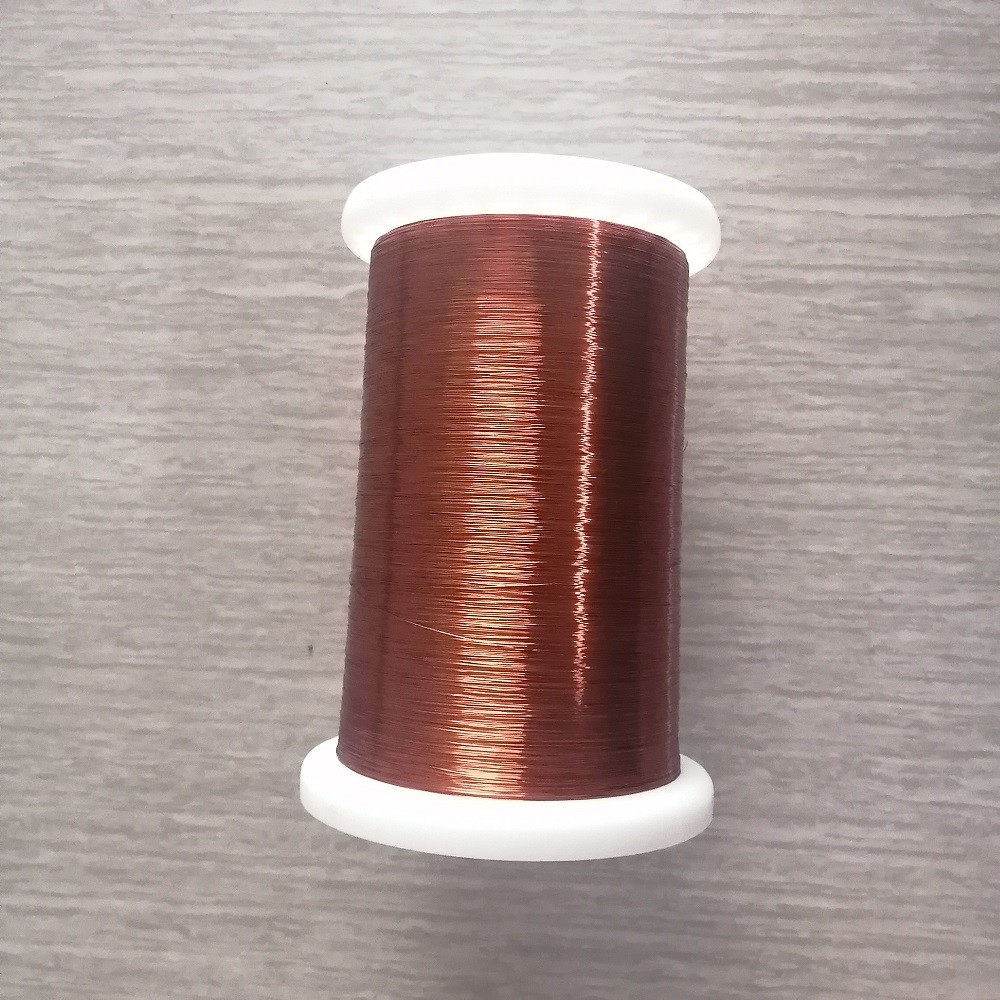

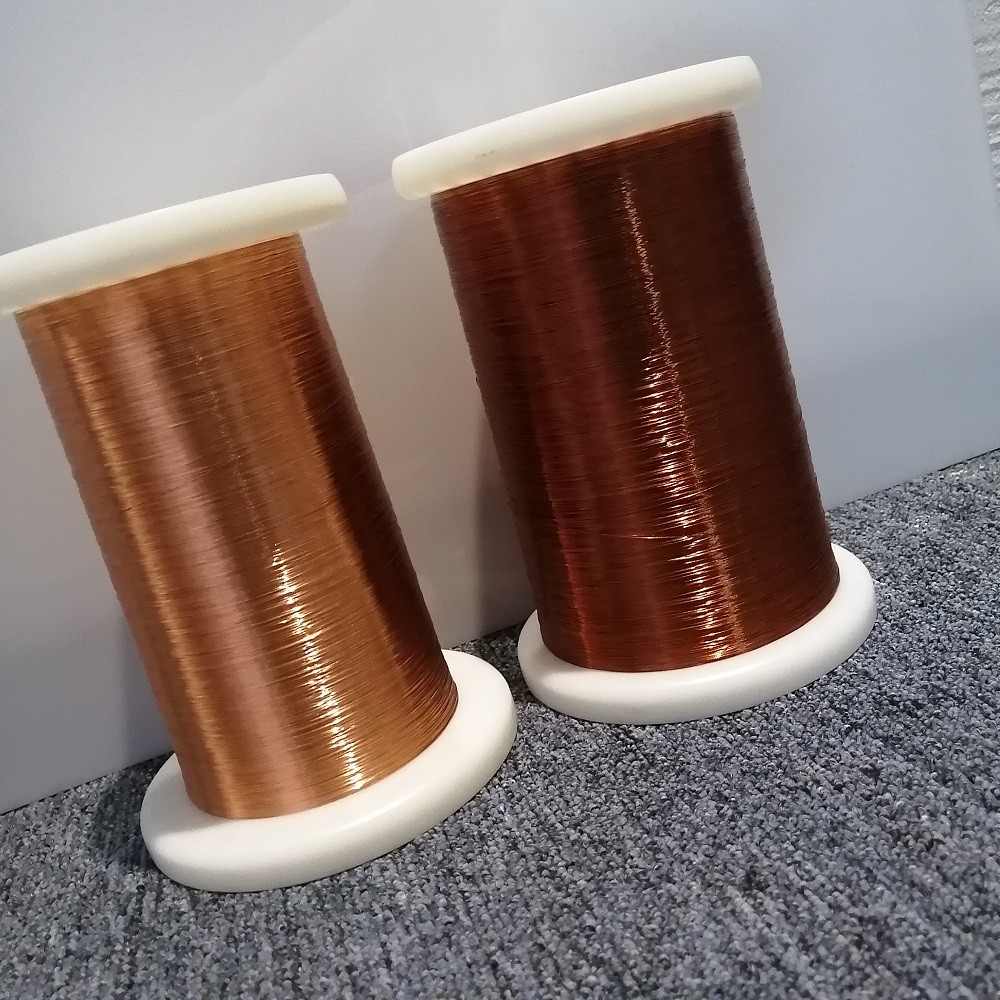

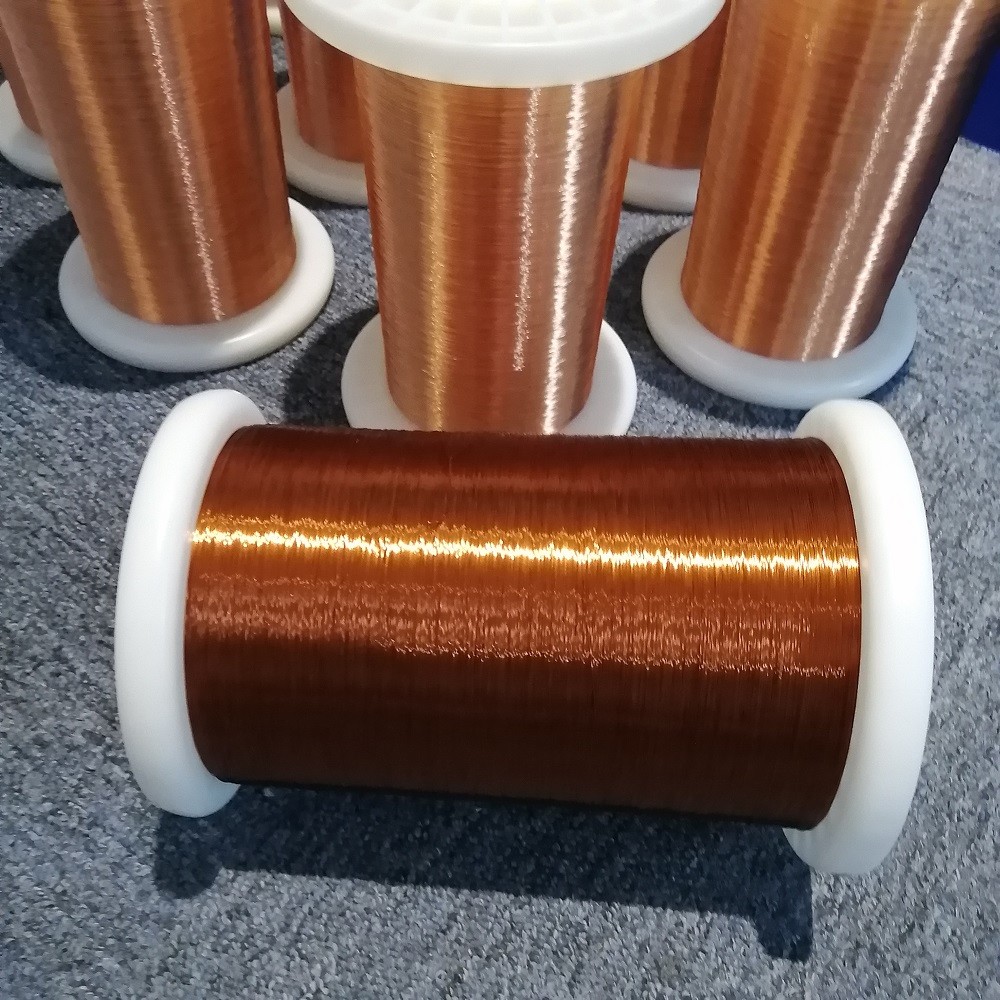

Self Bonding high temp magnet wire 0.36mm insulated magnet winding wire

Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number QZYN-1B/200-0.36
Minimum Order Quantity 30 Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No. 30013550360 Product Name Class 200 Self Adhesive Enamelled Copper Wires
Insulation Material Polyesterimide(EIW) Conductor Diameter 0.36mm
Conductor Type Cu Bonding Method Alcohol Soluble/Hot Air
Thermal Class 200-220℃ Usage Transformer,generator,relays
High Light

Self Bonding High Temp Magnet Wire

,

0.36mm Insulated Magnet Winding Wire

,

EIW Insulated Magnet Winding Wire

Leave a Message
Product Description

QZYN High Temperature Magnet Wire Self Bonding Copper Winding Wire 0.36mm



The structure of enameled wire is very simple. Generally, it consists of bare wire and insulating paint film. The more commonly used paint film on the market is polyester, polyester imide, polyurethane and polyamide imide. However, these enameled wires need to be bonded together by dipping and coating adhesive resin, and the process is more complex. In order to solve this problem, self-adhesive enameled wire came into being, it can be in the appropriate solvent or temperature conditions can self-bonding molding.



Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.



Specification:

Model Number QZYN-1B/200-0.36 Place of Origin Zhejiang,China
Conductor Diameter 0.36mm Brand Name CHINGCUNG
Type For Relays / Solenoids Coil / Motor Winding Feature Pin Hole 0
Bonding Method Alcohol Soluble Delivery Time 3-10 work days
Thermal Rating 200 Application Small Motor
Enamel thickness 1B Certification ISO9001/ISO14001/UL/SGS
Color Customized Standard GB





FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.



Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.



Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!



Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.



Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
