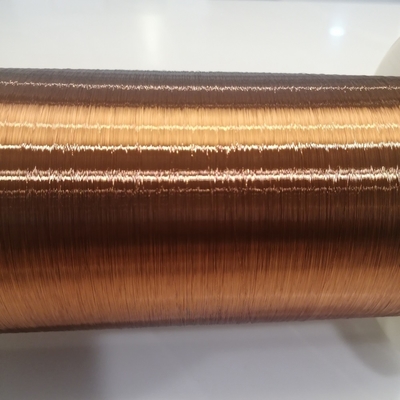

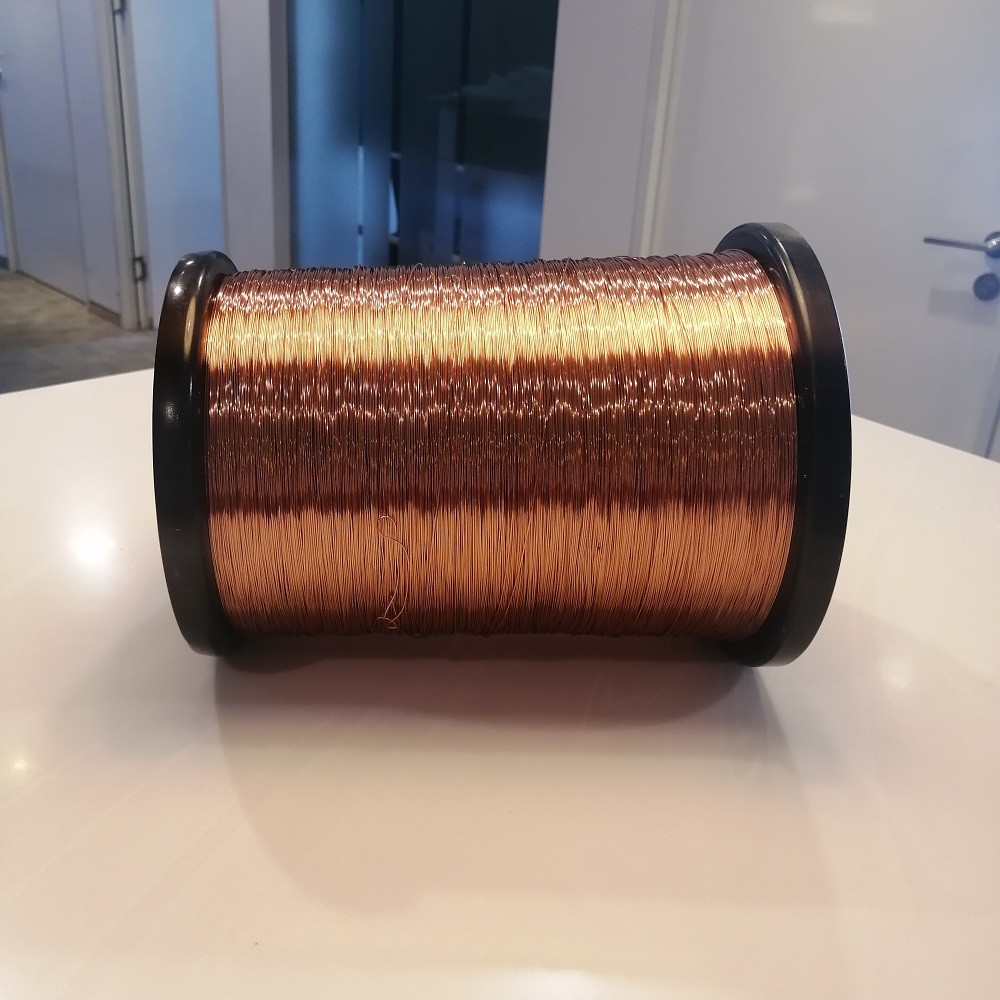

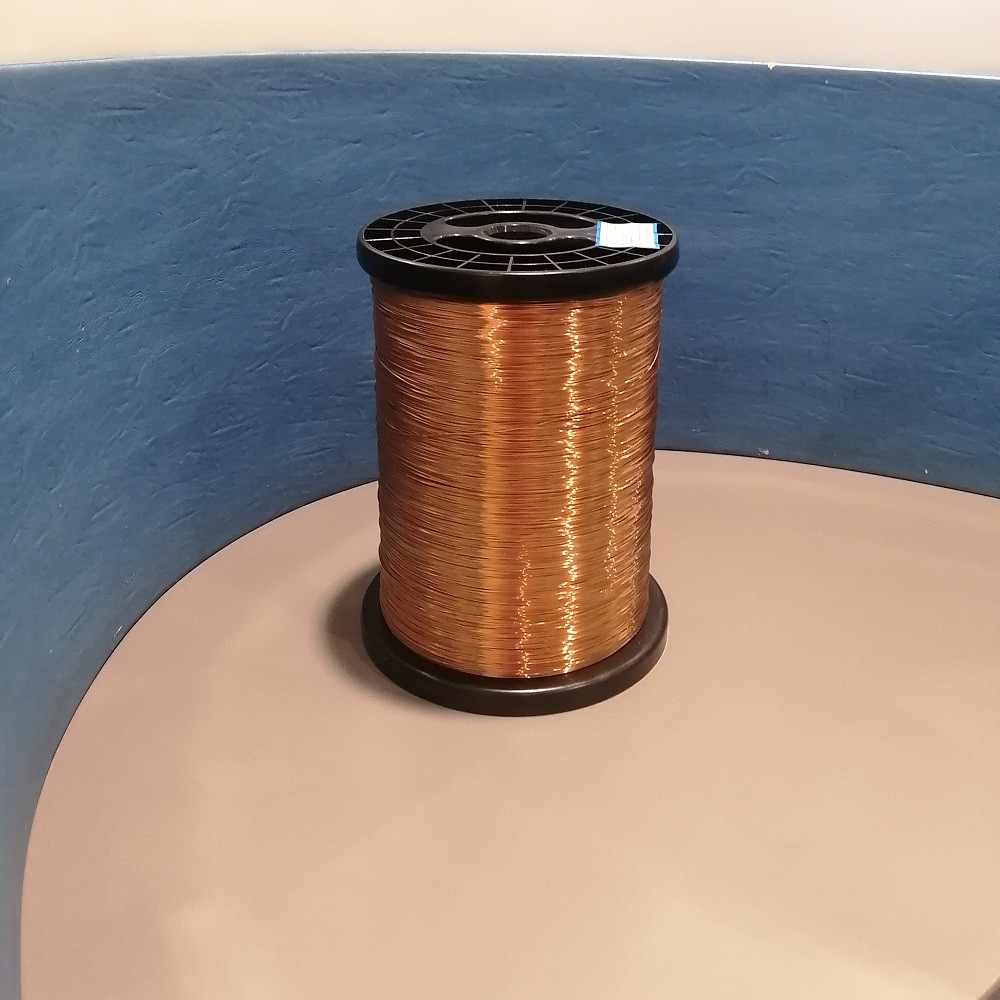

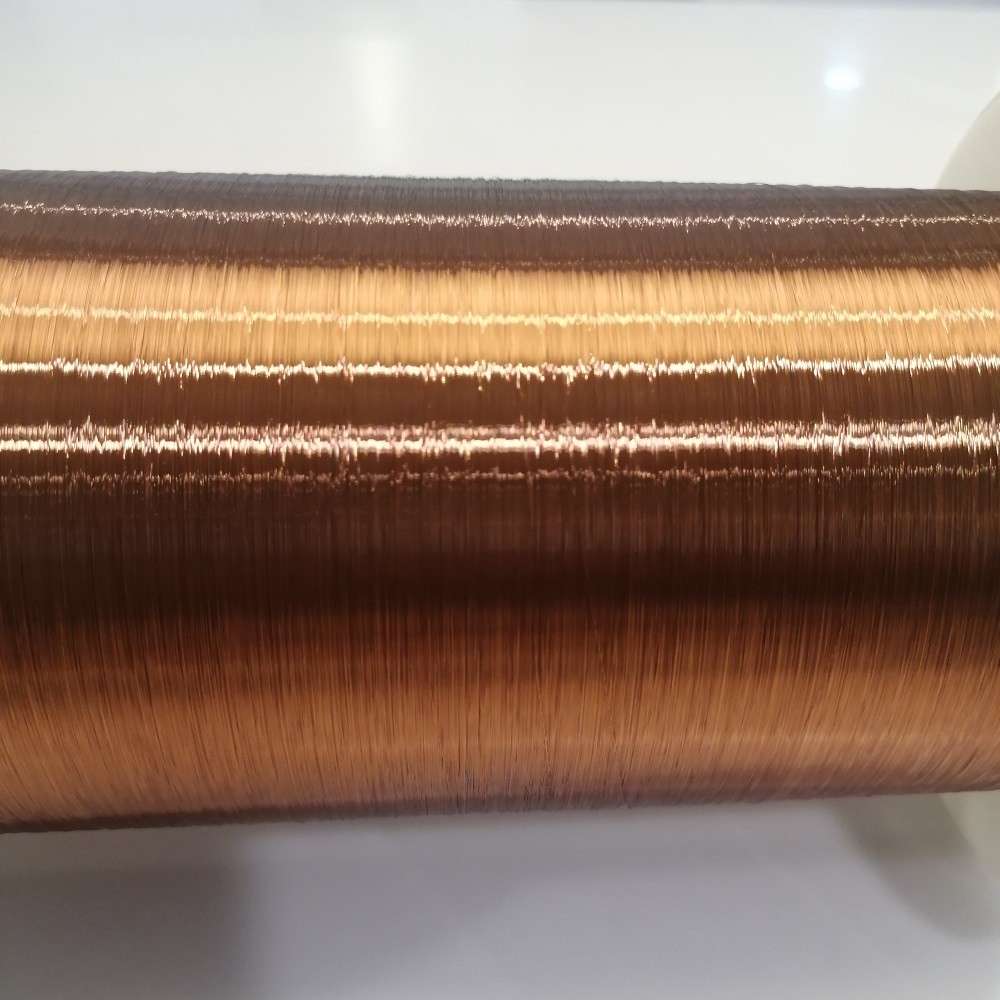

Self Adhesive Enameled Coated Magnet Wire For Voice Coil

Place of Origin Zhejiang, China
Brand Name CHINGCUNG
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number AISVWY3-2B/220-0.08
Minimum Order Quantity 20 Kg
Price Negotiation

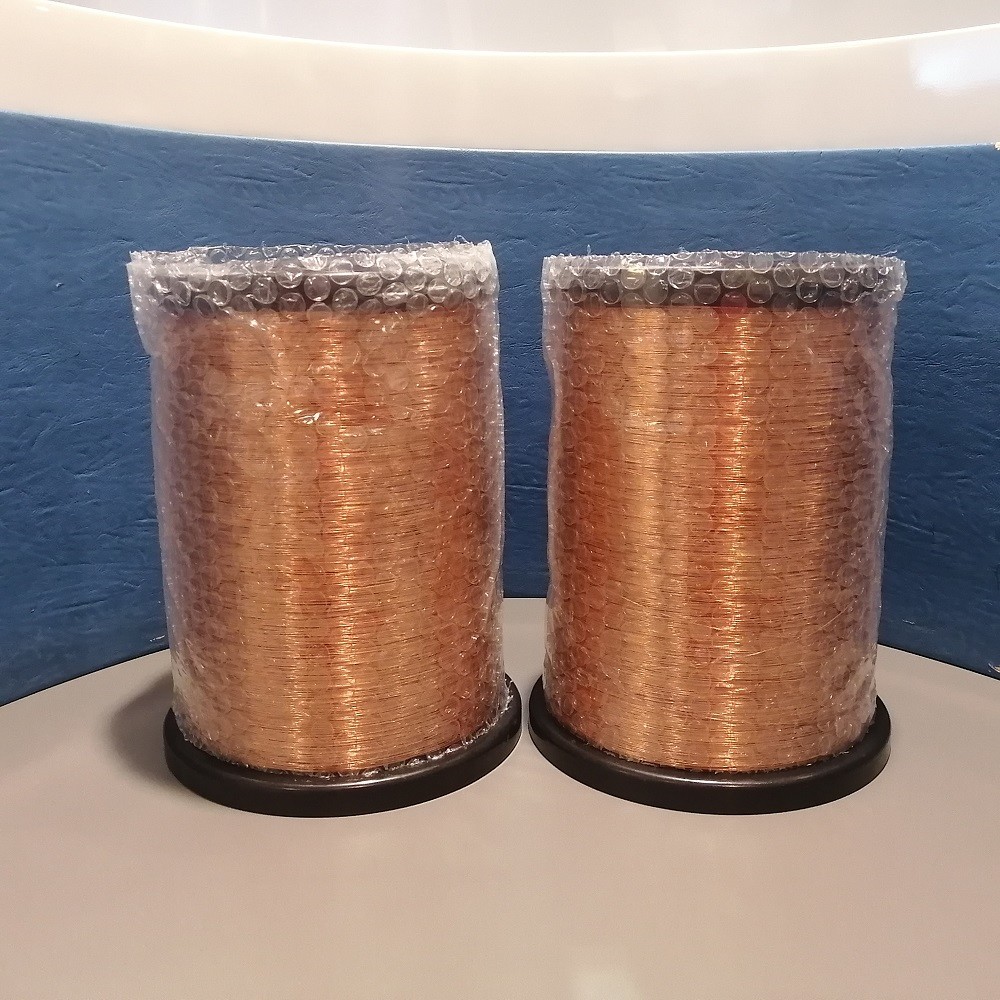

Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Order No 30011241080 Product Name Polyamideimide Composite Polyester Or Polyesterimide Enameled Round Copper Wires
Film Grade 2B Size 0.08mm
Bonding Method Hot Air Thermal Class 220
Advantage High Temperature Shape Round
High Light

Self Adhesive Coated Magnet Wire

,

Voice Coil Enamel Coated Magnet Wire

,

0.08mm Enamel Coated Magnet Wire

Leave a Message
Product Description

Class C+ High Temperature Self Adhesive Enameled Wire Super Thick Film For Voice Coil



Conductive copper wire with insulation paint package is called, is a kind of electrical material, special enameled wire is a special material for outsourcing of enameled wire, the diameter of the line from several silk one percent (mm) to a few millimeters used in the manufacture of coil, transformer, motor enameled wire, such as online star can effectively control product quality.



Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.



Specification:

Product Name 220℃ Self Bonding Enameled Copper Wire
Model Number AISVWY3-2B/220-0.08
Insulation Material Polyamideimide composite polyester or polyesterimide enameled
Conductor Diameter 0.08mm
Bonding Method Hot Air
Thermal Class 220
Film Grade 2B
Application Coils, Windings, Voice coils



FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.



Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.



Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!



Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.



Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
