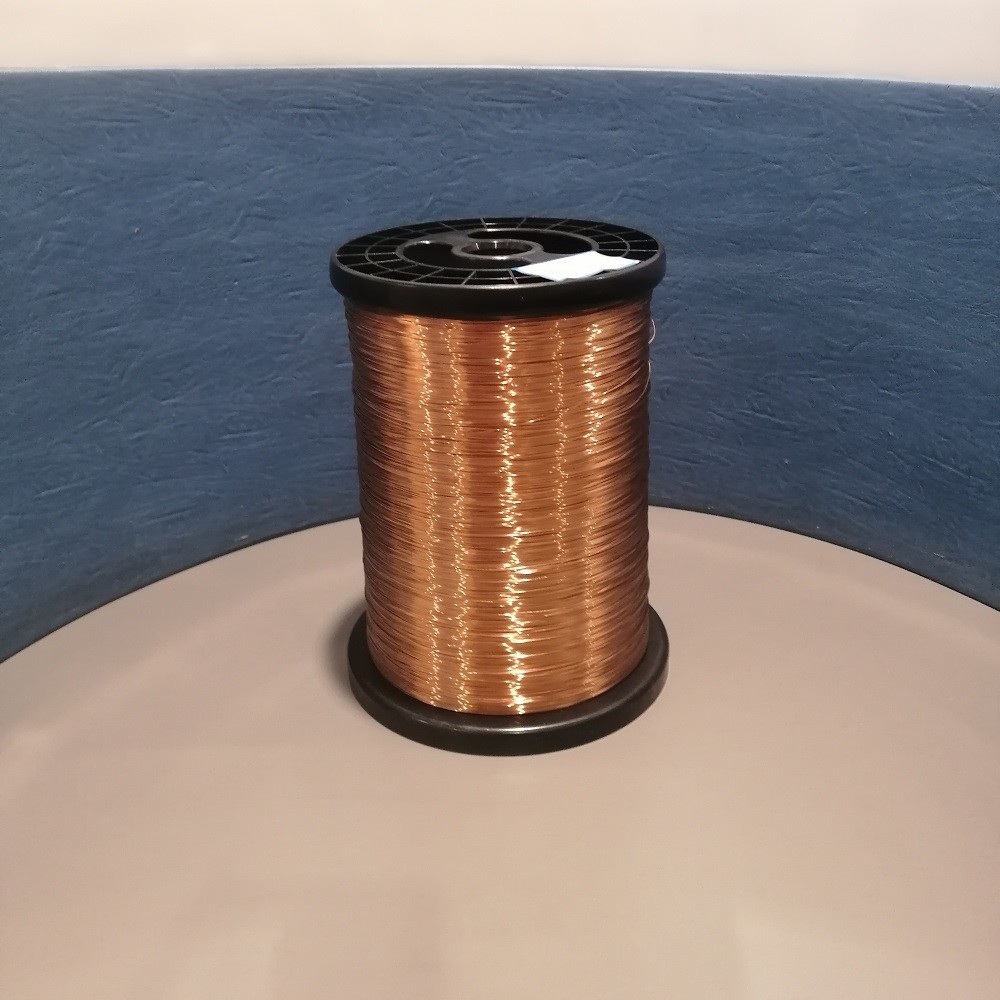

Fine Winding Polyesterimide Enameled Copper Wire For Magnetic Induction Coils

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number EISVWY3-2B/200-0.08
Minimum Order Quantity 30 Kg
Price Negotiation

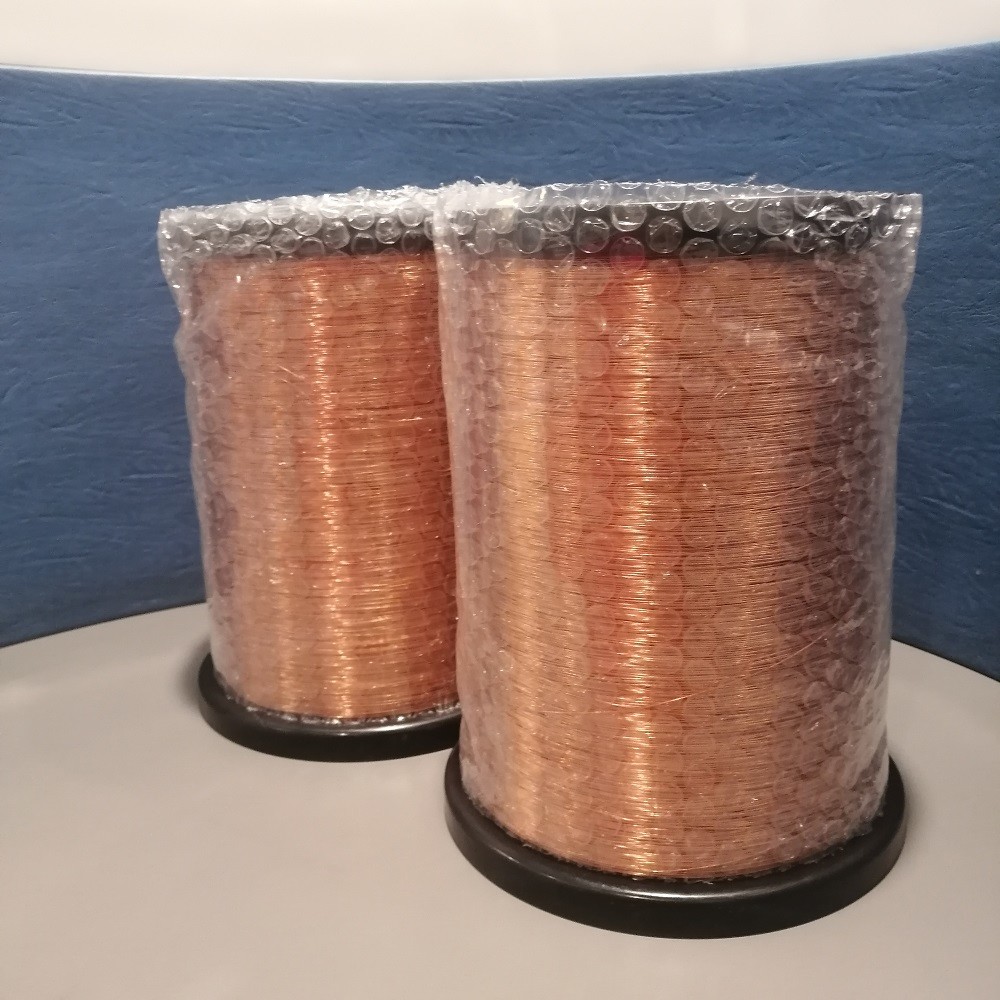

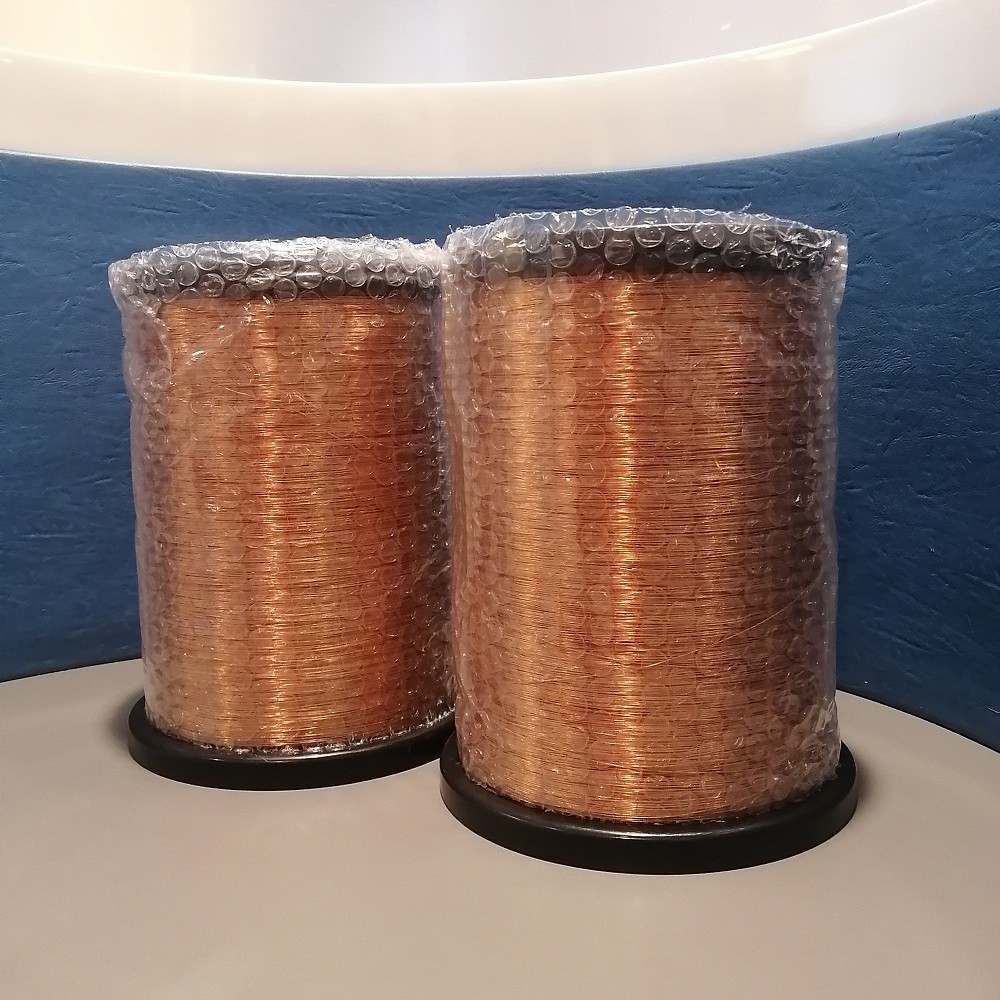

Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30011581080 Product Name High Temperature Self Adhesive Enameled Copper Wire
Insulation Material Polyesterimide(EIW) Conductor Diameter 0.08mm
Film Grade 2B Bonding Method Hot Air
Conductor Material Pure Copper Application Motor
High Light

EIW Winding Enameled Copper Wire


Magnetic Induction Coils Enameled Copper Wire


Magnetic EIW Enameled Copper Wire

Leave a Message
Product Description

Class 200 Fine Self Adhesive Enameled Copper Winding Wire For Magnetic Induction Coils


According to the degree of heat resistance, enameled wire insulation materials are divided into class Y, CLASS A, class E, class B, class F, class H and class C.

Class Y: insulation temperature 90℃, insulation material polyamide (pure nylon);
Class A: insulation temperature 105℃, insulation material polyamide (pure nylon);
Class E: insulation temperature 120℃, insulation materials are acetal, low temperature polyurethane;
Class B: insulation temperature 130℃, insulation material with polyurethane;
Class F: insulation temperature 155℃, insulation materials are polyurethane, polyester;
Class H: insulation temperature 180℃, insulation materials are polyurethane, polyester imine, modified polyester;
Class C: insulation temperature above 180℃, insulation material with aryl polyimide.


We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.



Model Number EISVWY3-2B/200-0.08 Place of Origin Zhejiang,China
Conductor Diameter 0.08mm Brand Name CHINGCUNG
Type Self-adhesive Feature Pin Hole 0
Bonding Method Hot Wind Delivery Time 3-10 work days
Thermal Rating 200 Application For making voice coils
Insulation Material polyesterimide Certification ISO9001/ISO14001/UL/SGS
Color natural Standard GB,IEC



Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.


Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.


Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!


Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.


Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
